E-Hawk V2 Frame Kit
The E-Hawk V2 Frame Kit revolutionizes DIY go-karting with its precision-laser cut tubes and unique 'click and weld' design. Delivering unmatched performance and ease. Build with confidence and drive with exhilaration. Experience the future of DIY go-karting.
*3-4 week lead time, next round ships early October.
Specs
-
- Material: Precision Laser-Cut A513 Steel
- Tubing: 1" x 1" x .120" Wall
- Weight Capacity: Designed to support up to 300 lbs
- Reinforcement: Gusseted joints for added strength
- Mounting Points: Pre-drilled for engine, seats, and accessories
- One-Way Keys: Non-Reversible Keys for foolproof assembly
-
- Spindles: Hawk V2 Spindles
- Spindle Brackets: Hawk V2 Extreme Strength
- Bearings: High-Quality Sealed Ball Bearings
- Spindle Spacers: 1/2" 6062 T6 Aluminum
- Heim Joints: 1/2" for Increased Strength
- Steering Post: 24" Long with Pre-welded Pitman Arm
- Camber: Adjustable from 0-20 degrees
- Caster: 10 Degrees
-
- Brackets: 0.118-0.250" HRPO Steel
- Part Tabs: 0.119" A1008 Steel
- Bumper: 0.100" 5052 H32 Aluminum
- Floor Pan: 0.100" 5052 H32 Aluminum
- Headlight Panels: 0.118" Dark Grey Acrylic
- Note: Bumper ships flat, Ready to be folded.
- Front Spindles: 5/8" OD, American standard.
- Steering Wheel Hub: Fits standard go-kart steering wheels. Adapter for 6-hole (1/4" Bolts, 2-3/4" Bolt Circle).
- Tires: Up to 12in diameter (front and rear). Front max width: 8 inches.
- Brakes: Compatible with MCP hydraulic brake system. Fits 6in and 7in rotors.
- Seat Sizes: Supports sizes Small to XXL.
- Rear Axle Hangers: Fits 1in and 1.25in American bearing carriers.
- Gas Tank: Compatible only with our 6qt tank (custom bolt pattern).
- Engine: Standard small block clone or Predator 212 style.
-
- Front Spindles: 5/8" OD, American standard.
- Steering Wheel Hub: Standard 3 Hole Style.
- Steering Wheel Adapter: 3 hole to 6-hole Grant style.
- Tires Diameter: Up to 12in diameter (front and rear).
- Tires Width: Front max width: 8 inches.
- Brakes: Compatible with MCP hydraulic brake system.
- Brake Rotor Size: 6in & 7in rotors.
- Seat Sizes: Supports sizes Small to XXL.
- Rear Axle Hangers: 1in & 1.25in bearing carriers.
- Motor: E-Hawk Pro - QS138 70H
- Battery: E-Hawk Pro - 72V Battery
- Controller: E-Hawk Pro - E&C Noisy Cricket
-

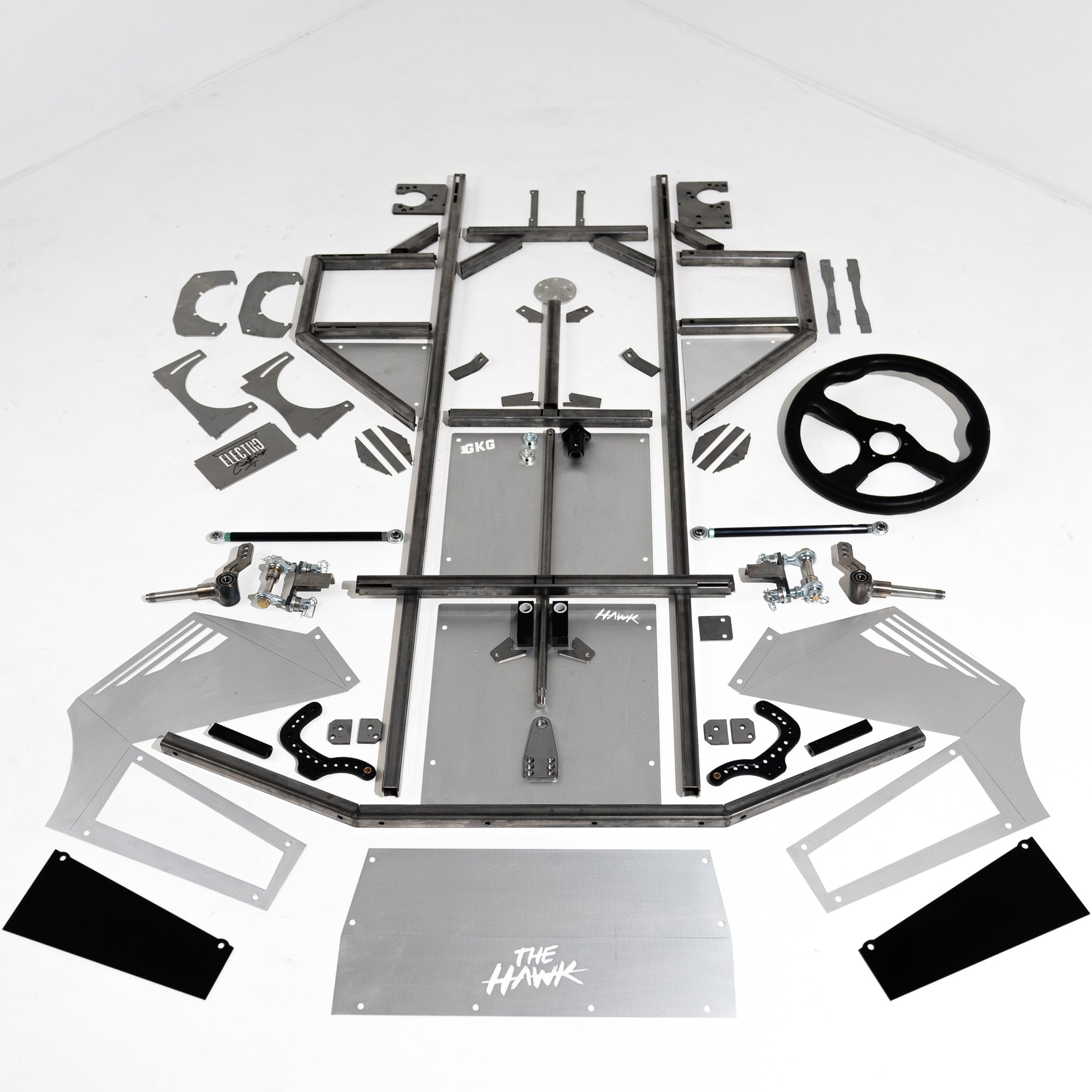

- 15pc Precision Laser Cut Steel Tubes
- 29pc Weldable Tabs and Parts
- 4pc Aluminum Floor Pan Kit
- 5pc Bumper Kit with Acrylic Smoked Headlights
- 5pc Motor Mount with Sliding Chain Adjustment
- 3pc Controller and Throttle adapter Plates
- 12pc Black Anodized Tie Rod Kit with 3/8" Heim Joints
- 2pc Black Anodized Steering Blocks with Steering Lock
- 4pc Black Fast & Slow Gas/Brake Pedals
- 1pc Black 14" Steering Wheel with Cap
- 1pc Black Anodized Aluminum Steering Wheel Adapter
- +180pc Hardware Kit for Full Kart Assembly
-
- Time to Weld Frame: 60-90 Mins
- Time to Assemble Kart: 1-2 Days
- Tools Required: Basic Hand Tools & Welder
- Hardware: All Necessary Hardware Included (nuts, bolts, etc.)
-
Our comprehensive build plans will be emailed to customers at the mid-October. These detailed plans include step-by-step instructions, part and tool lists, and clear diagrams, ensuring a smooth and successful build. Designed to guide both beginners and experienced builders, the plans cover every aspect of the assembly process, helping you assemble your Hawk V2 with ease.
-
A full parts kit will be released on BMIKarts.com later this week. This kit, along with your Hawk V2 Frame, includes every necessary part except the engine, offering a comprehensive and well-thought-out solution for building the ultimate high performance go-kart. Customers will be emailed with detailed information about the kit upon its release.
