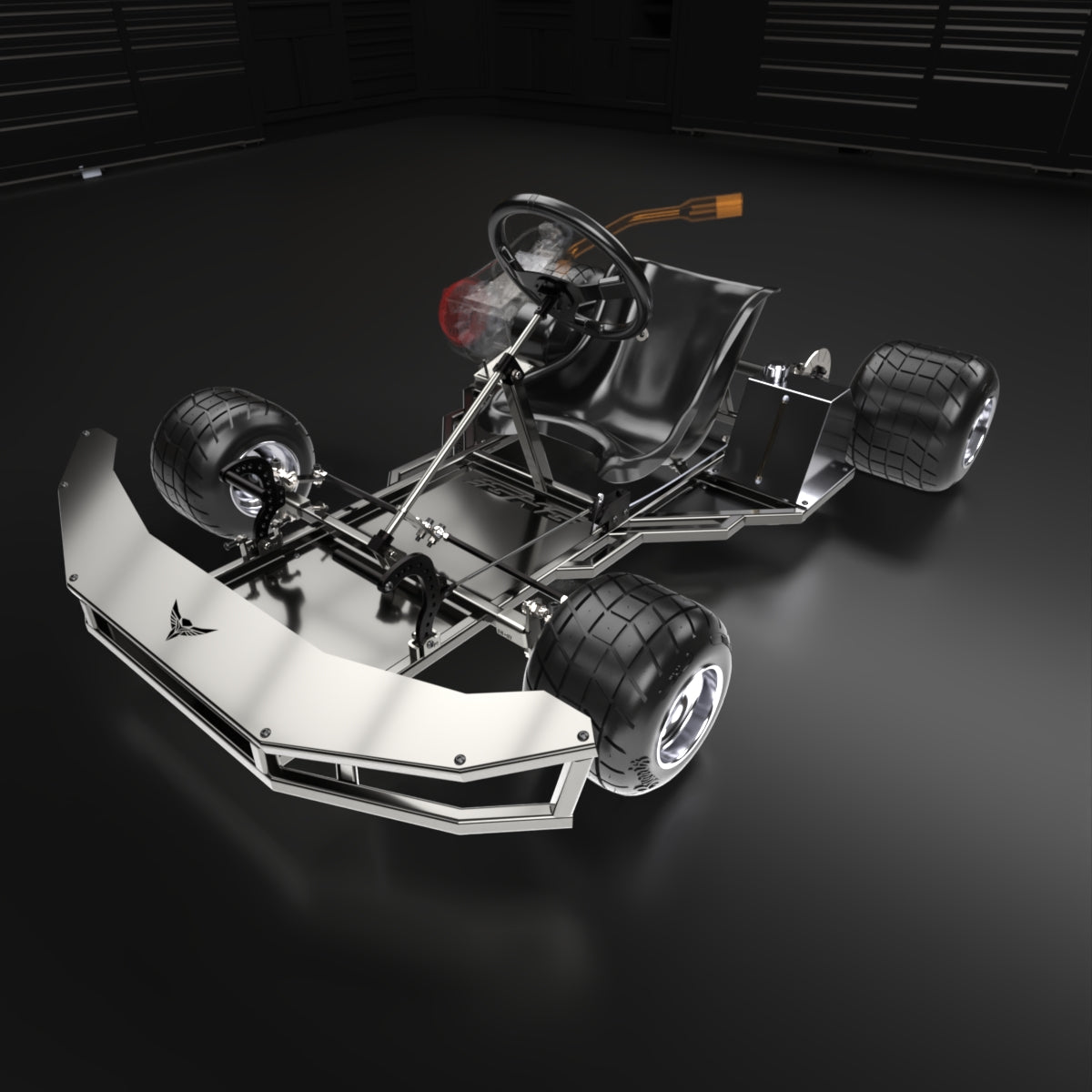

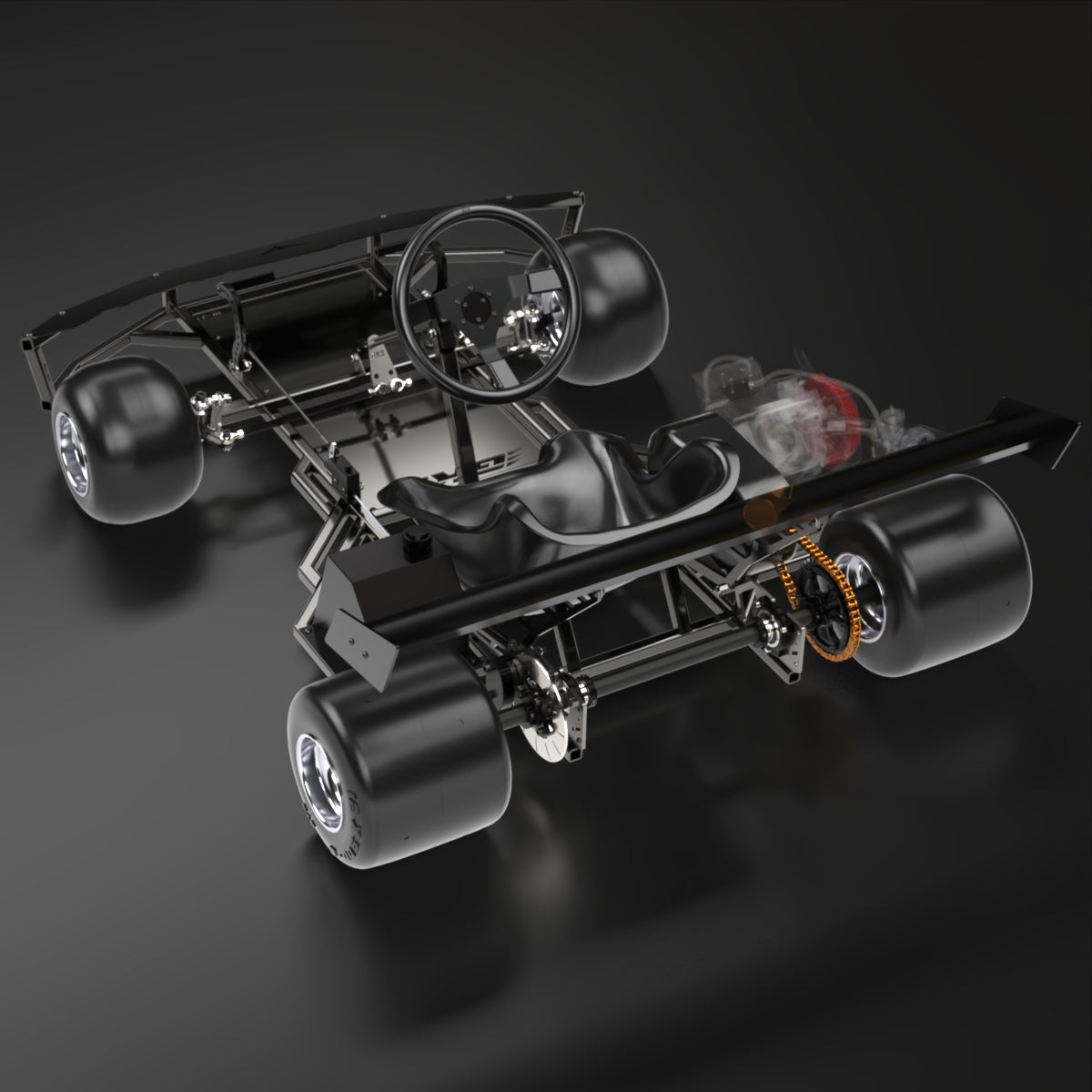

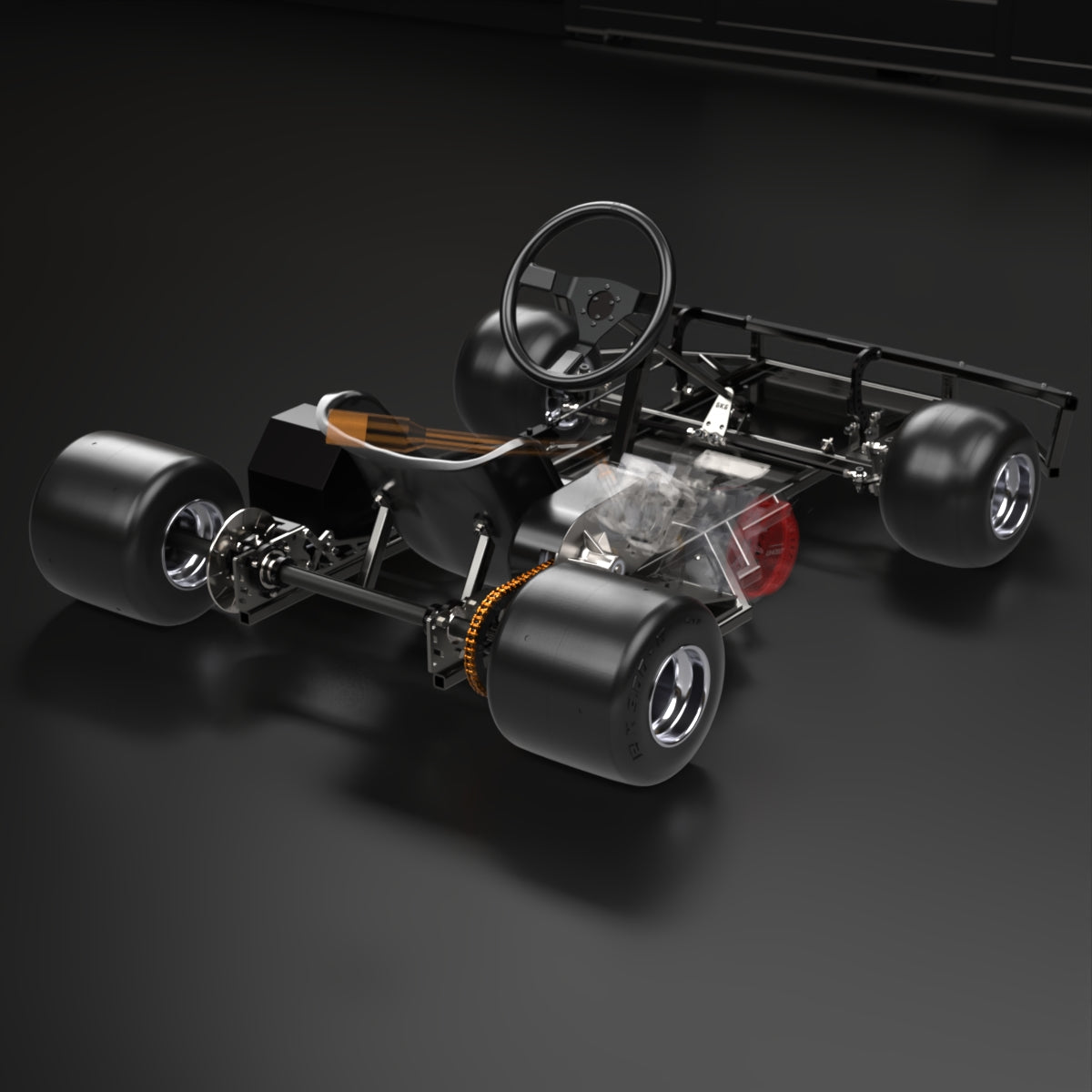

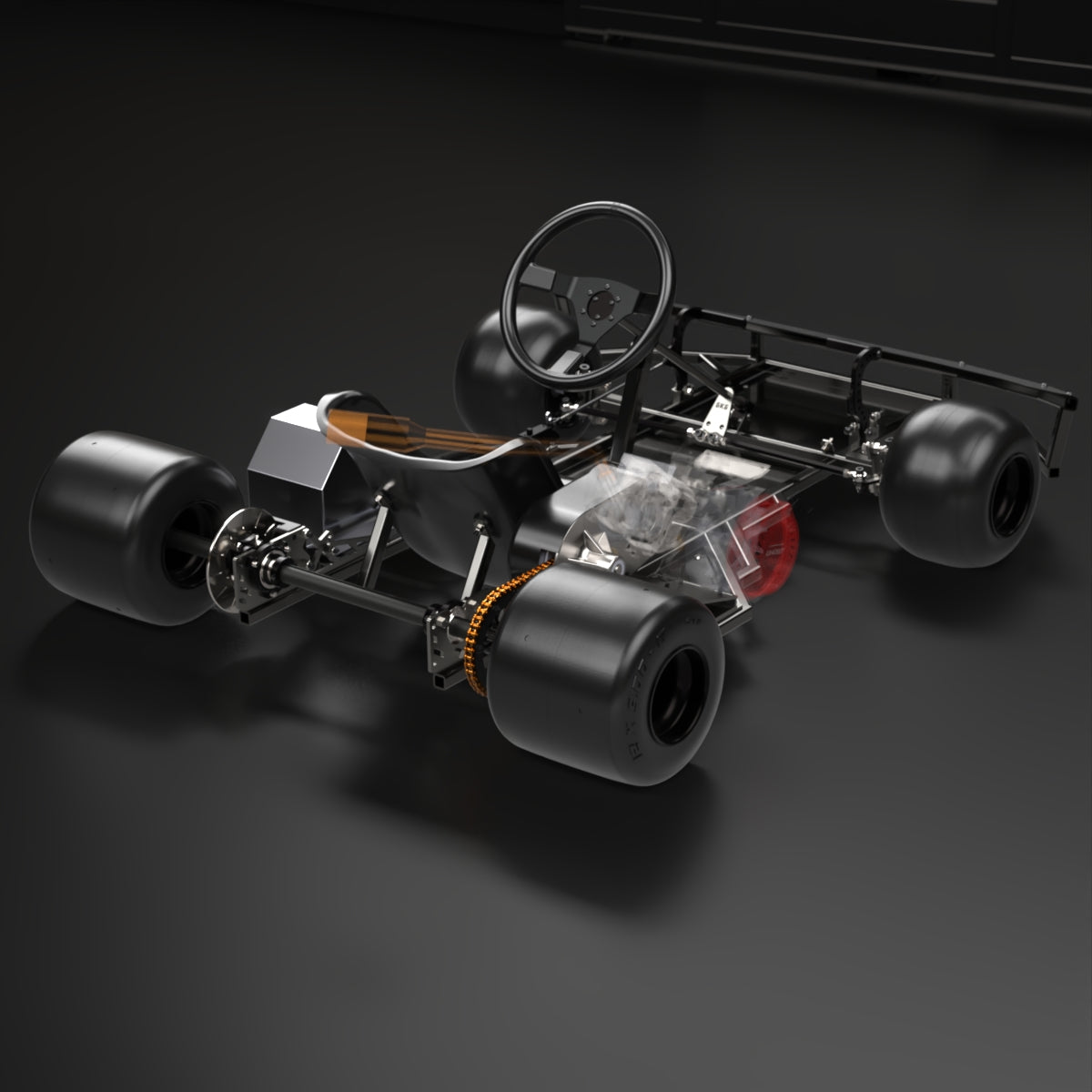

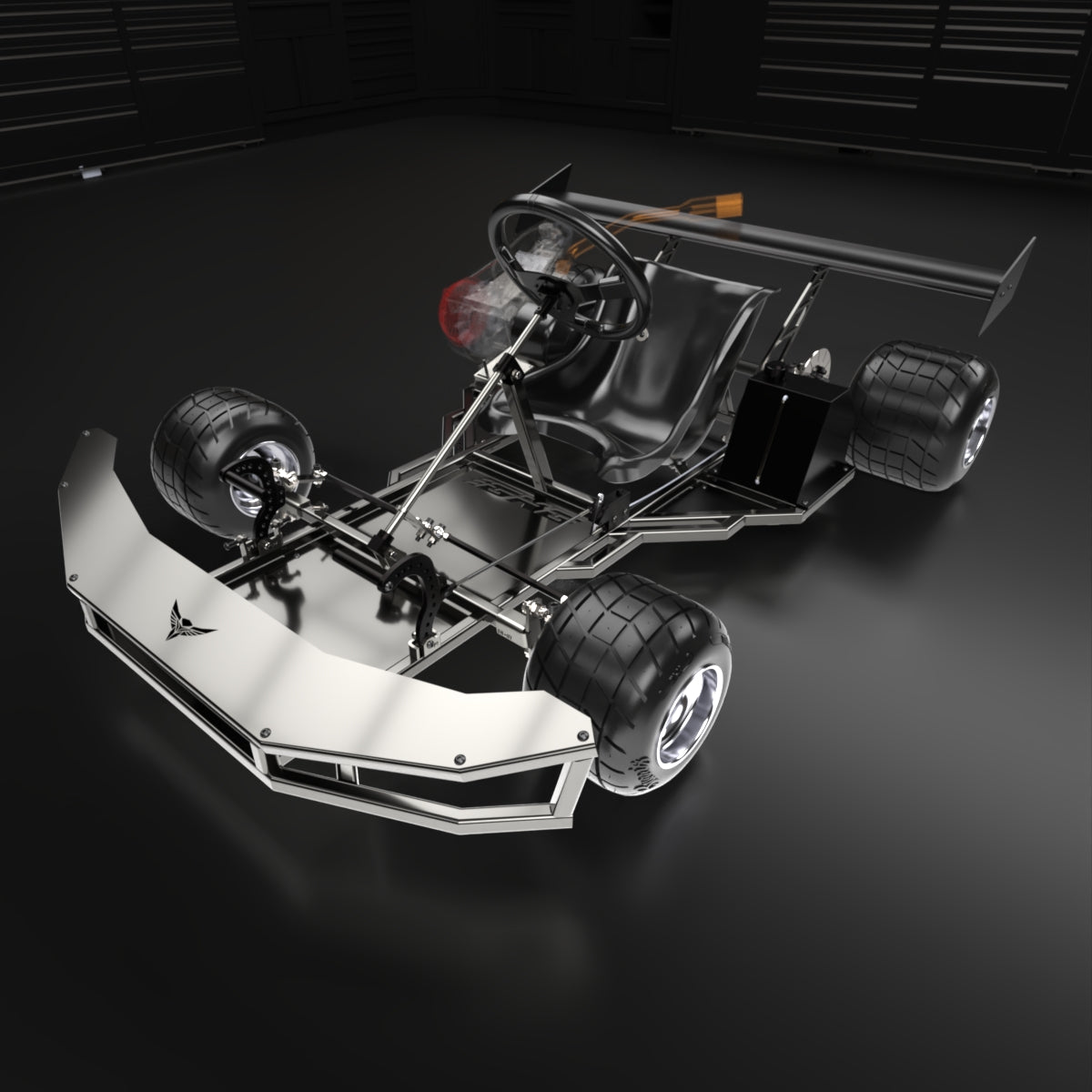

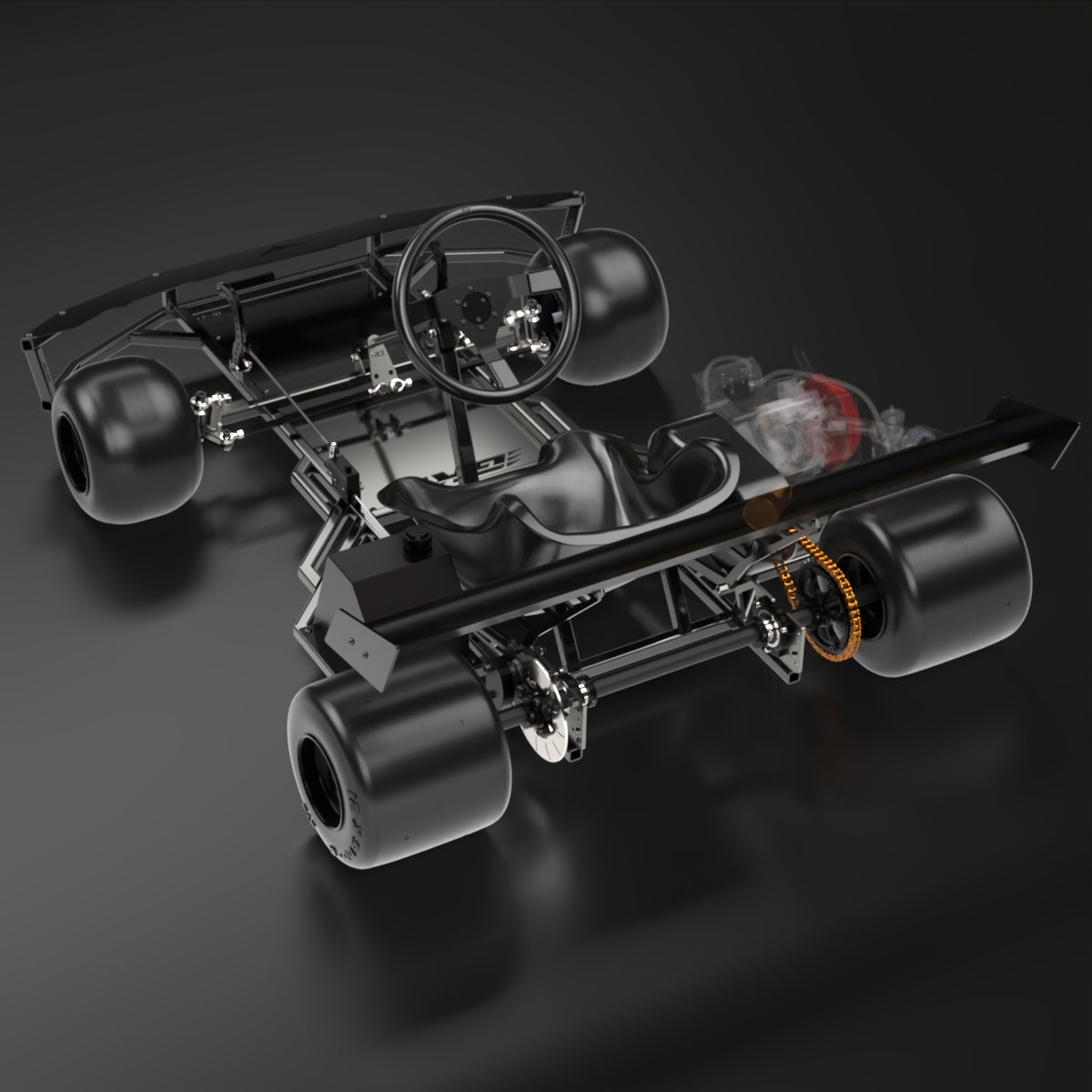

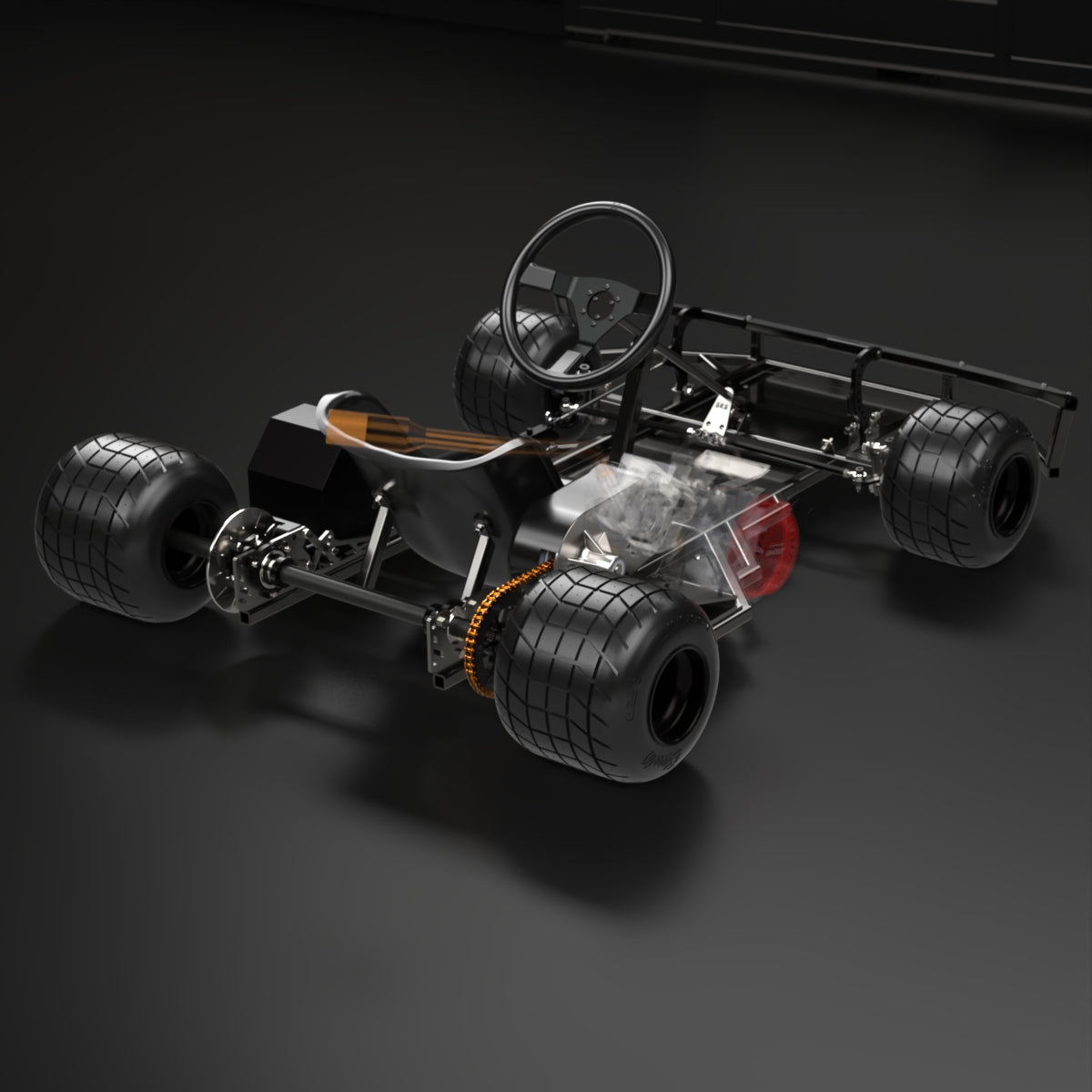

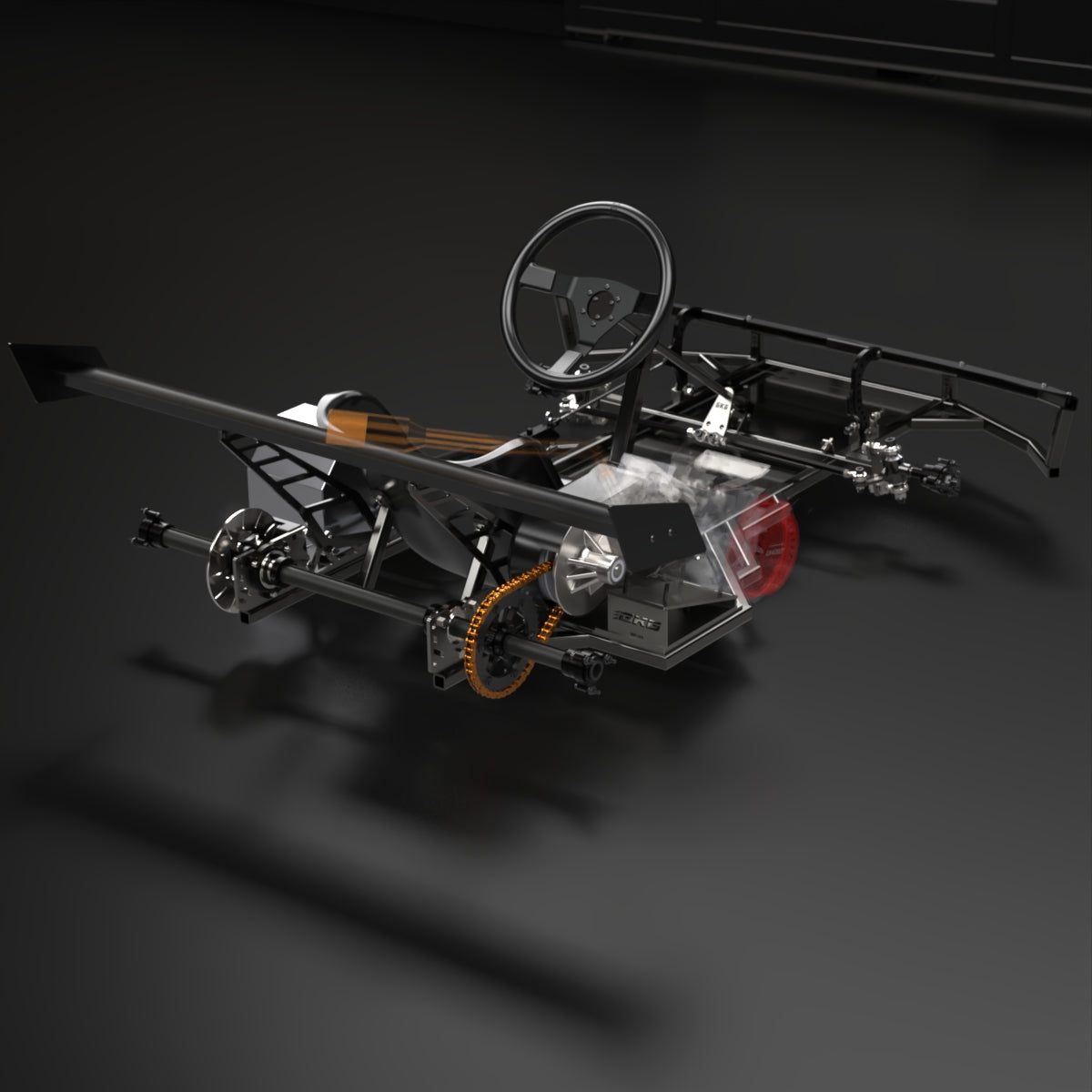

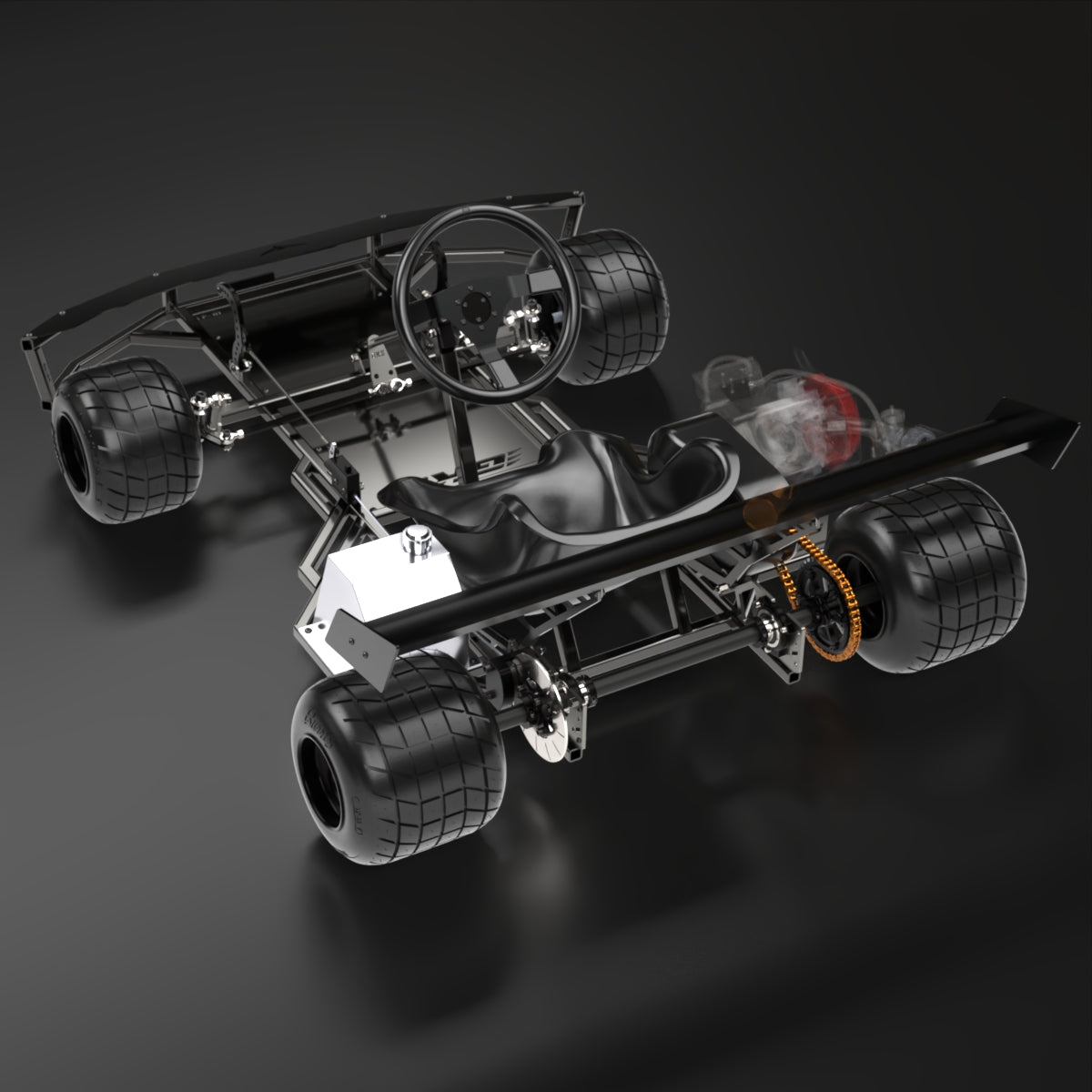

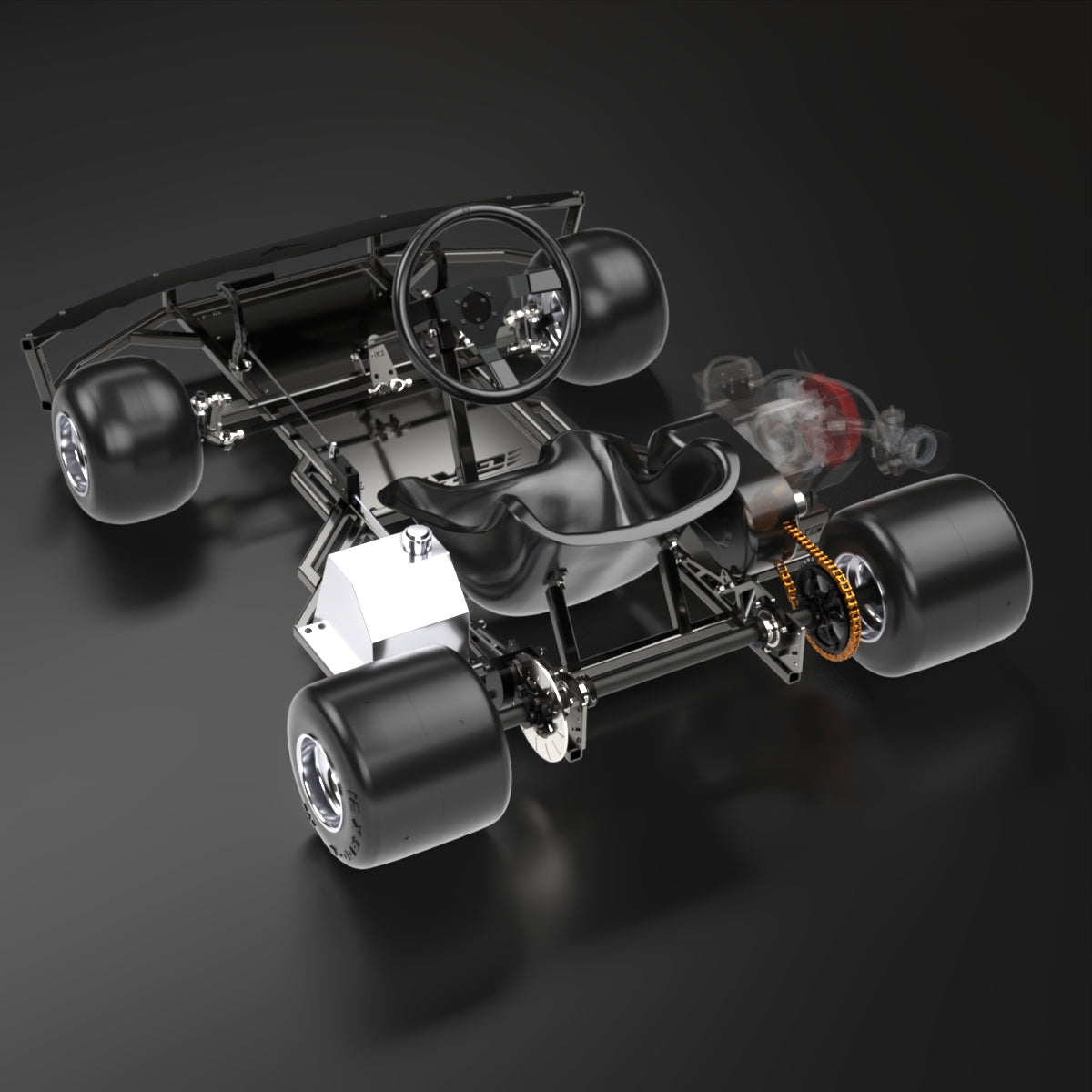

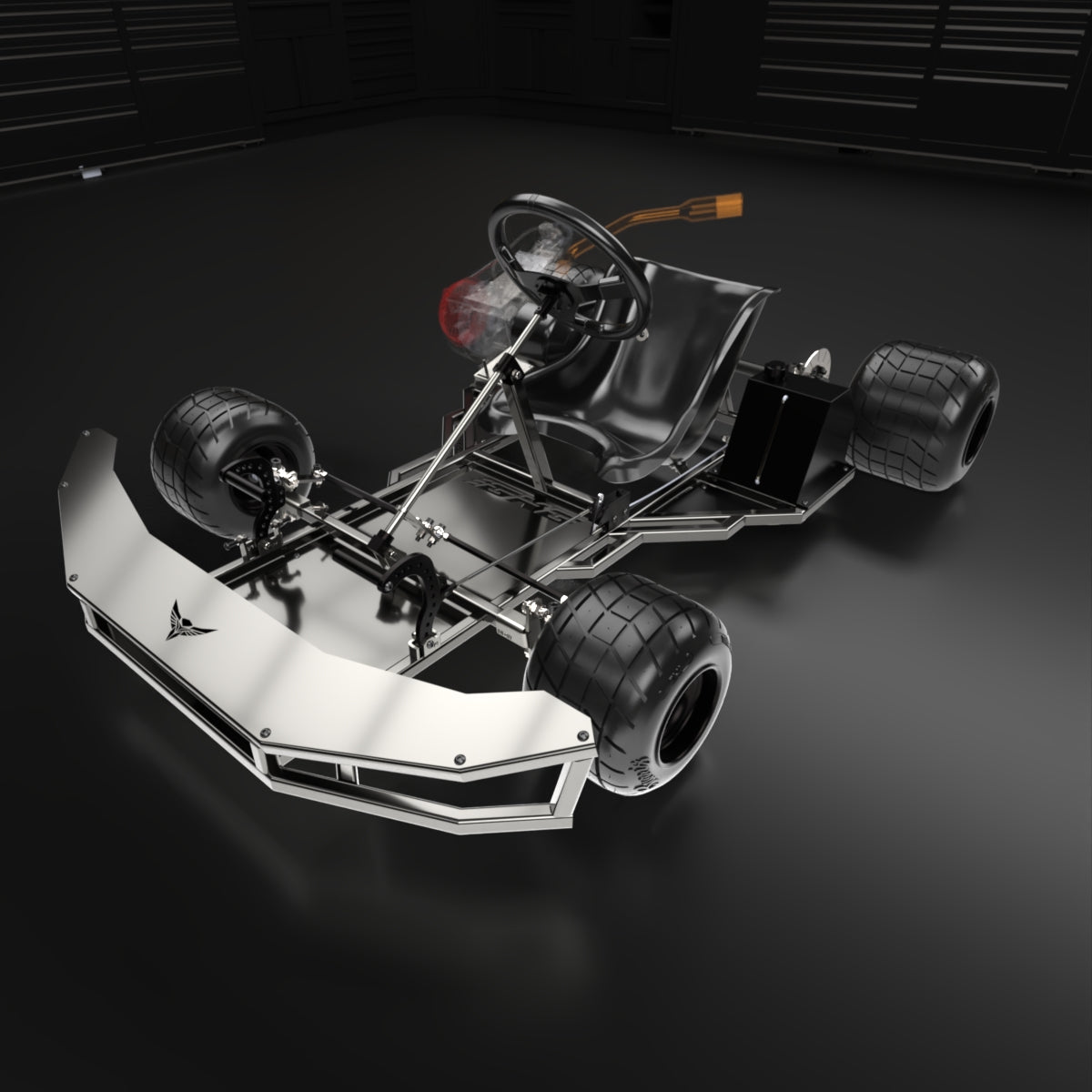

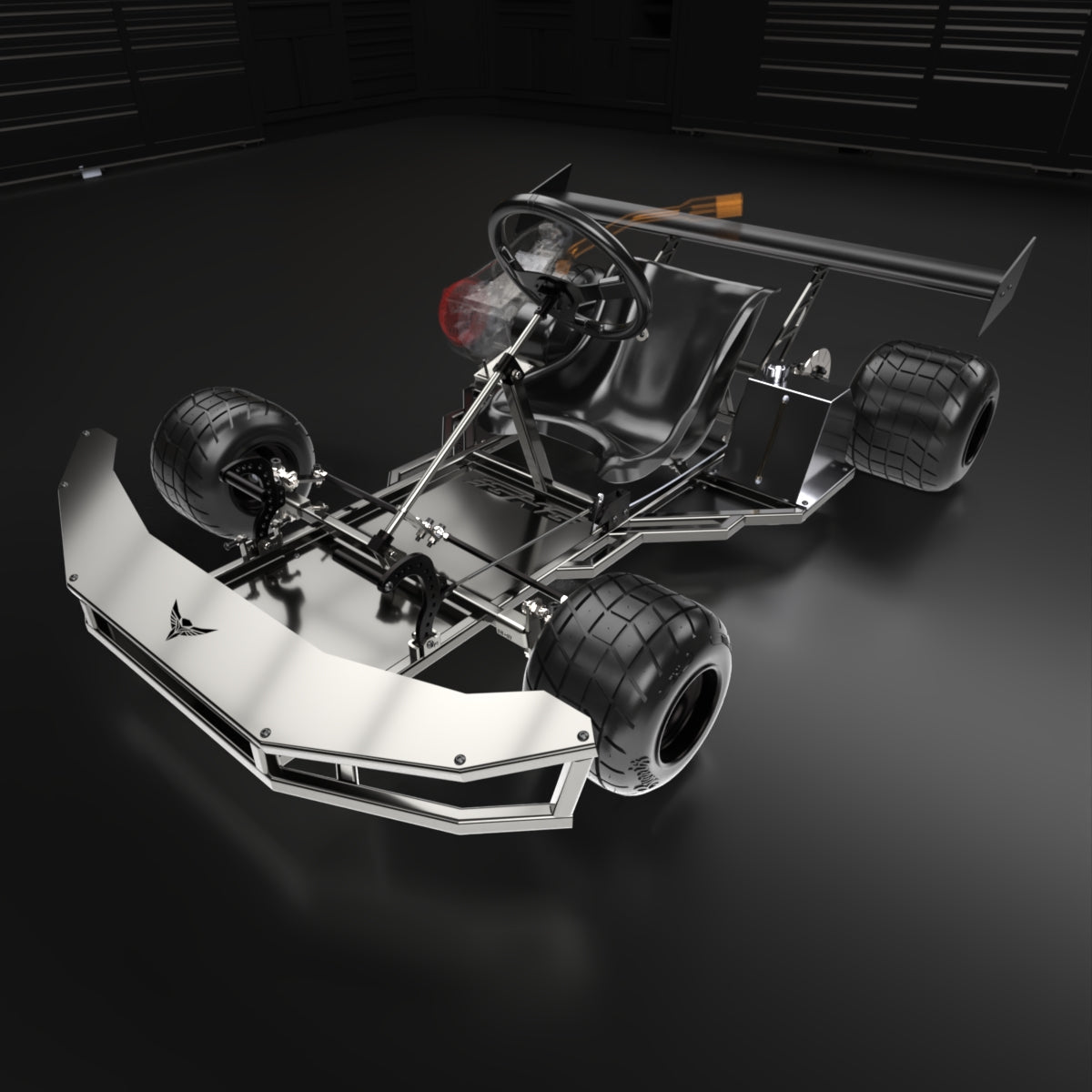

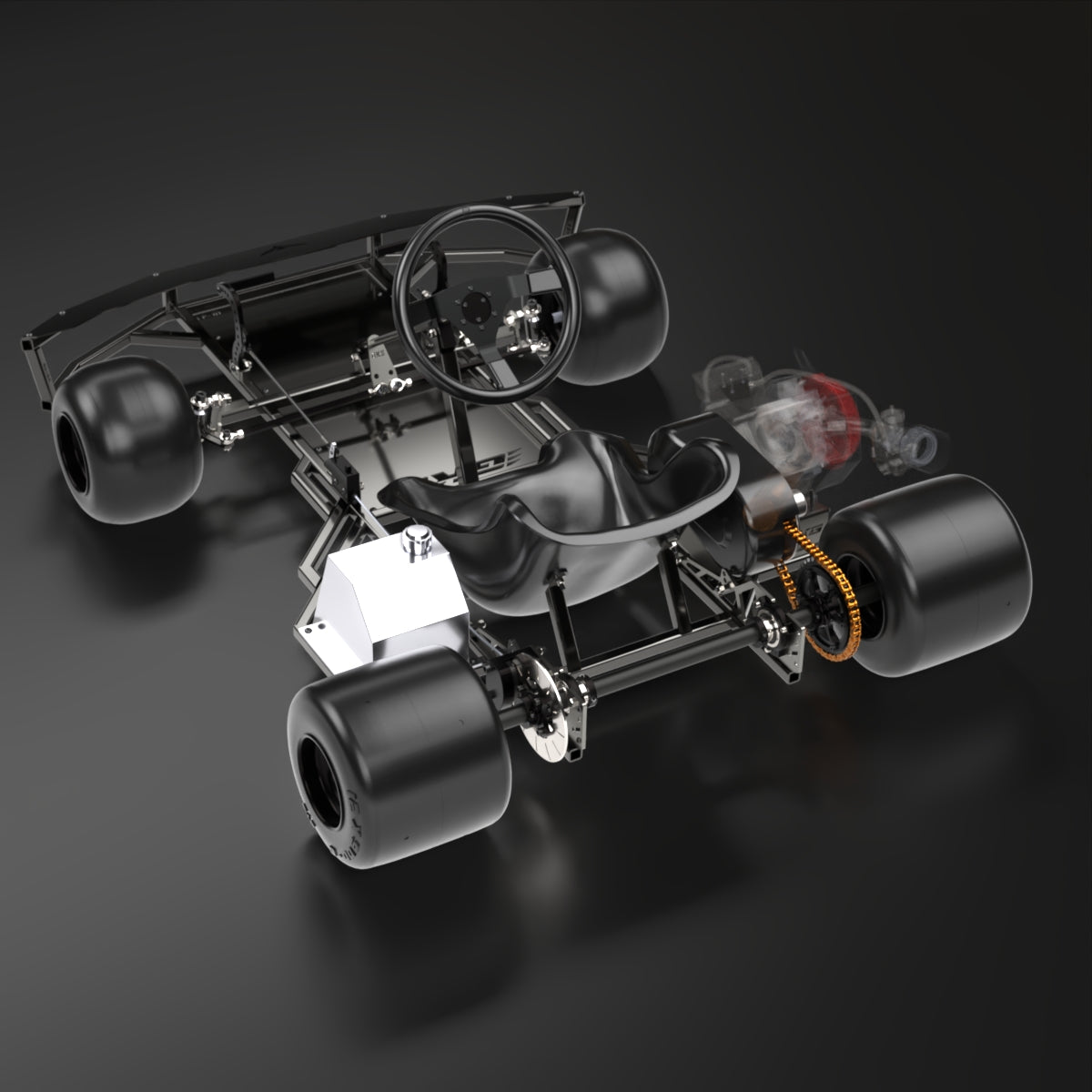

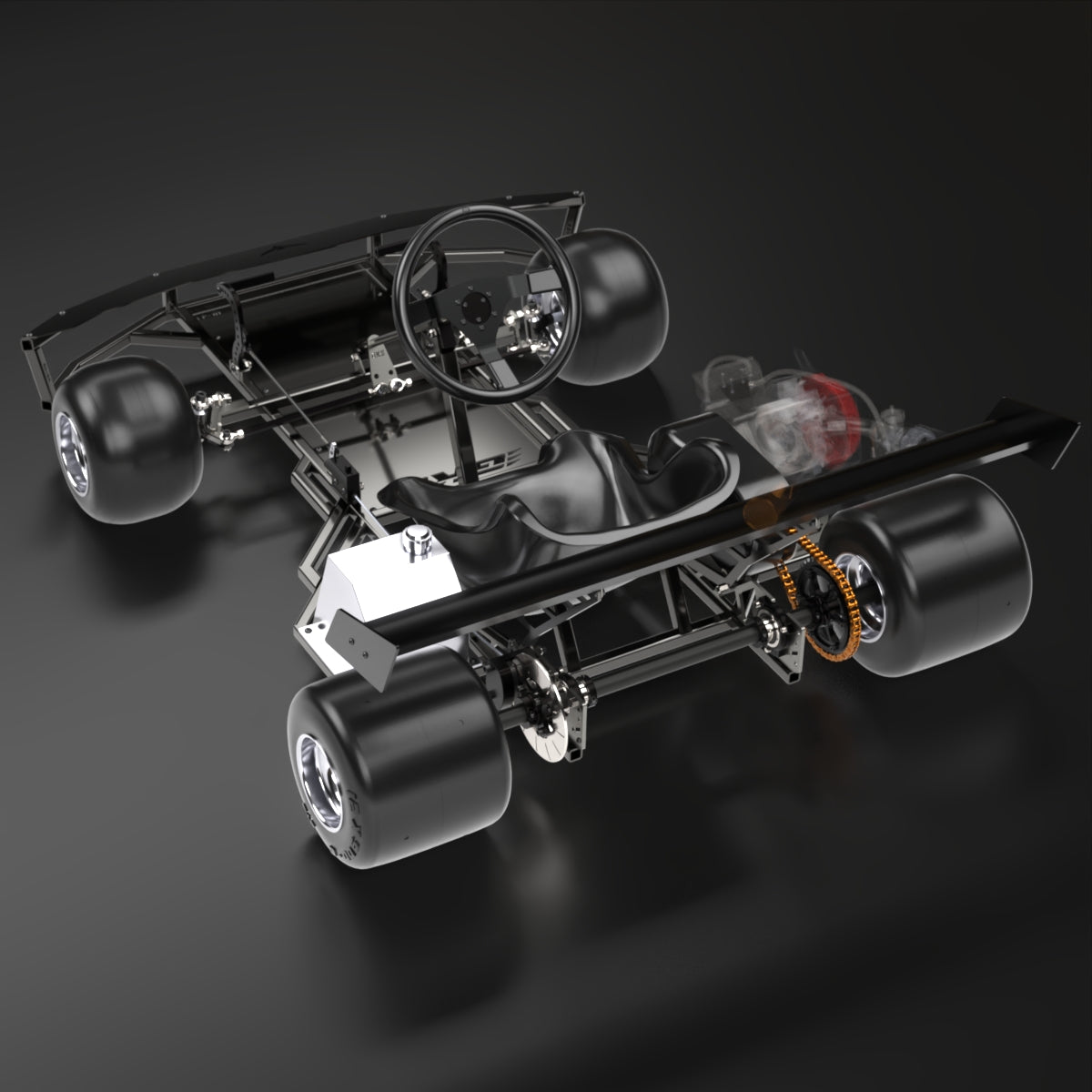

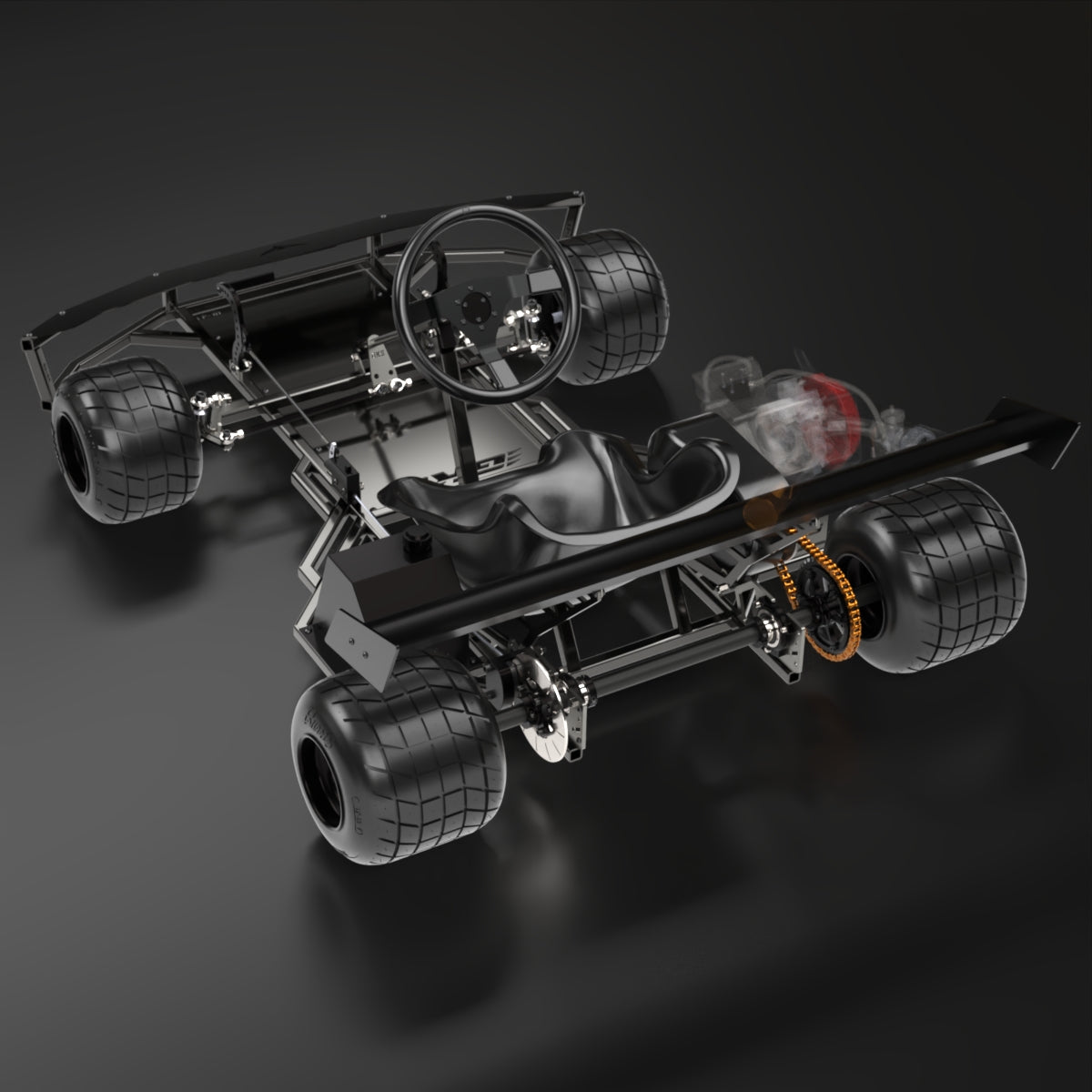

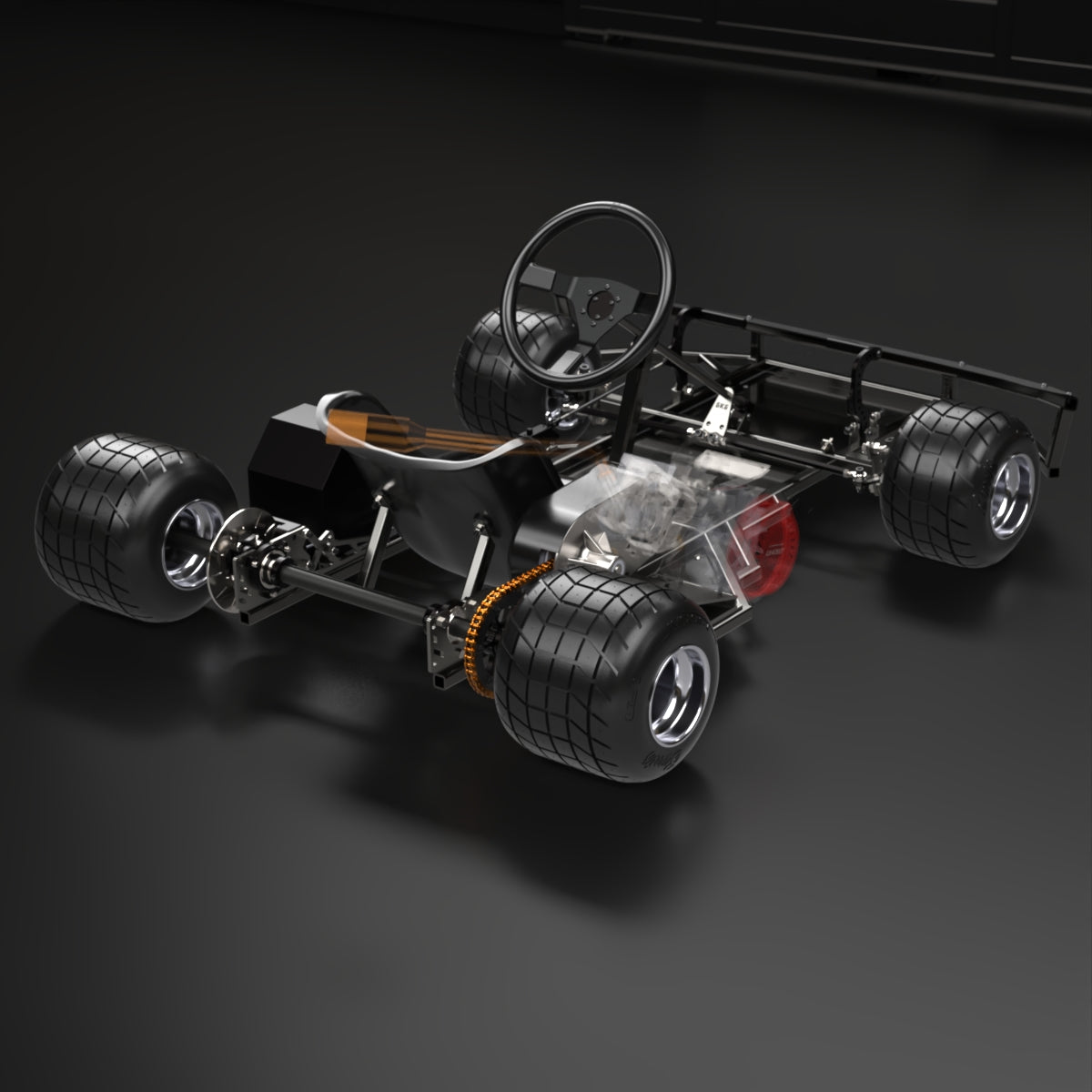

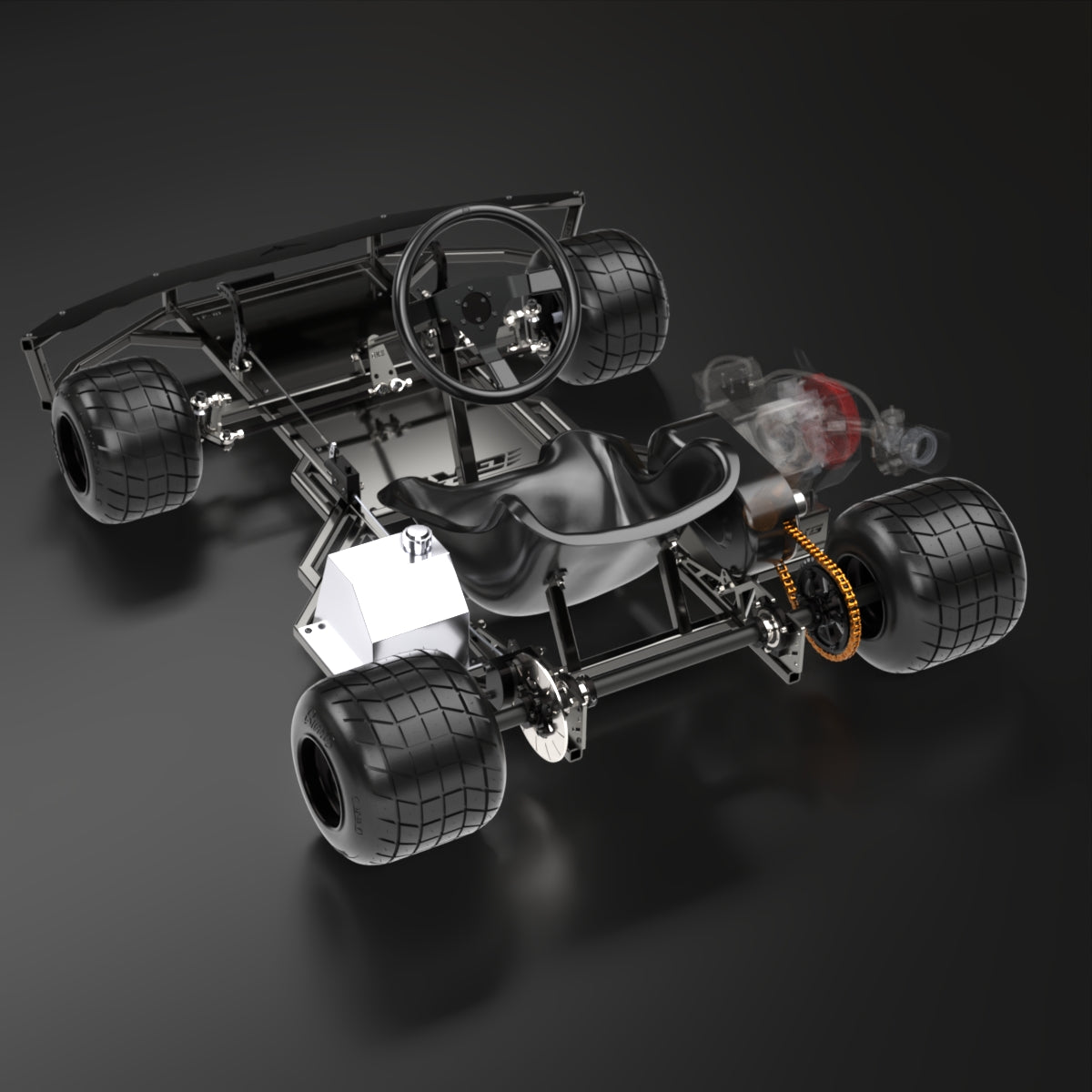

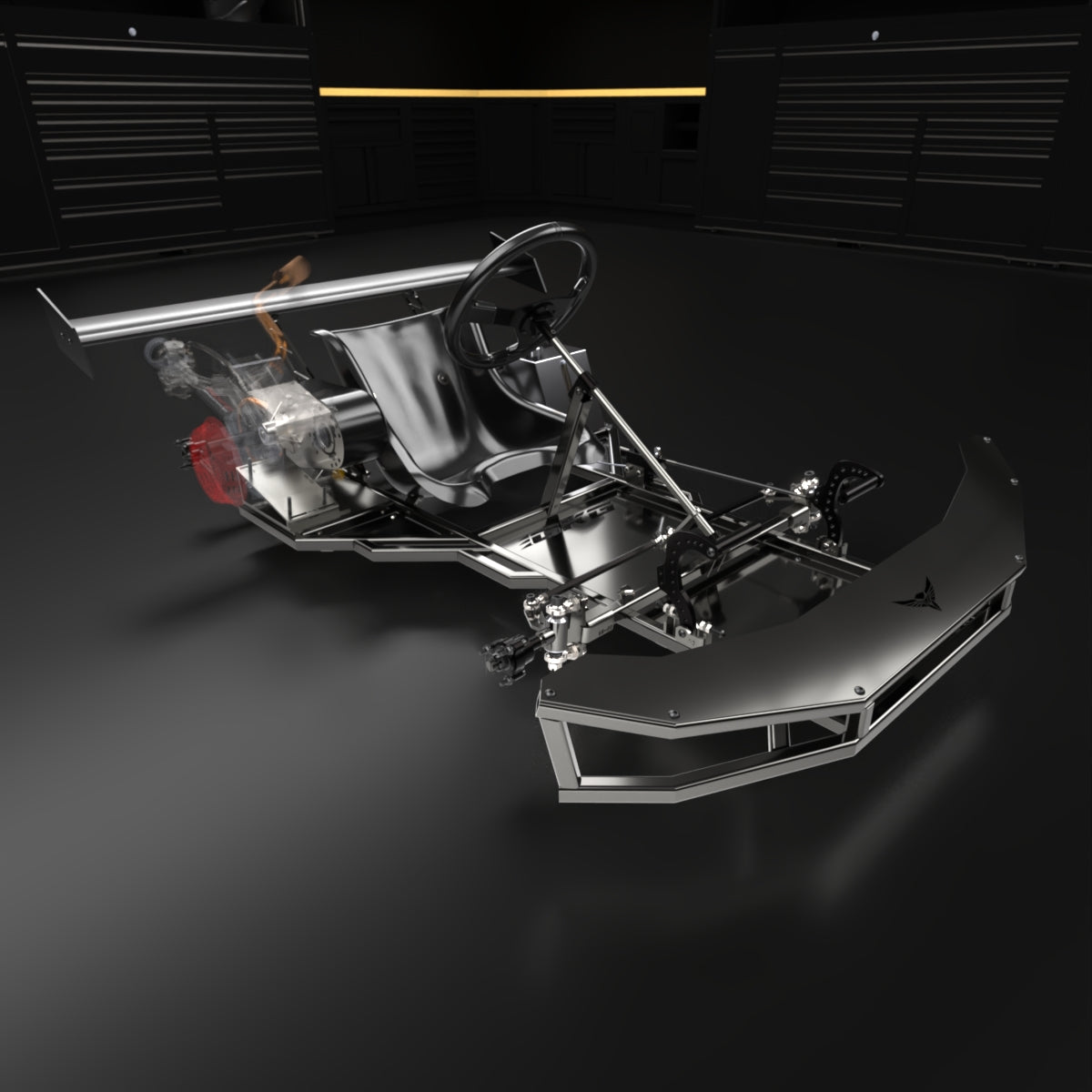

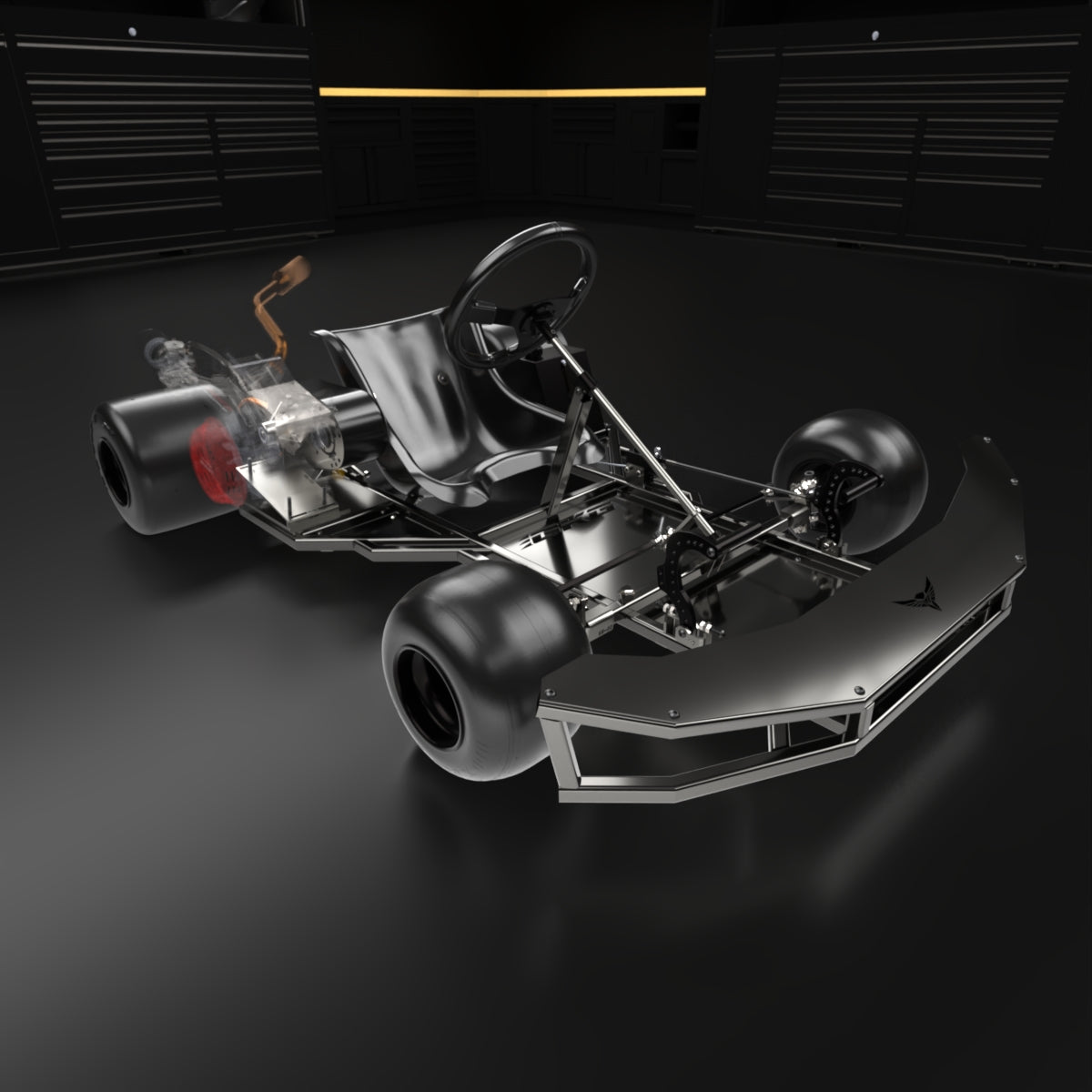

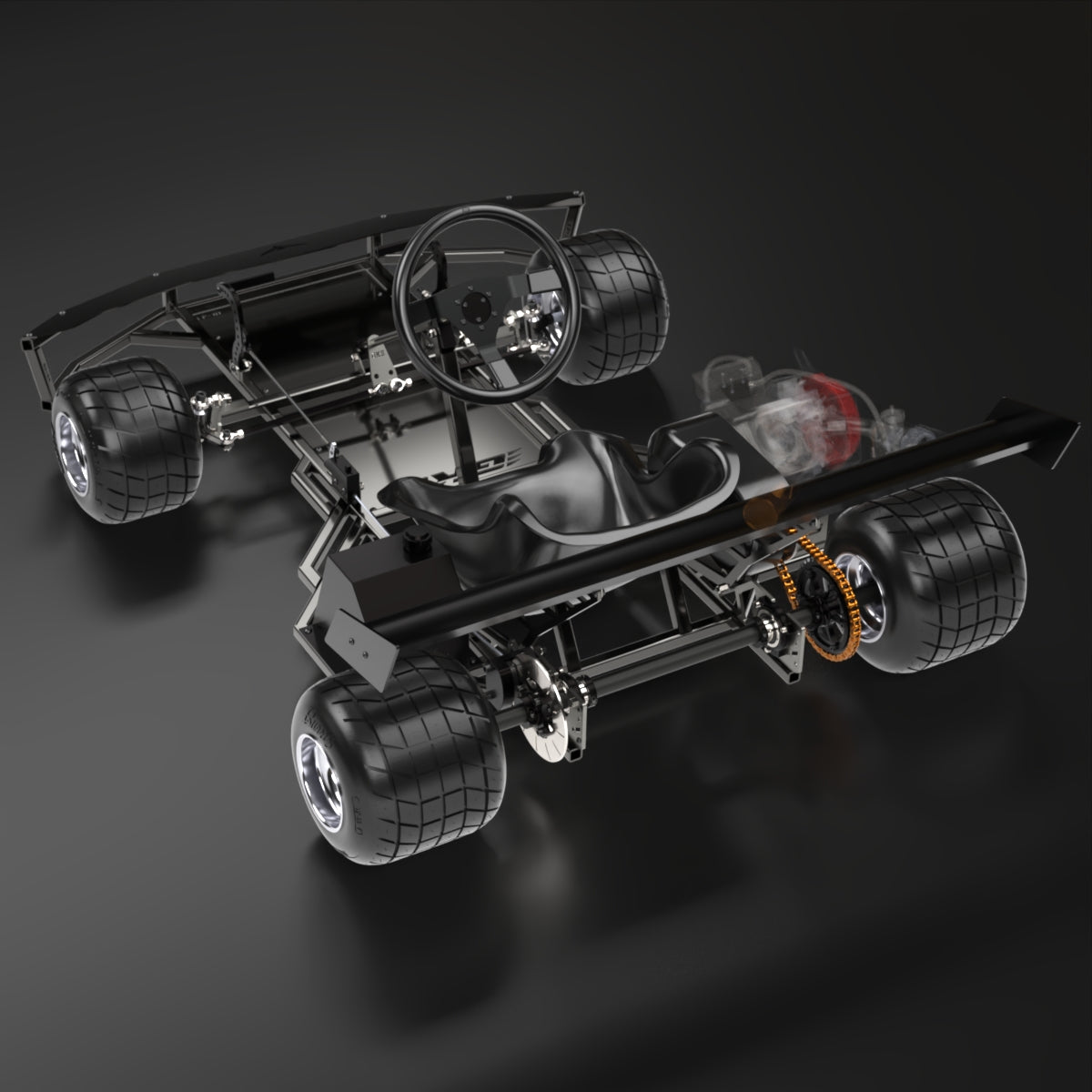

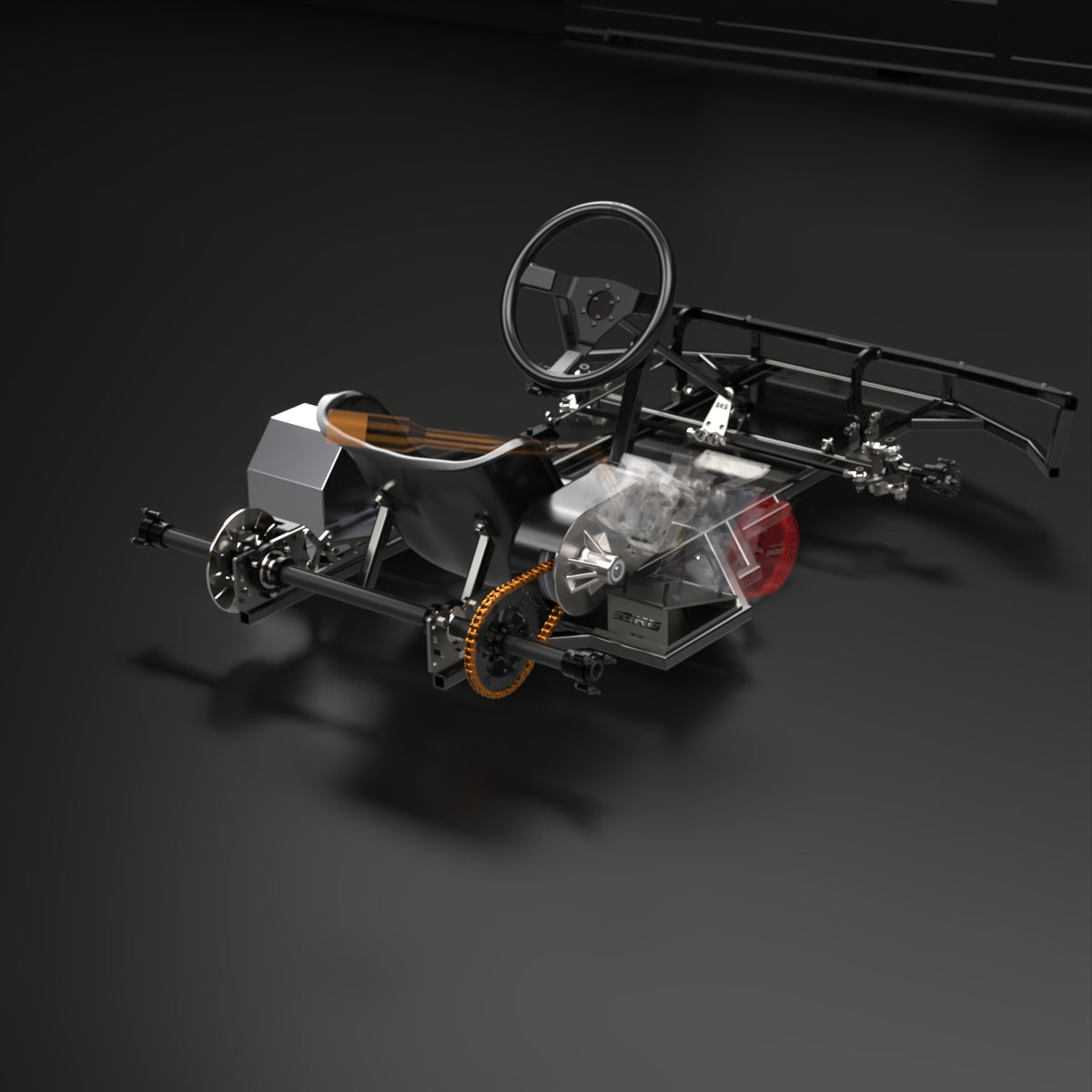

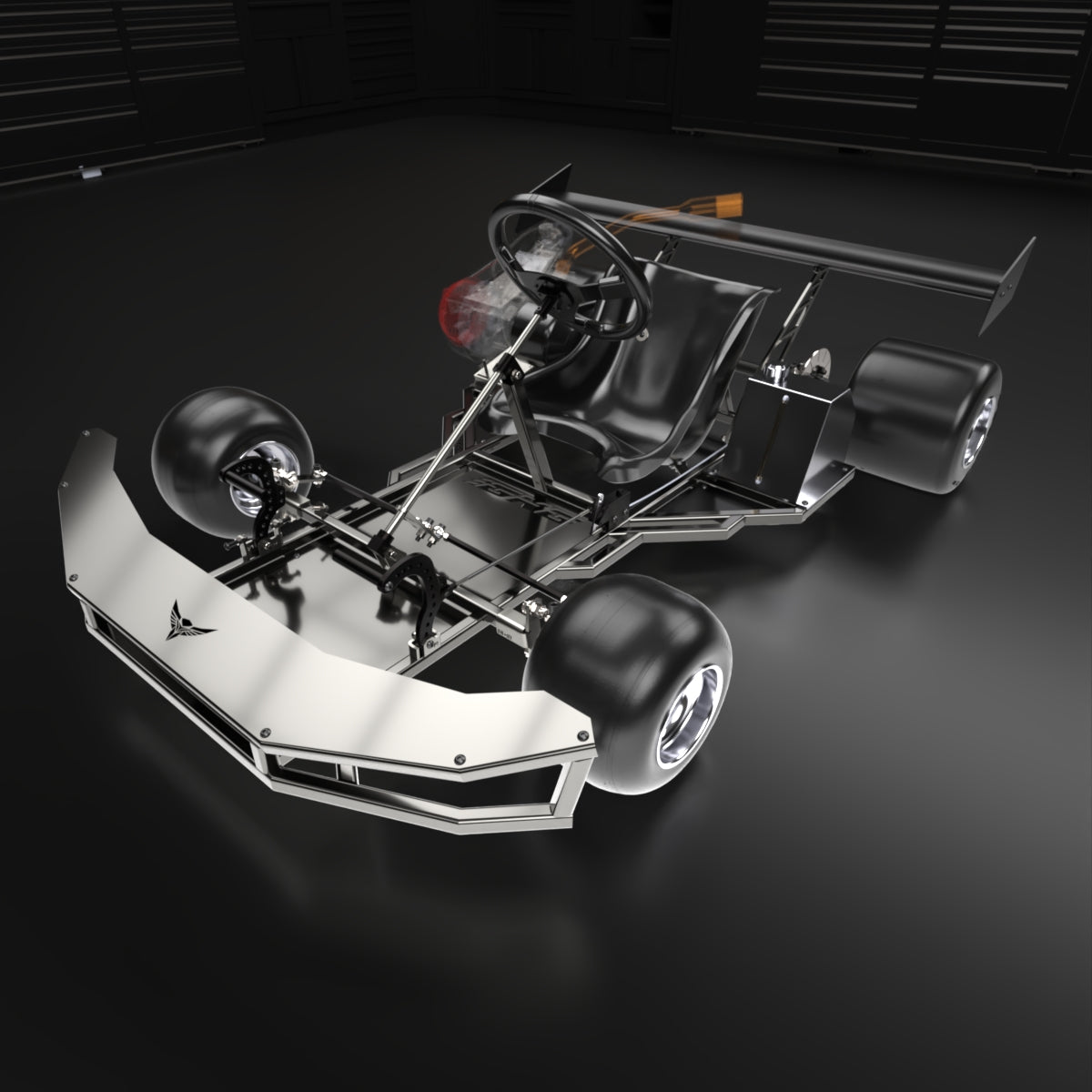

Hawk V3 Gas
Due to high demand, new orders will ship in January. Order early to be among the first to get your Hawk V3 Kit.
Have a question or need assistance? Call us at 480.955.KART (ext. 0)

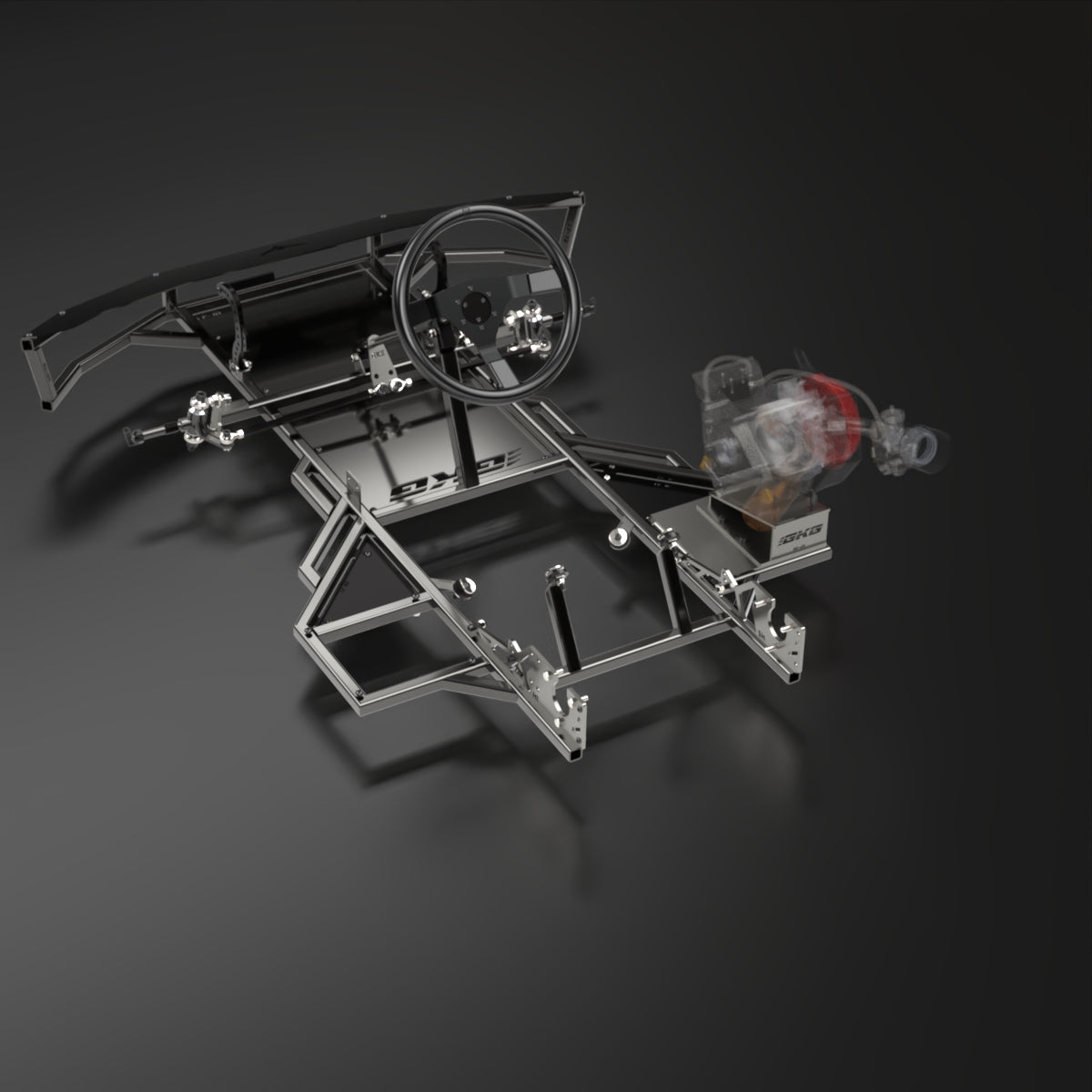

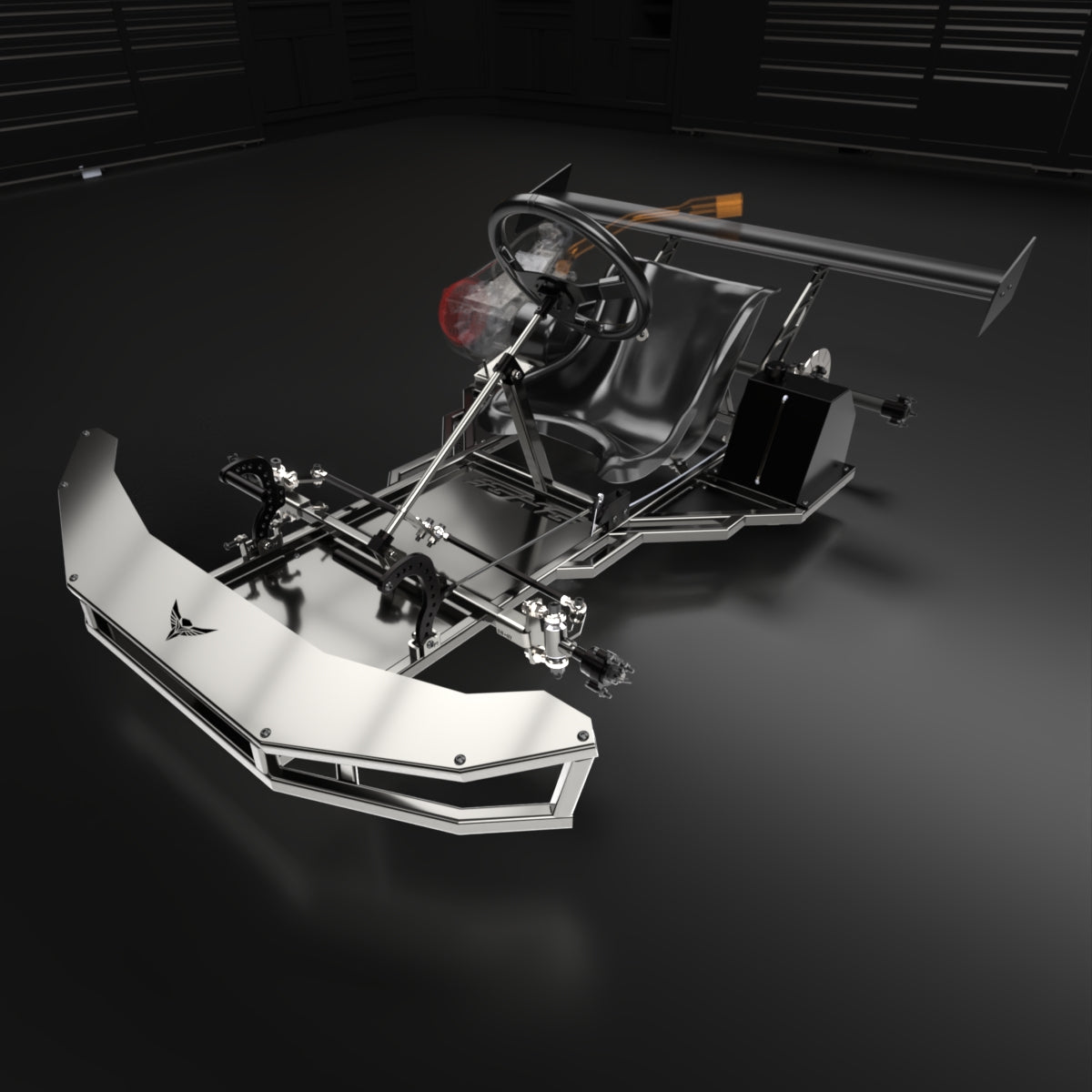

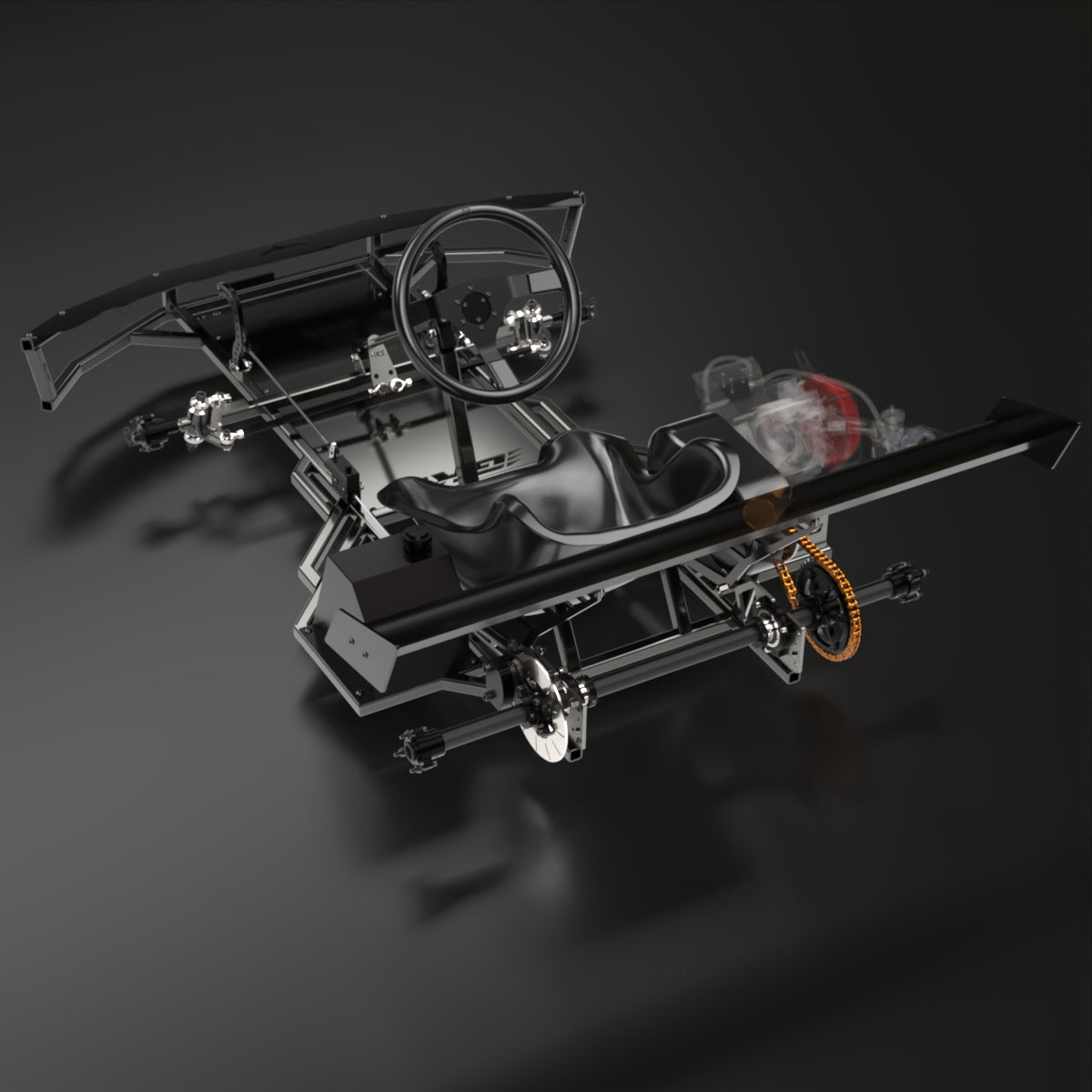

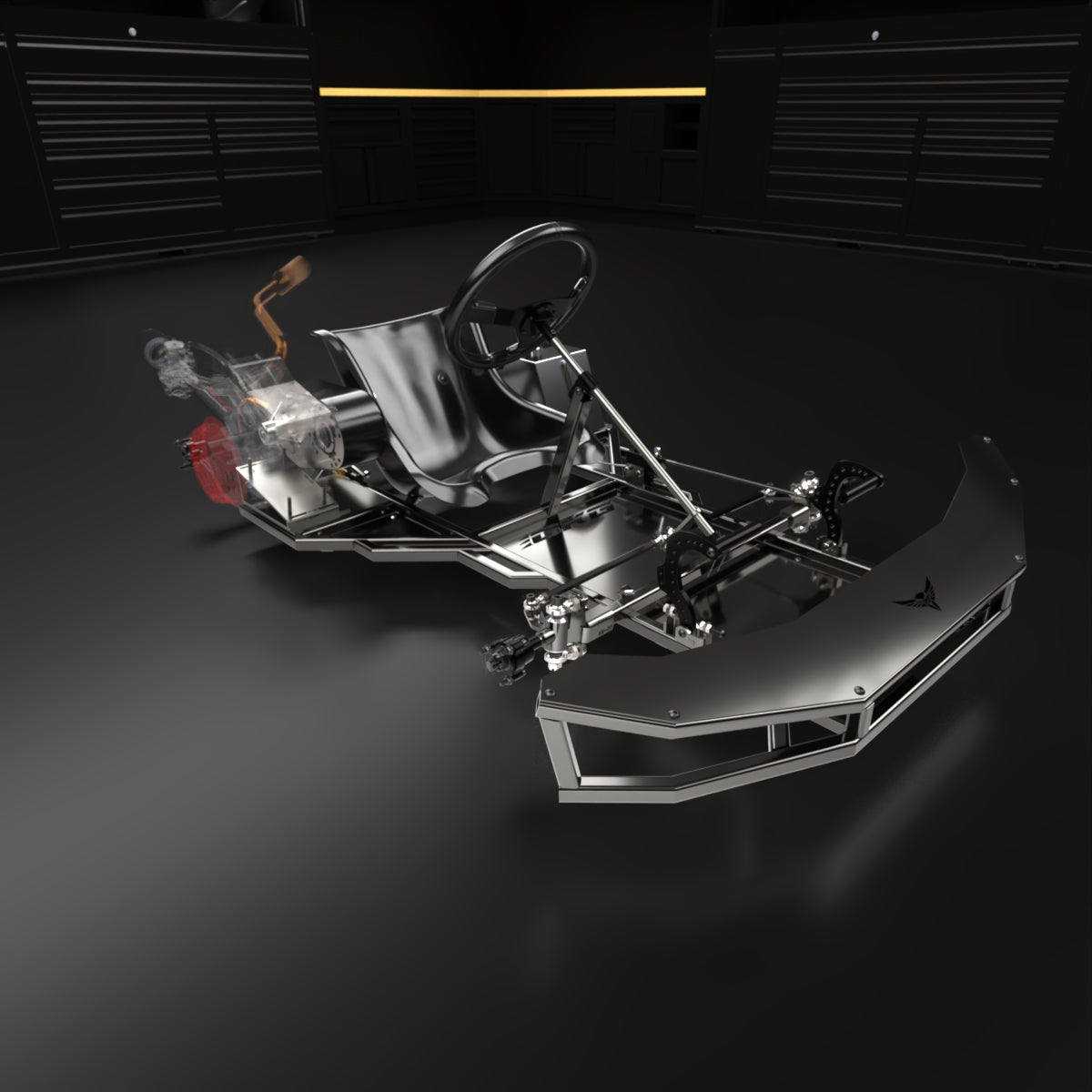

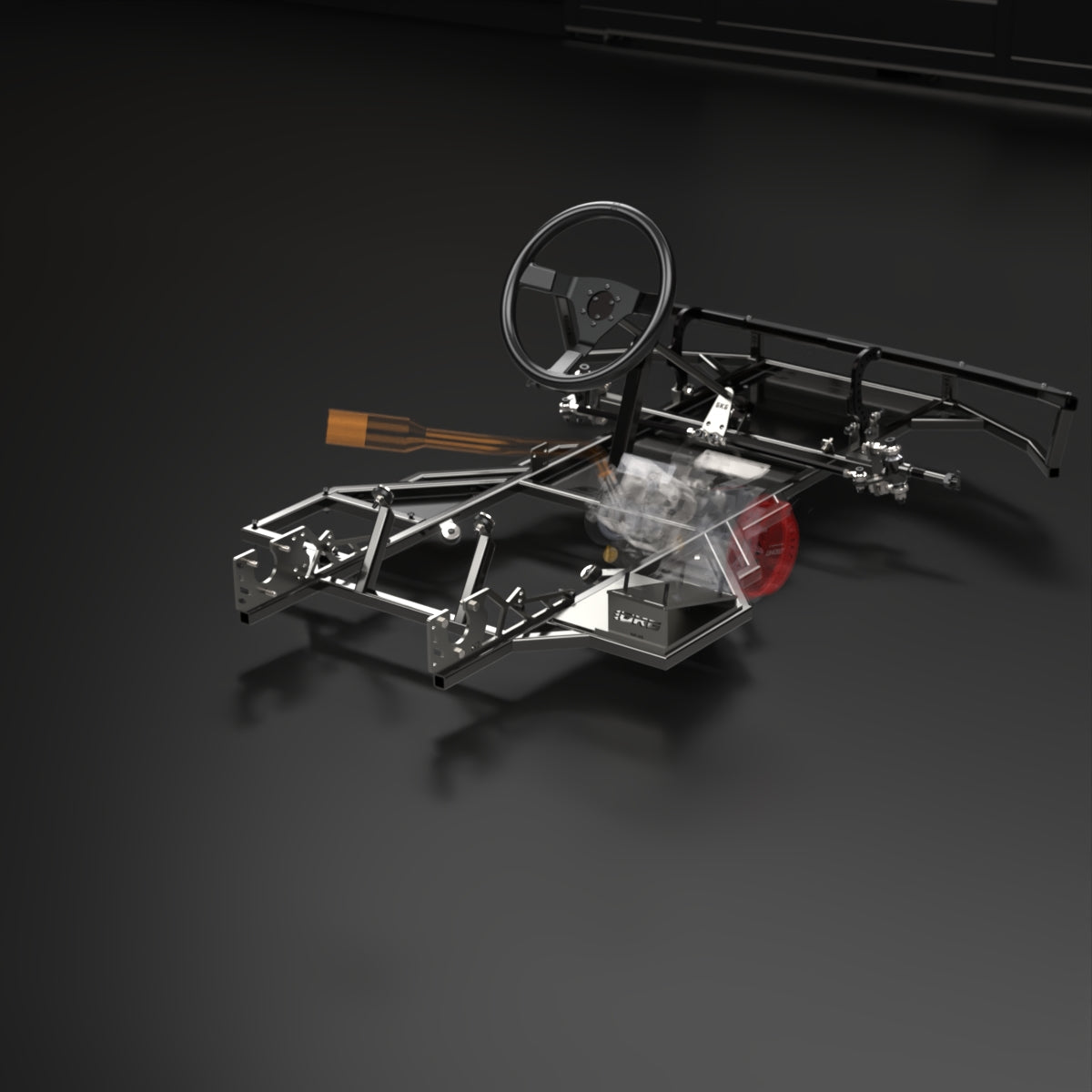

What's in the Frame Kit

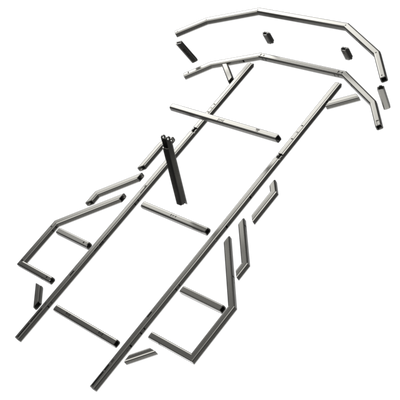

Click & Weld Frame Tubes

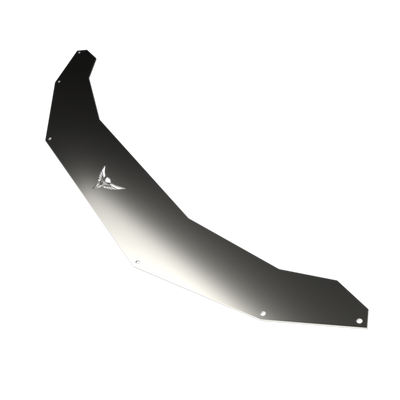

Laser Cut Bumper

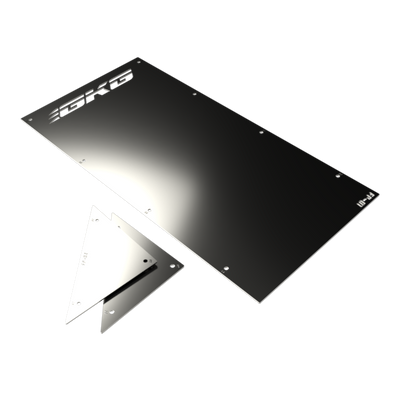

Laser cut floorpans

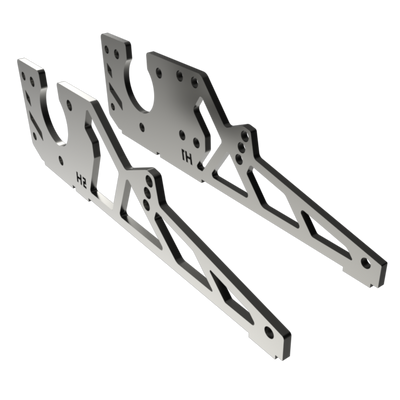

Axle hangers

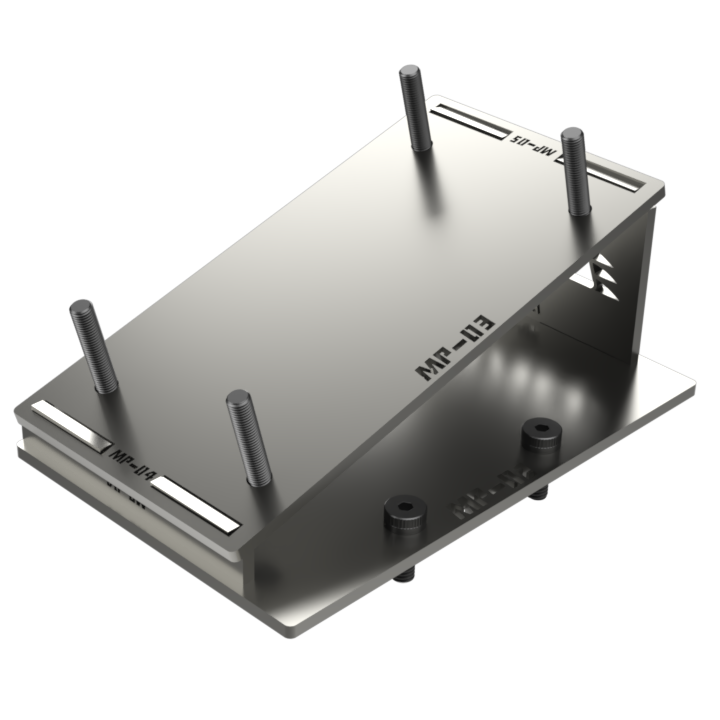

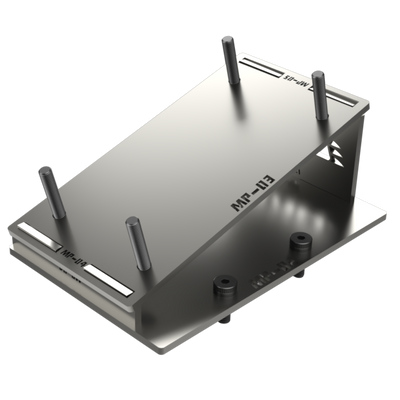

motor mount plates

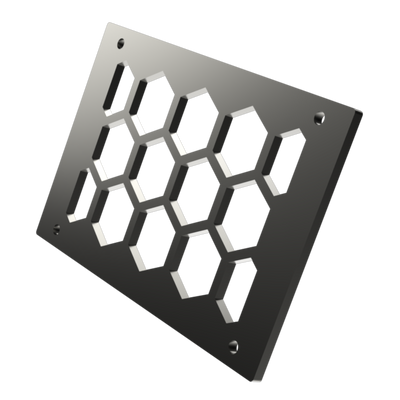

weldable mount/tab

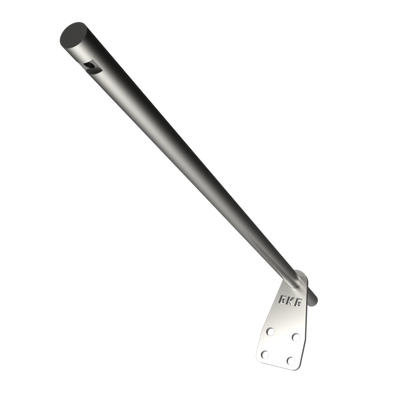

welded steering shaft

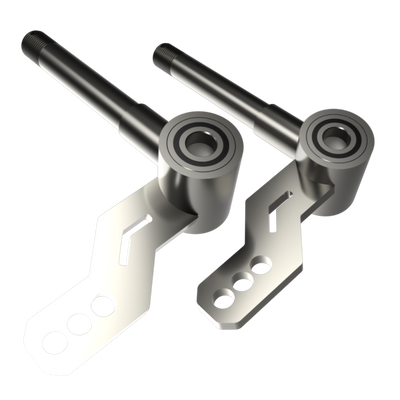

5/8" spindle

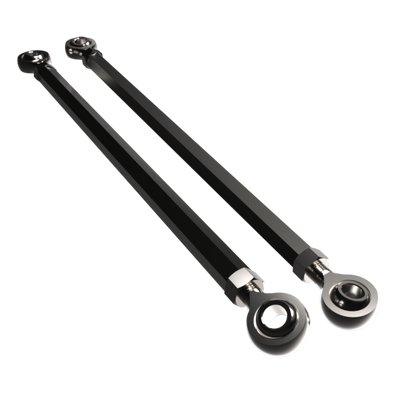

Tie Rod assembly

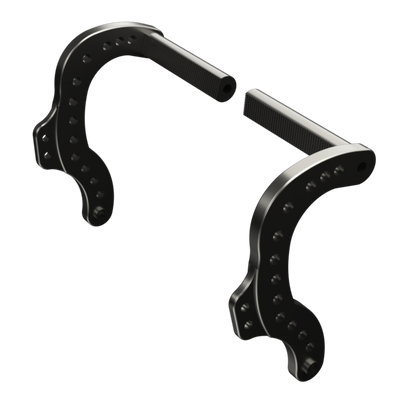

pedal assembly

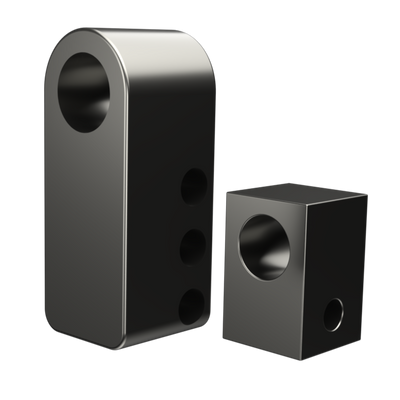

locking steering block

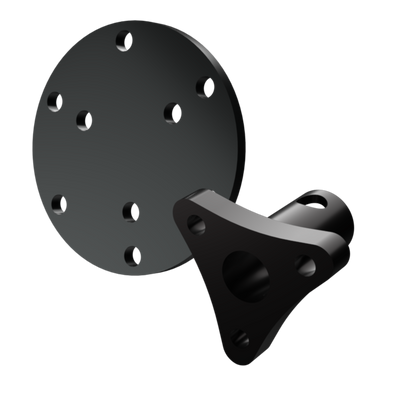

steering hub + adapter

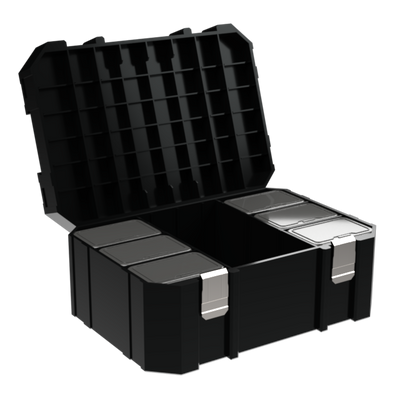

heavy-duty bauer toolbox

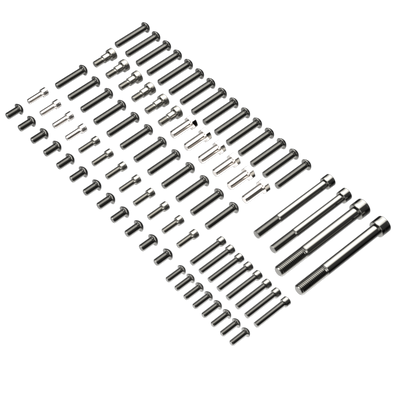

bolts (94+)

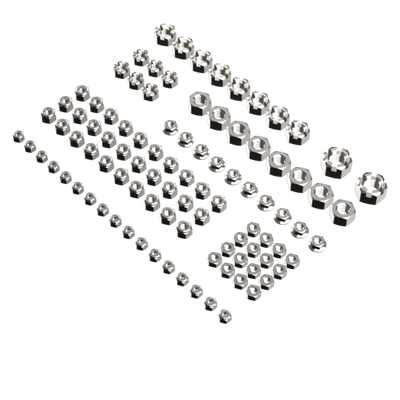

nuts (99+)

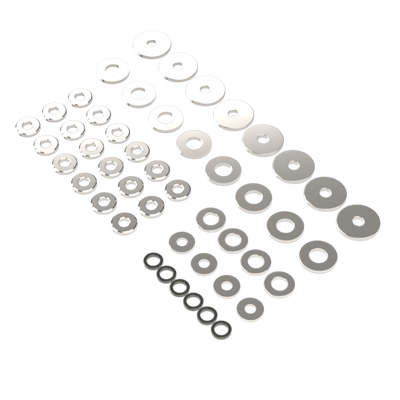

washers (34+)

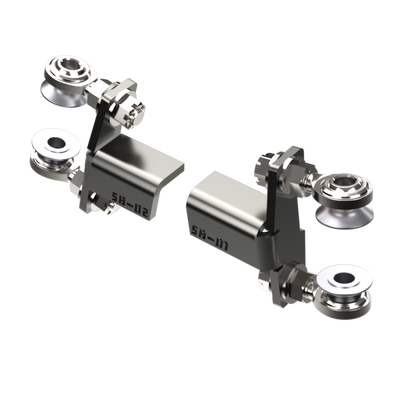

Spindle joints + spacers

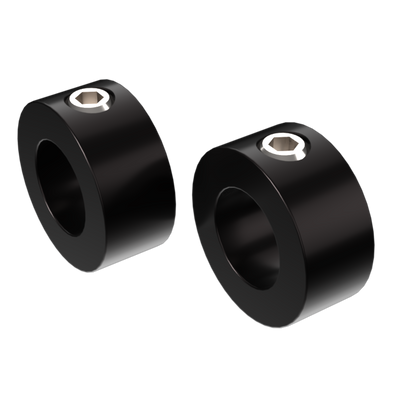

5/8" steering collar

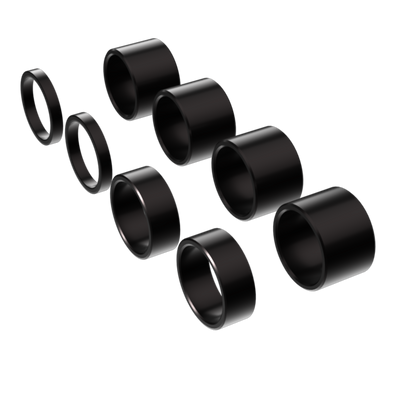

wheel spacers

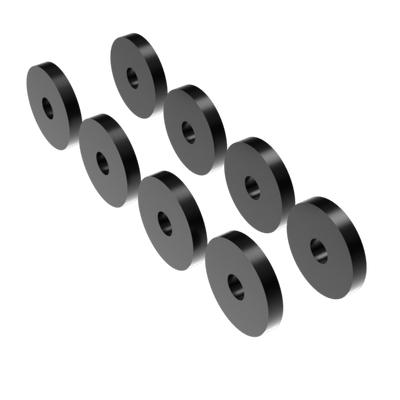

rubber seat washer

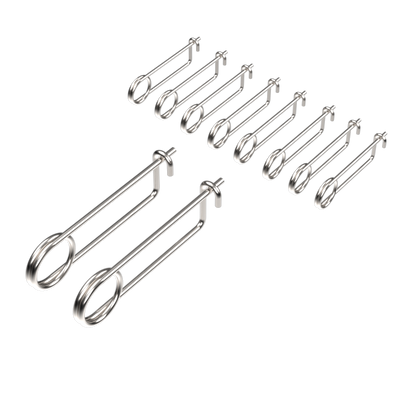

safety clip

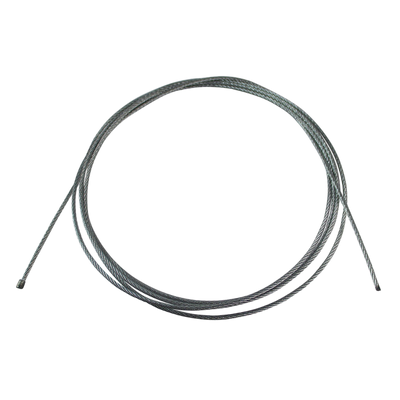

throttle cable

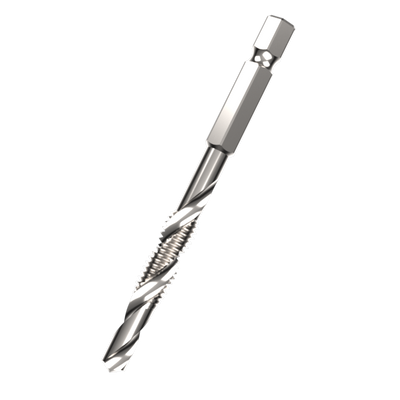

5/16" drill tap
gkg 8pc sticker pack
Motor Compatibility
The Hawk V3 gas motor mount fits most small horizontal shaft engines. Predator 212 Ghost, Honda GX200, and small block clone engines bolt directly to the mount using the standard bolt pattern. The frame & wing mounts have clearance for a TAV2 torque converter for maximum fun!
| Hoursepower | ~6.5 - 9.5 HP (*motor dependent) |
| Top Speed | 55 MPH (*motor dependent) |
| Motor Mounting Pattern | 6.5” x 3.125” 4-Bolt Plate (5/16-18 Thread) |
| Dimensions | 60" L x 40" W x 30" H |
| Frame Material | 1x1 .120" wall A513 Steel |
| Axle | 38-40" L x 1.25" OD |
| Spindle | Hawk V3 - 5/8" Shaft |
| Caster | 6 Deg. |
| Camber | Adjustable |
| Toe | Adjustable |
| Tie Rod Length | 10" |
| Brake System Compatibility | MCP Brakes |
| Weight (Frame) | 65 lbs |
| Weight (Loaded) | 180 lbs |
| Clearance | 3" |

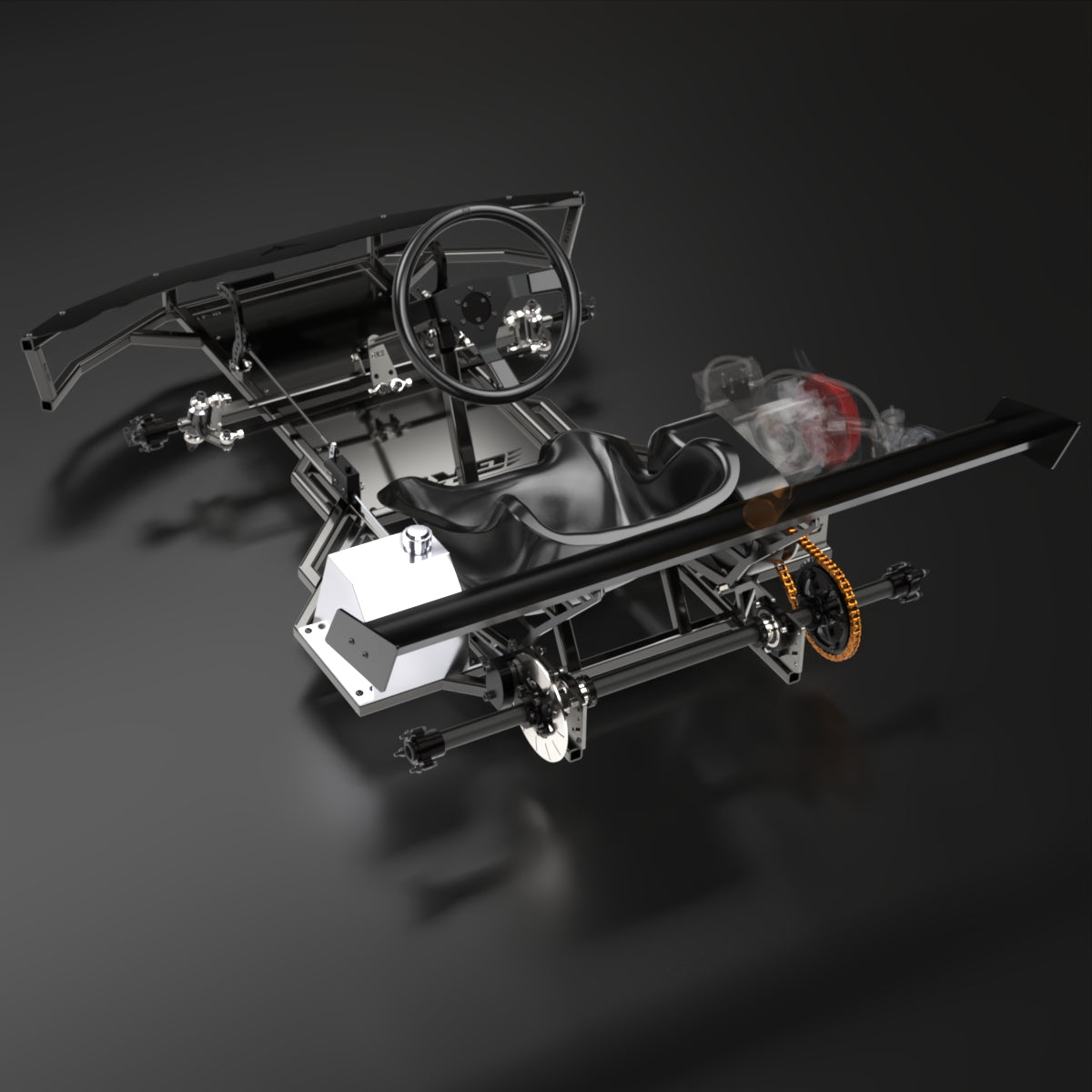

What's in the Parts Kit
6 qt. racing fuel tank

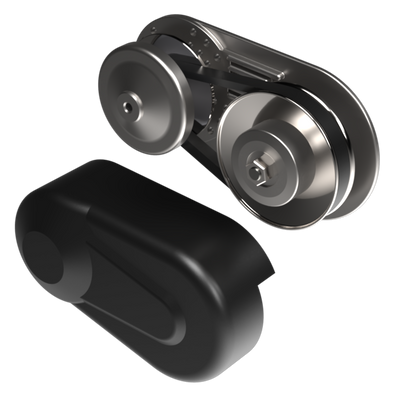

comet tav2 torque converter

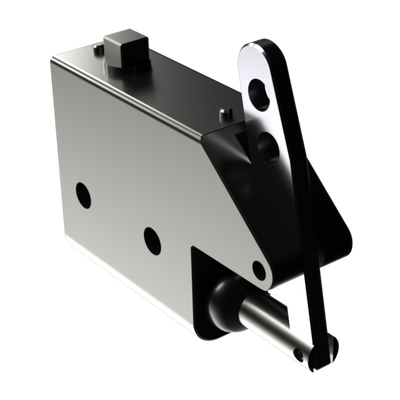

mcp 7/8" master cylinder

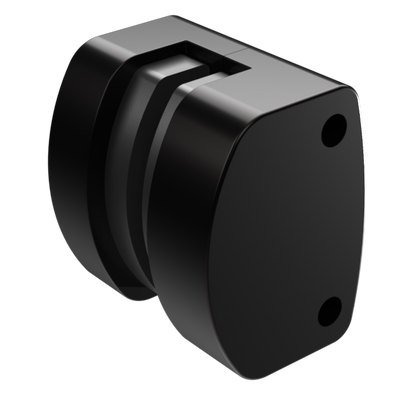

mcp adjustable caliper

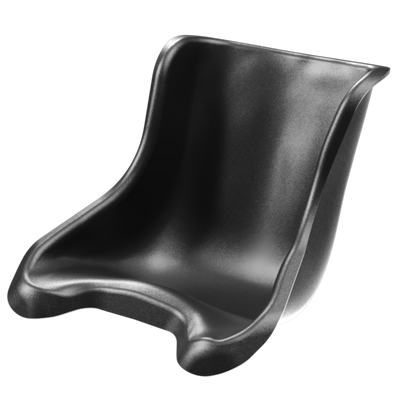

go kart seat

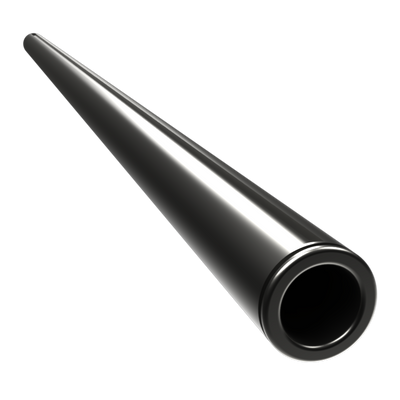

40" rear axle

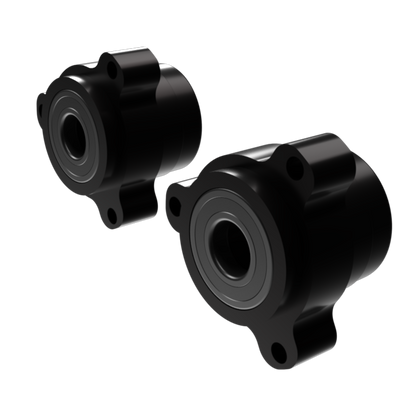

5/8" front hubs

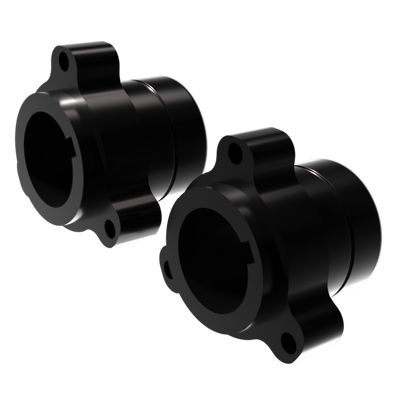

1-1/4" rear hubs

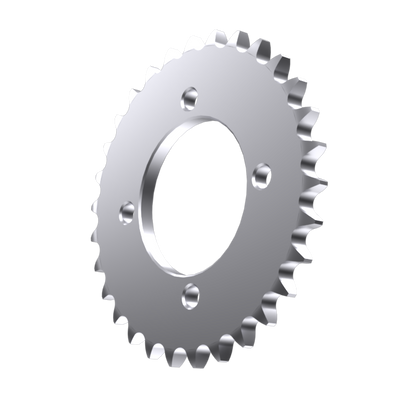

42 tooth #428 sprocket

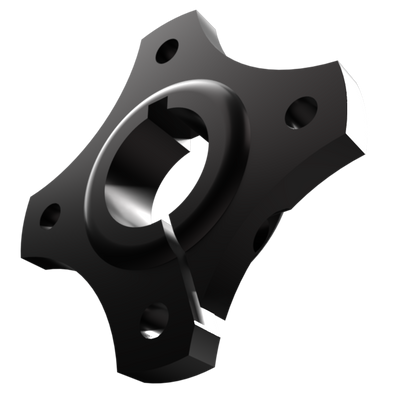

Sprocket hub

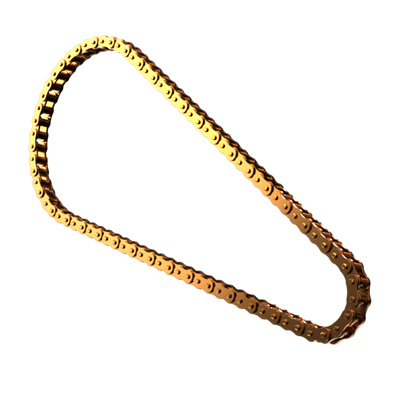

X" #428 Chain

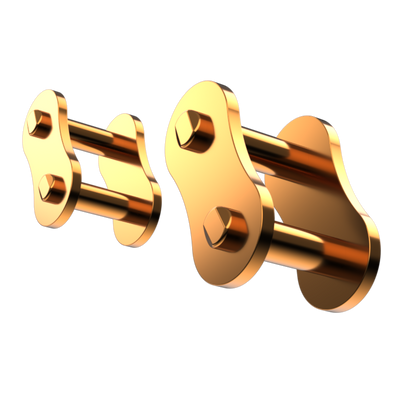

chain master links
brake hub

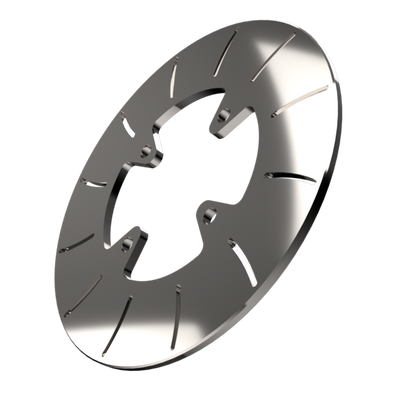

7.1" brake rotor

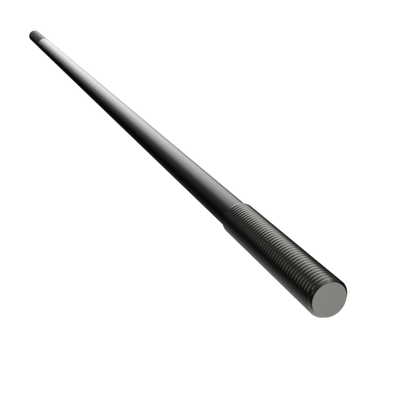

14" brake rod

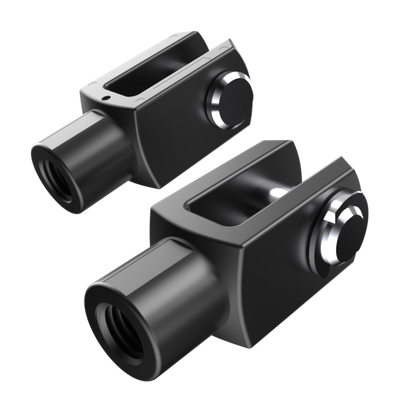

clevis pins

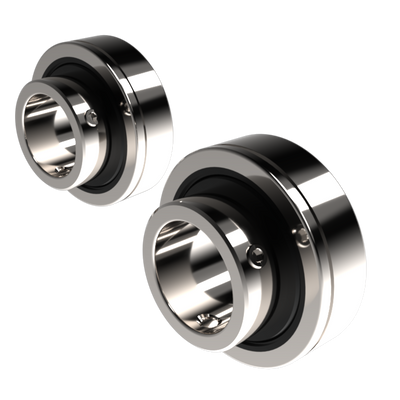

axle bearings

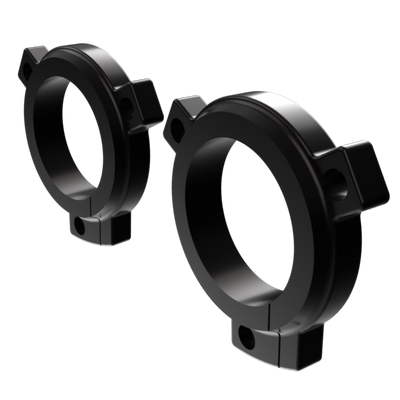

axle carriers

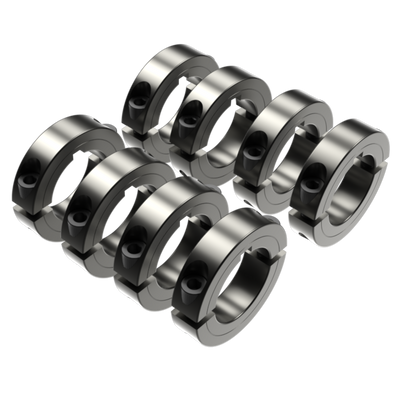

axle collars
axle clips

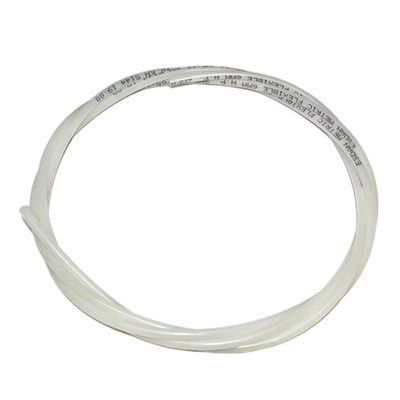

brake line

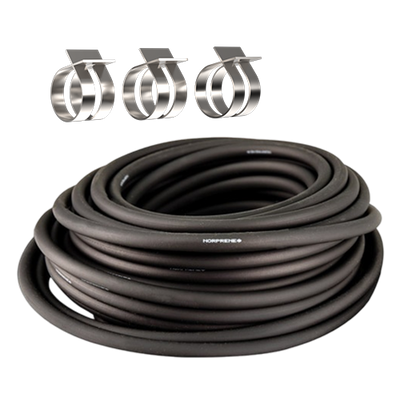

fuel line + clamps
8oz brake fluid

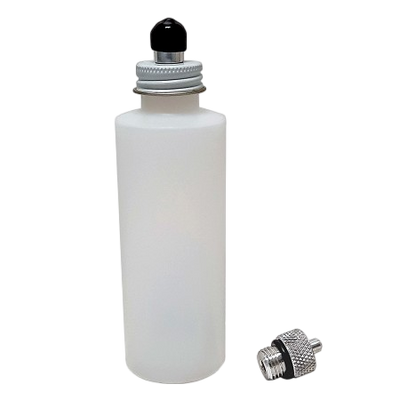

brake bleeder system

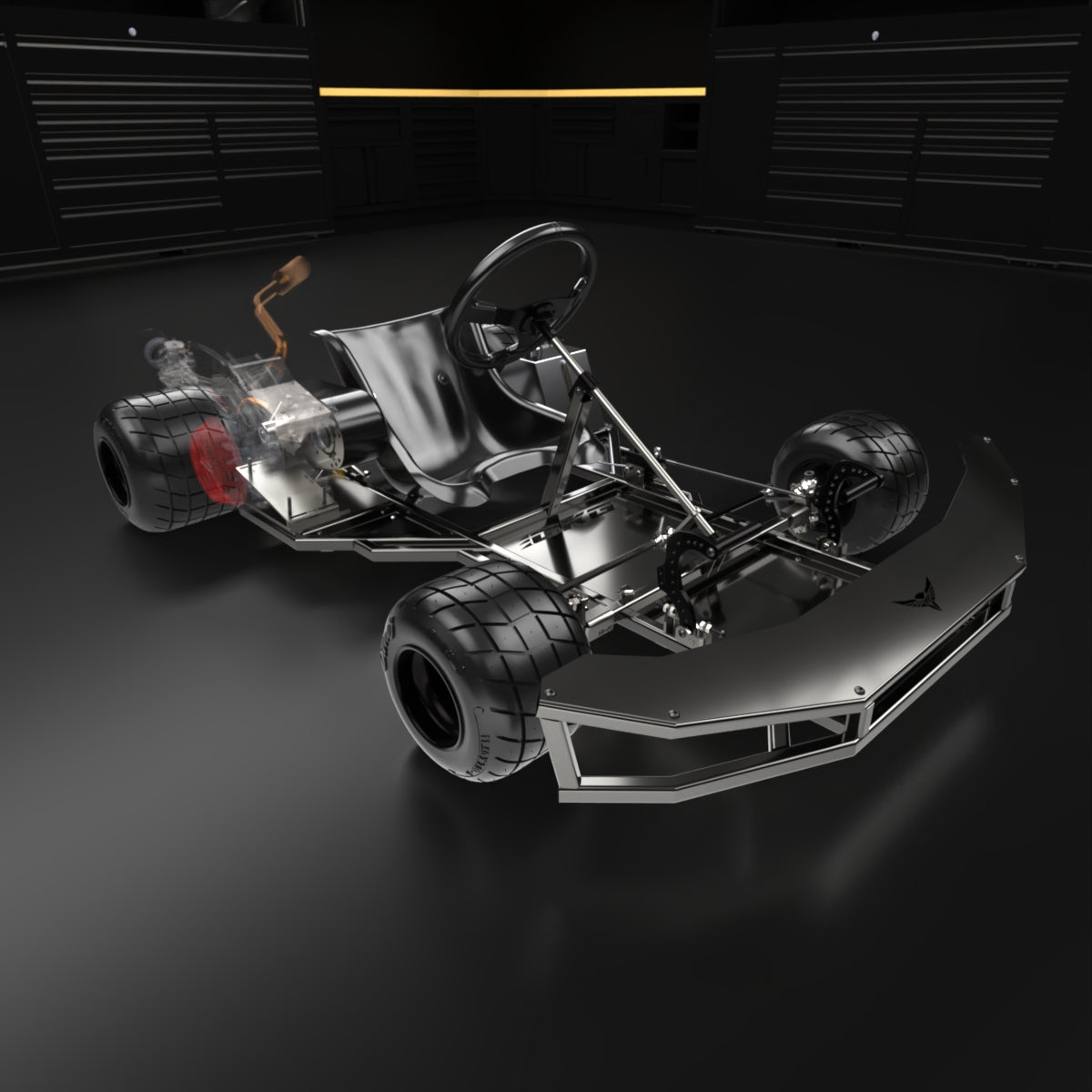

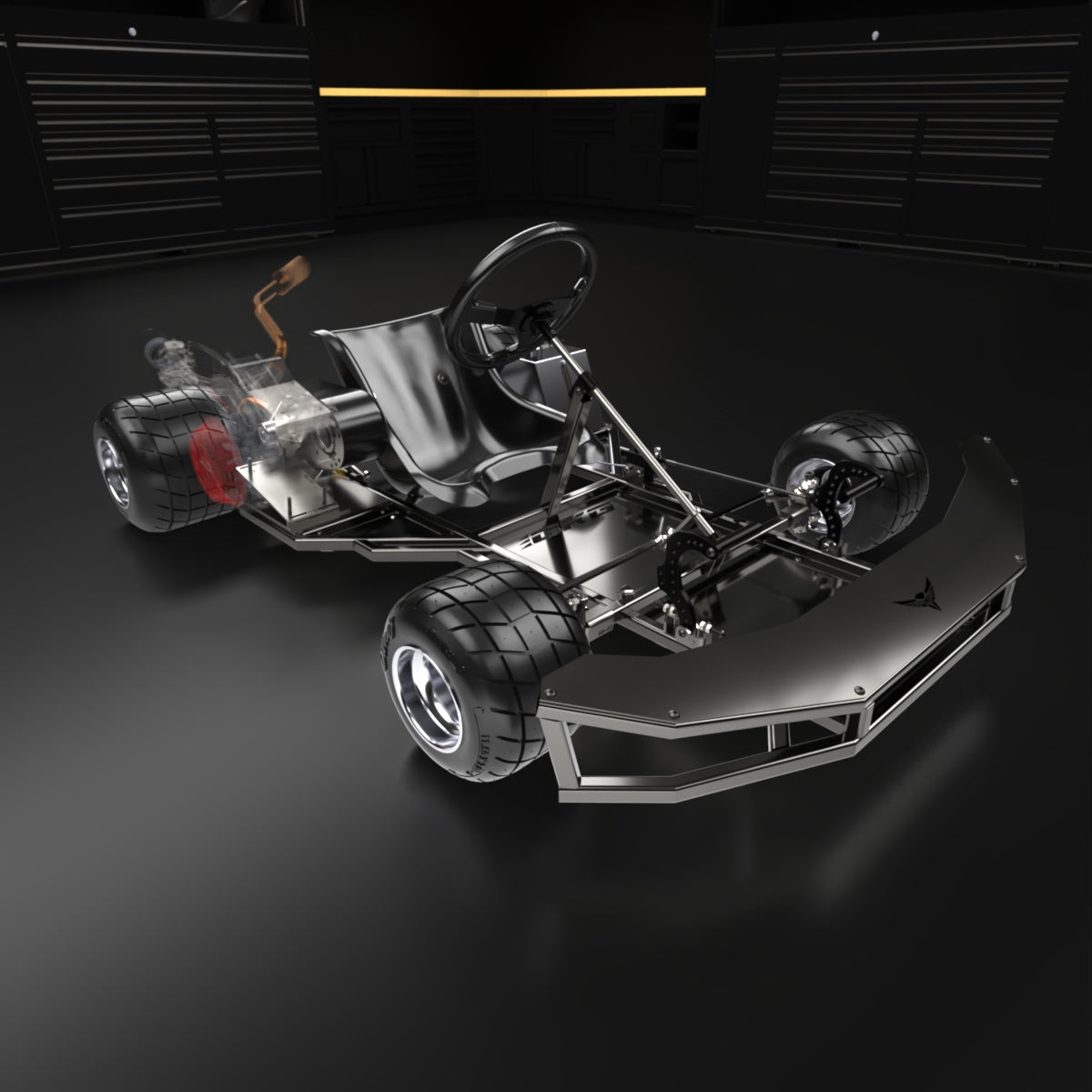

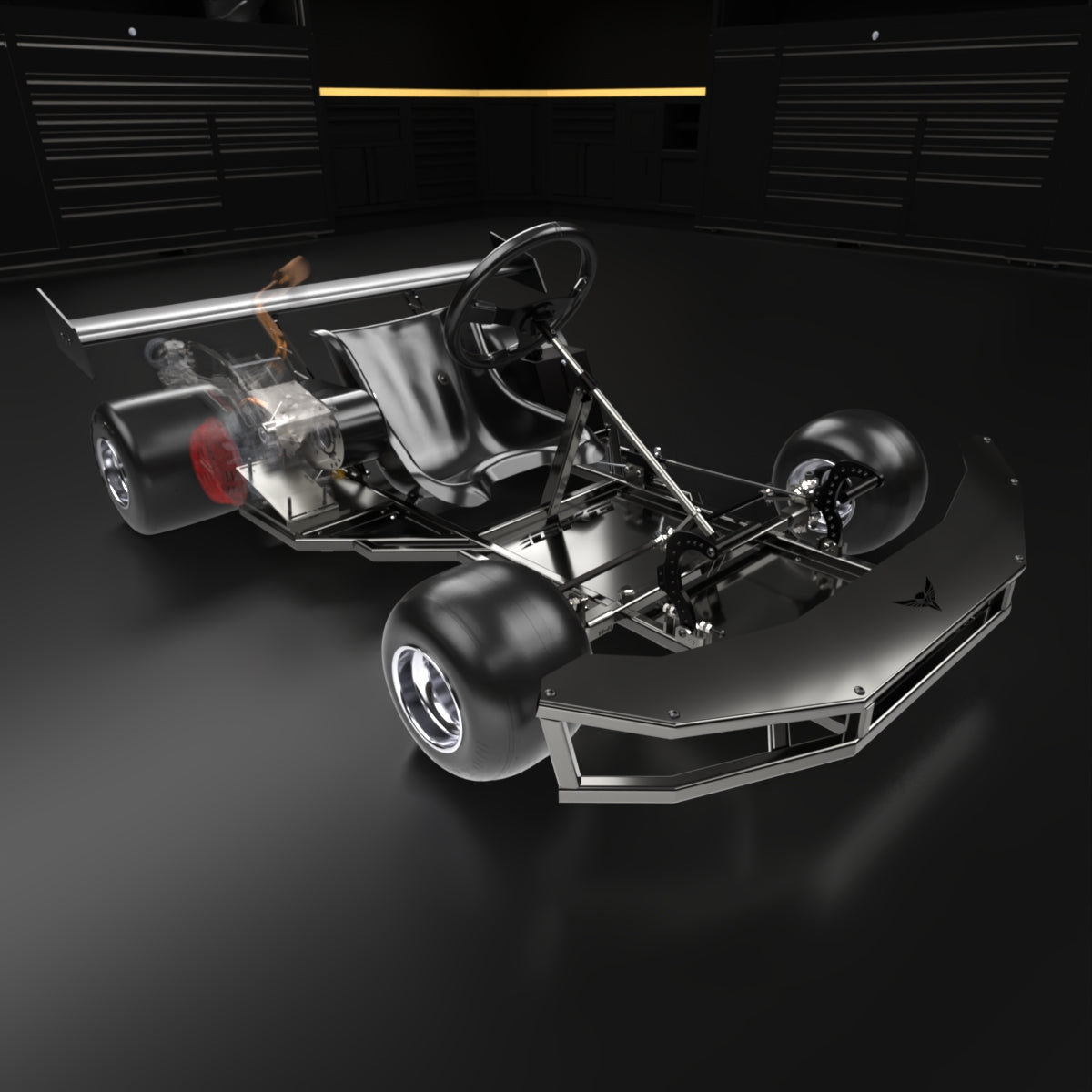

Wheels & Tires

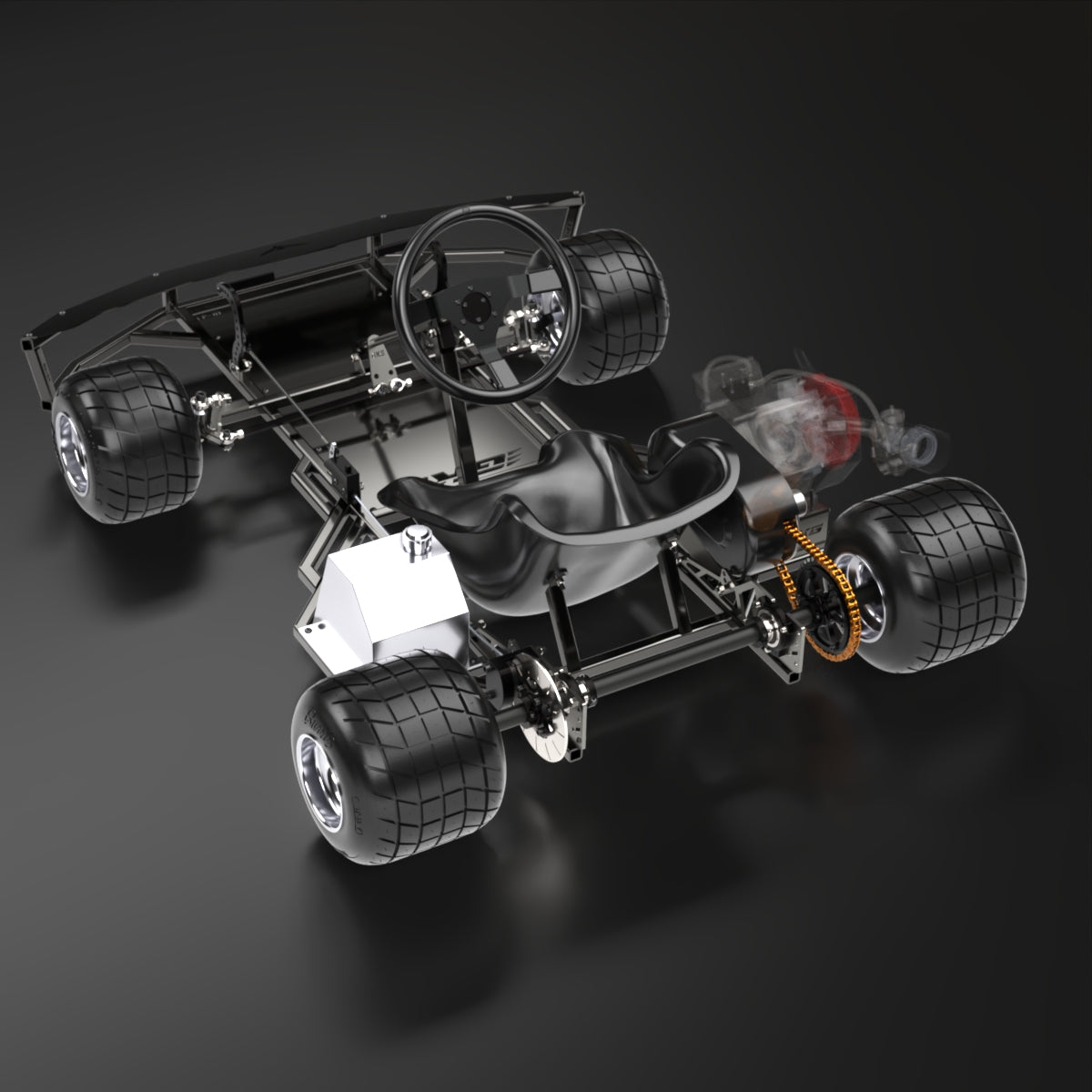

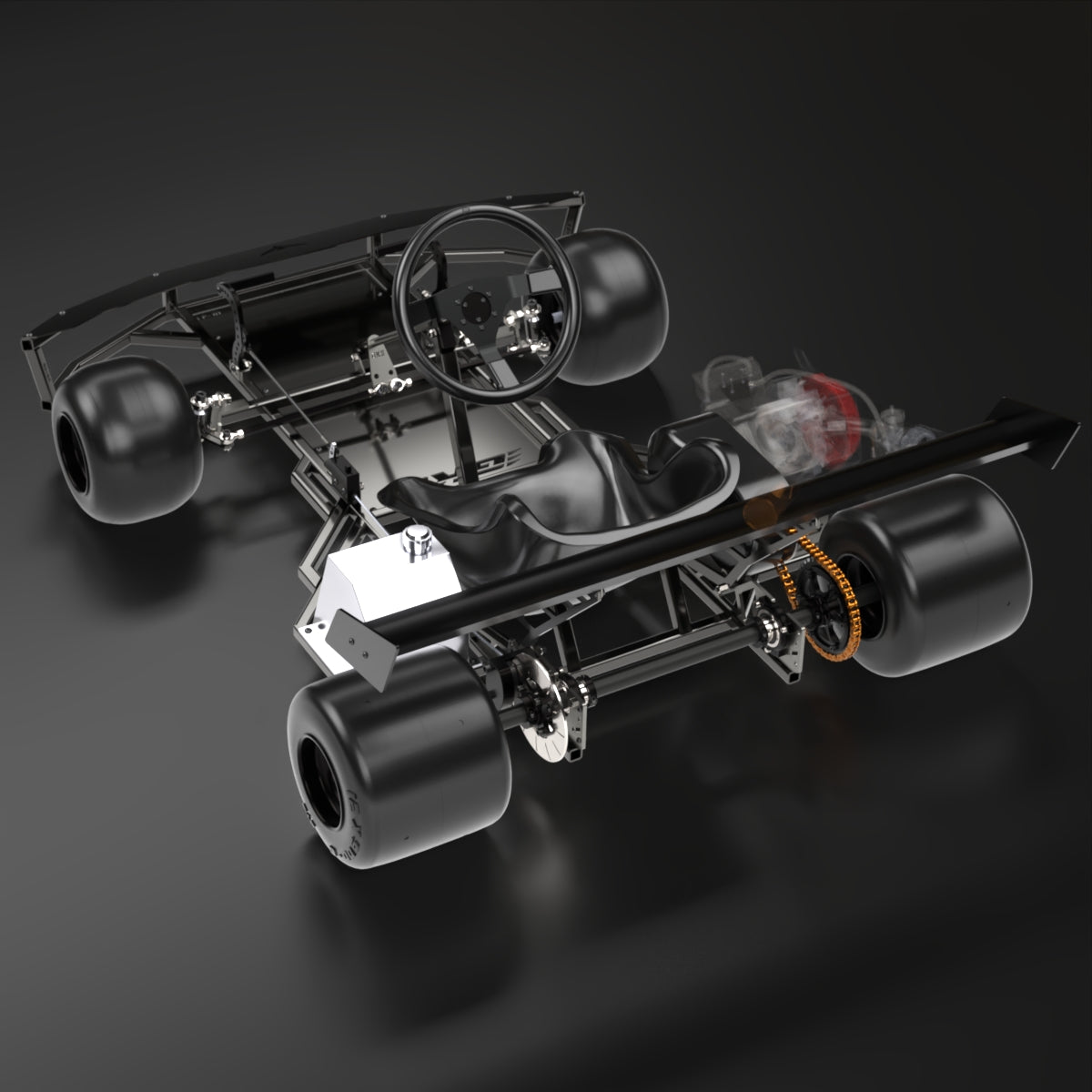

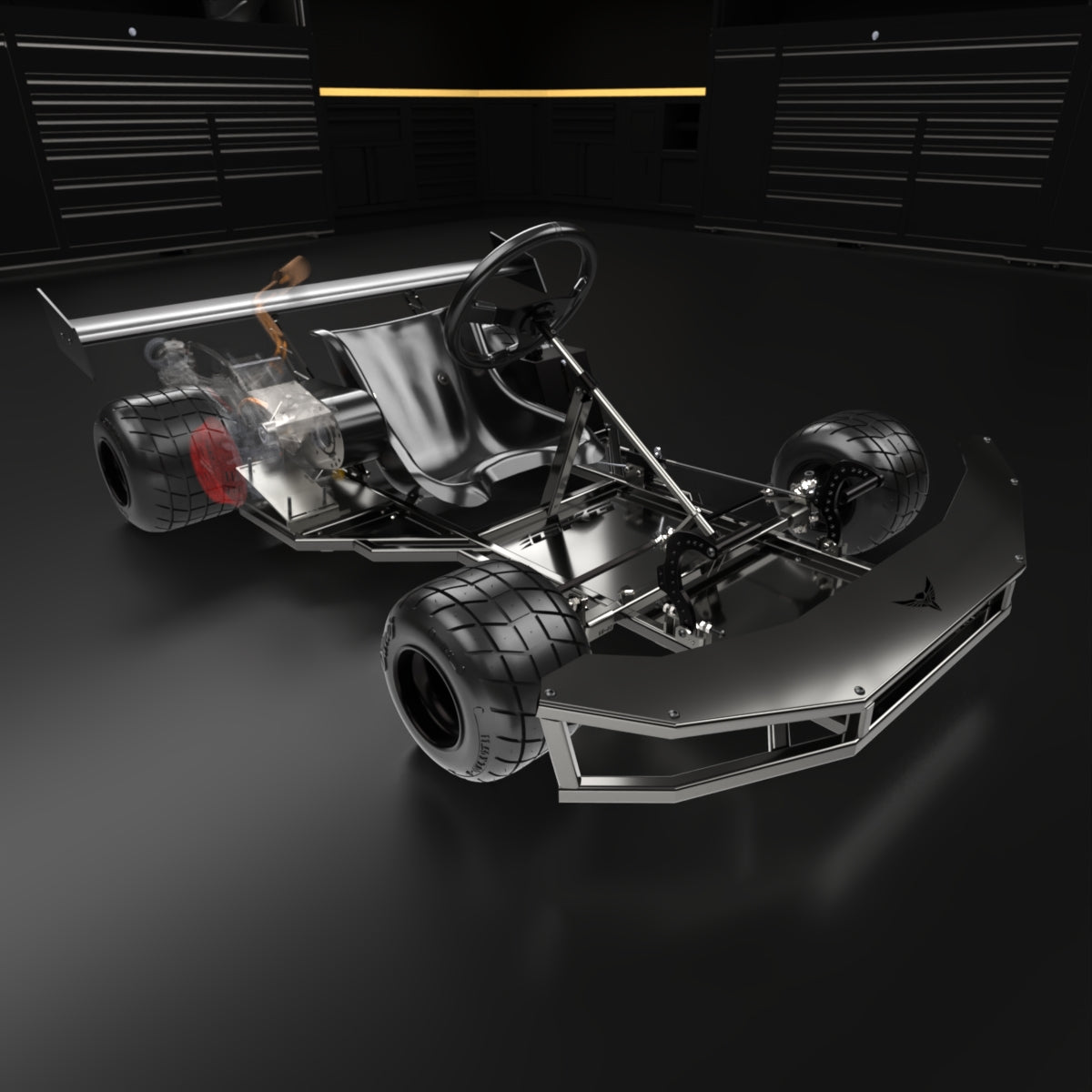

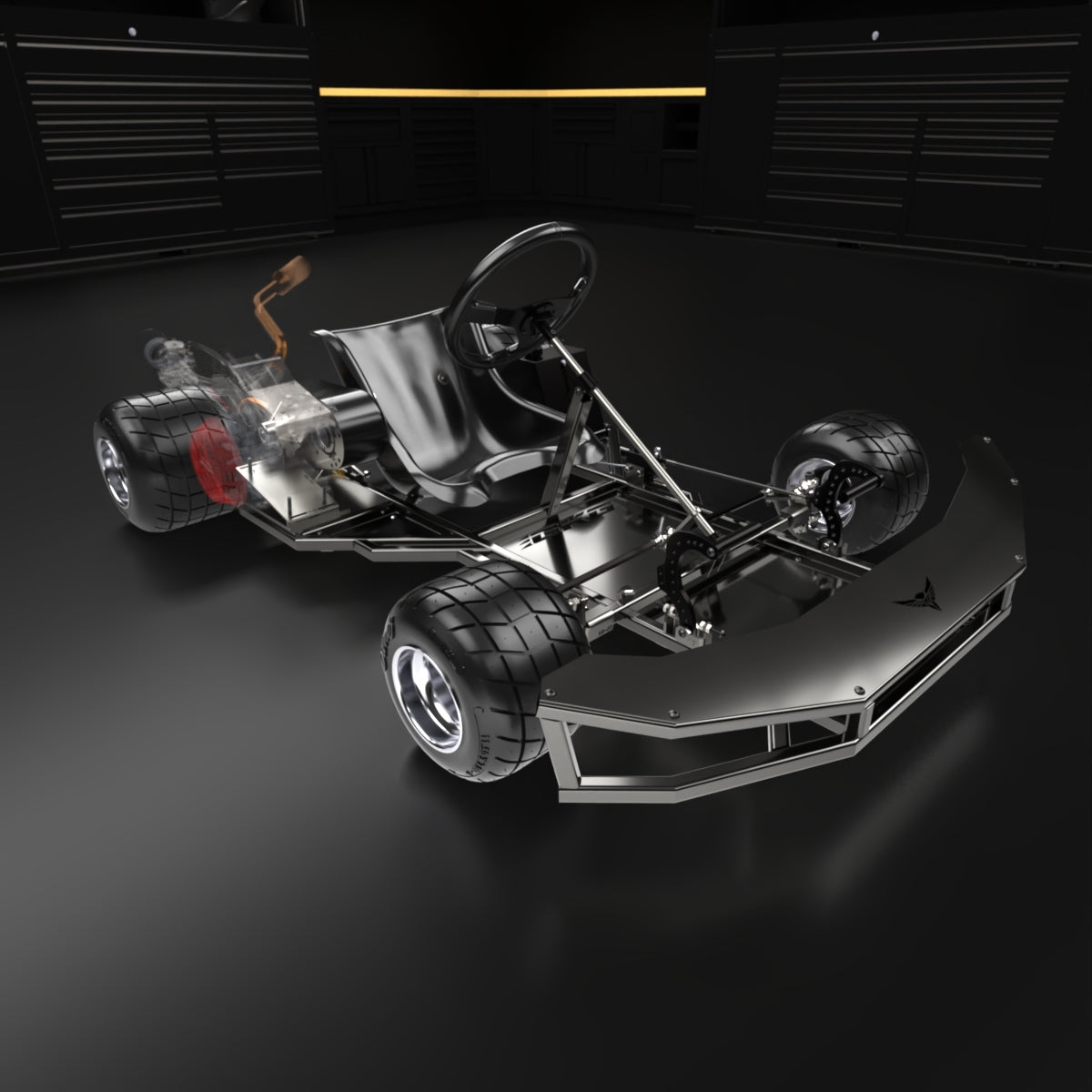

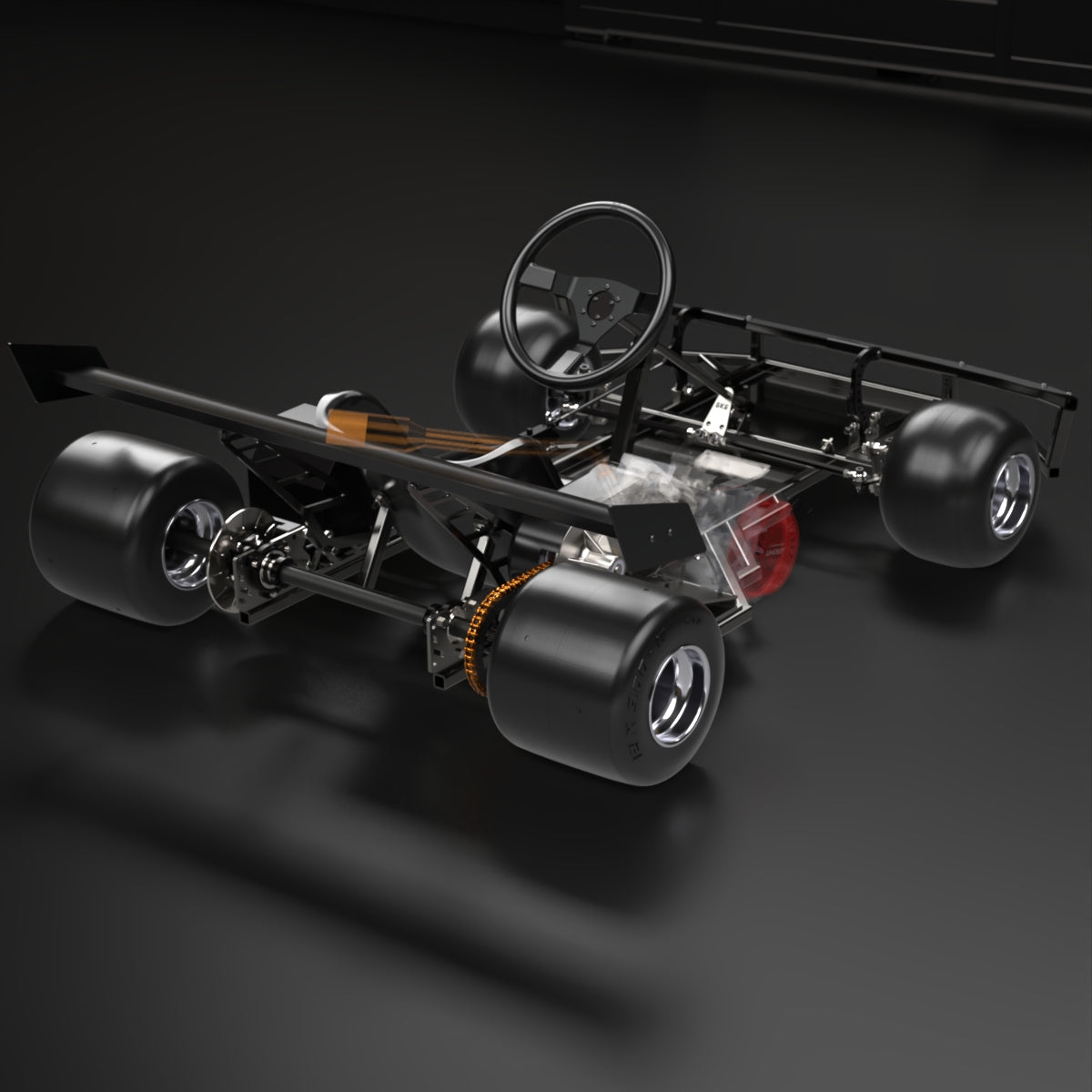

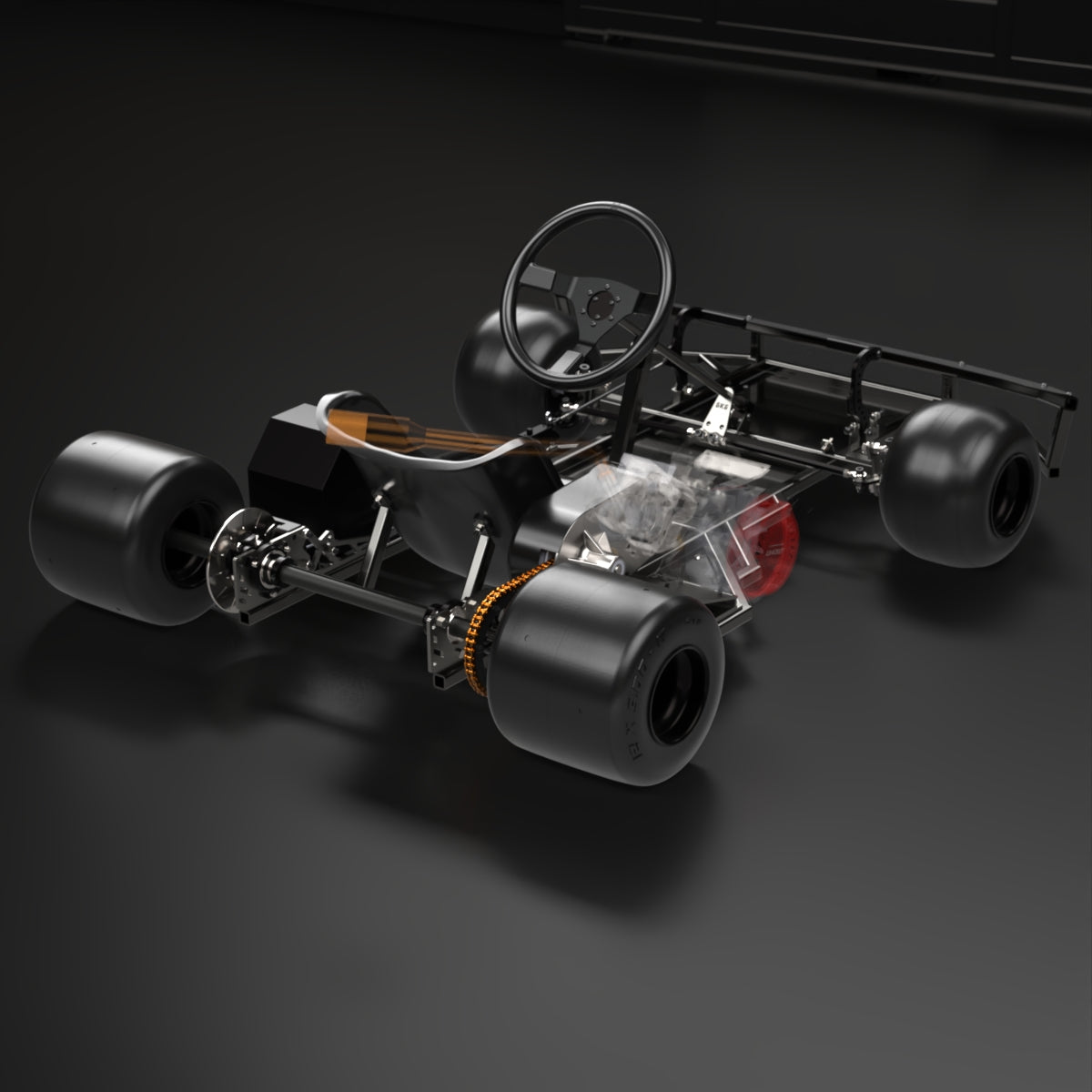

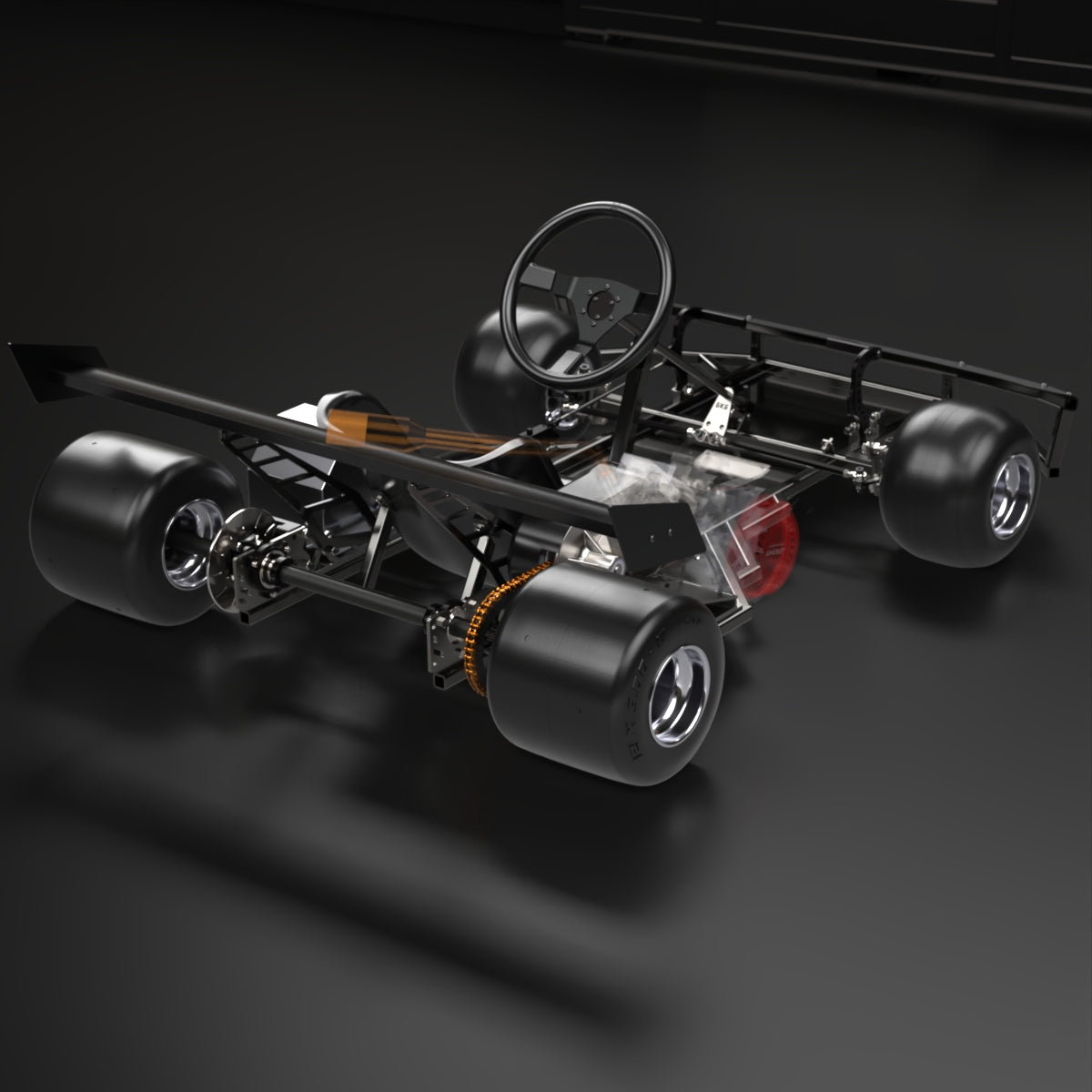

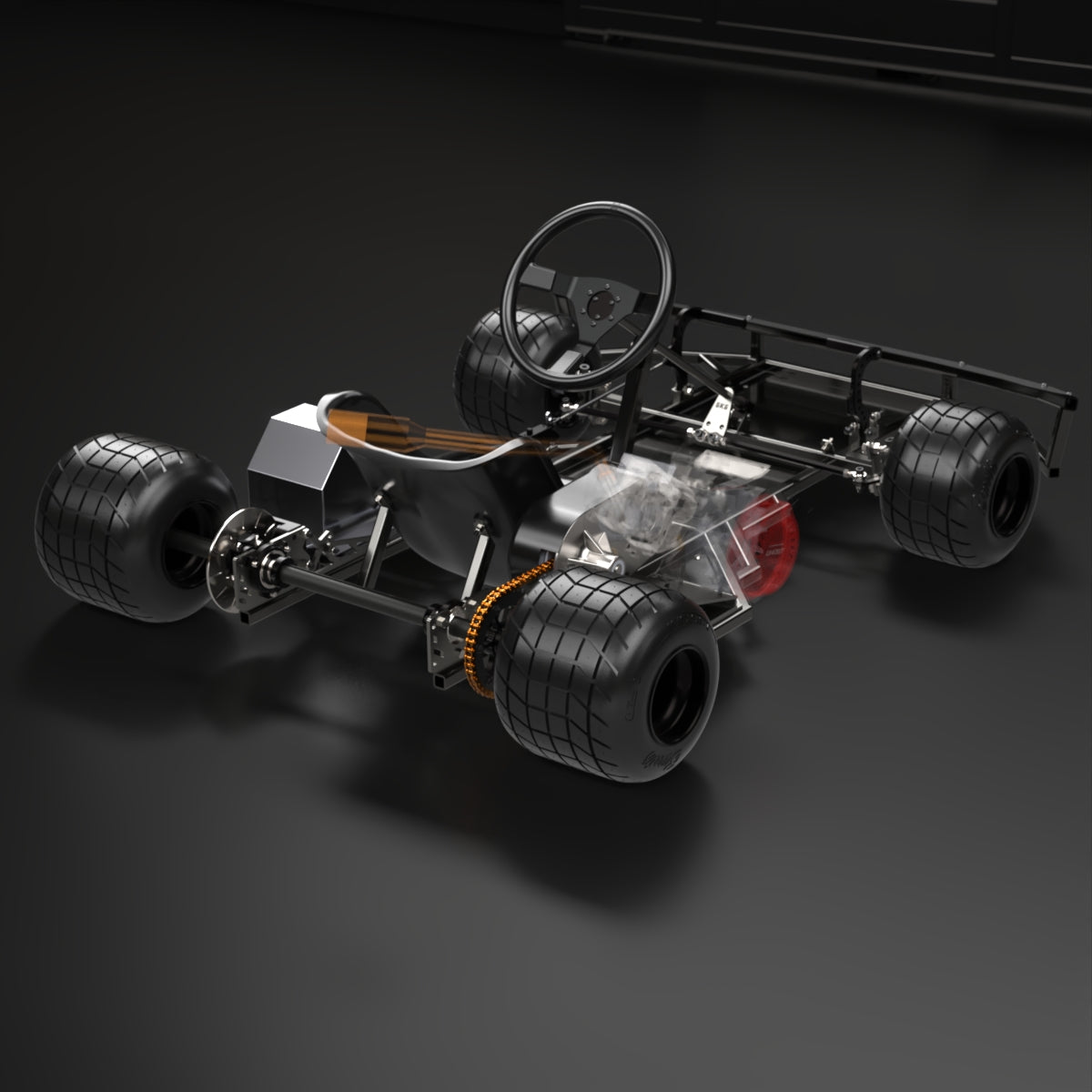

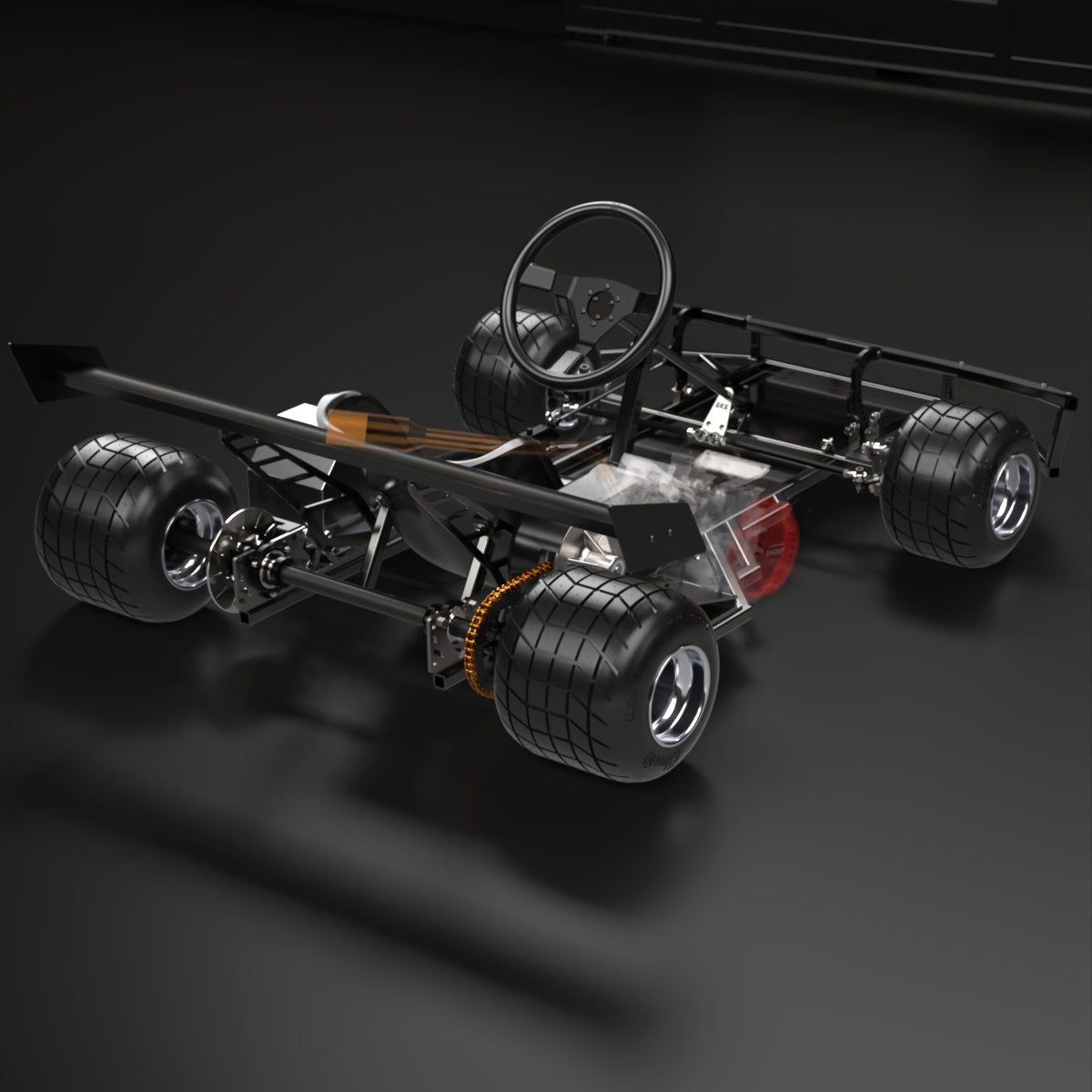

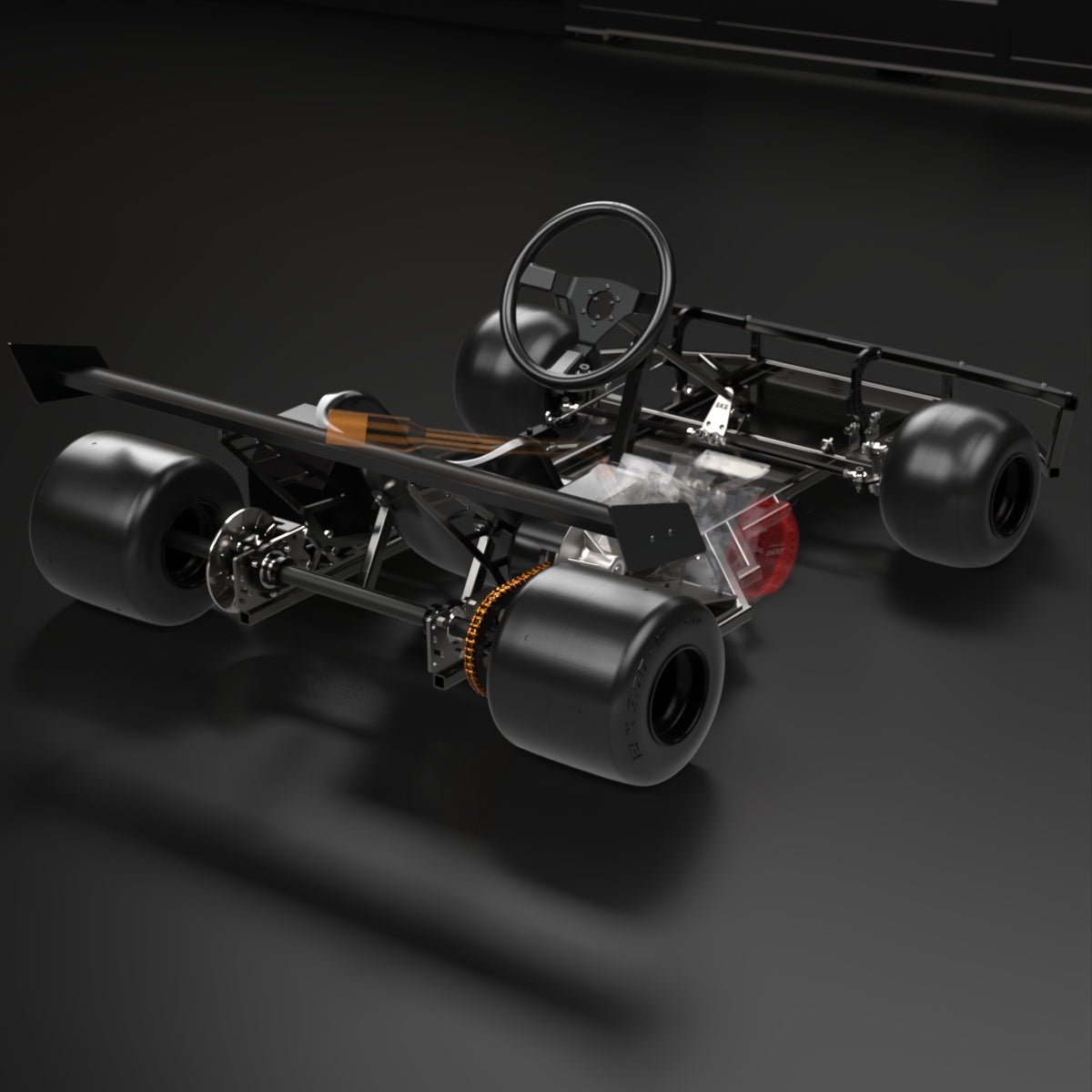

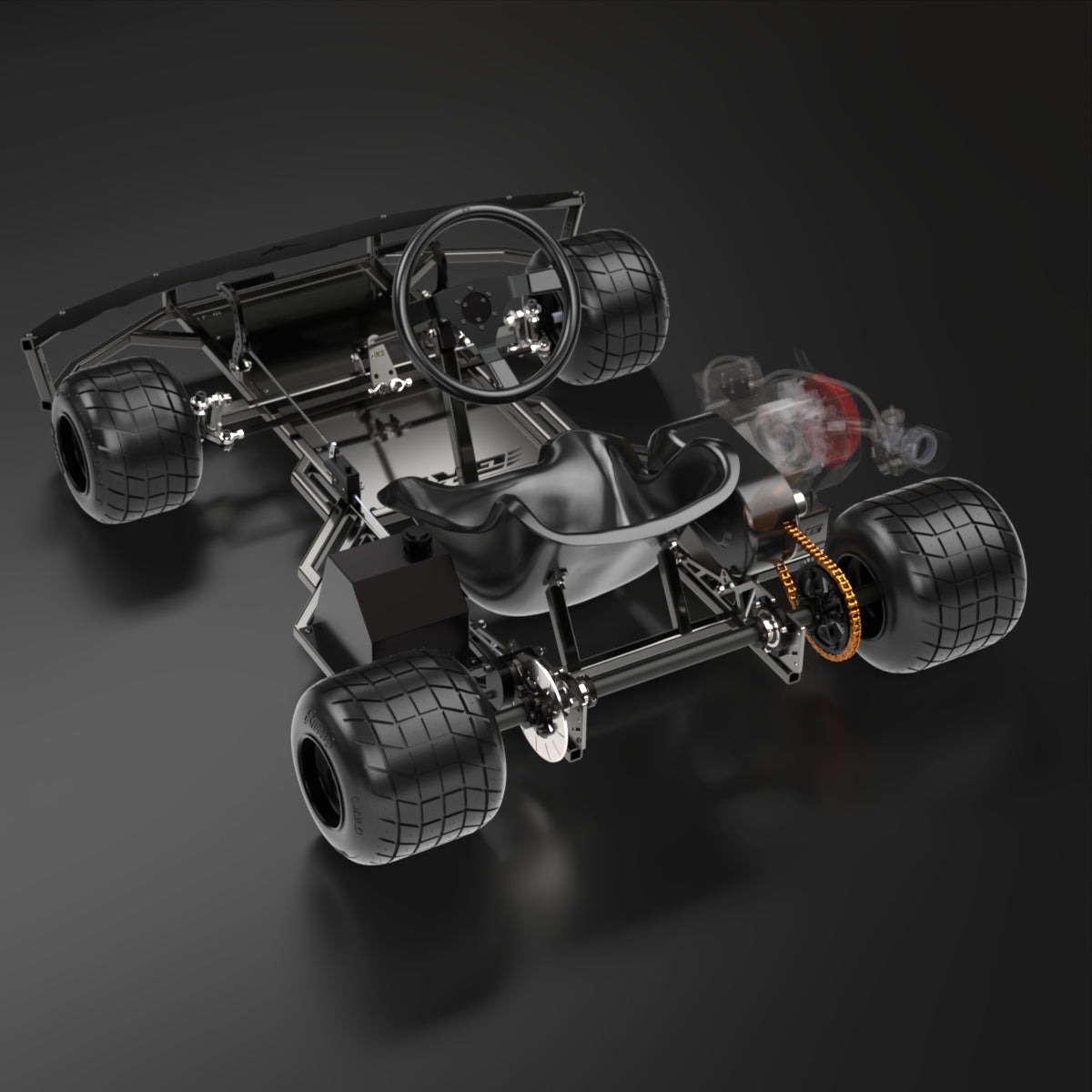

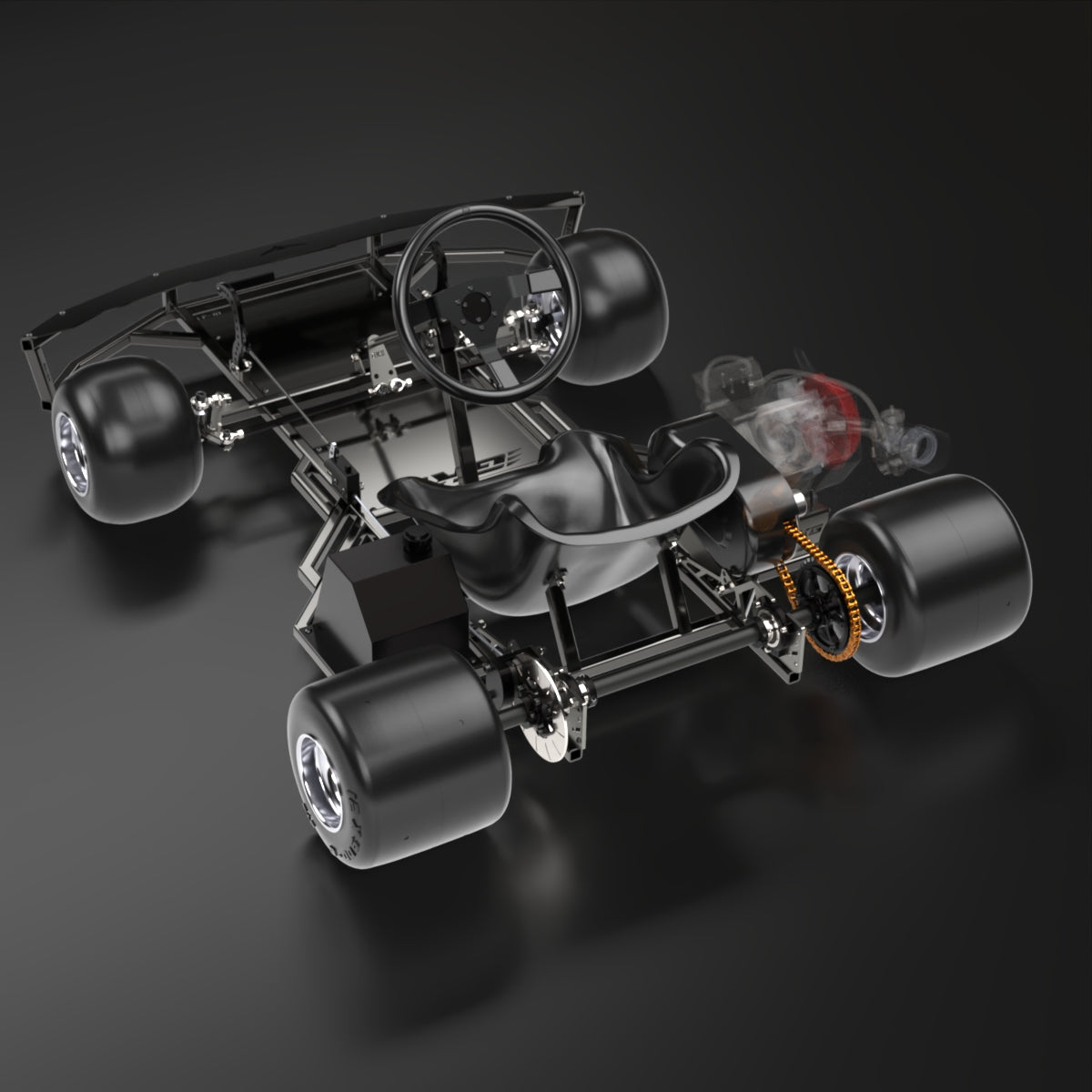

The Hawk V3 offers the option to include Satin Black, or Polished Chrome wheels and your choice of high-performance tires. Burris TX-33 Treaded Tires deliver maximum grip and durability for aggressive street driving, while Unilli Slick Tires are optimized for smooth, controlled drifting. Both options use ultra-hard compounds for long-lasting durability. Whether you’re chasing grip or dialing in drift, both setups deliver serious traction, long life, and a look that means business.
Frequently Asked Questions
-
The gas motor mount fits Predator 212, Honda GX200, and Clone 196/212 engines without modification. Most 6.5hp horizontal shaft engines with a standard bolt pattern will work.
-
Yes. Only minor modification needed: Installing the controller mount and throttle controller mount. Everything else is compatible with Nighthawk components.
-
The Hawk V3 comes standard with #428 chain and matching sprocket. This is a robust chain size providing excellent durability and power transfer.
If you prefer to source your own chain and sprockets, the Hawk V3 is compatible with #35 chain as well.
-
A semi-experienced builder should expect to complete assembly in a weekend - from unboxing to riding. This assumes basic familiarity with hand tools and welding.
First-time builders or those new to fabrication should plan for additional time to work through the build carefully and ensure everything is assembled correctly.
-
Max seat size we supply is XXL, which typically fits drivers up to 250 lbs and around 6'4".
-
No, It's designed for closed courses, private roads, and track environments.
-
Basic hand tools and fabrication equipment:
Hand Tools: Socket set, Allen keys, adjustable wrench
Power Tools: Drill
Fabrication: Welder (MIG or TIG) - required for frame assembly and motor mounts.
-
While the whole family can ride, minor modifications may be necessary for children under 5'4".
