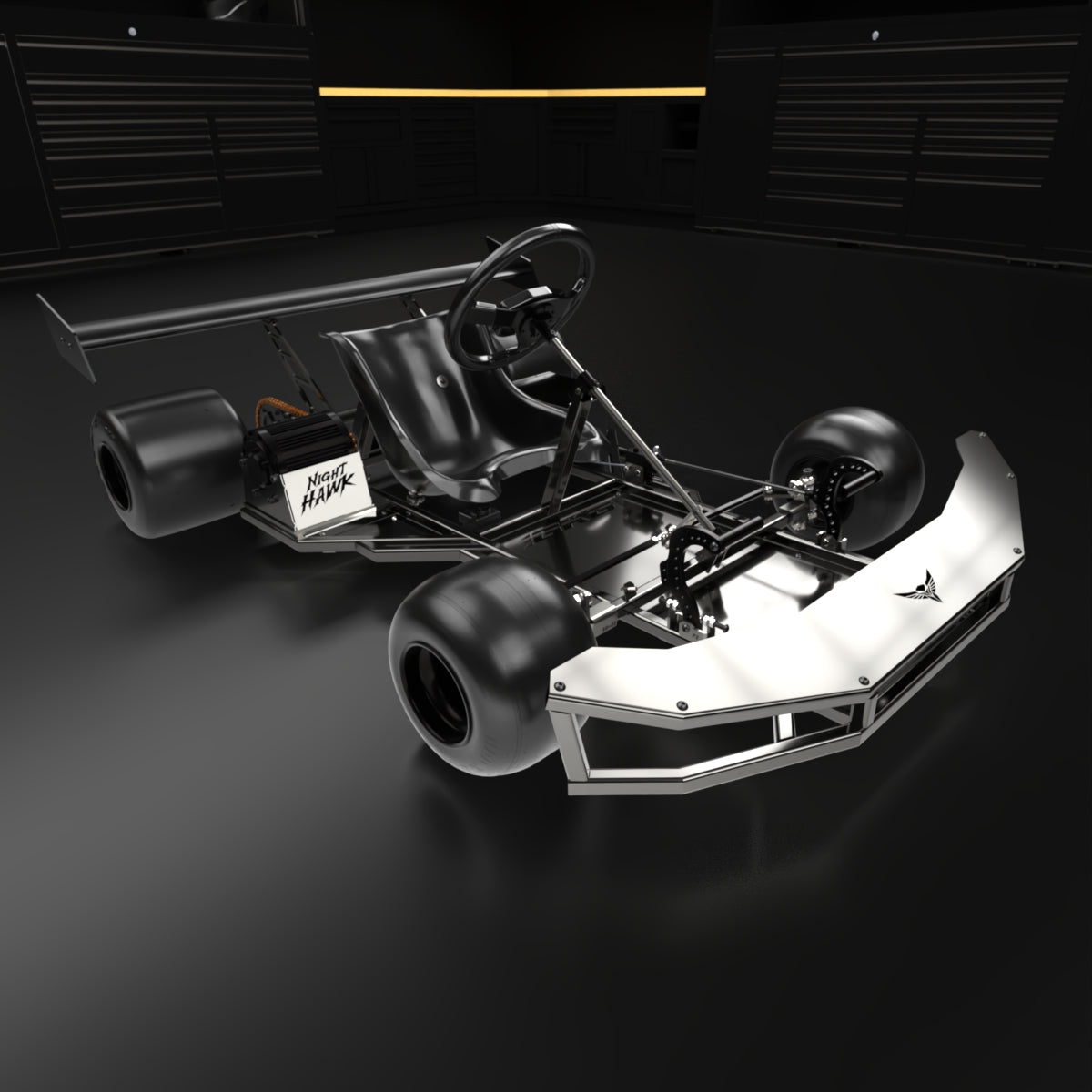

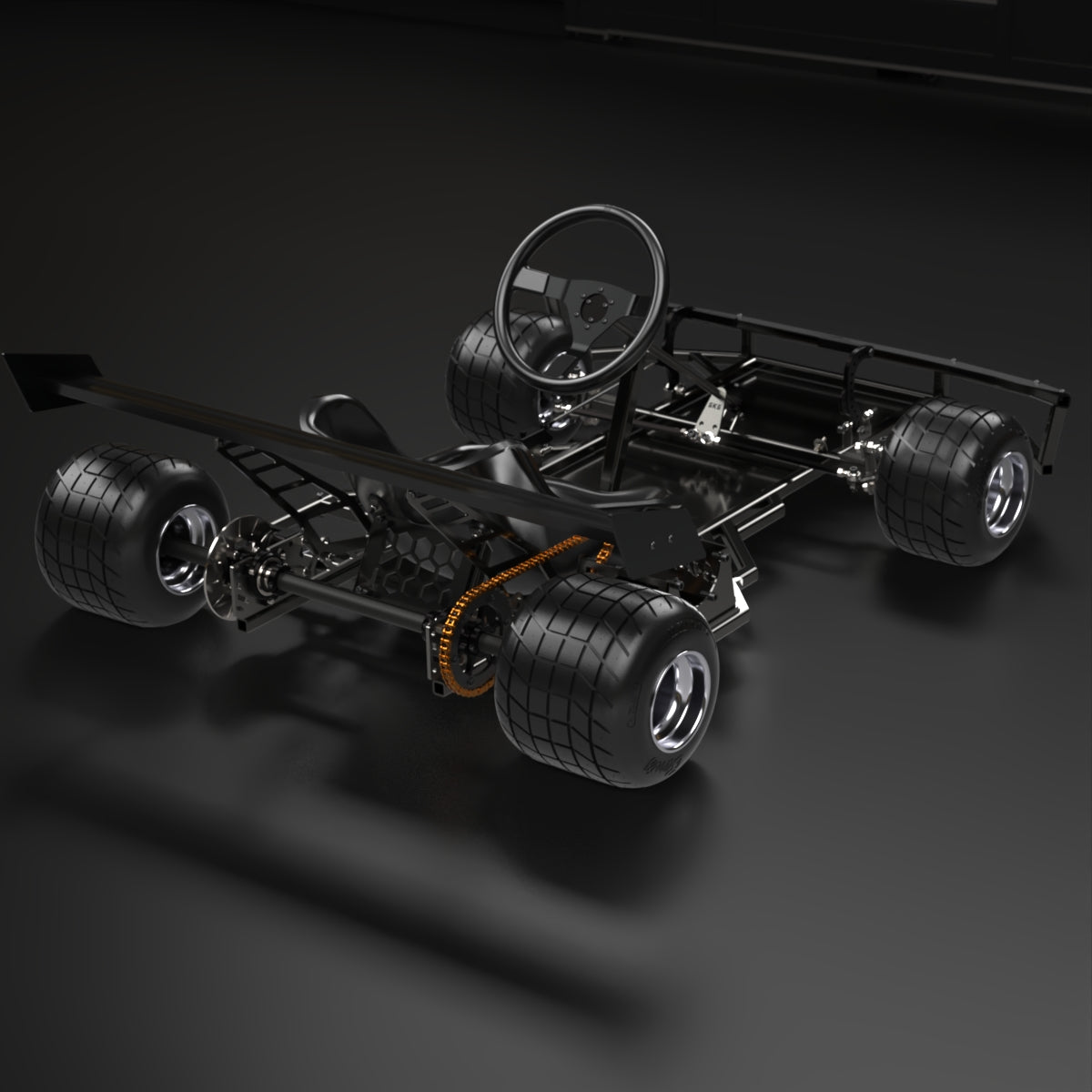

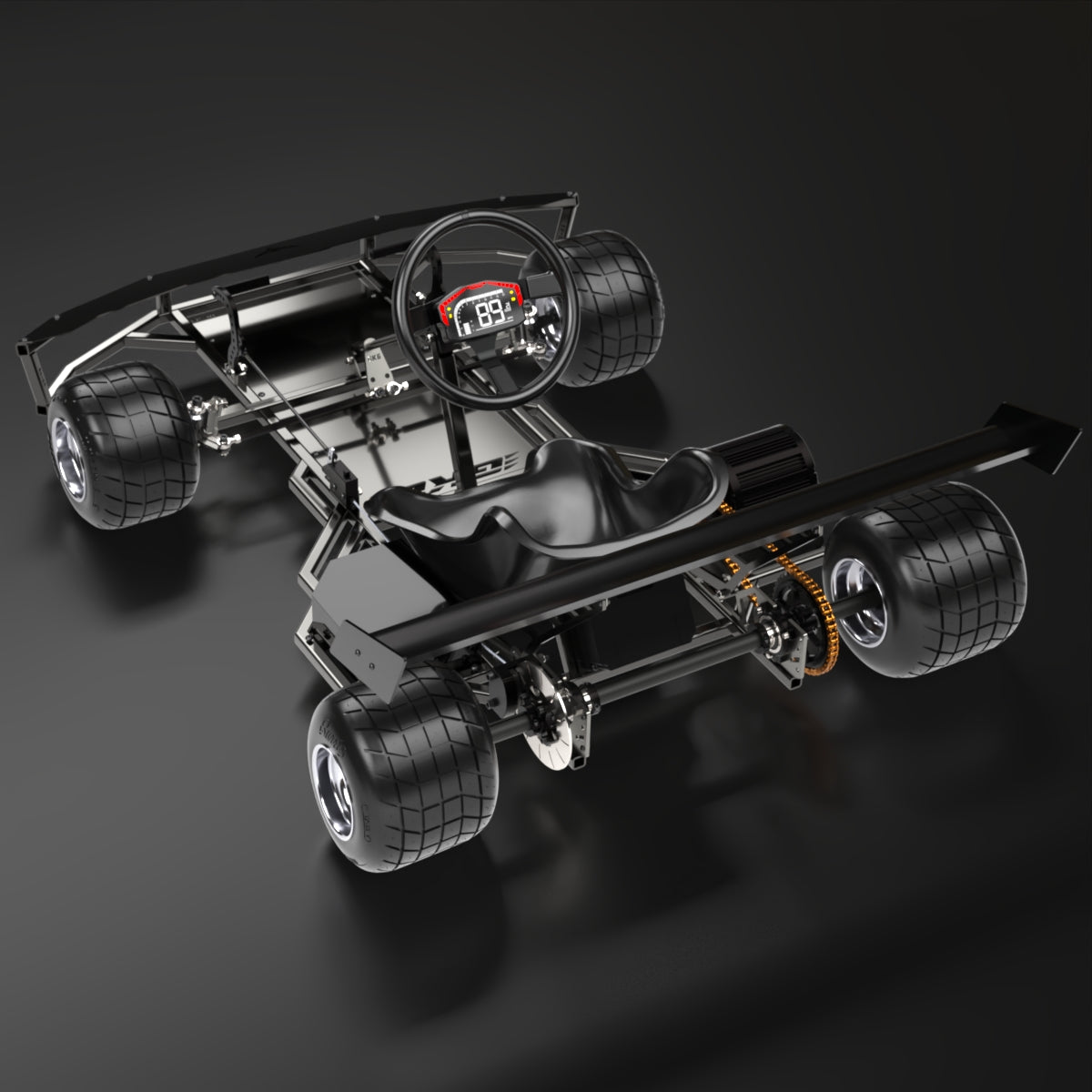

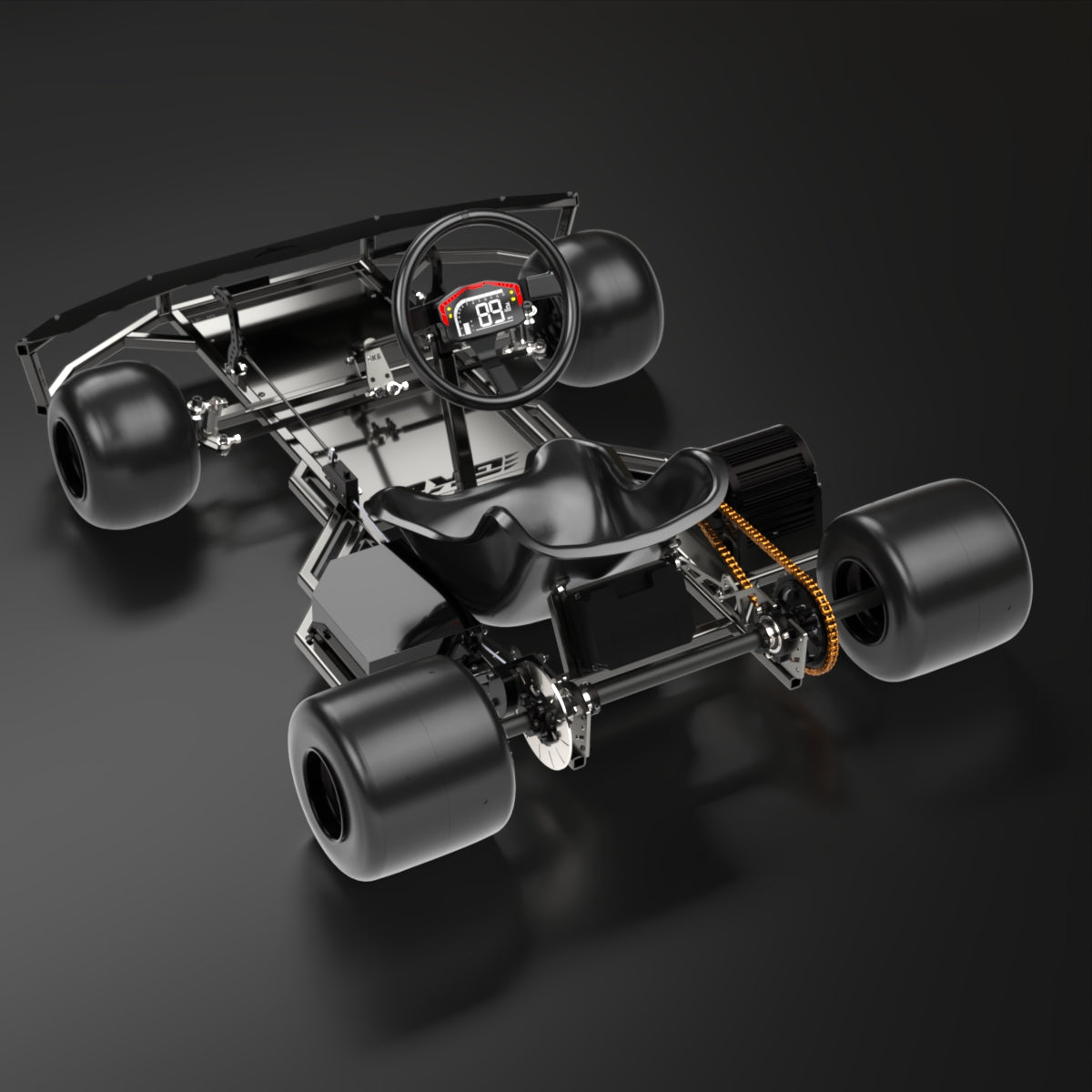

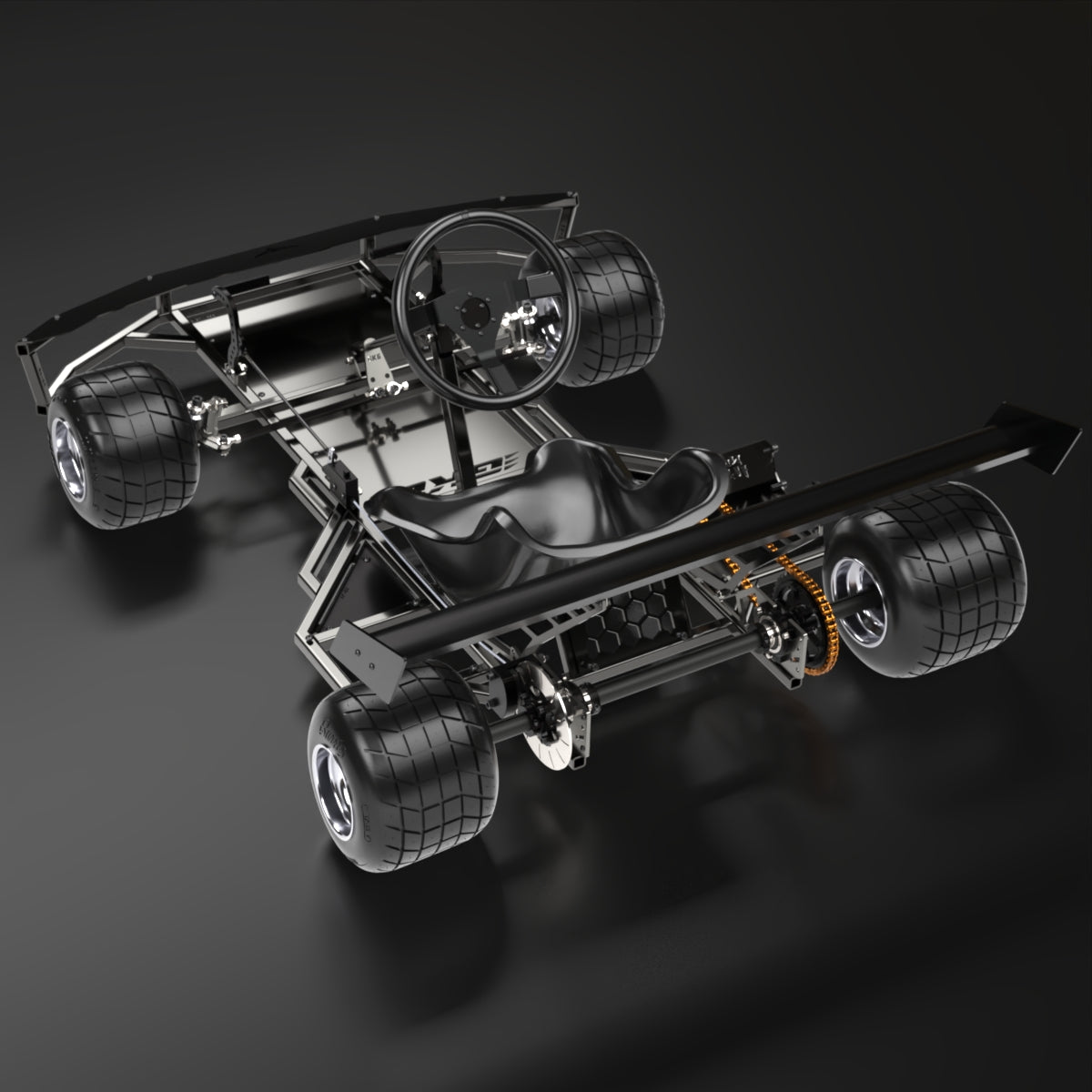

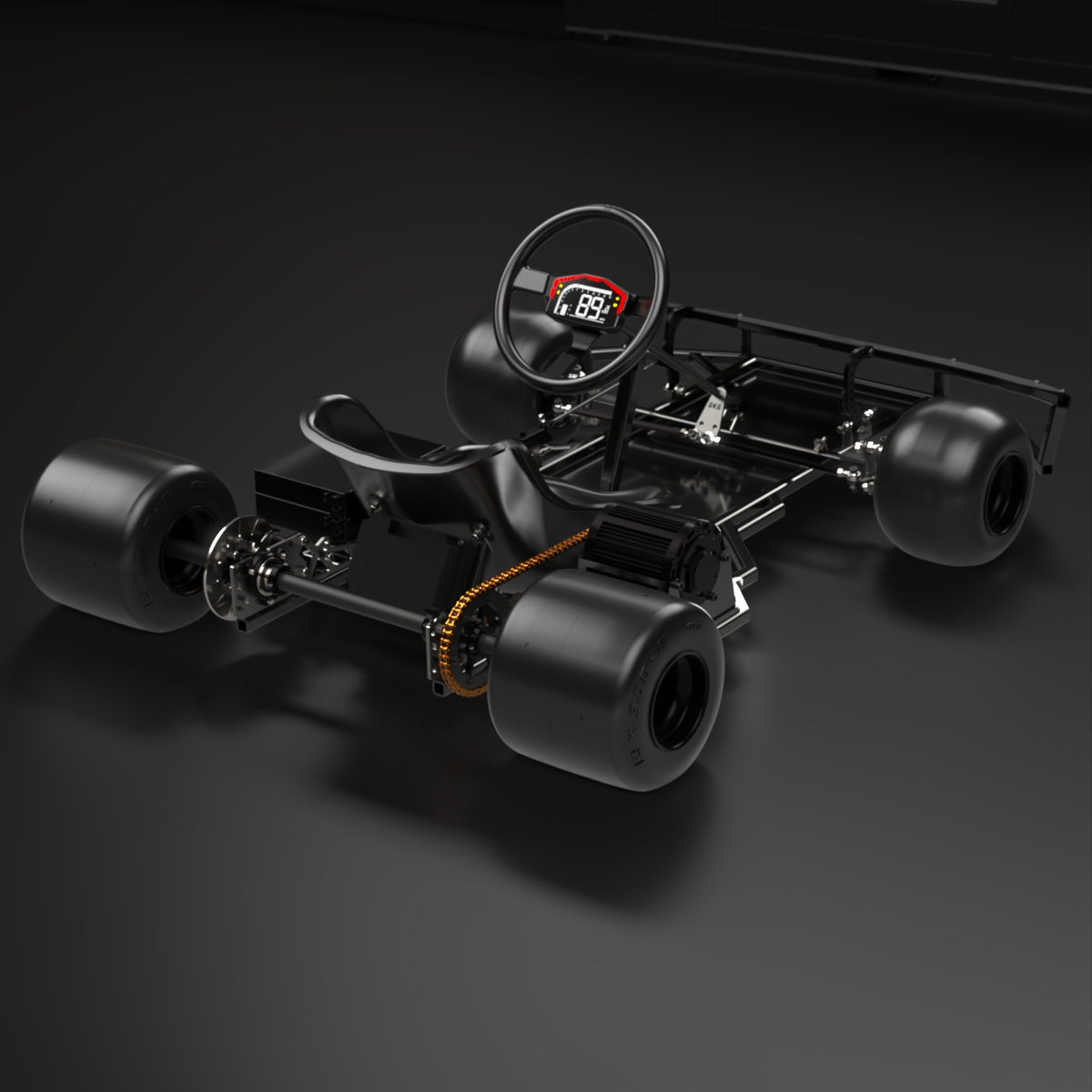

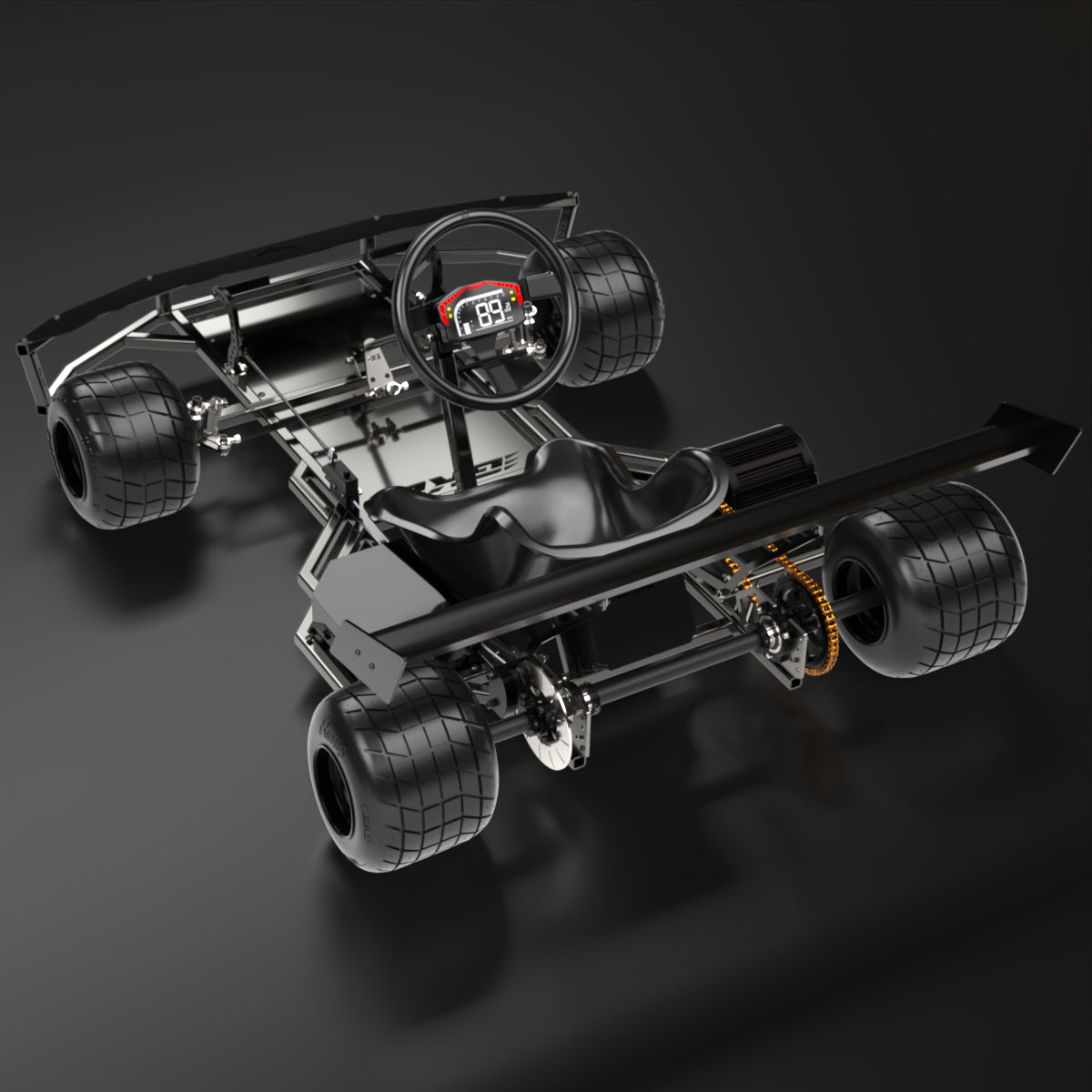

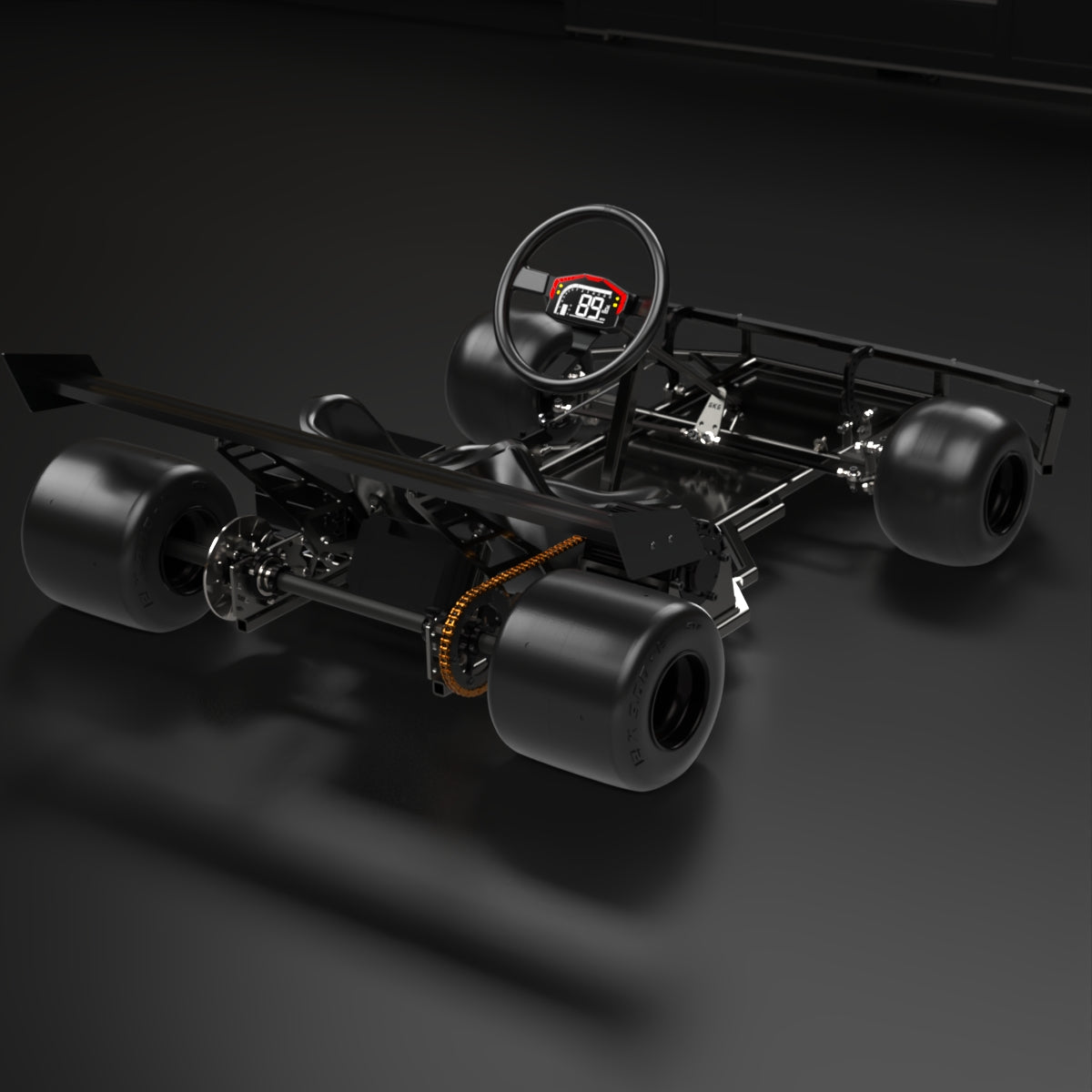

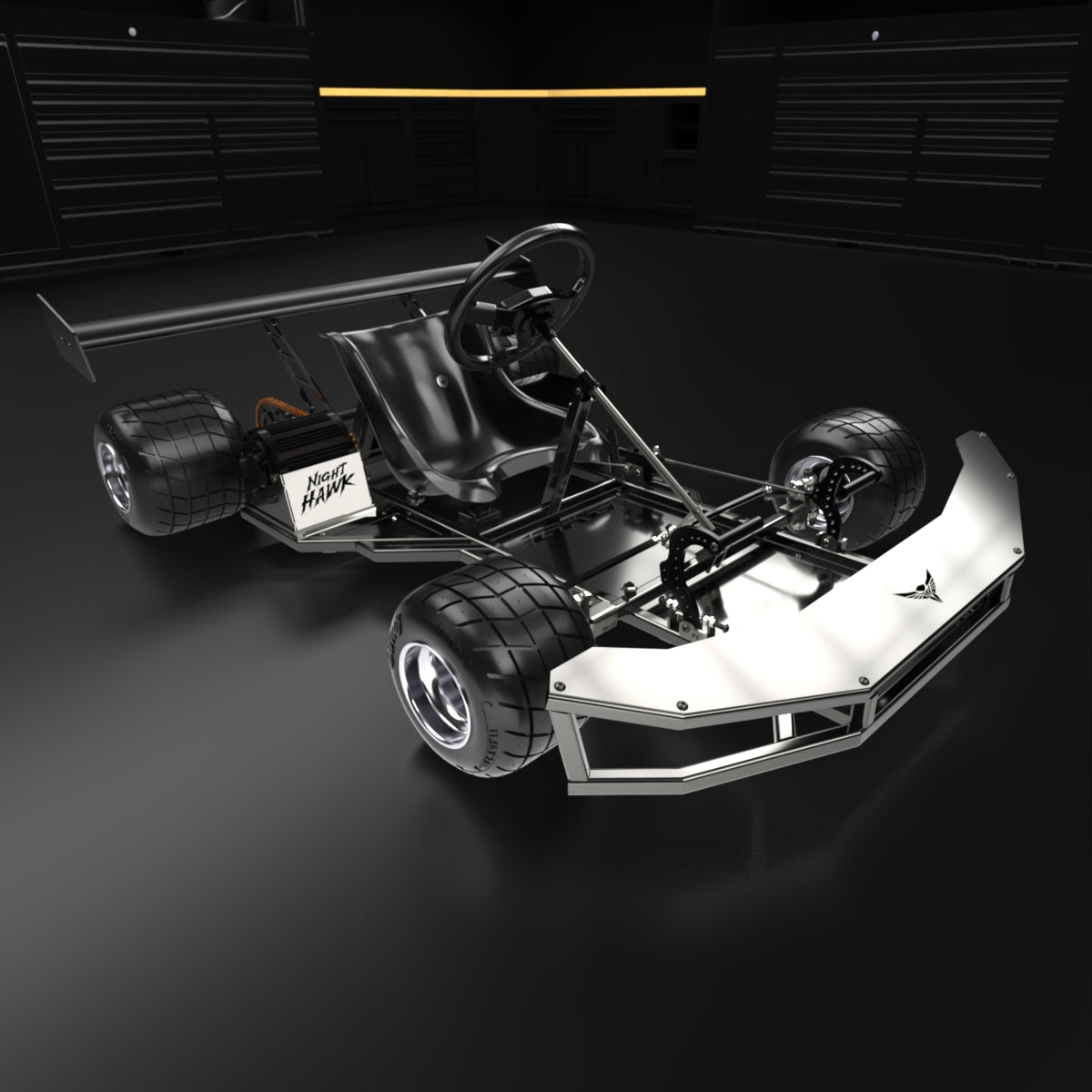

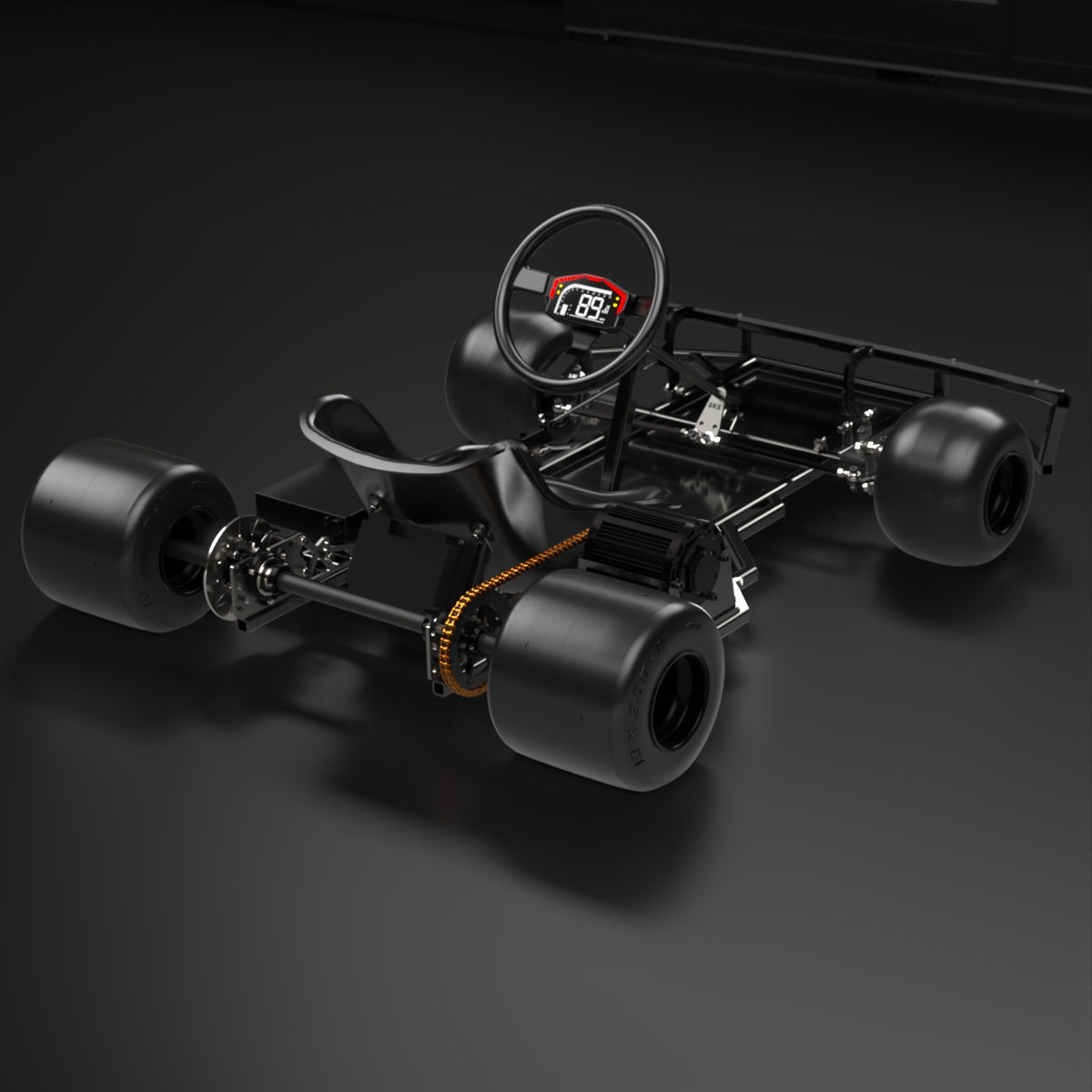

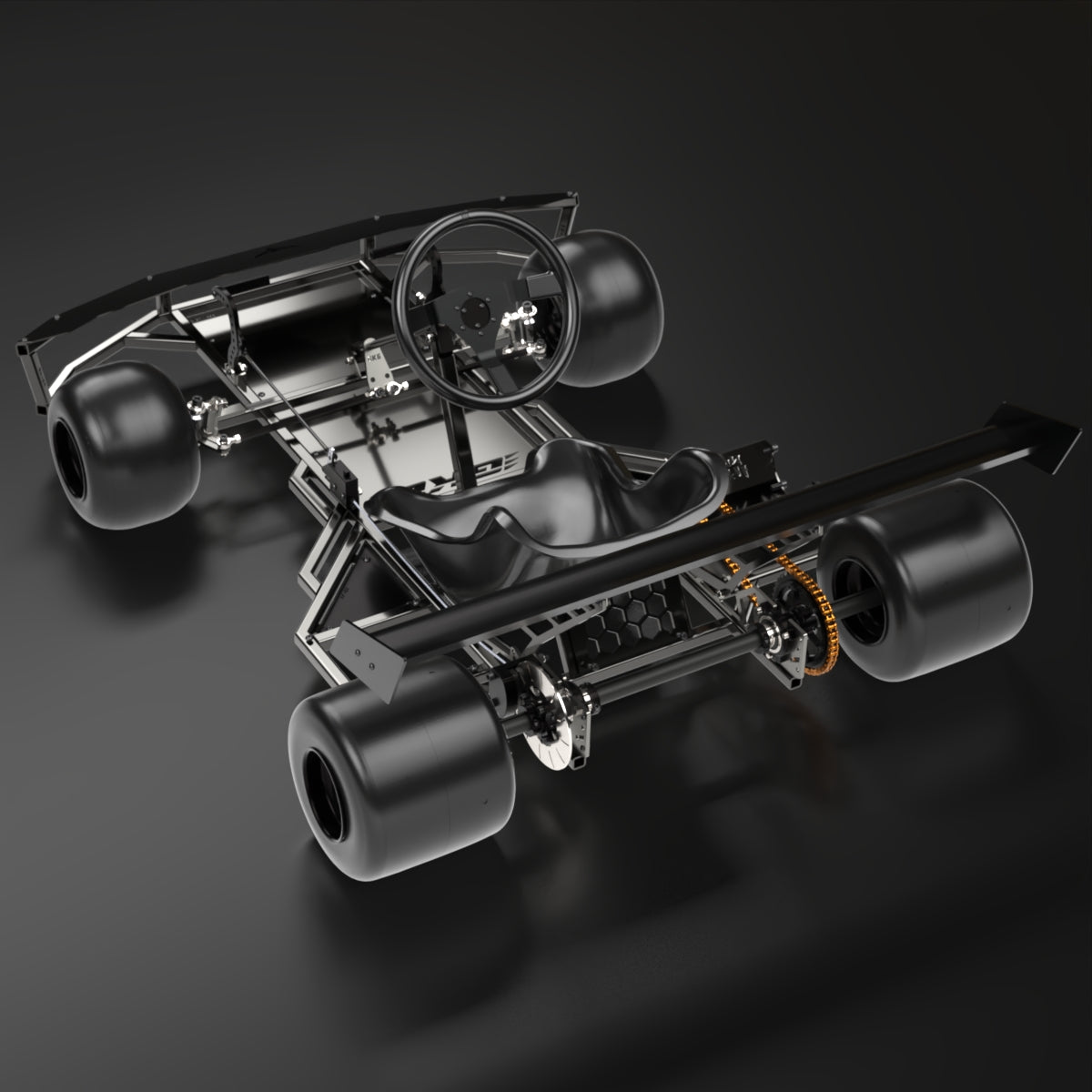

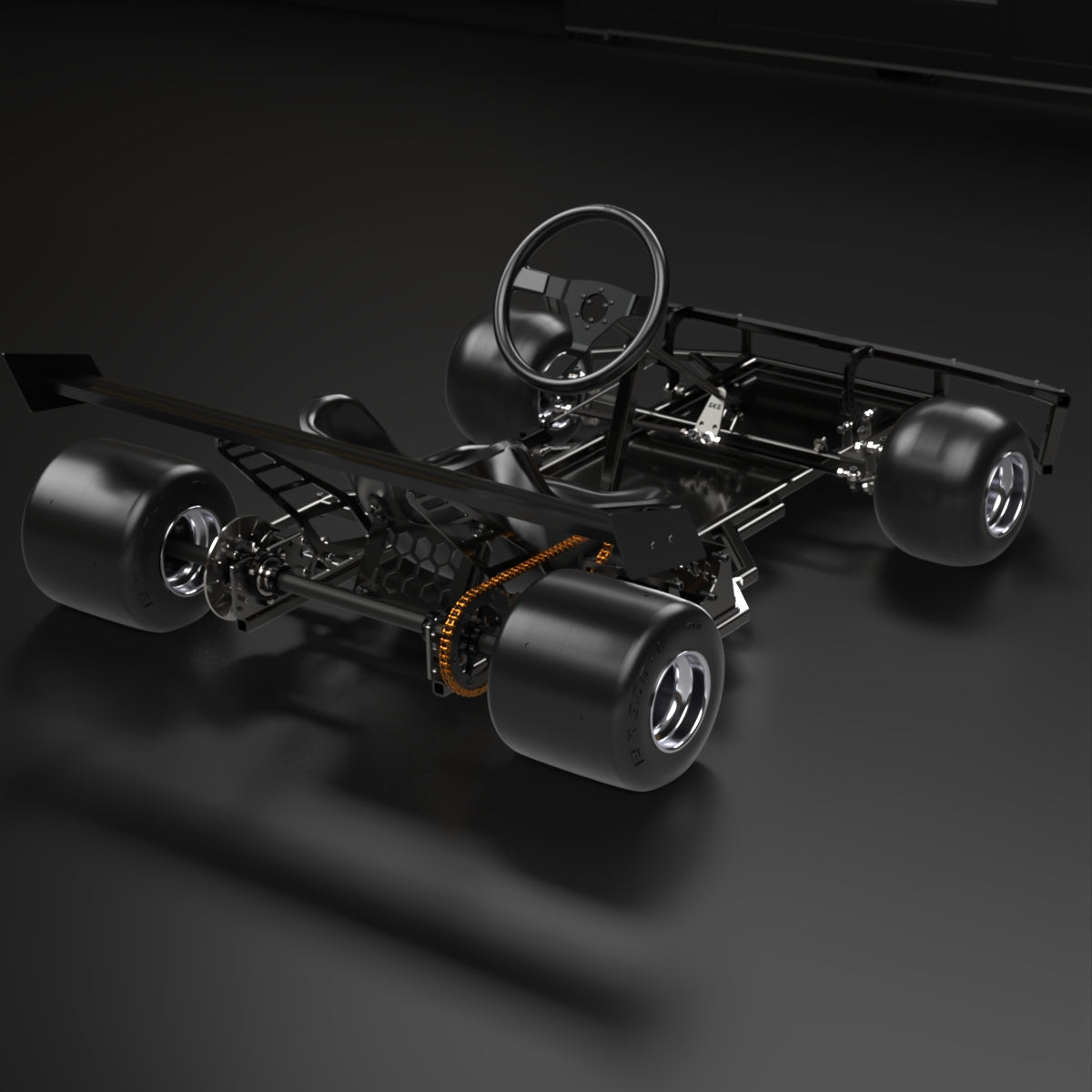

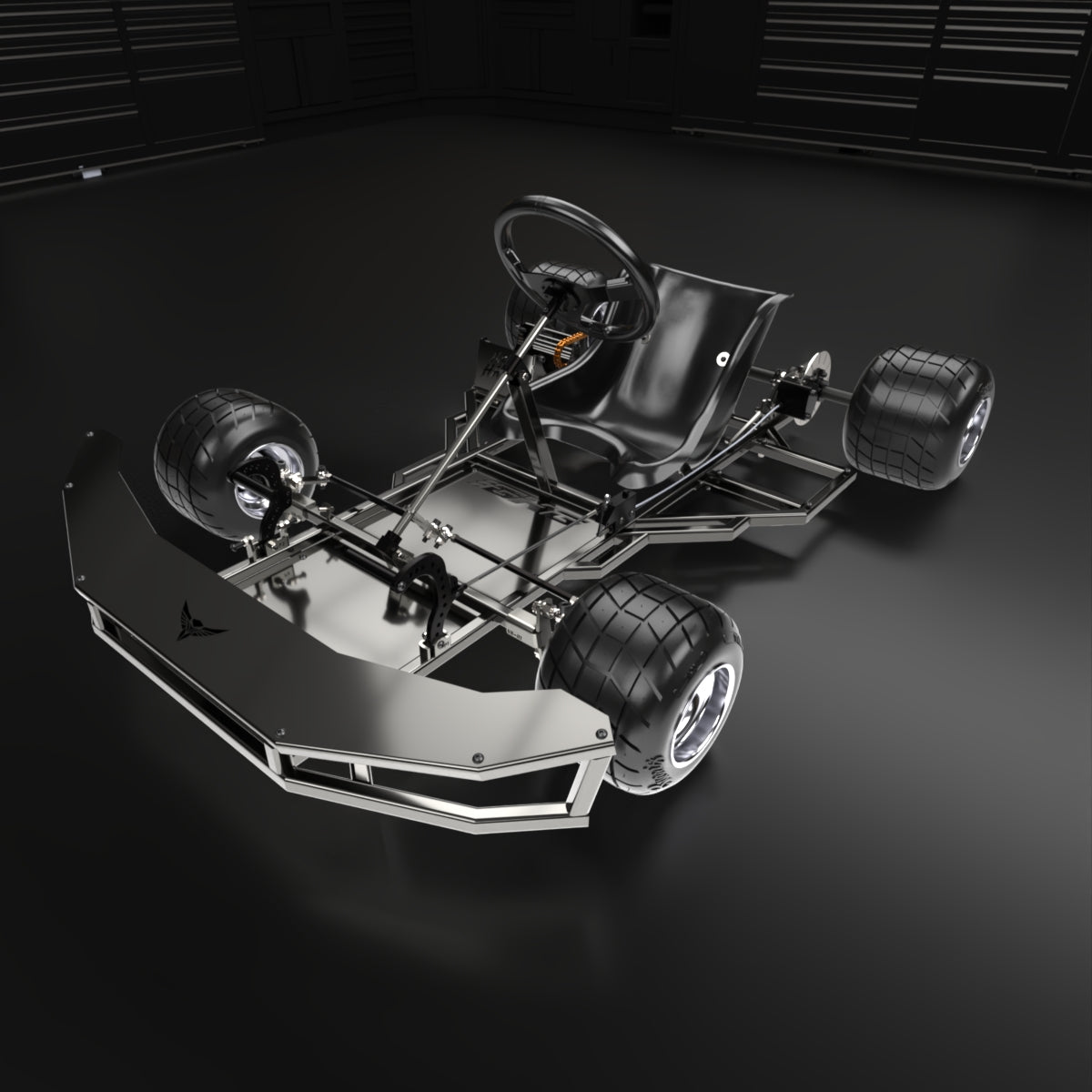

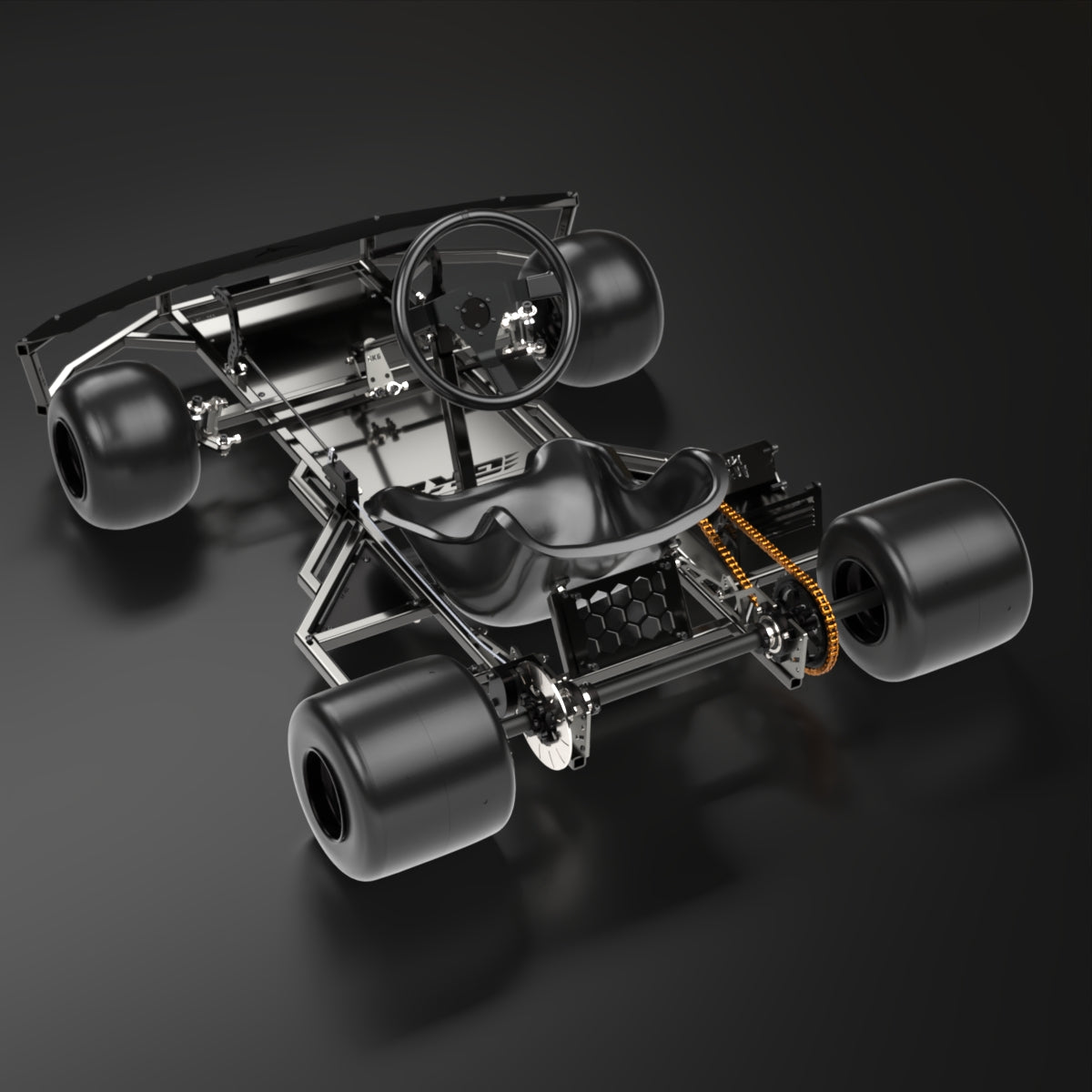

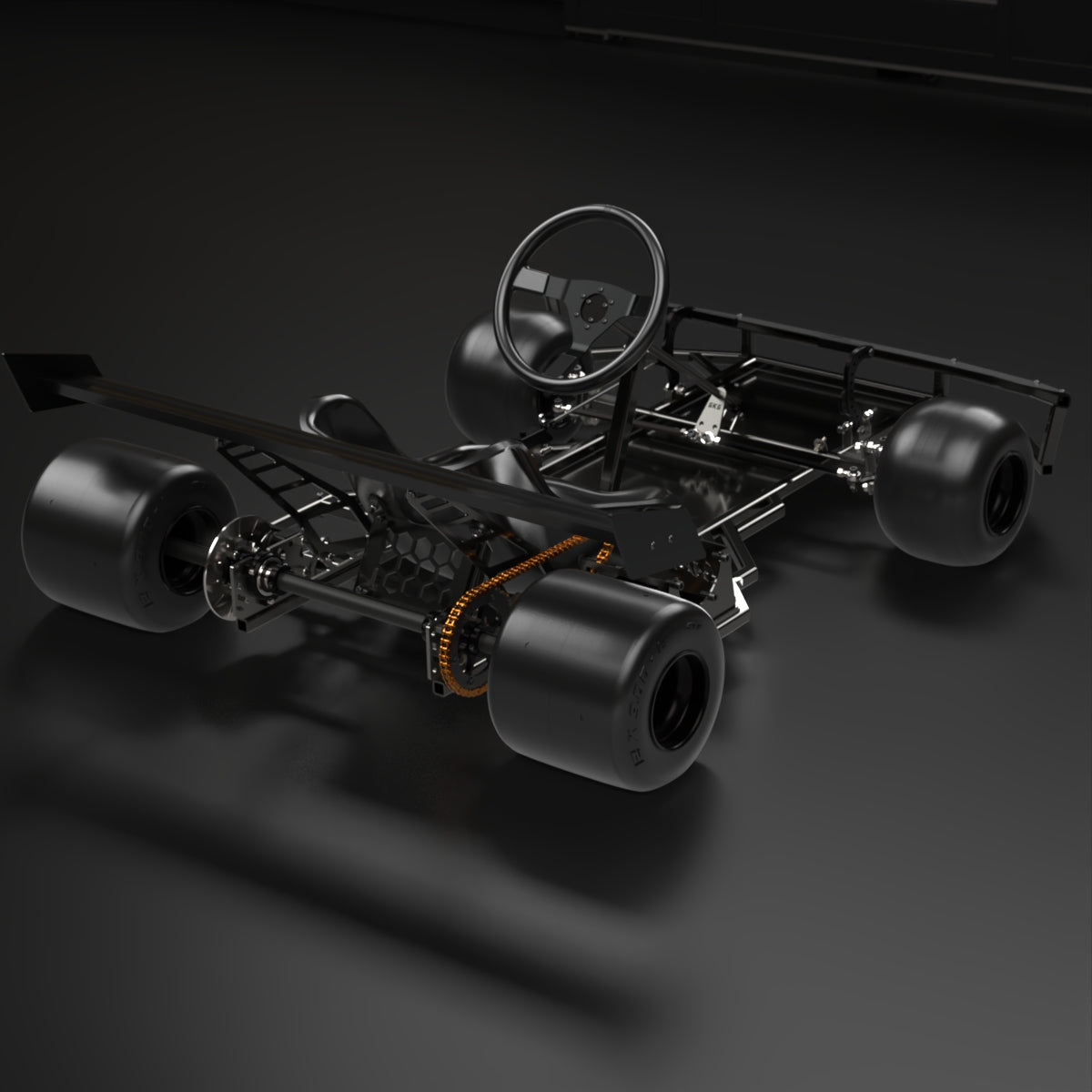

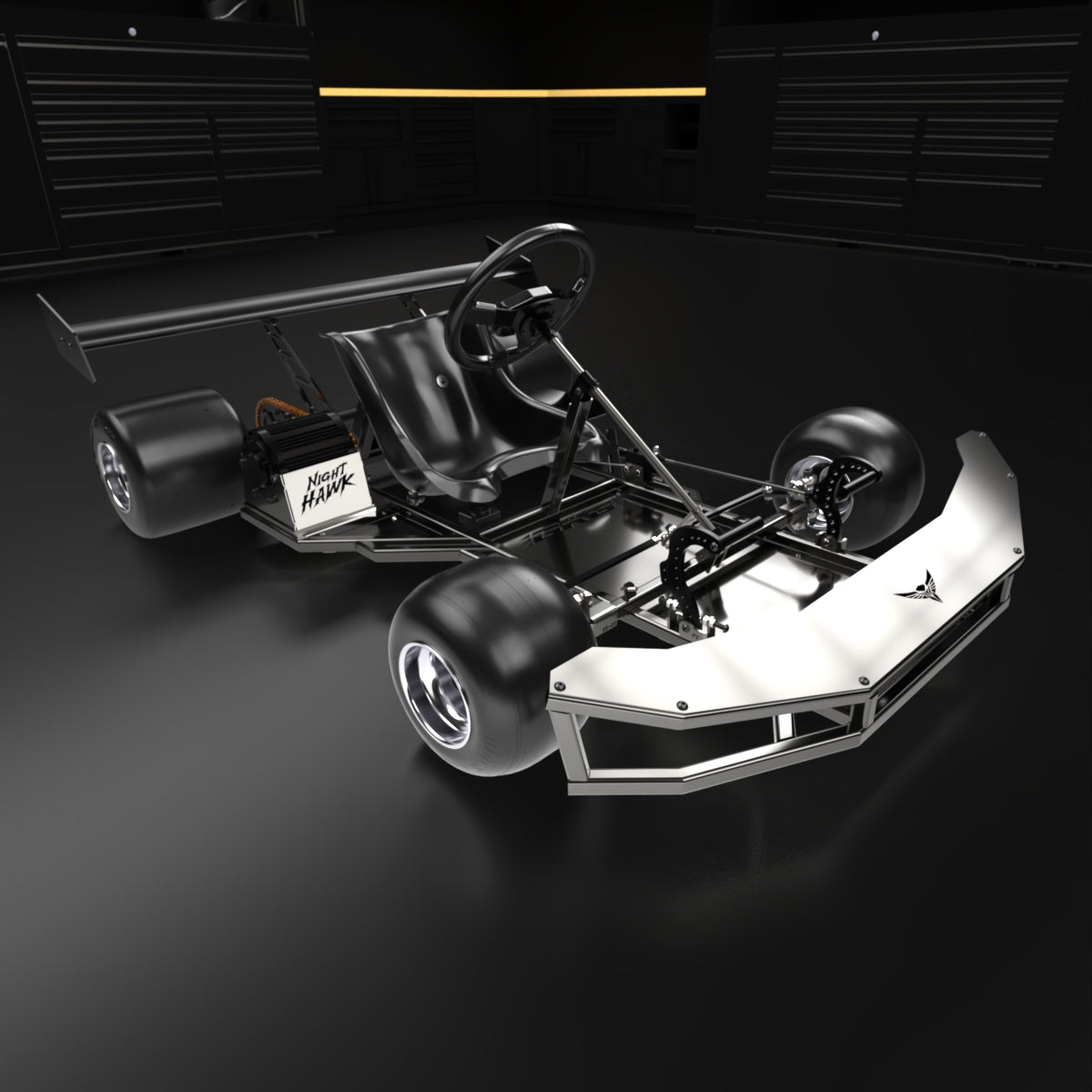

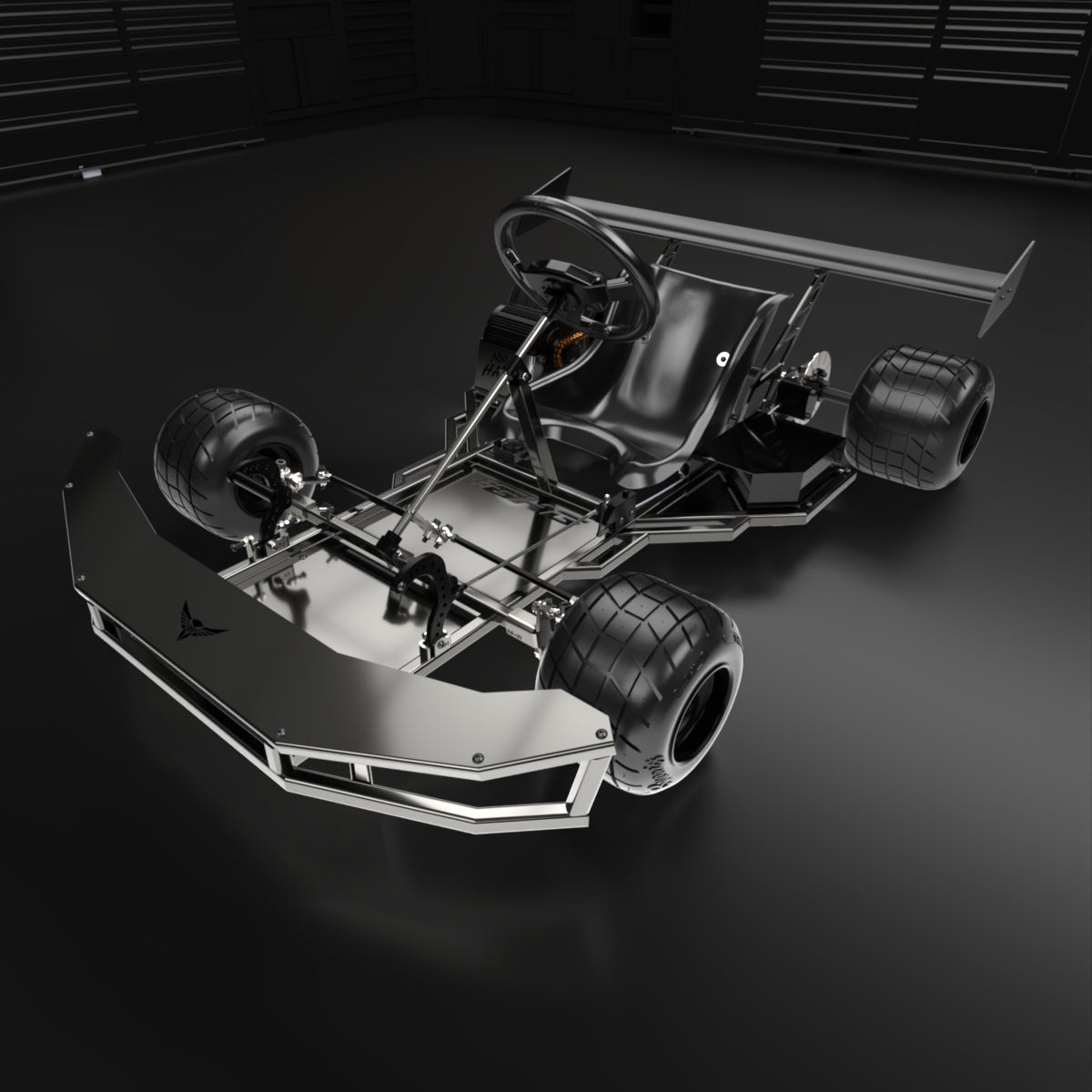

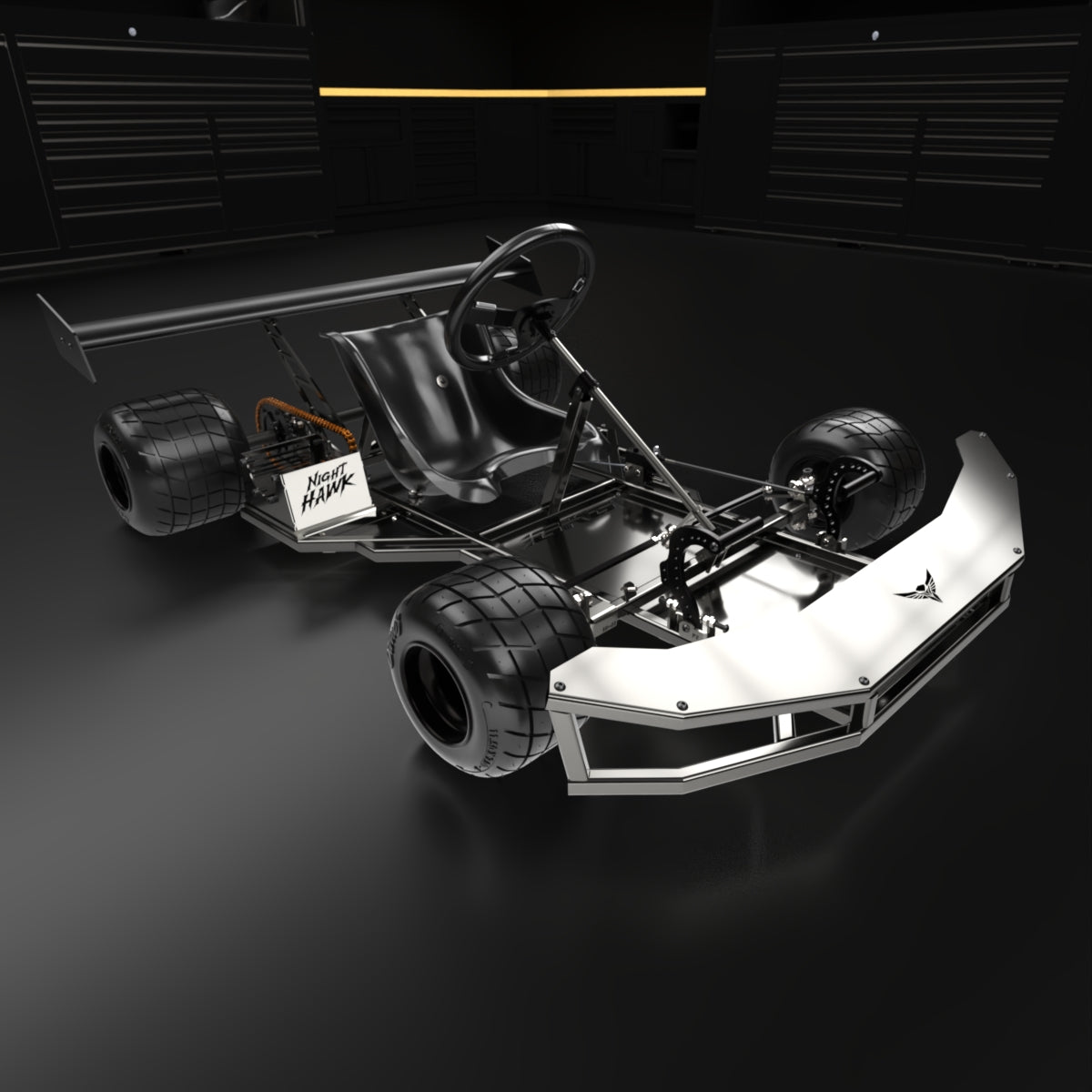

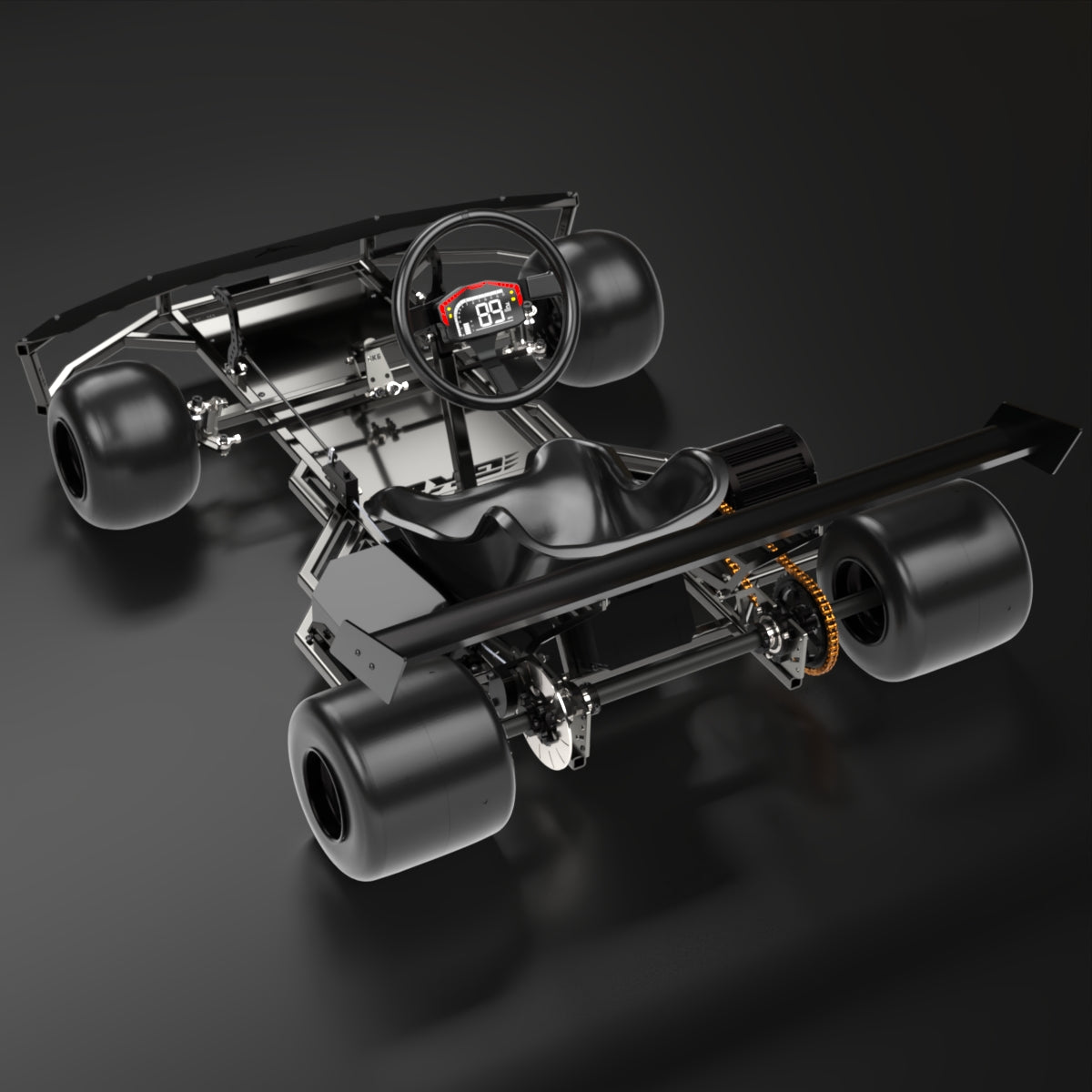

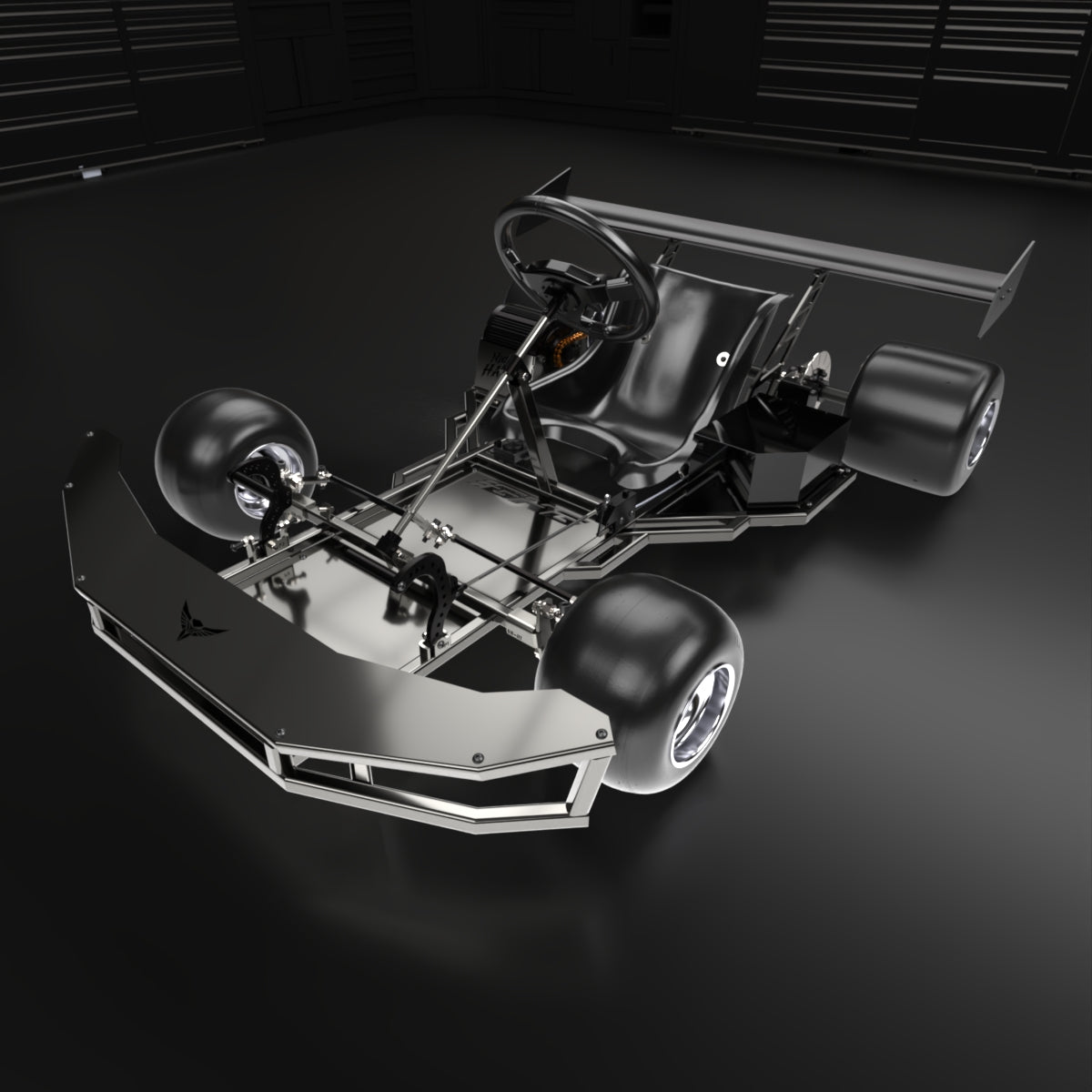

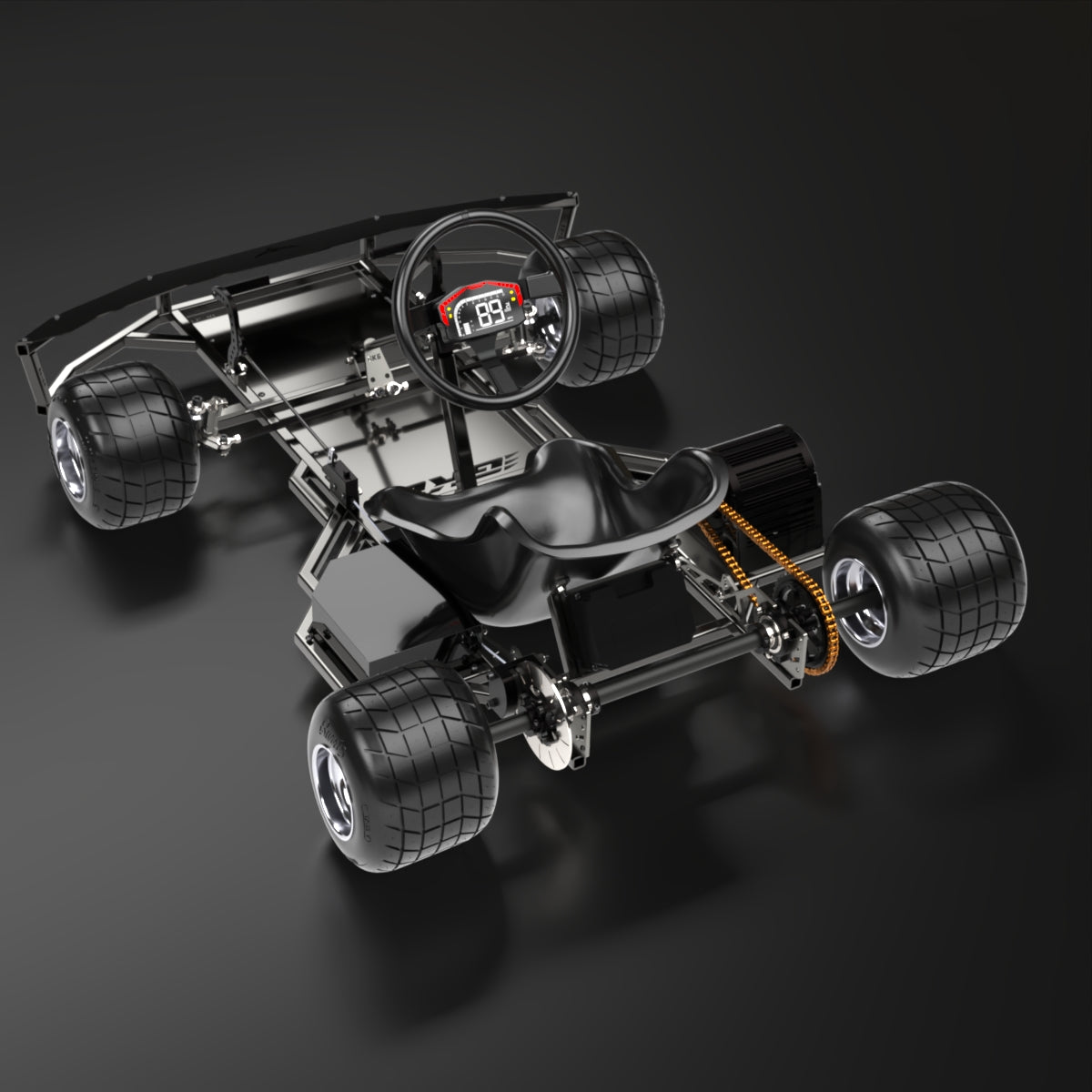

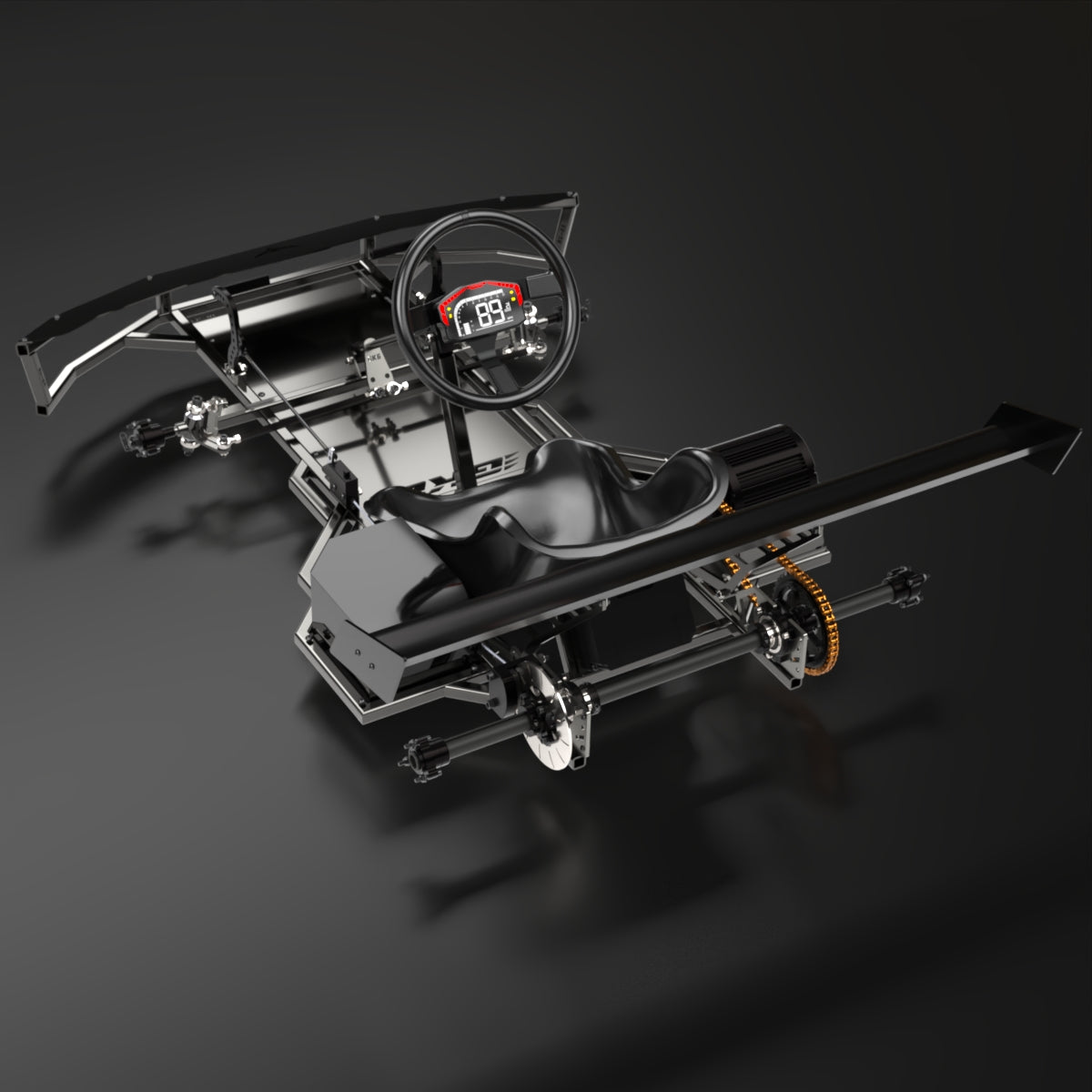

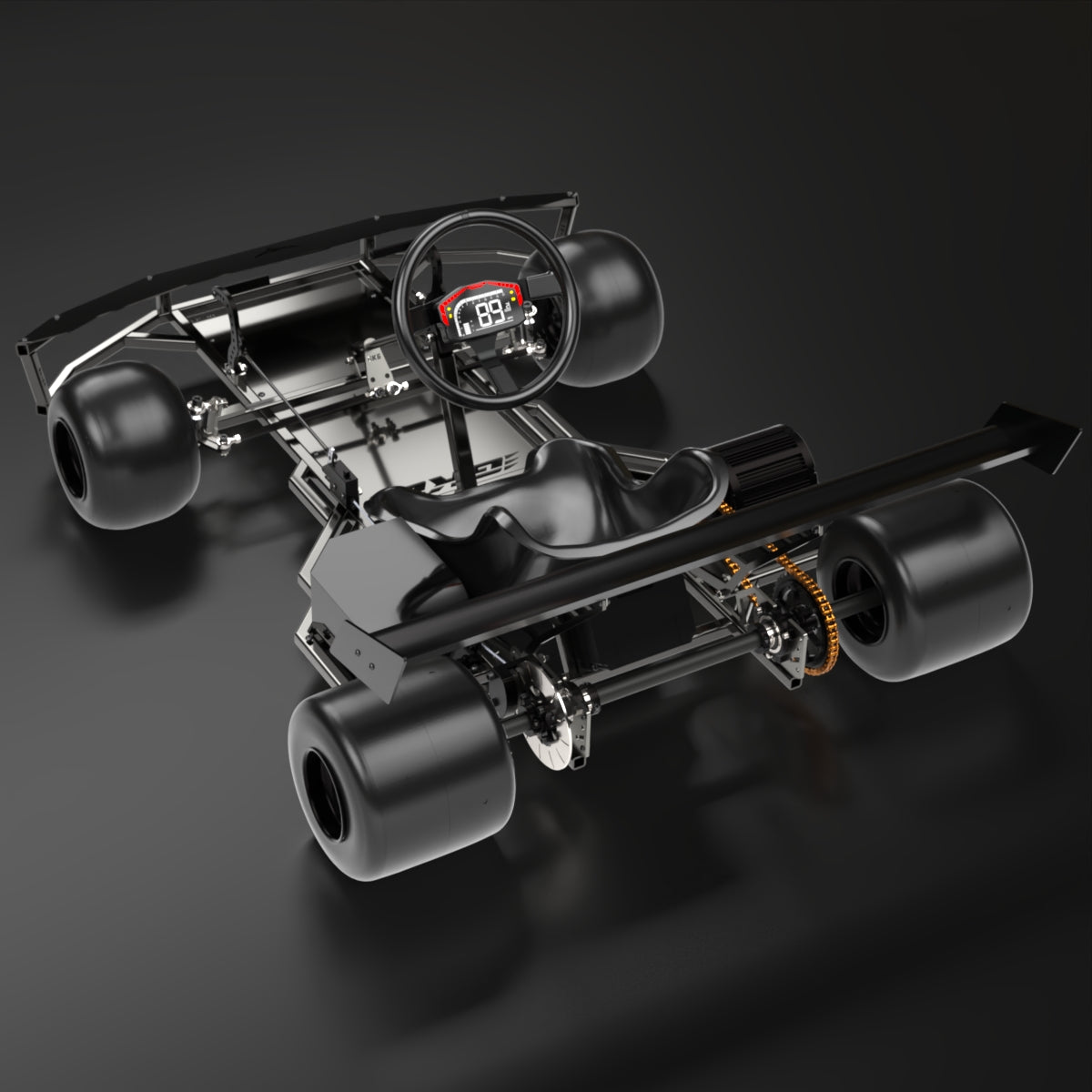

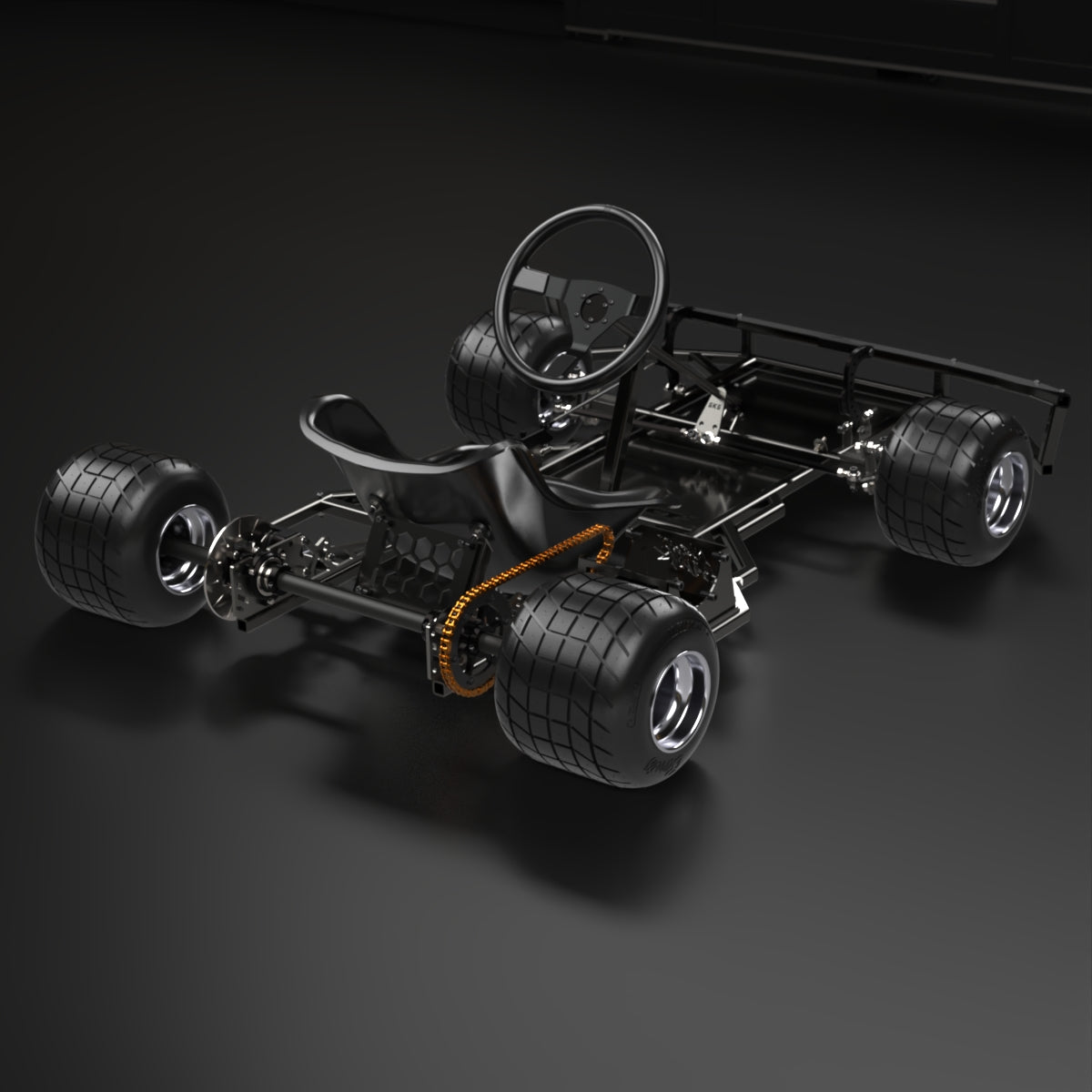

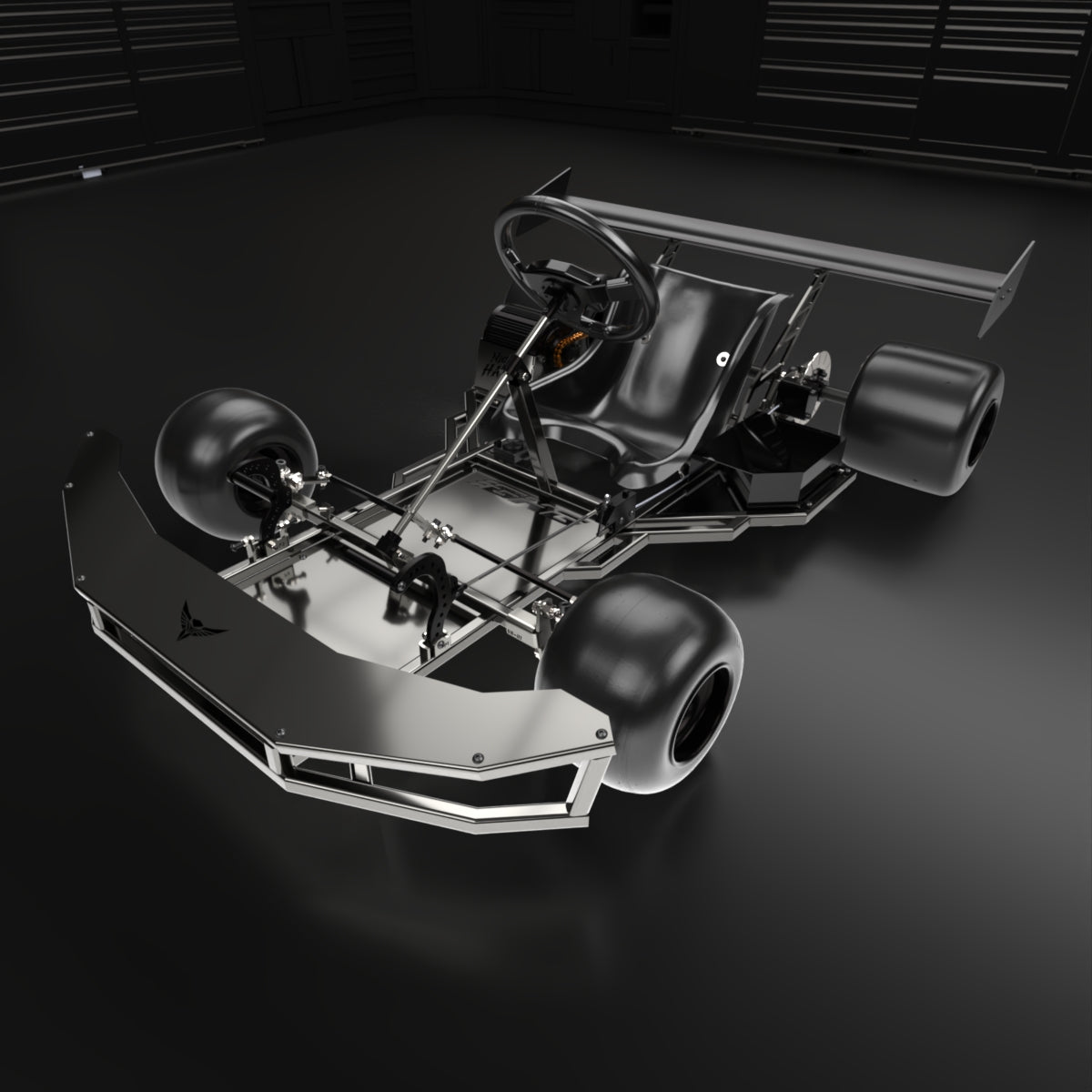

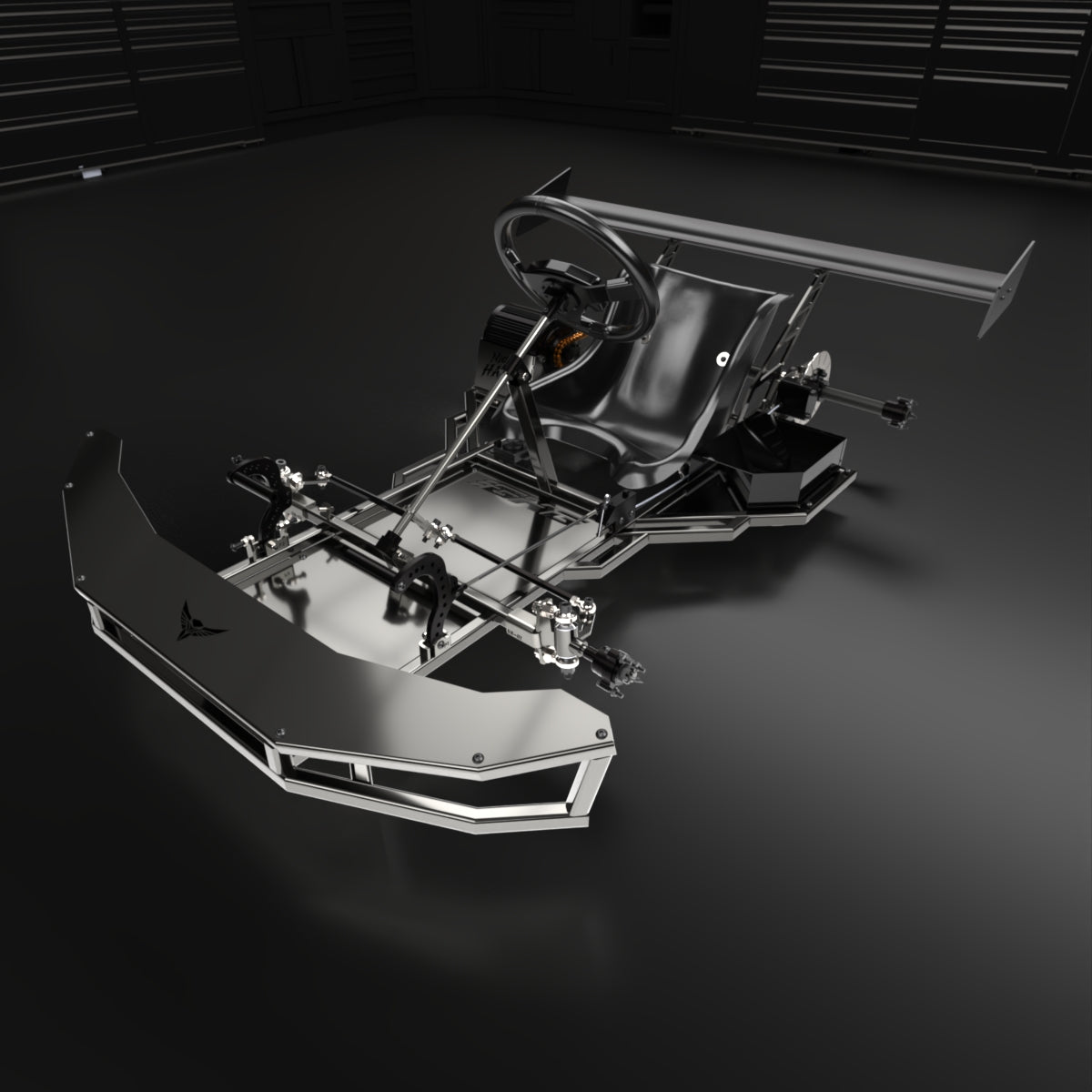

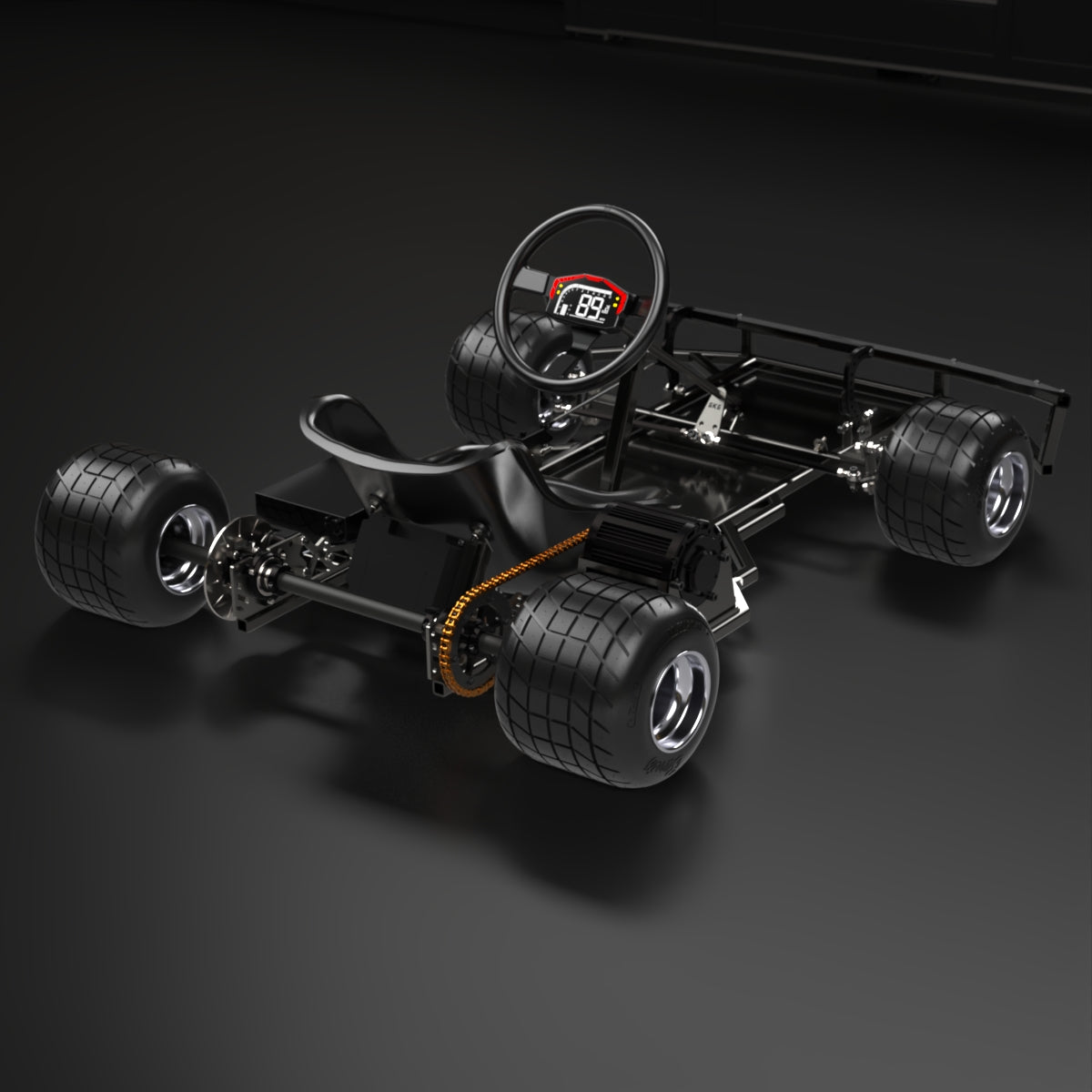

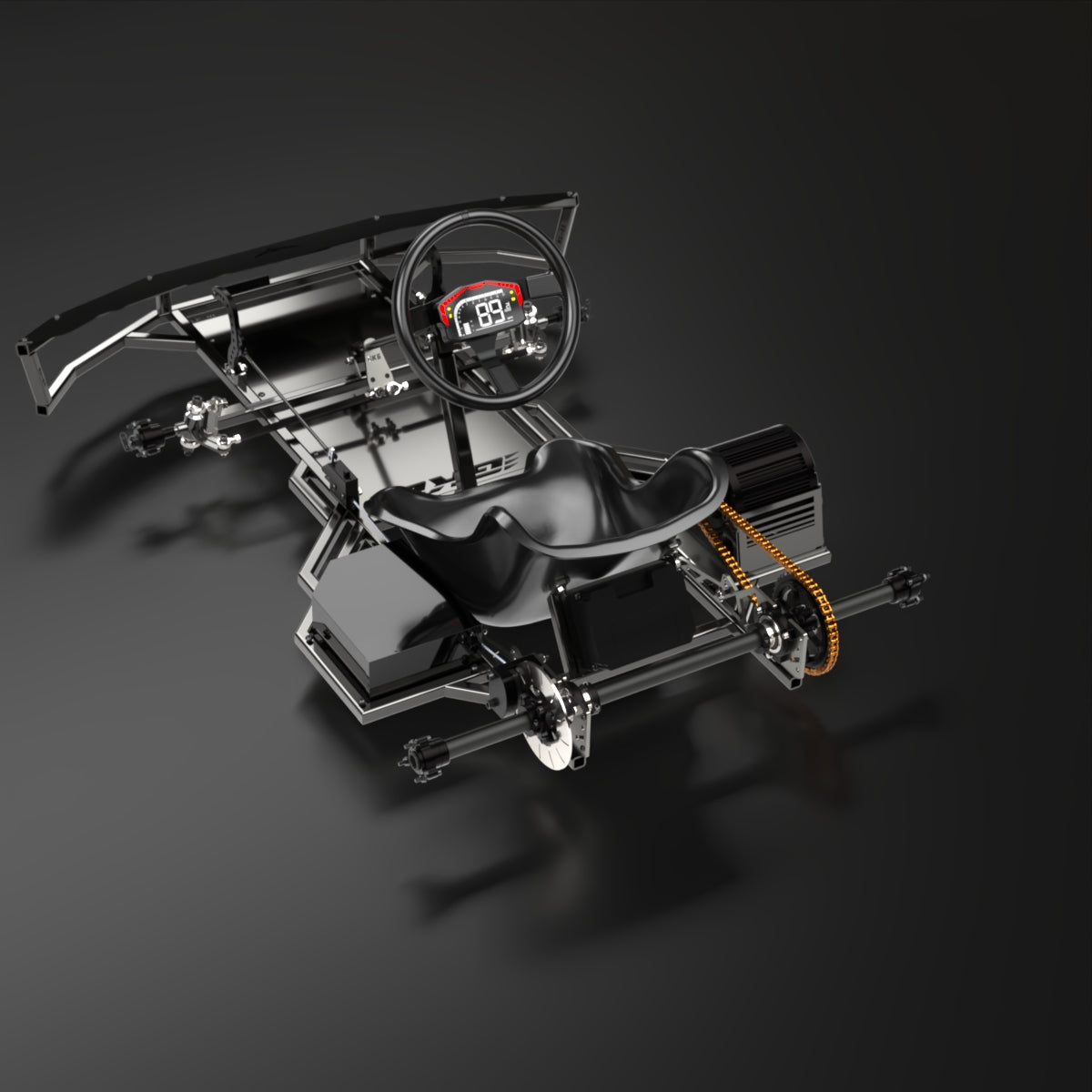

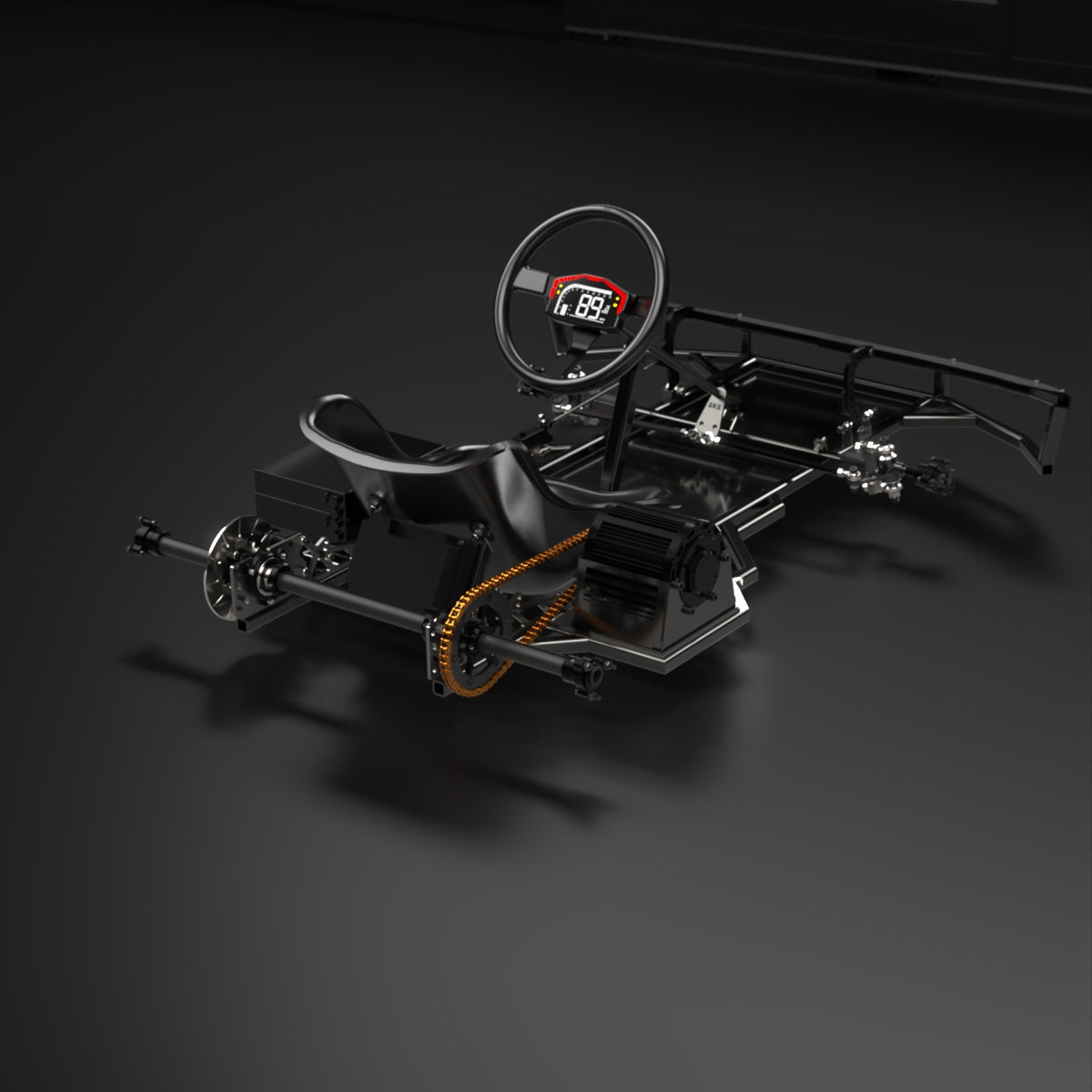

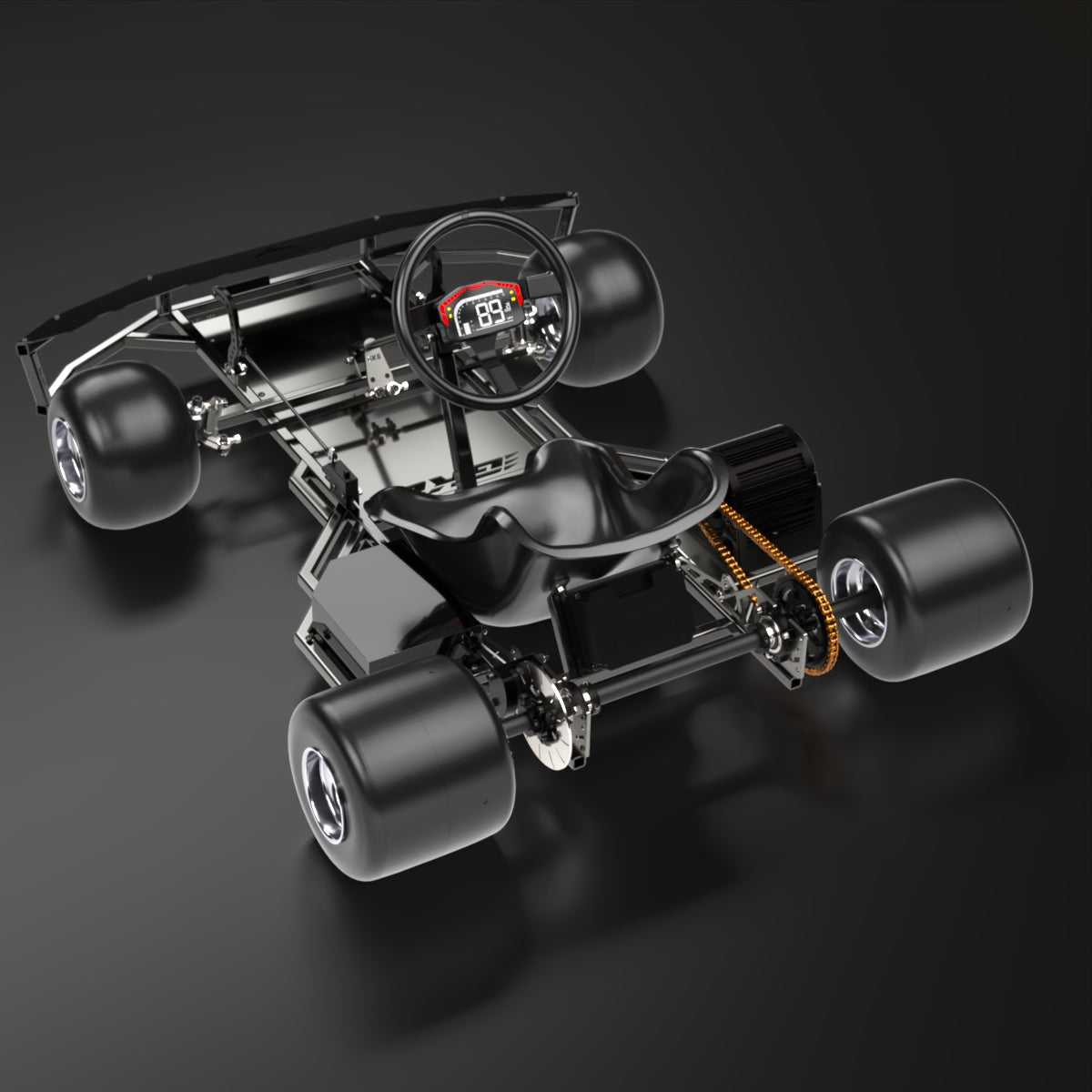

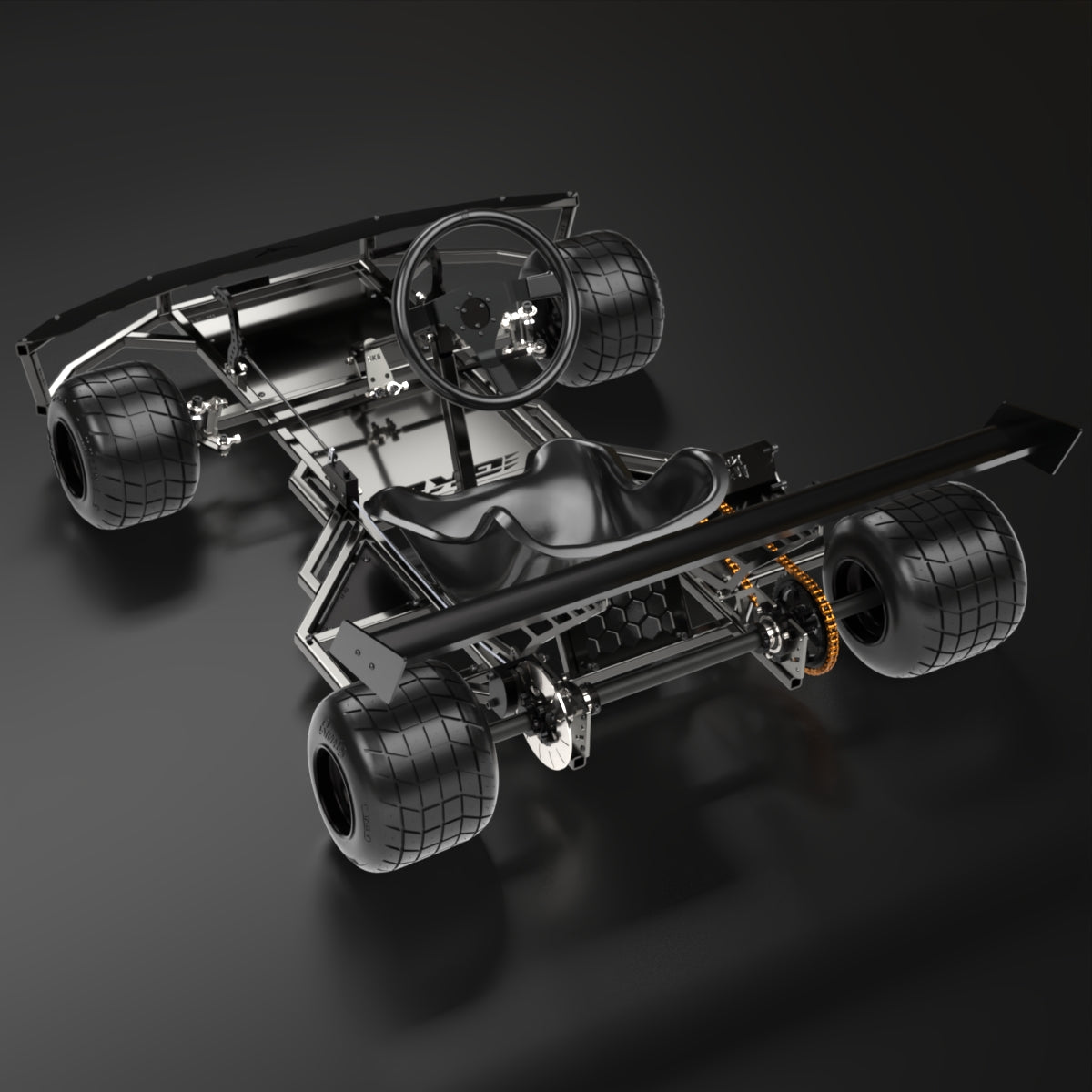

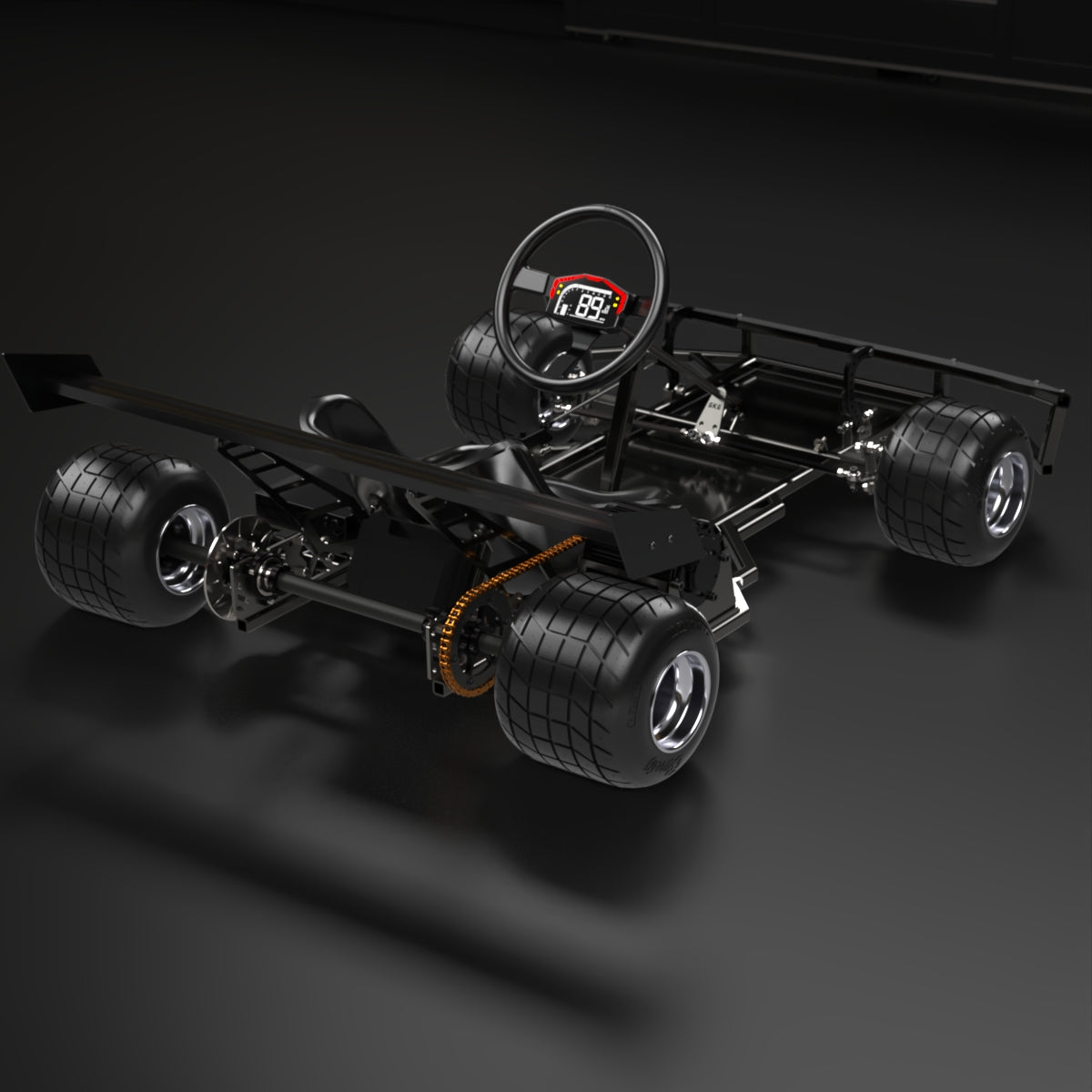

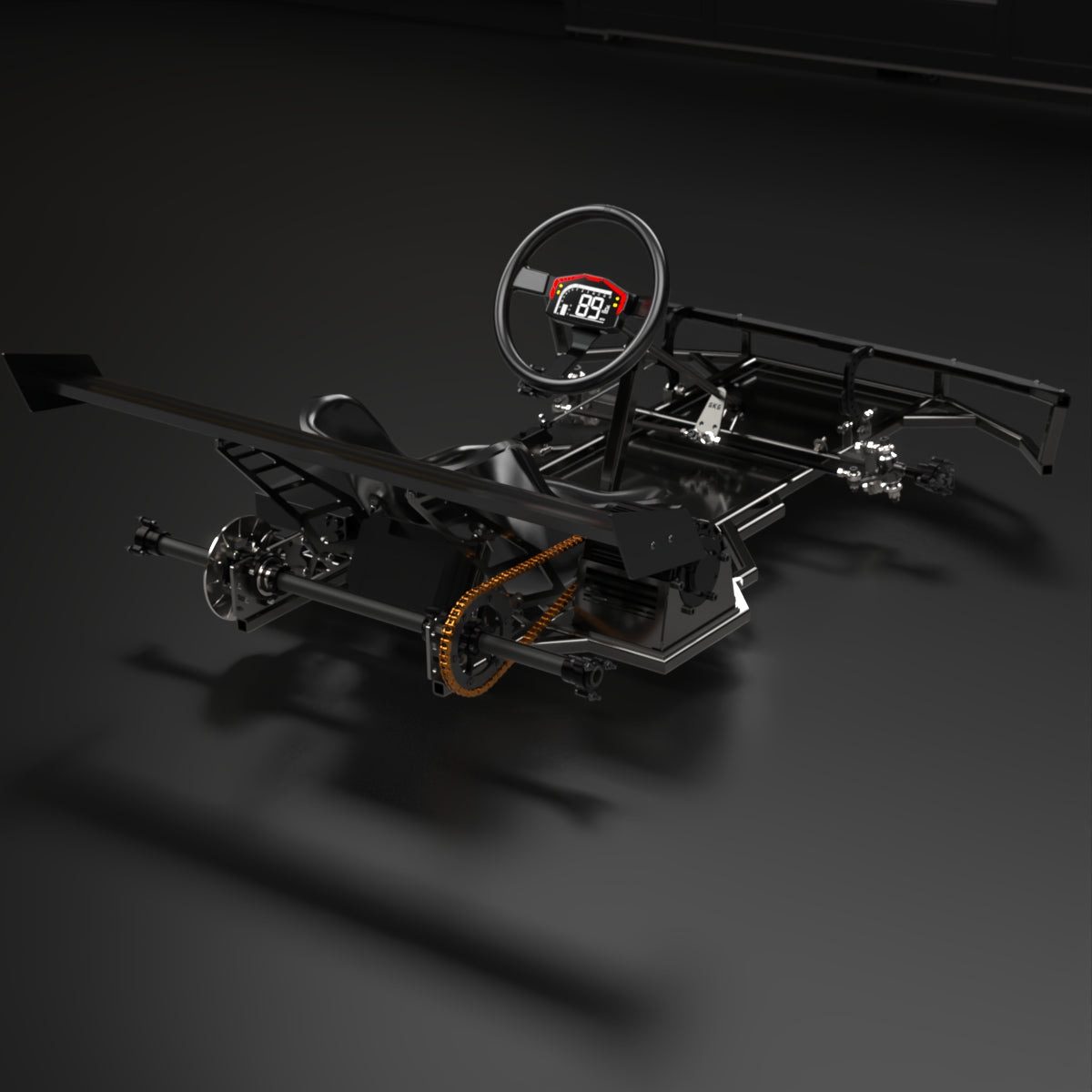

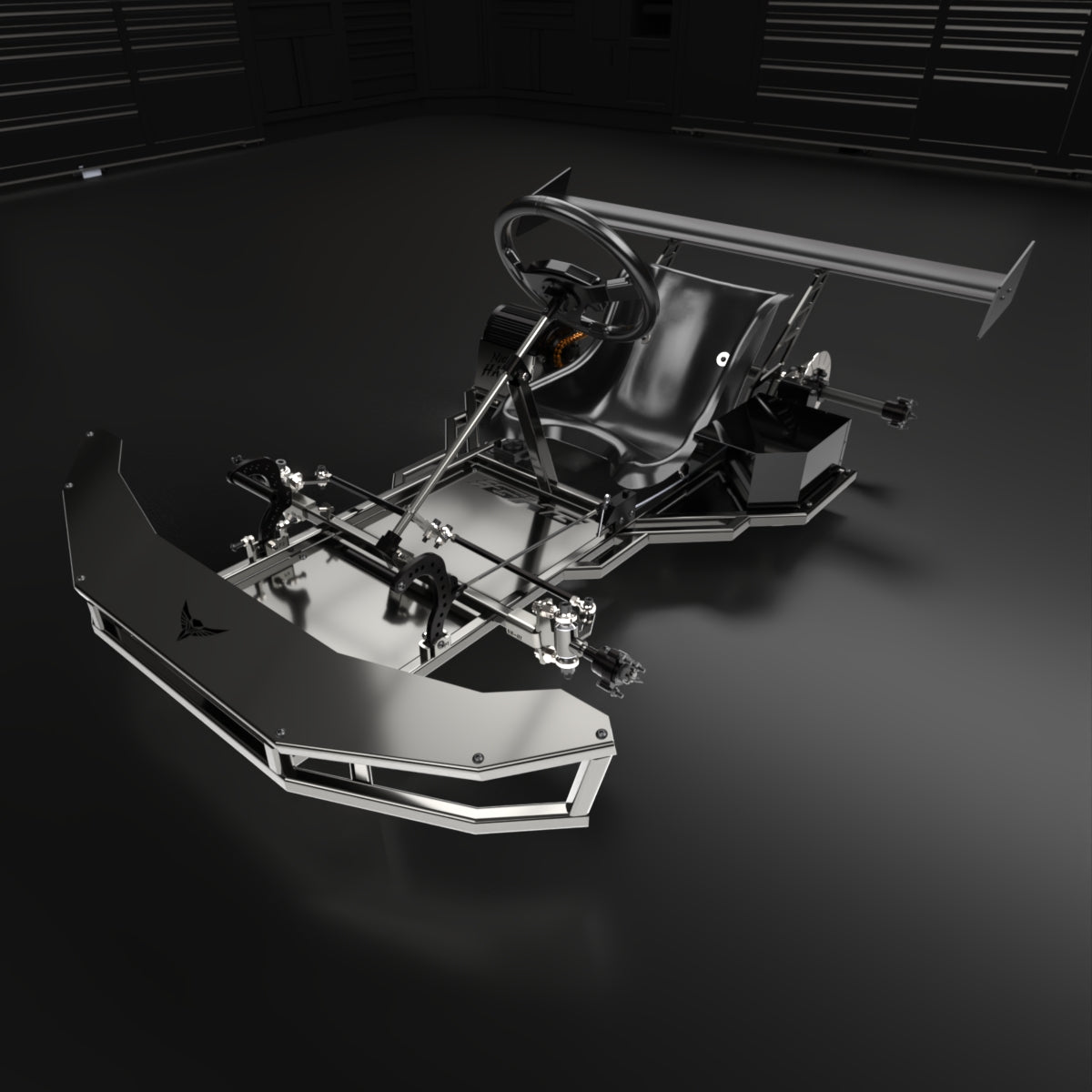

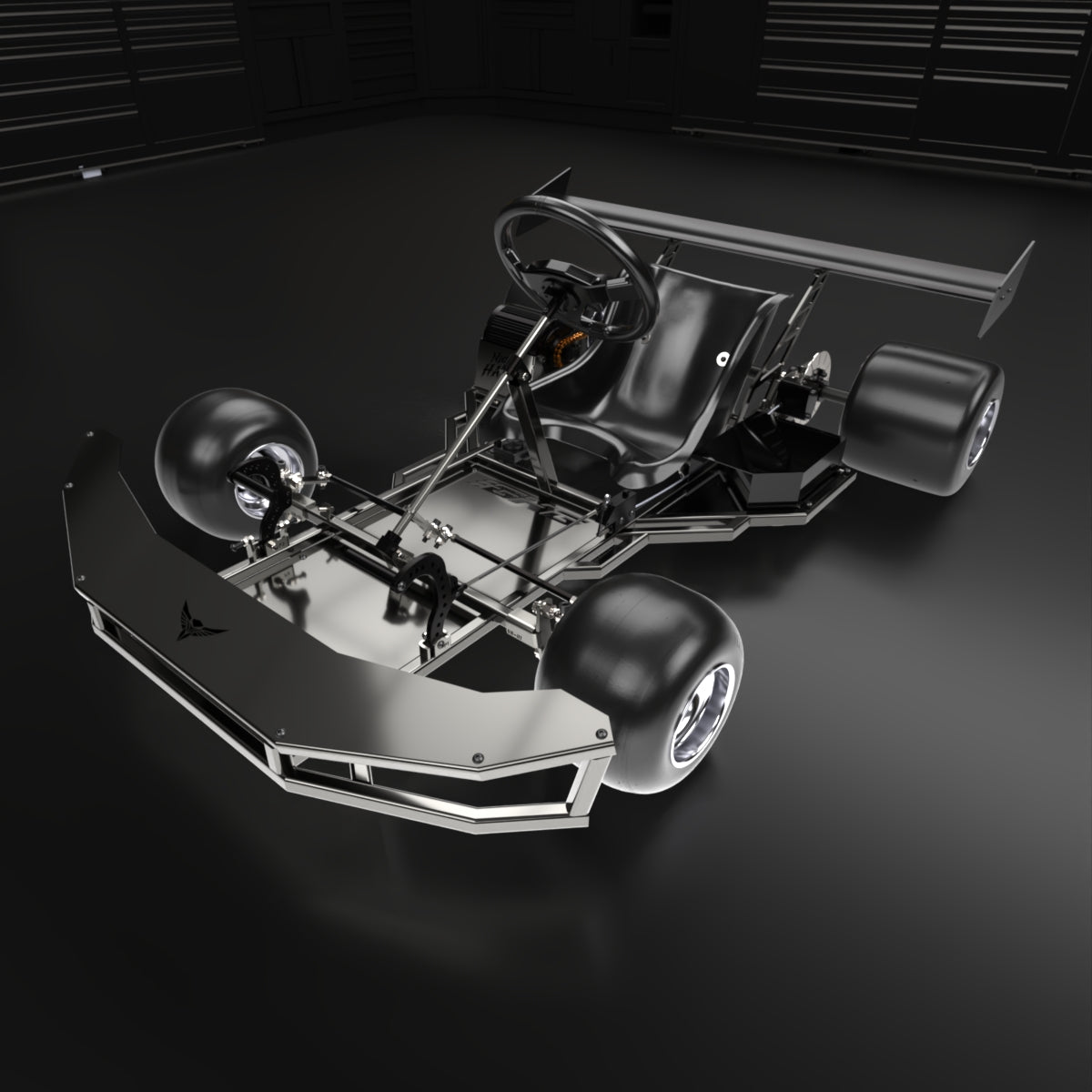

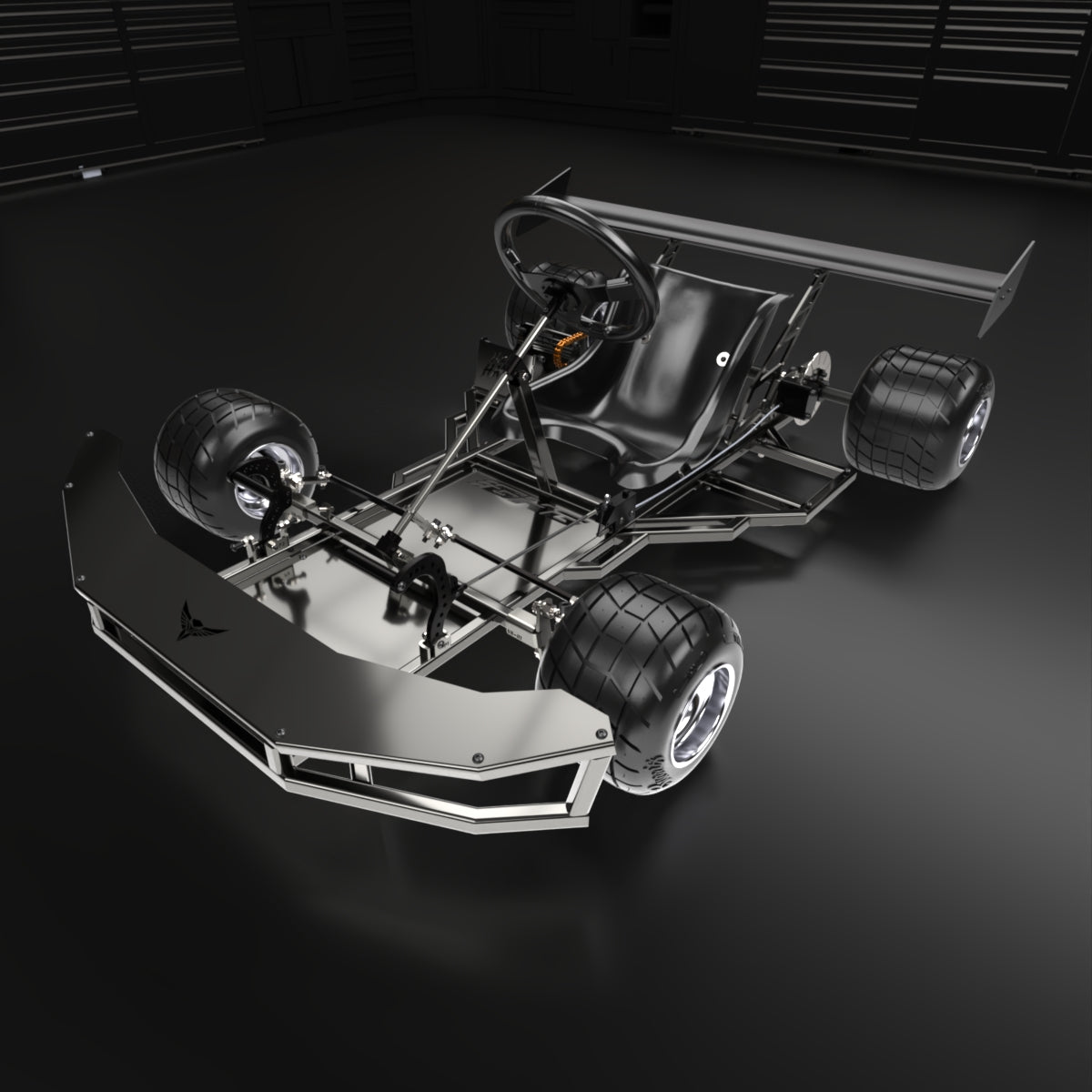

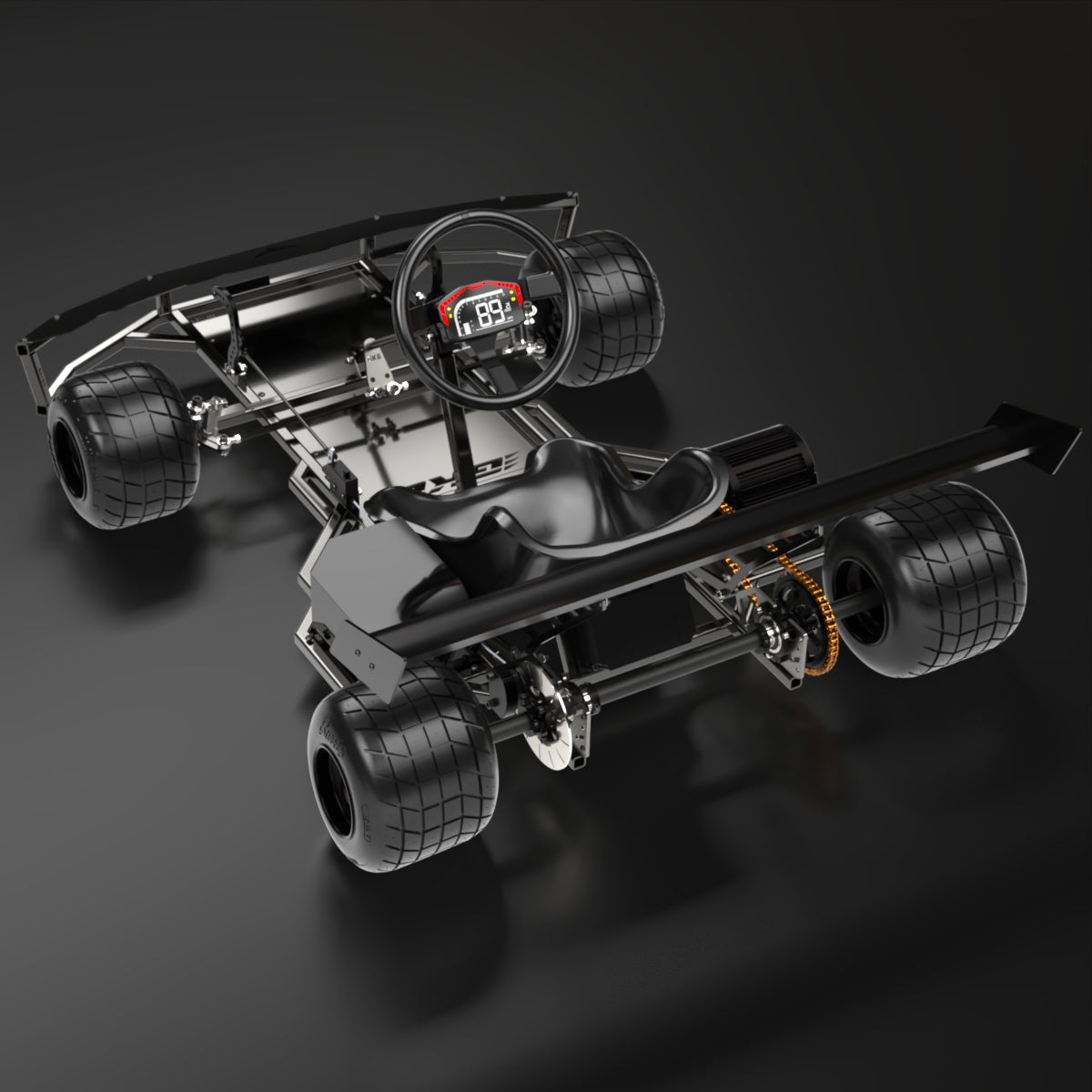

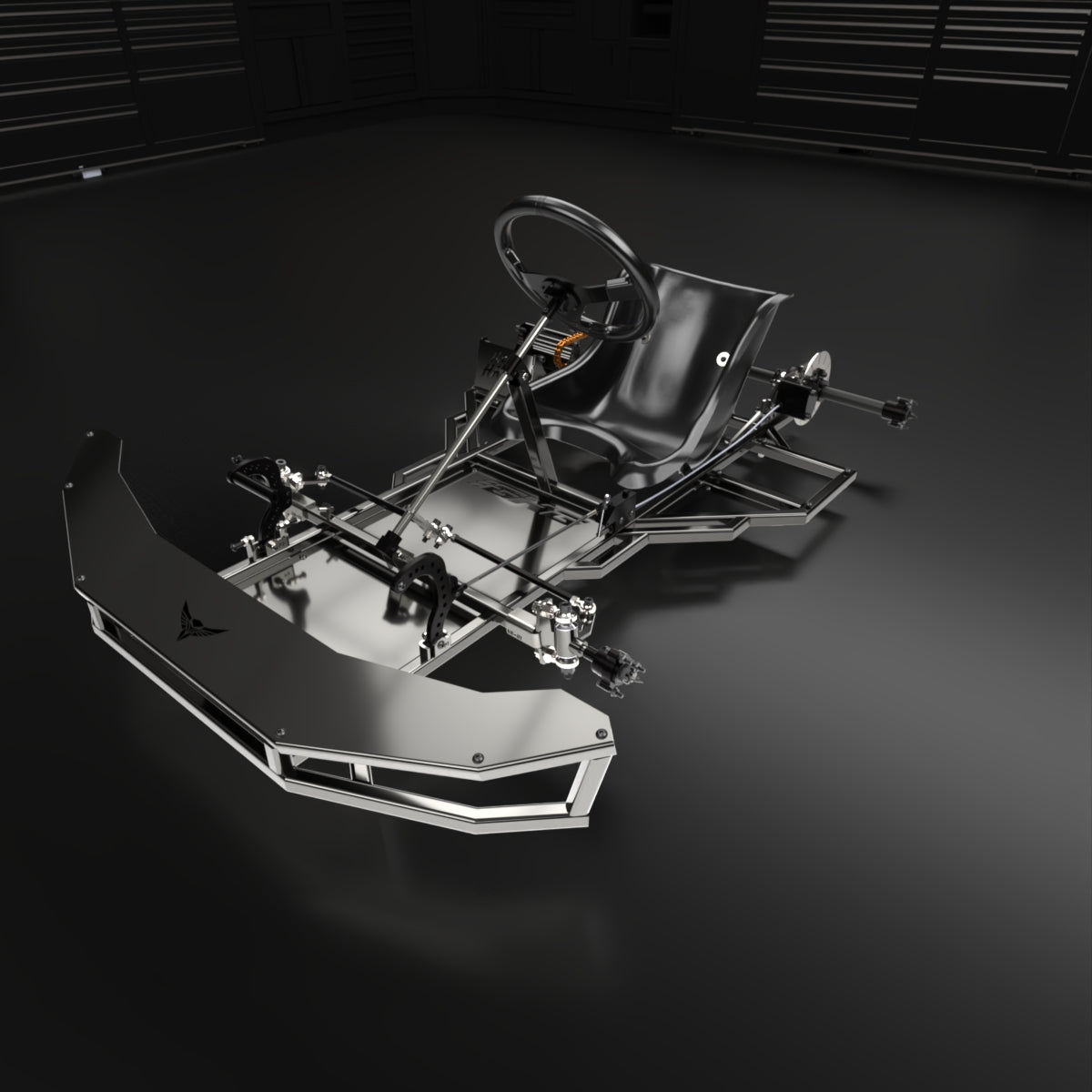

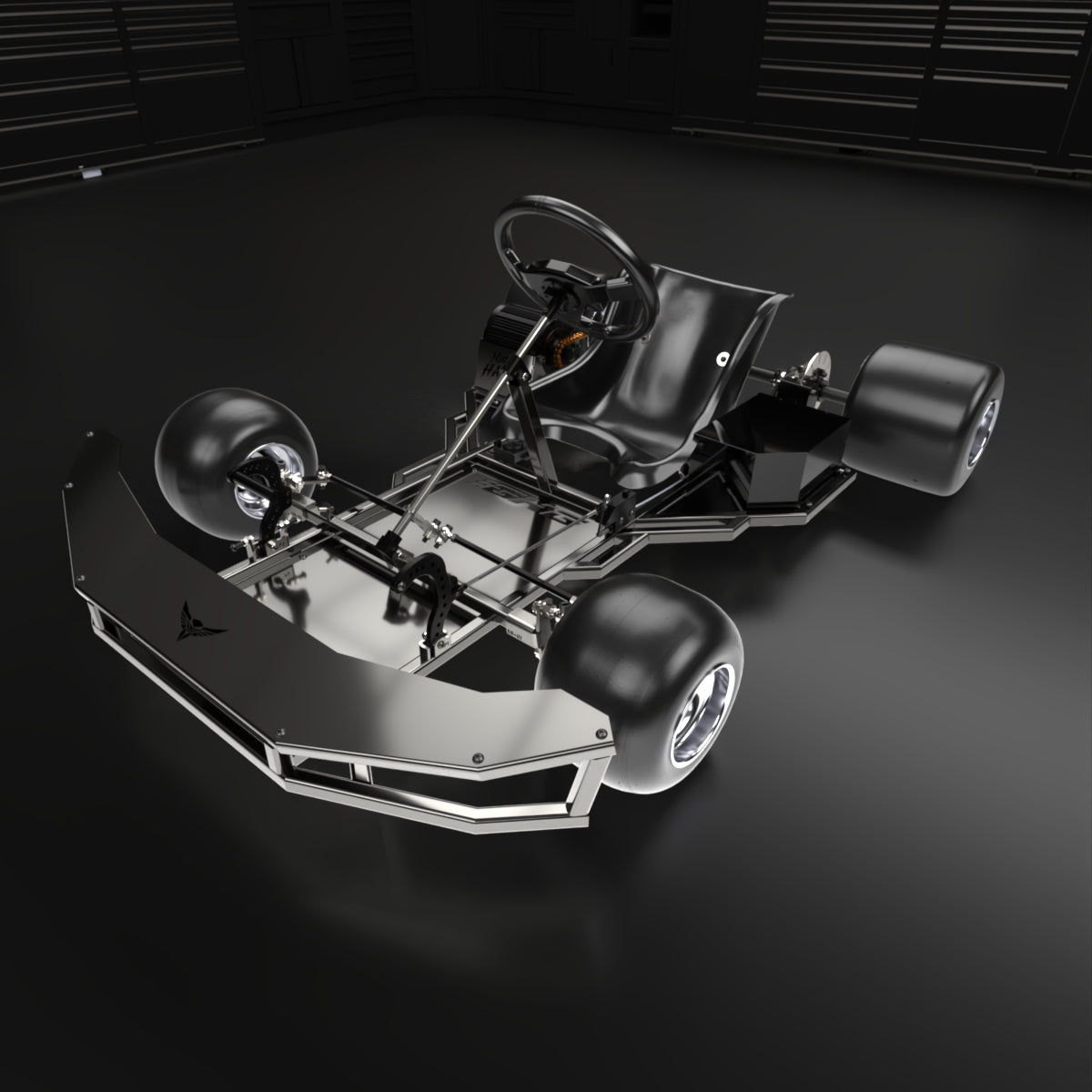

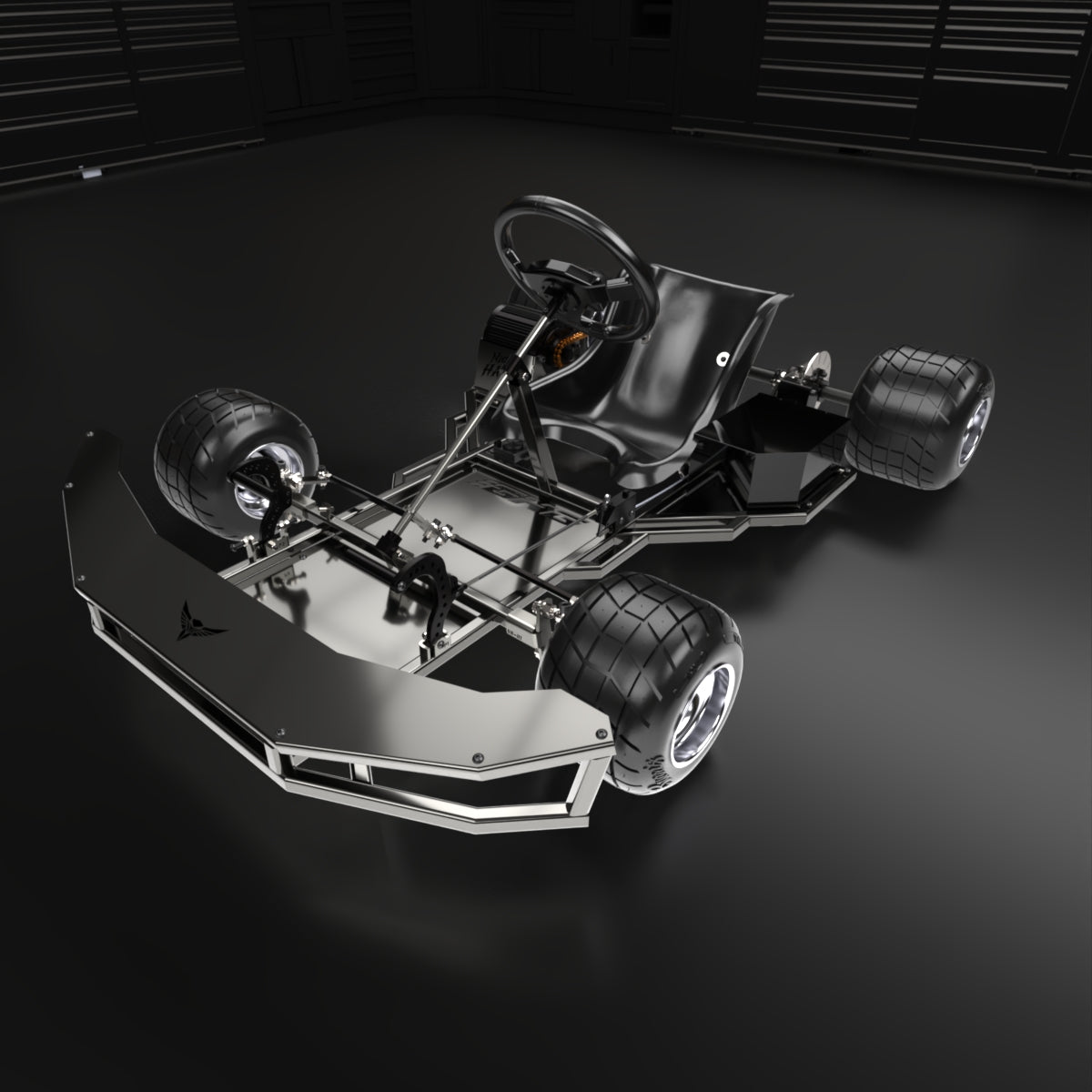

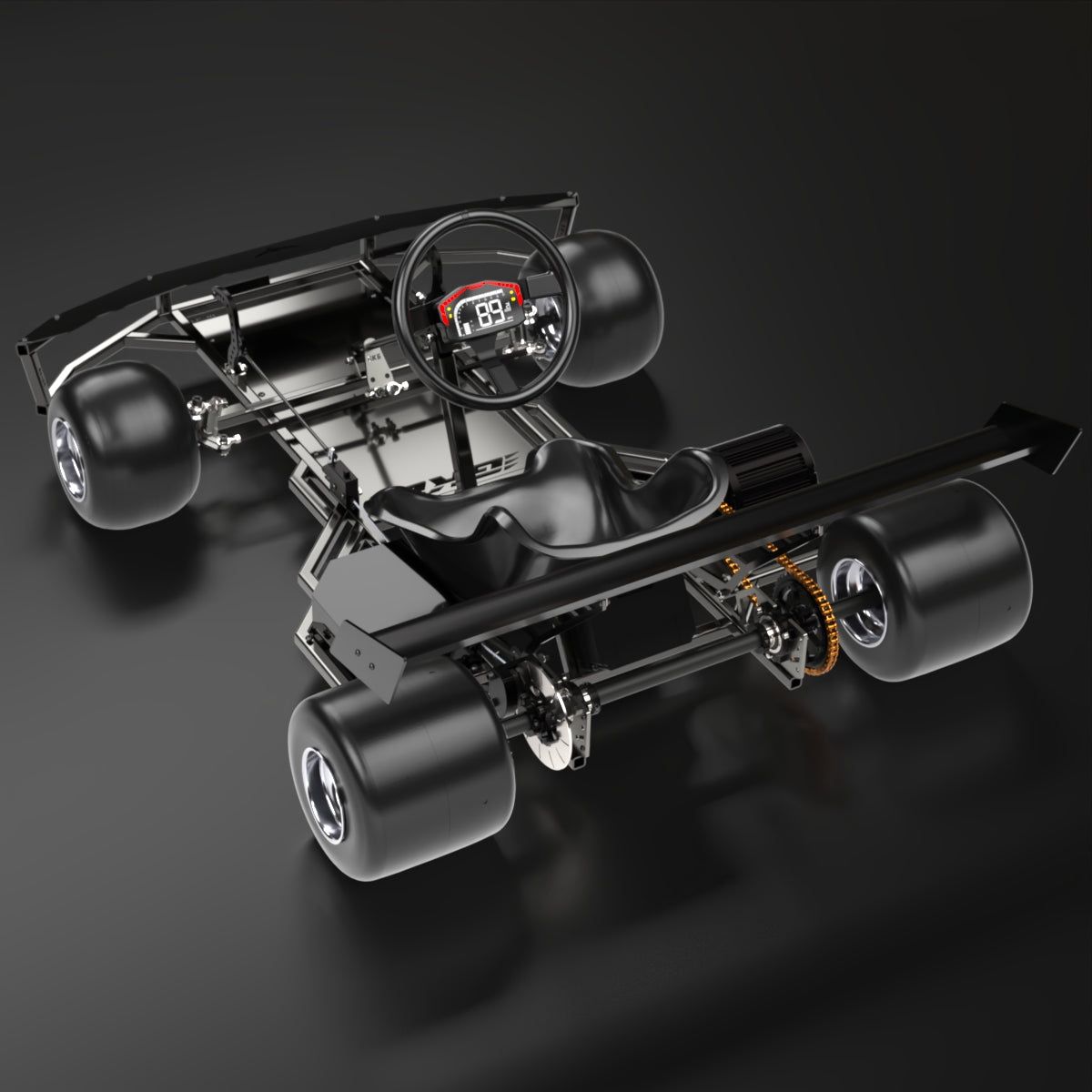

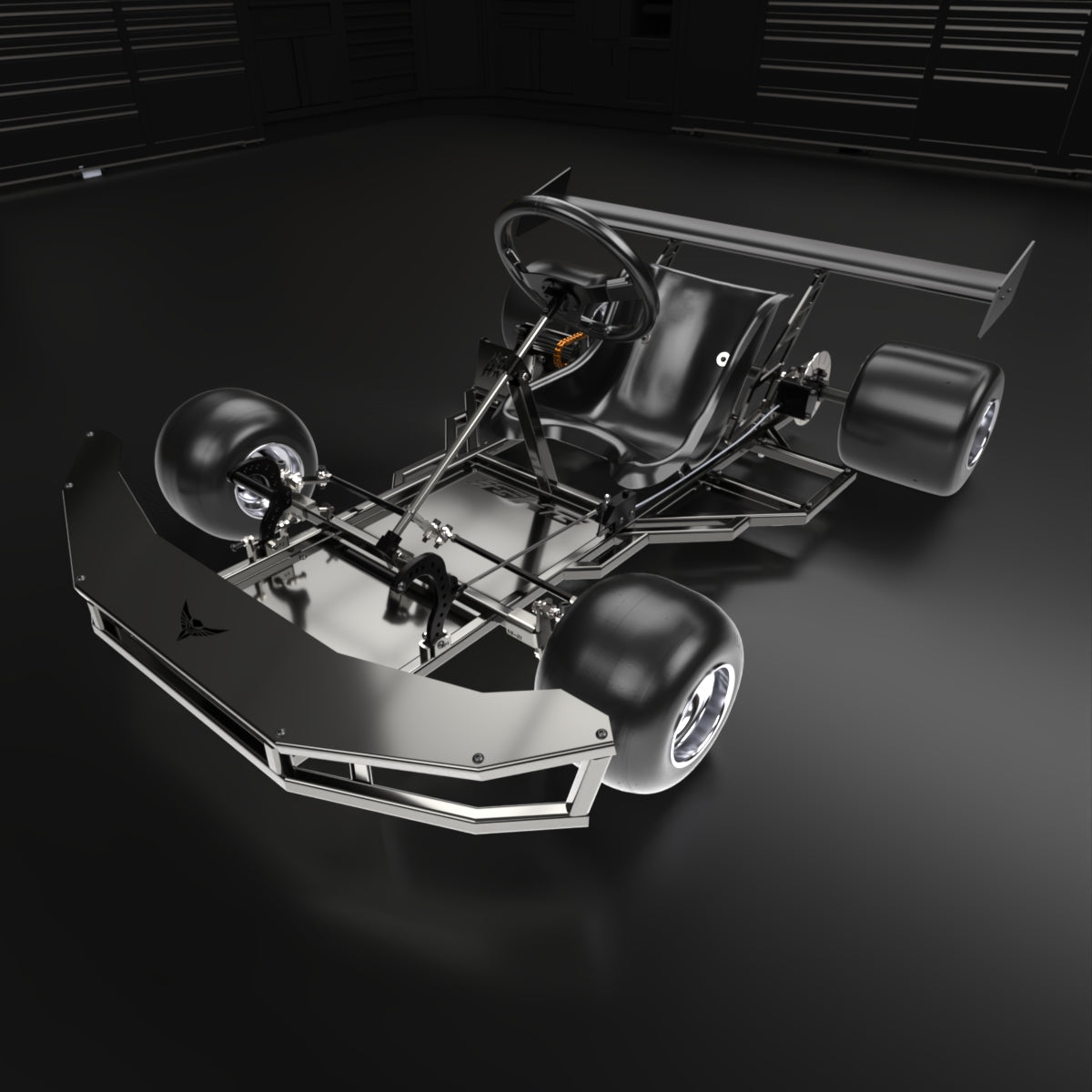

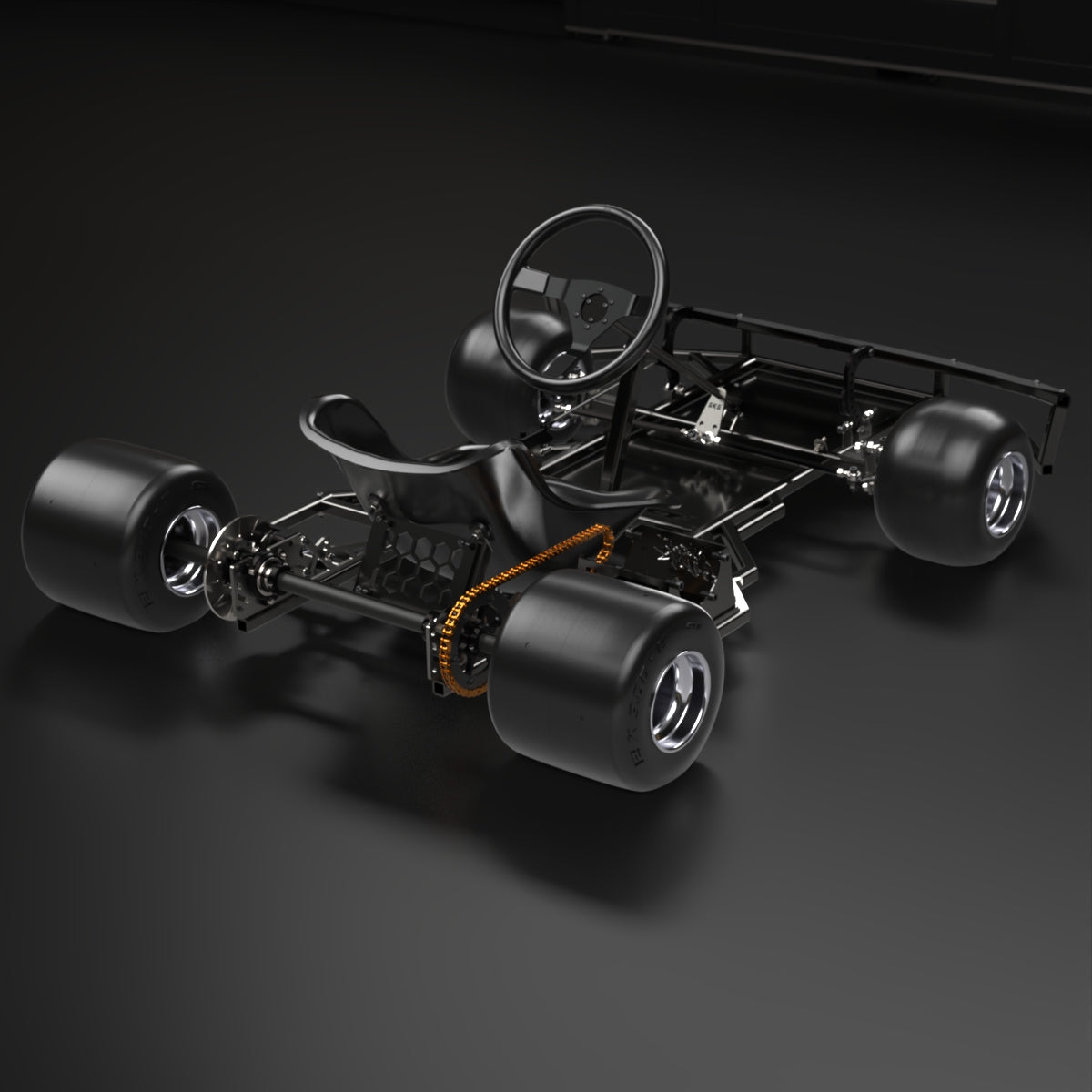

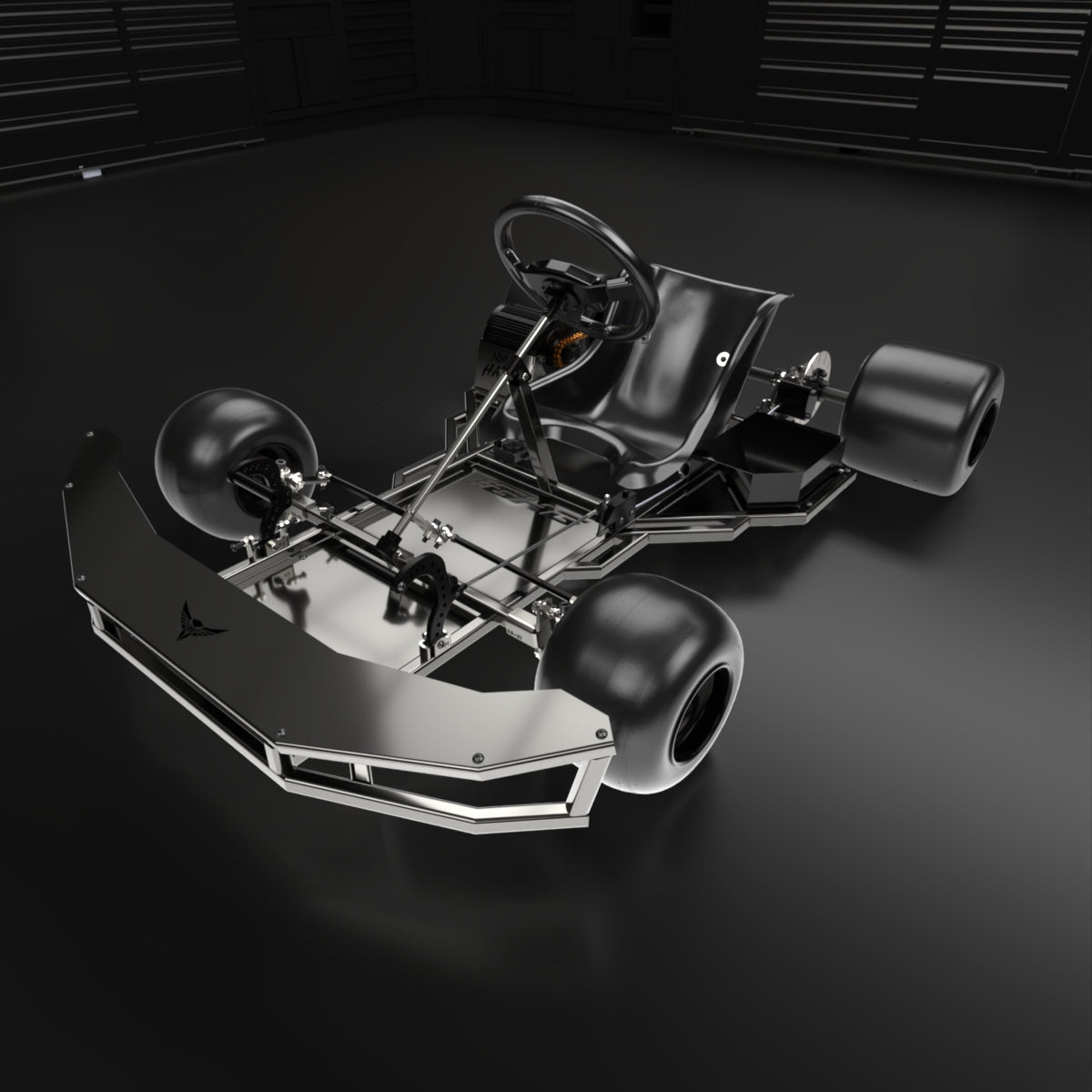

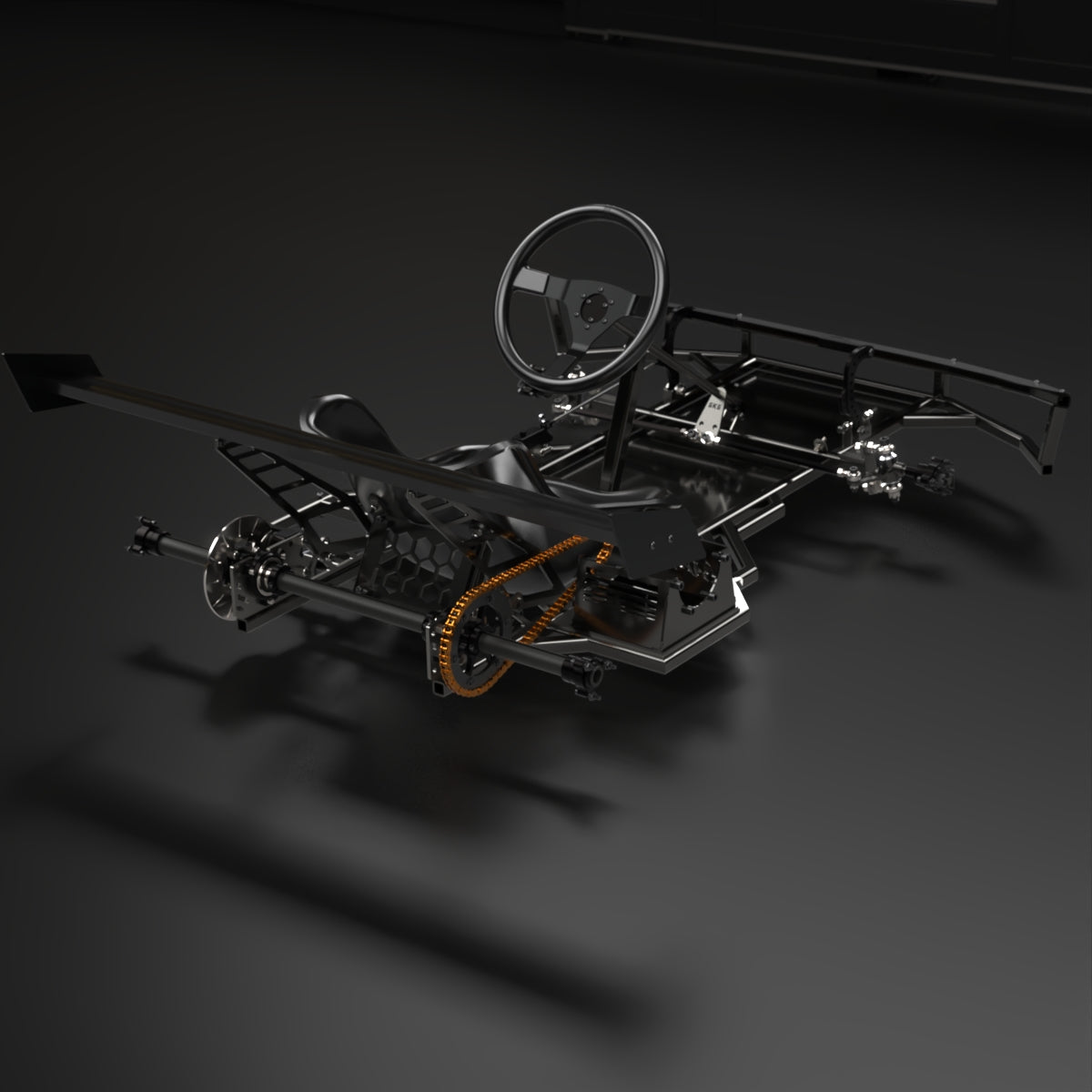

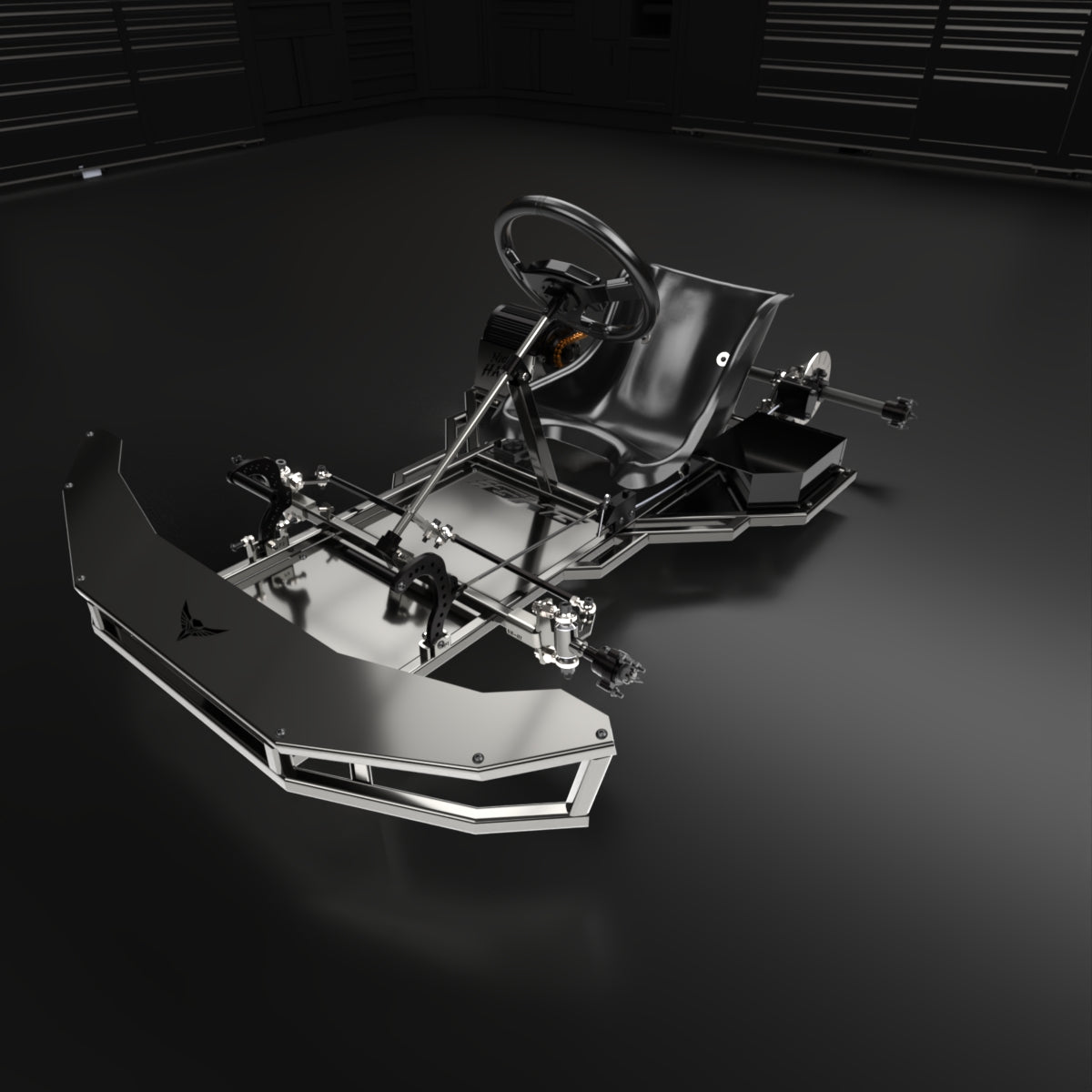

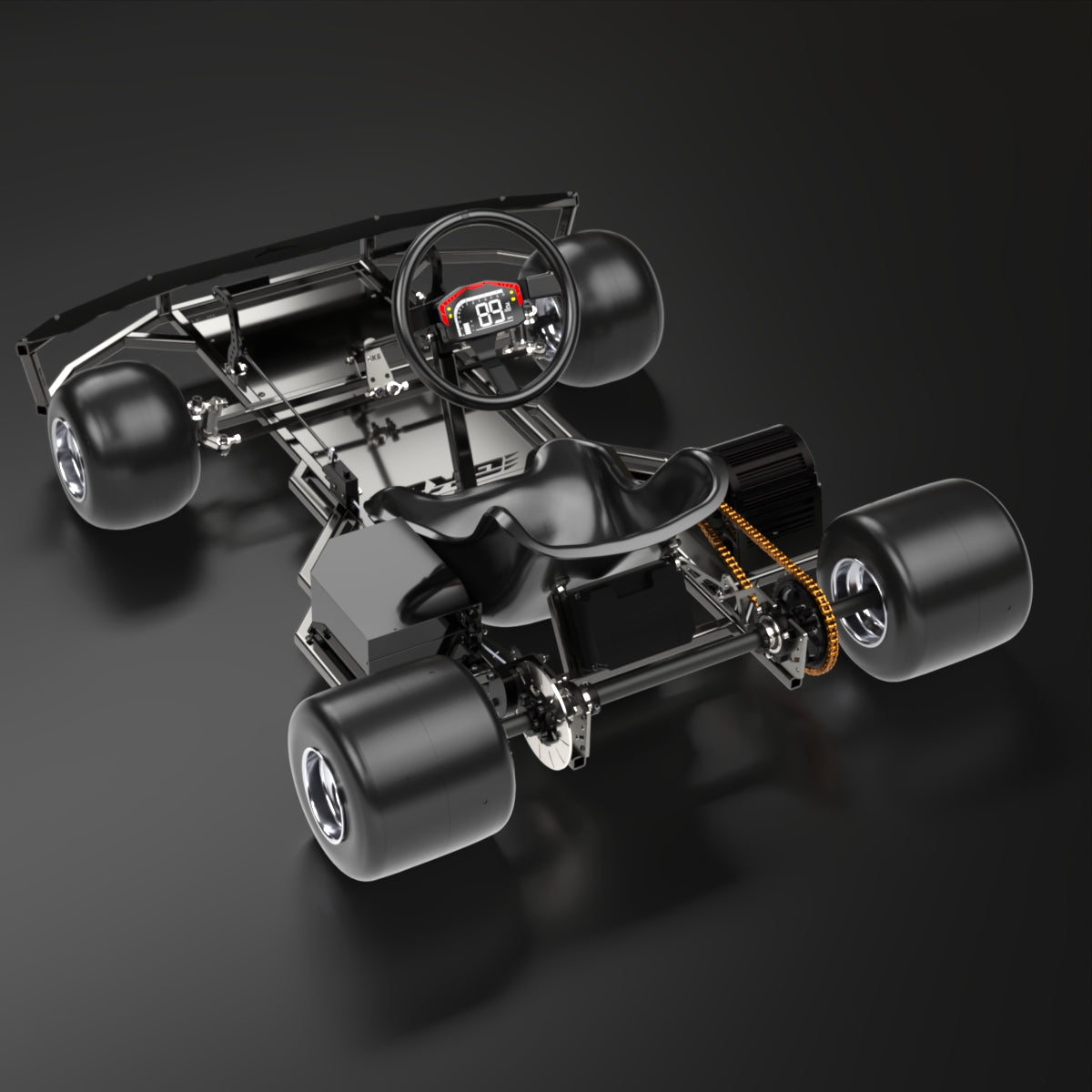

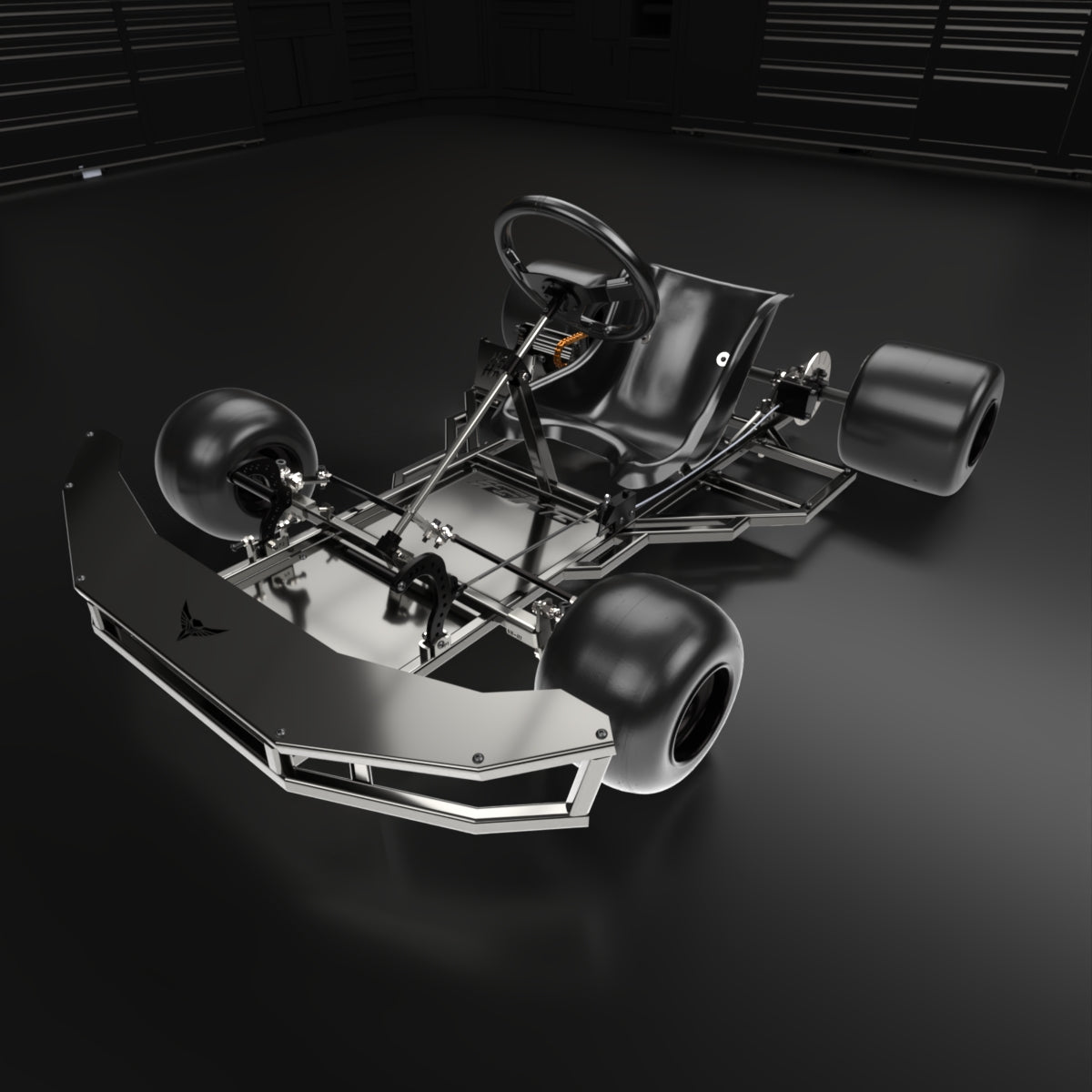

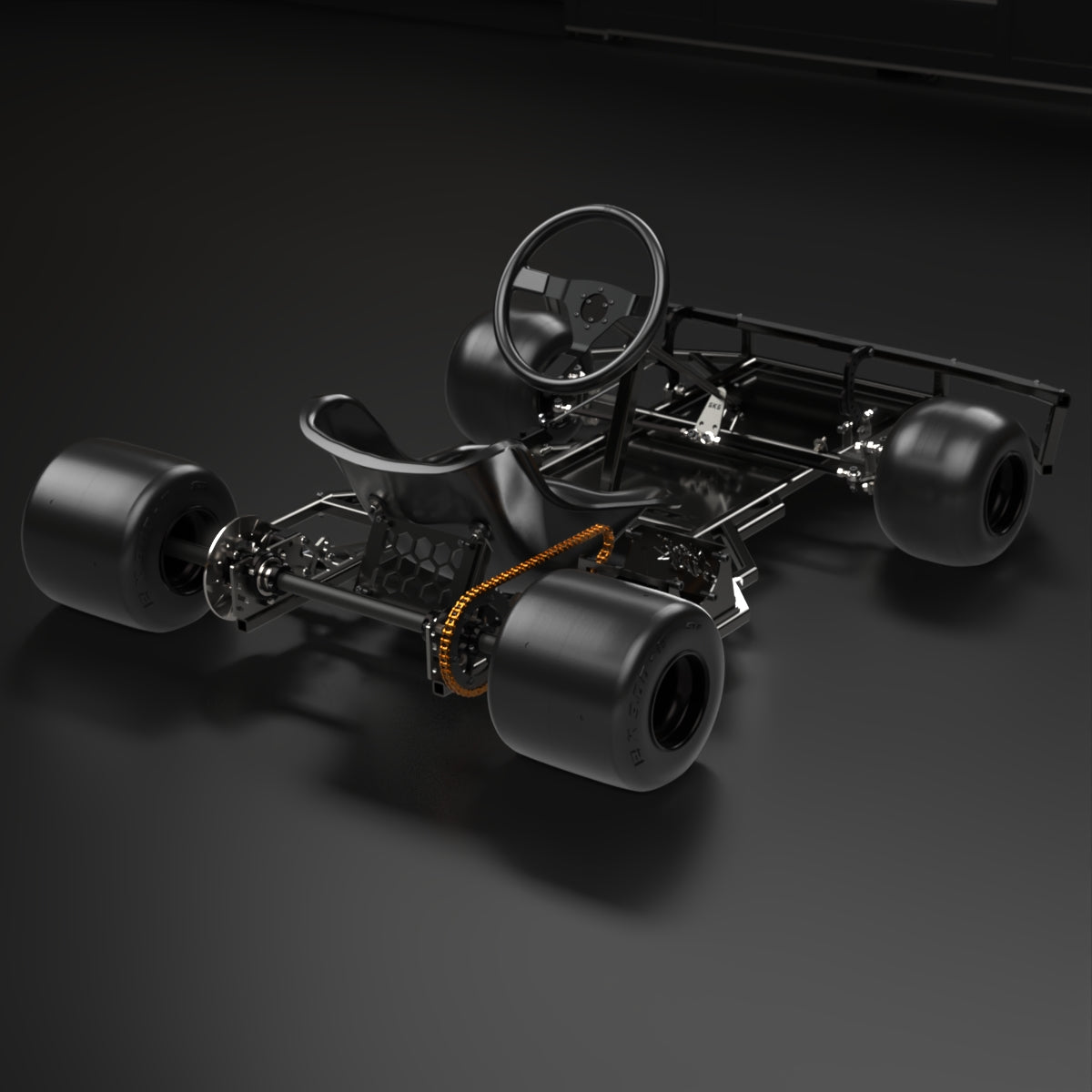

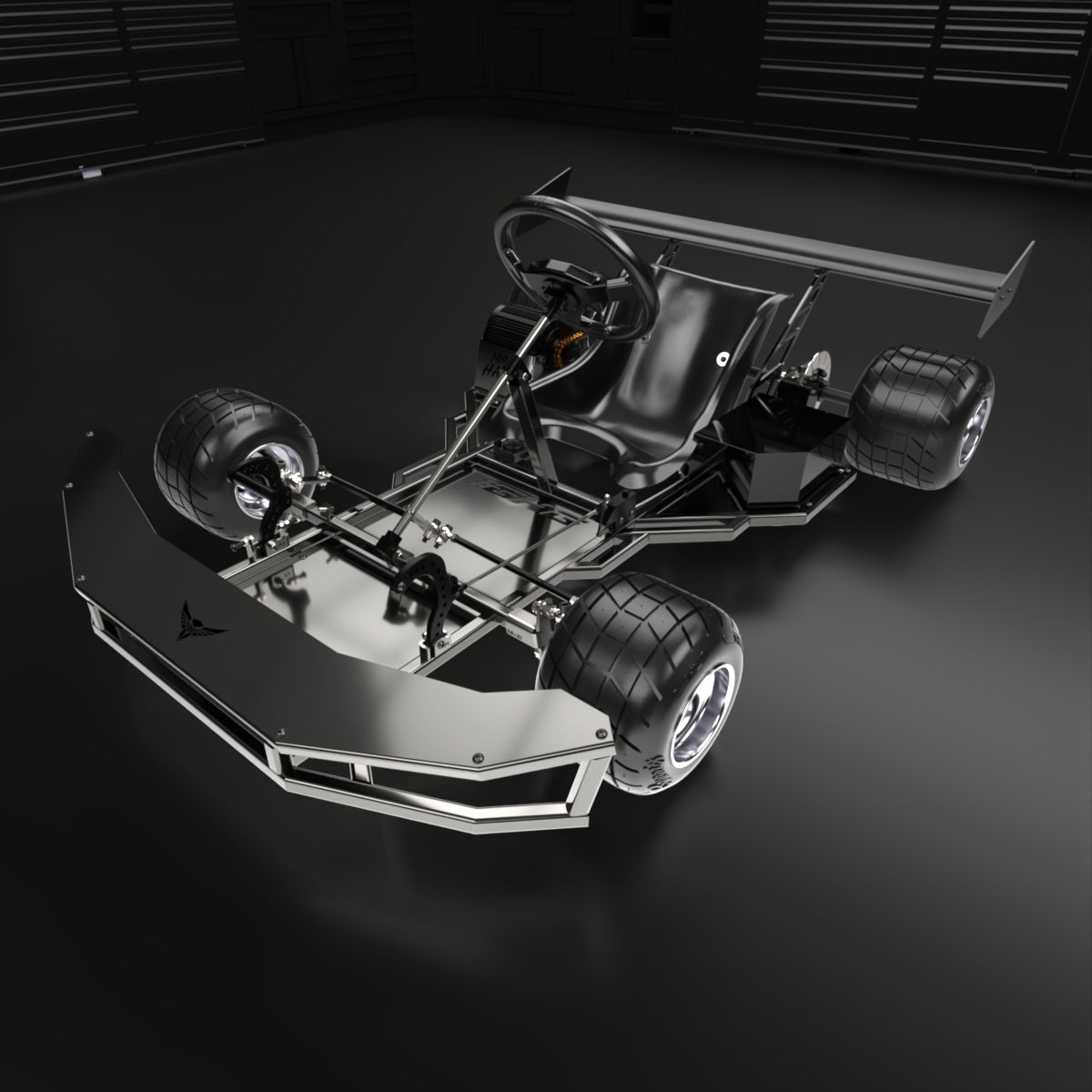

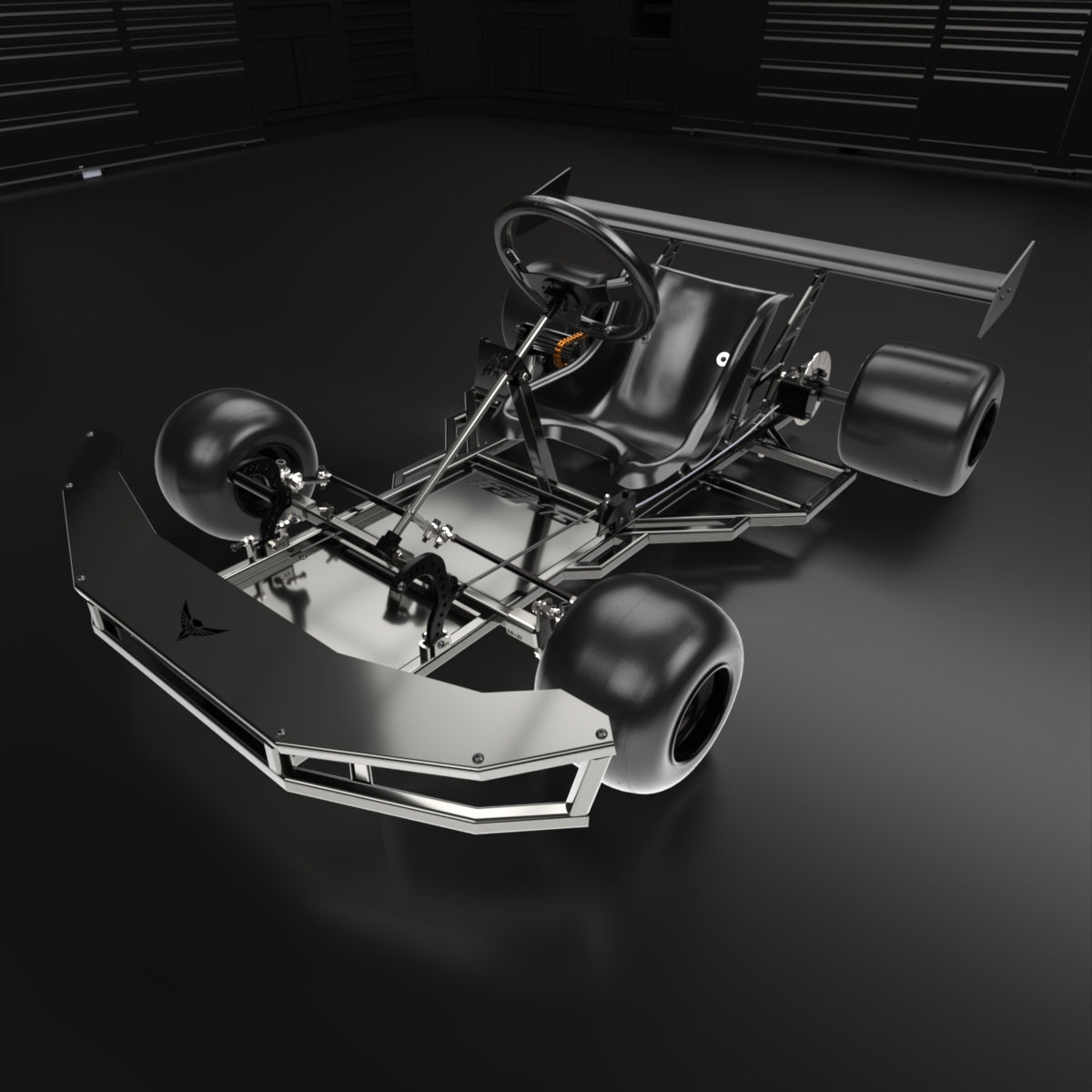

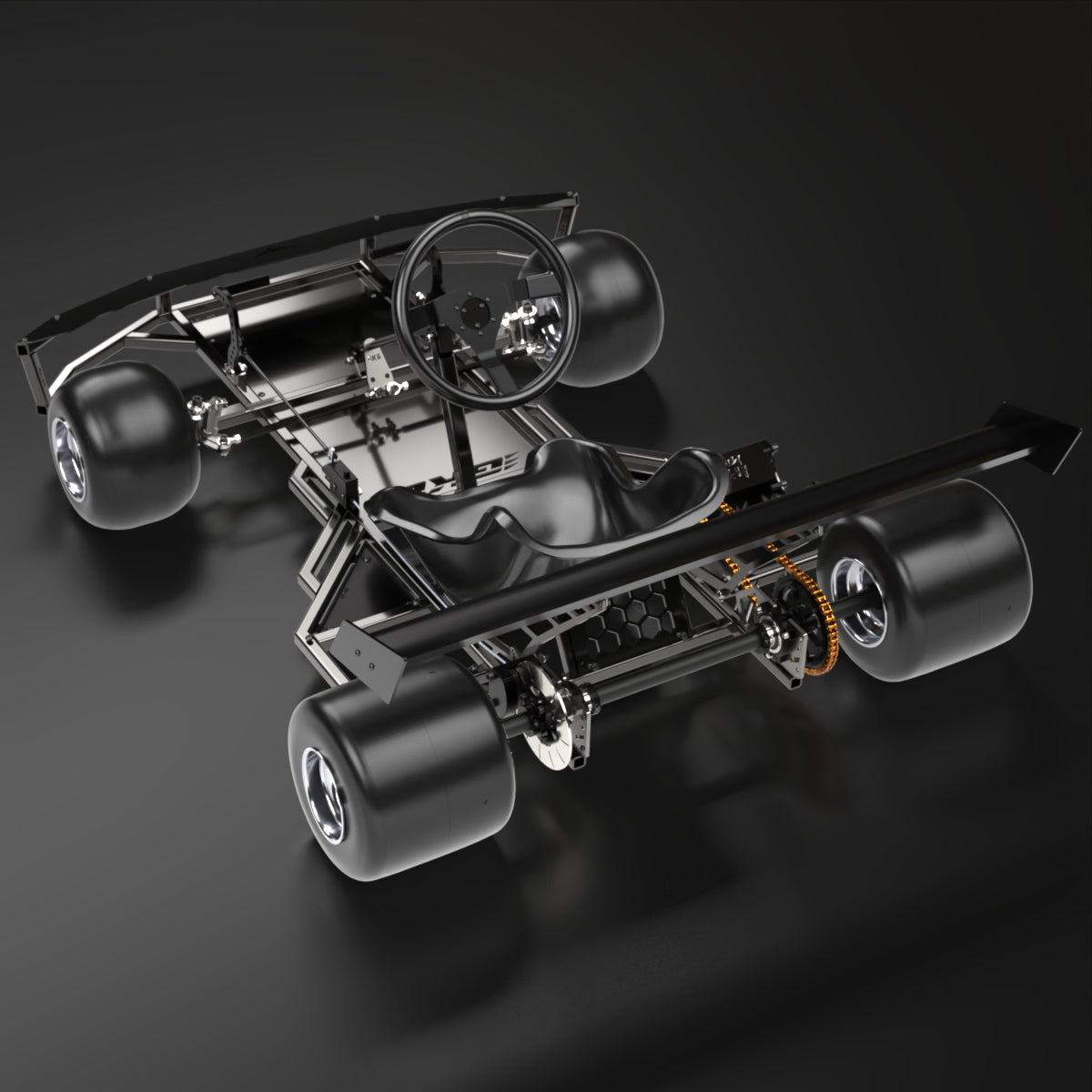

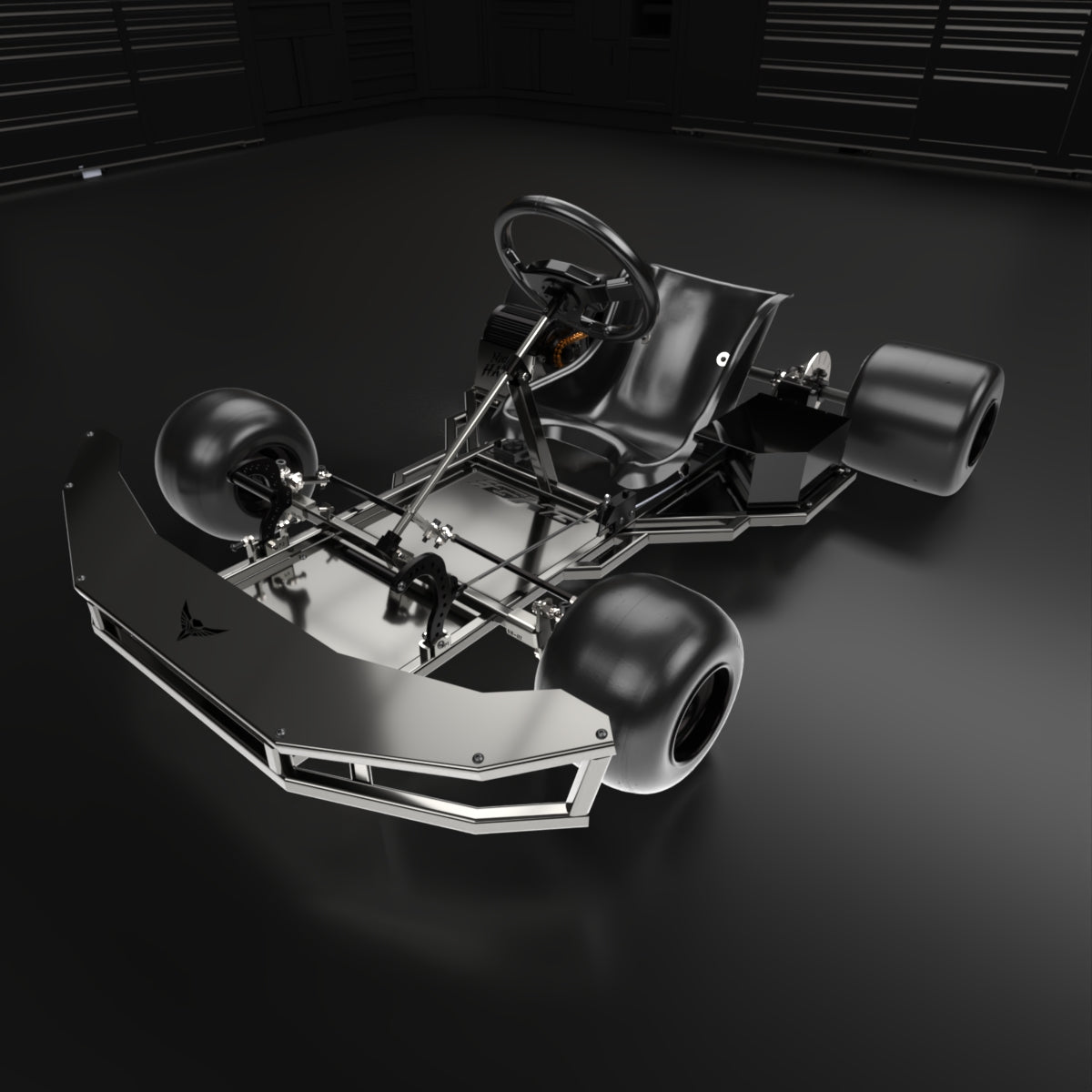

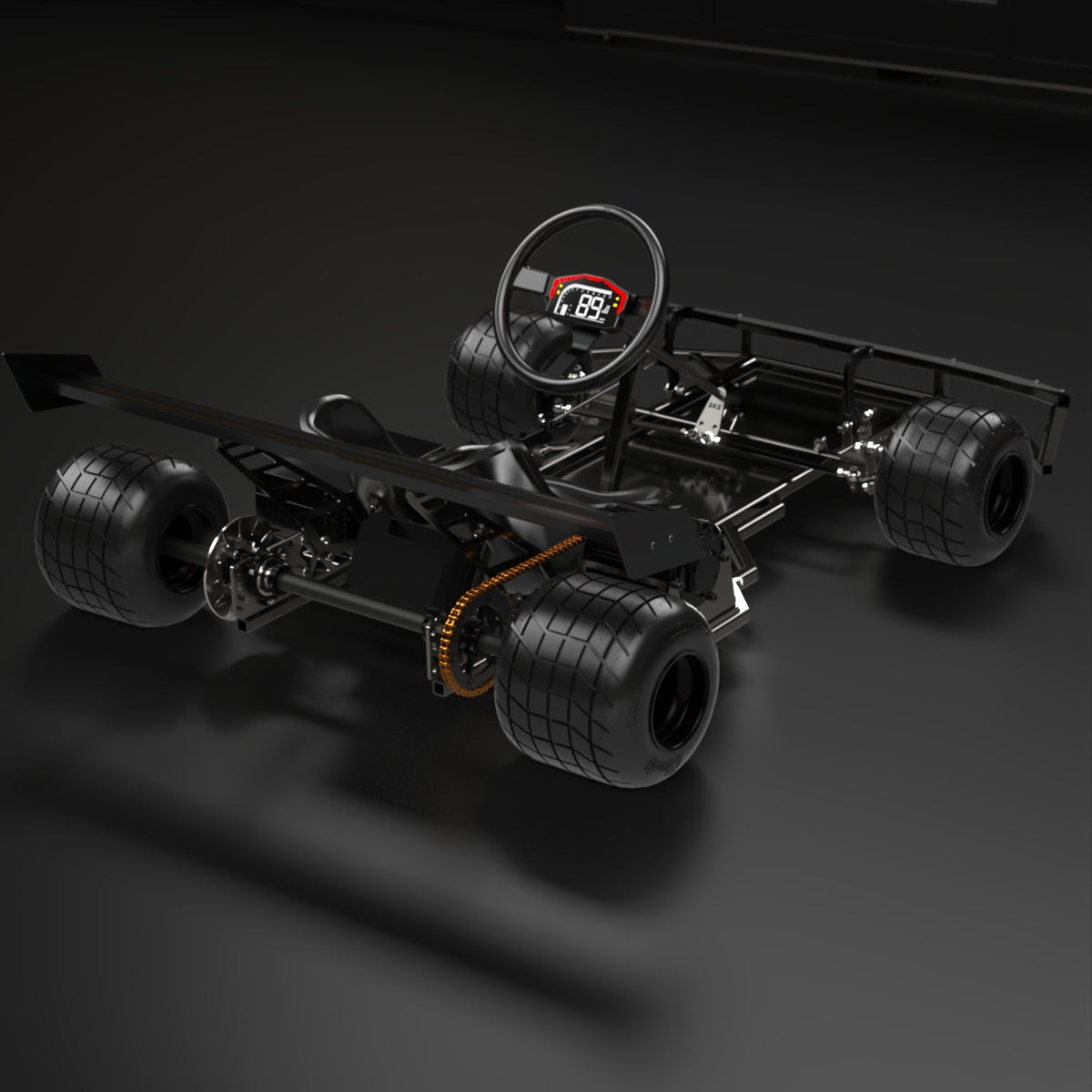

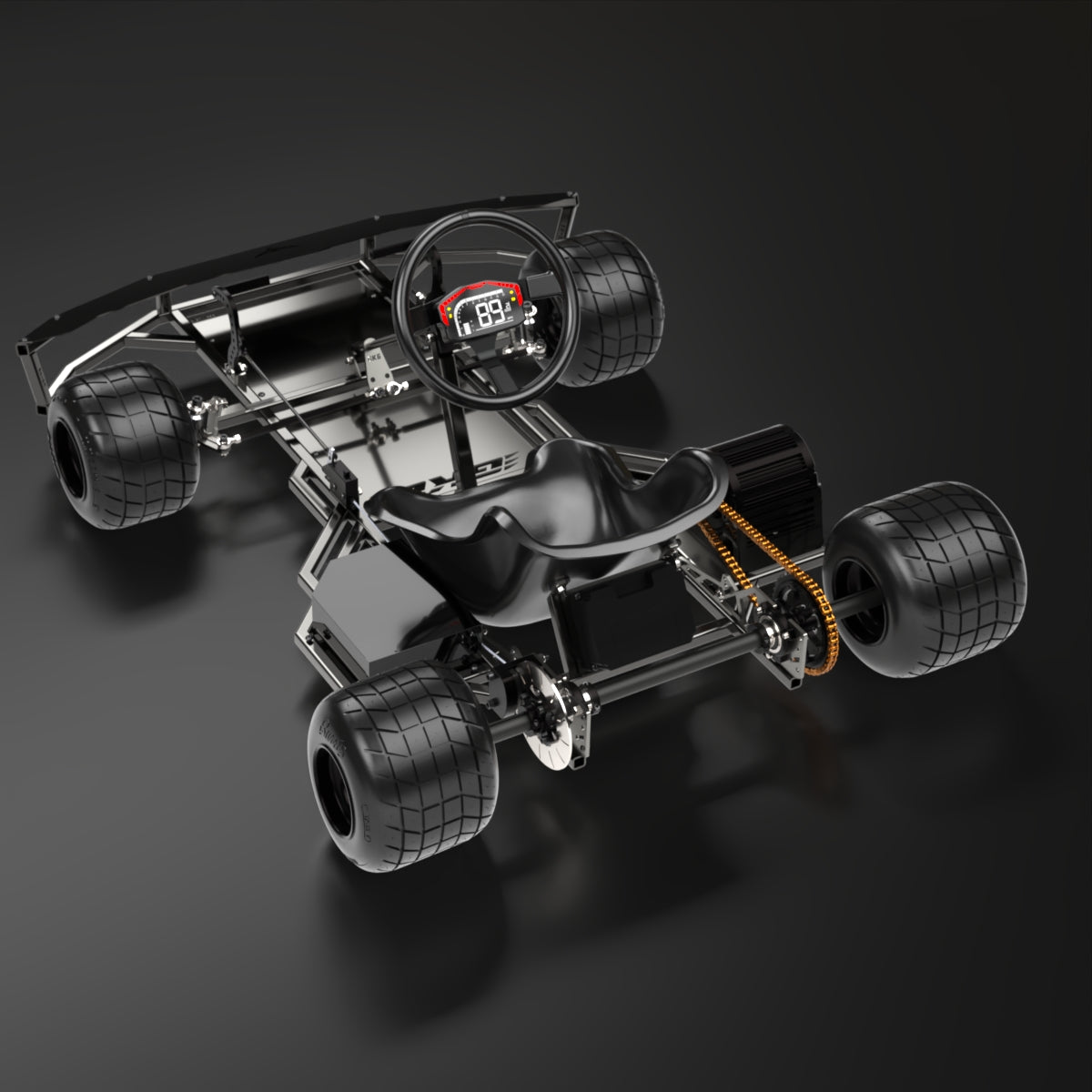

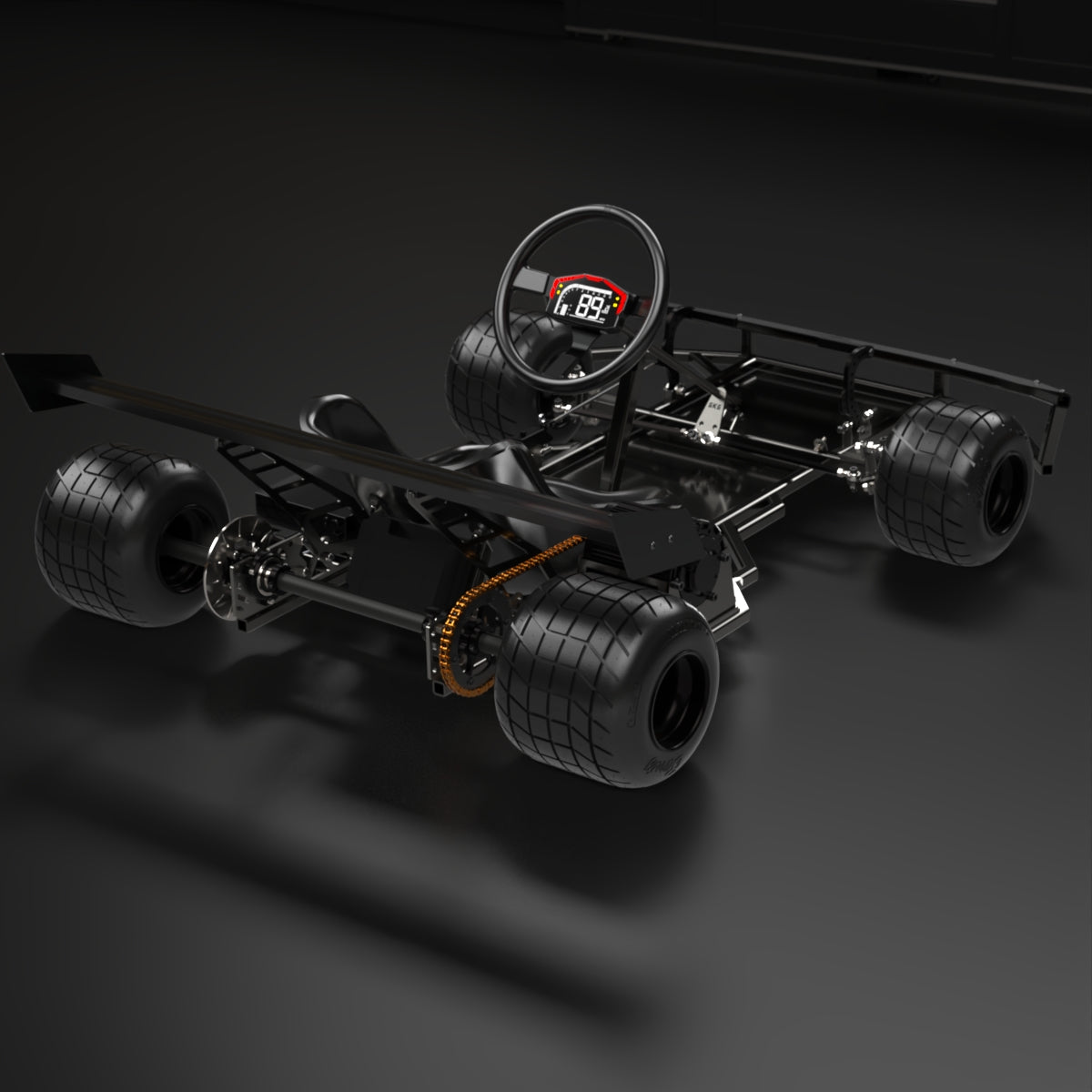

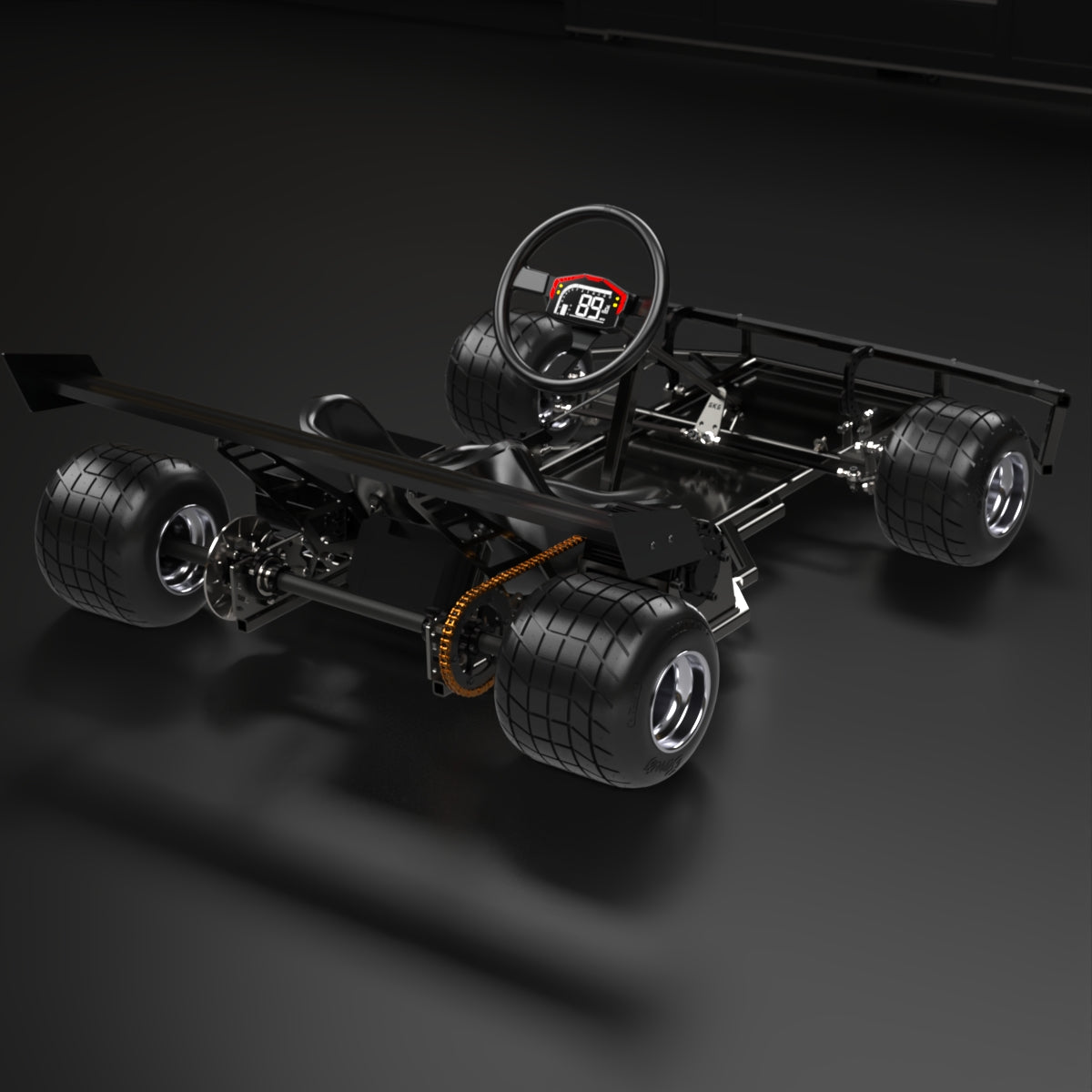

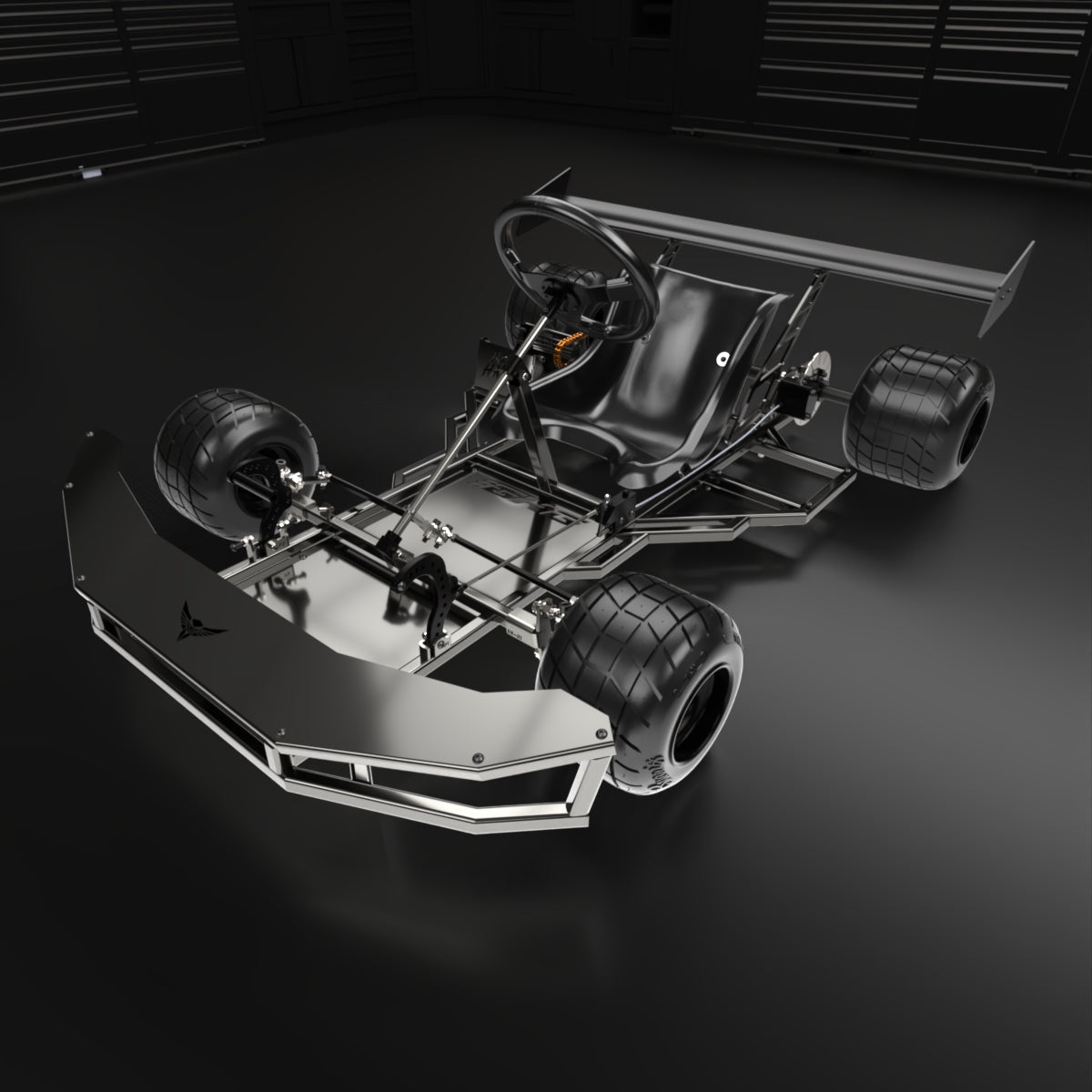

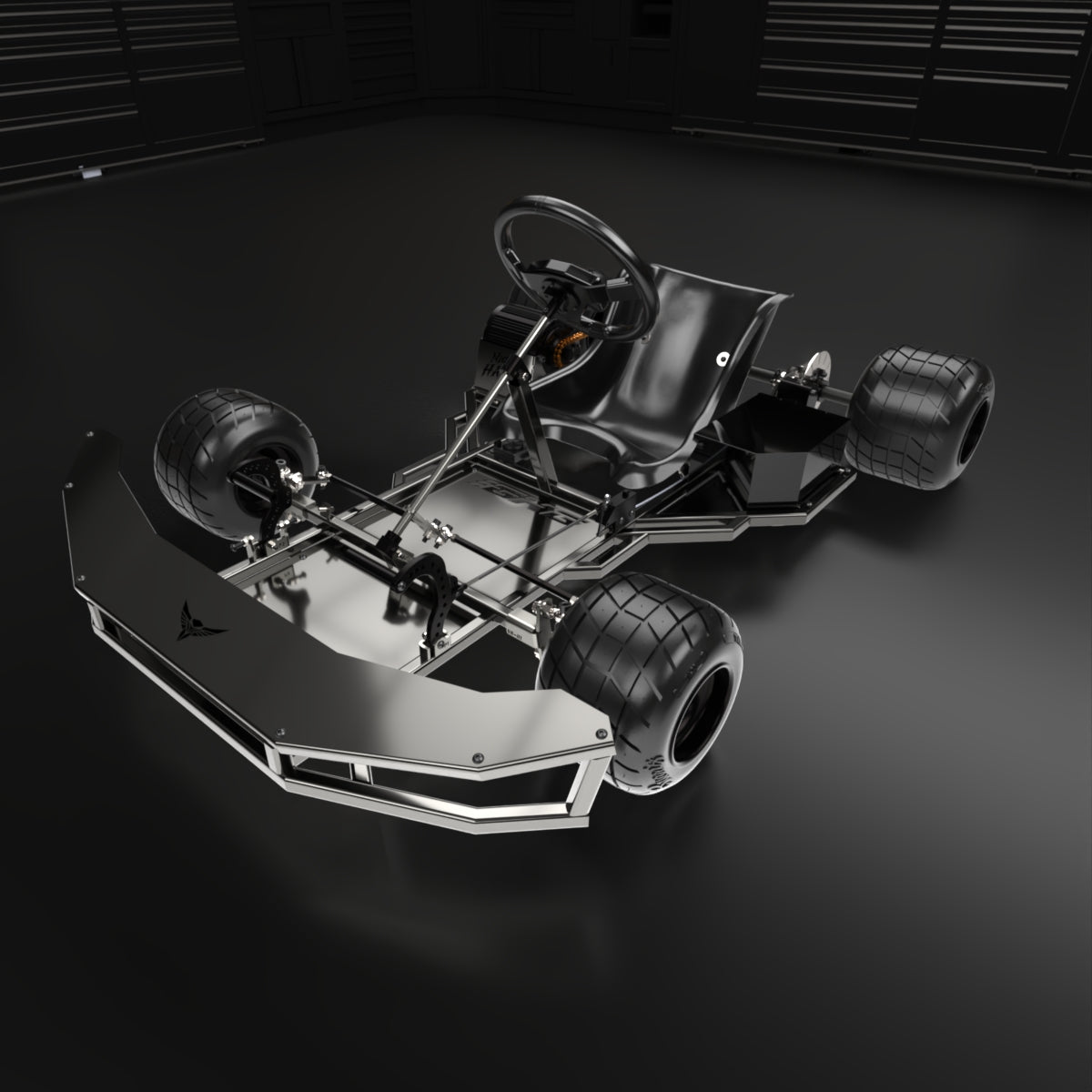

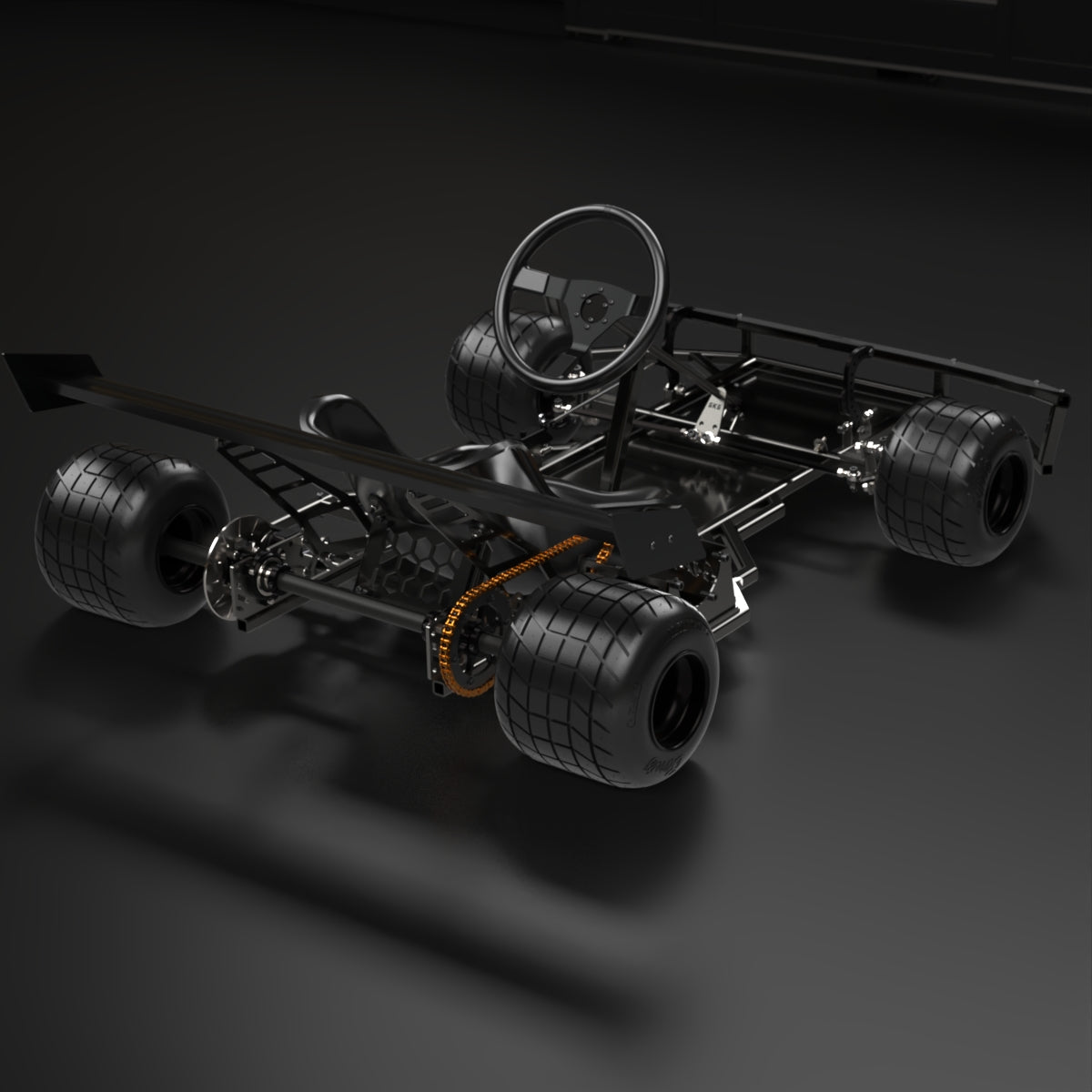

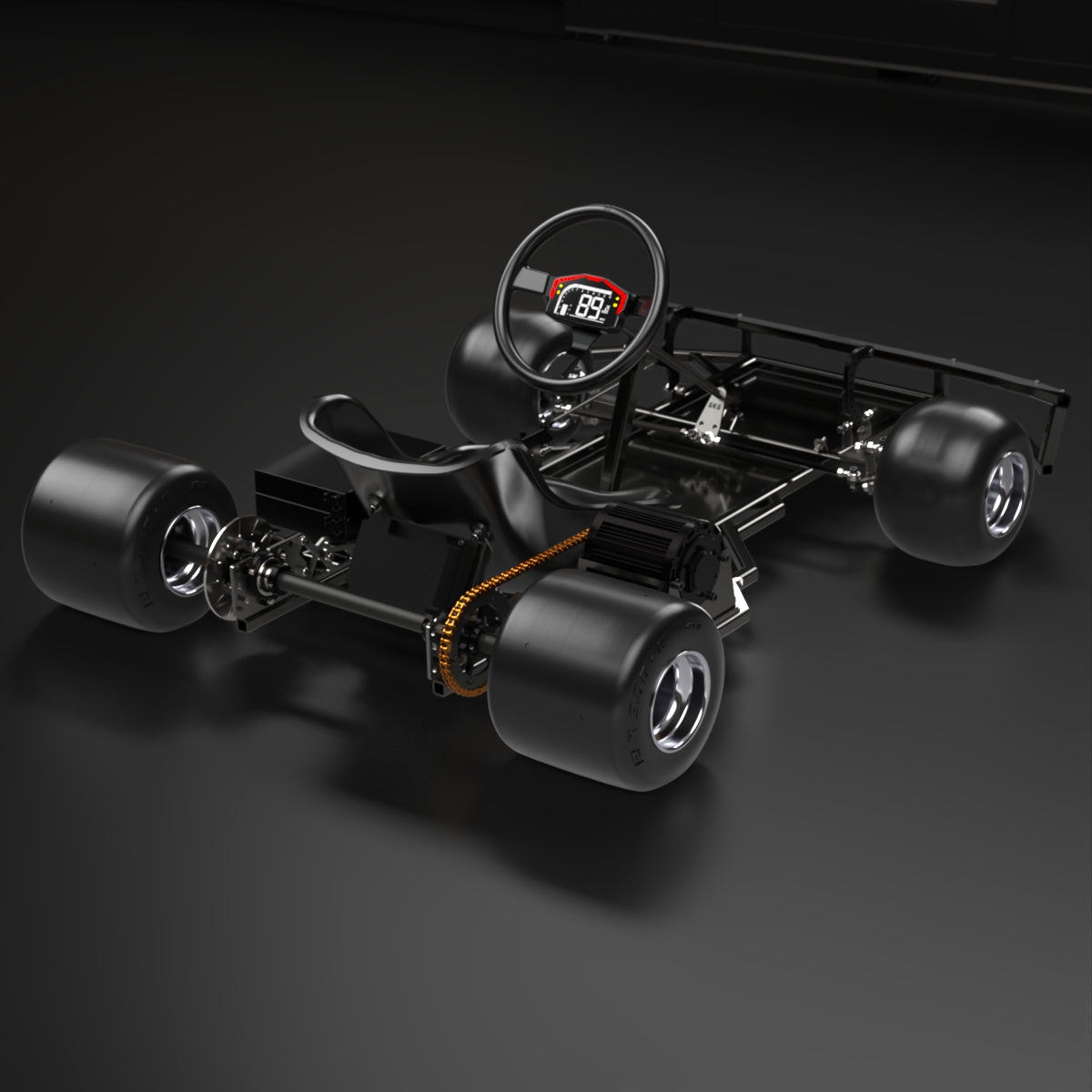

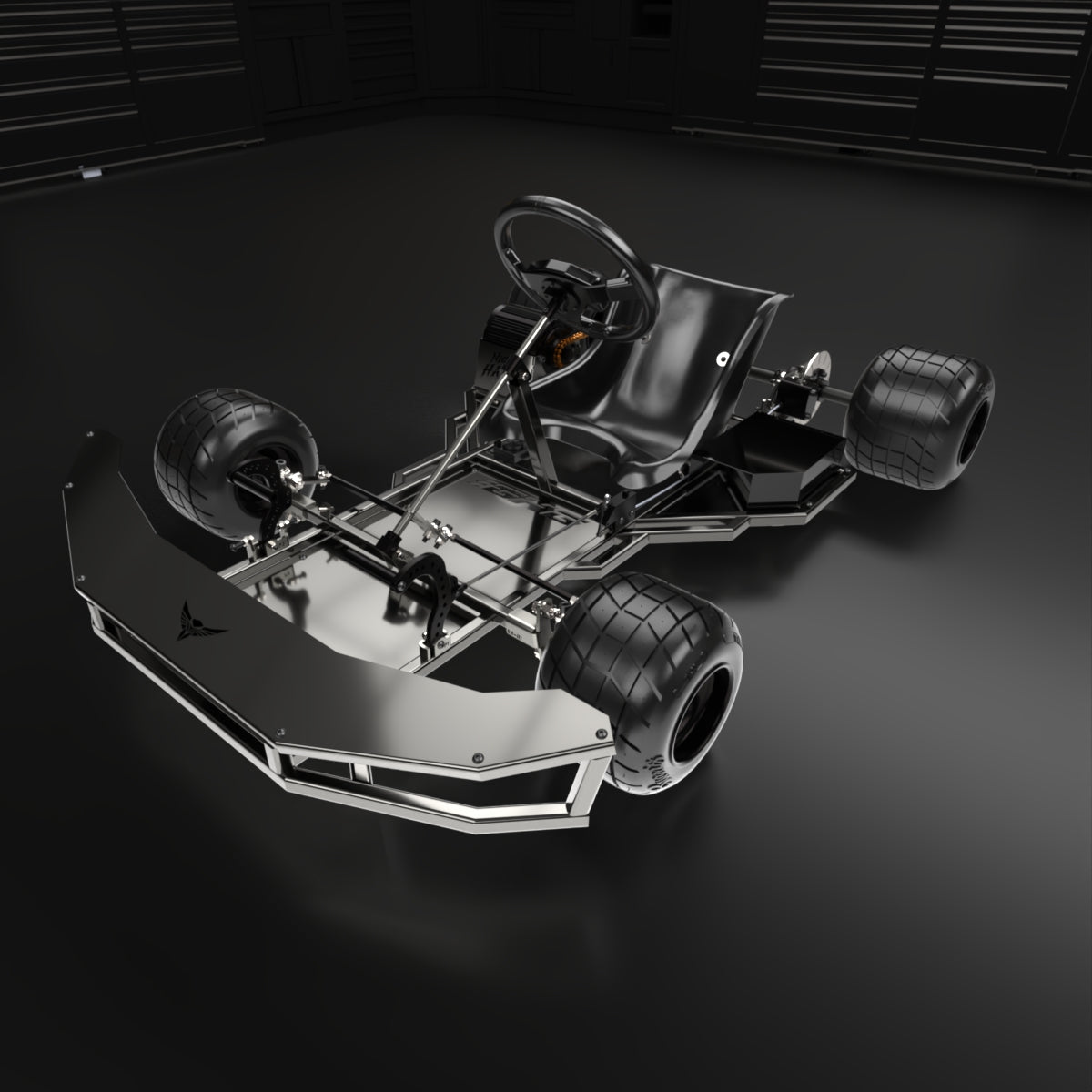

Hawk V3 Electric

$1,599.97 USD

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Parts Kit

Wheels

Powertrain

Quantity

1
2
3
4
5
6
7
8
9
10 +

Quantity

Due to high demand, new orders will ship in January. Order early to be among the first to get your Hawk V3 Kit.

70+ MPH

30.4KW Burst (34.6HP)

80+ lb/ft Torque

Parental High Speed Lockout

Have a question or need assistance? Call us at 480.955.KART (ext. 0)

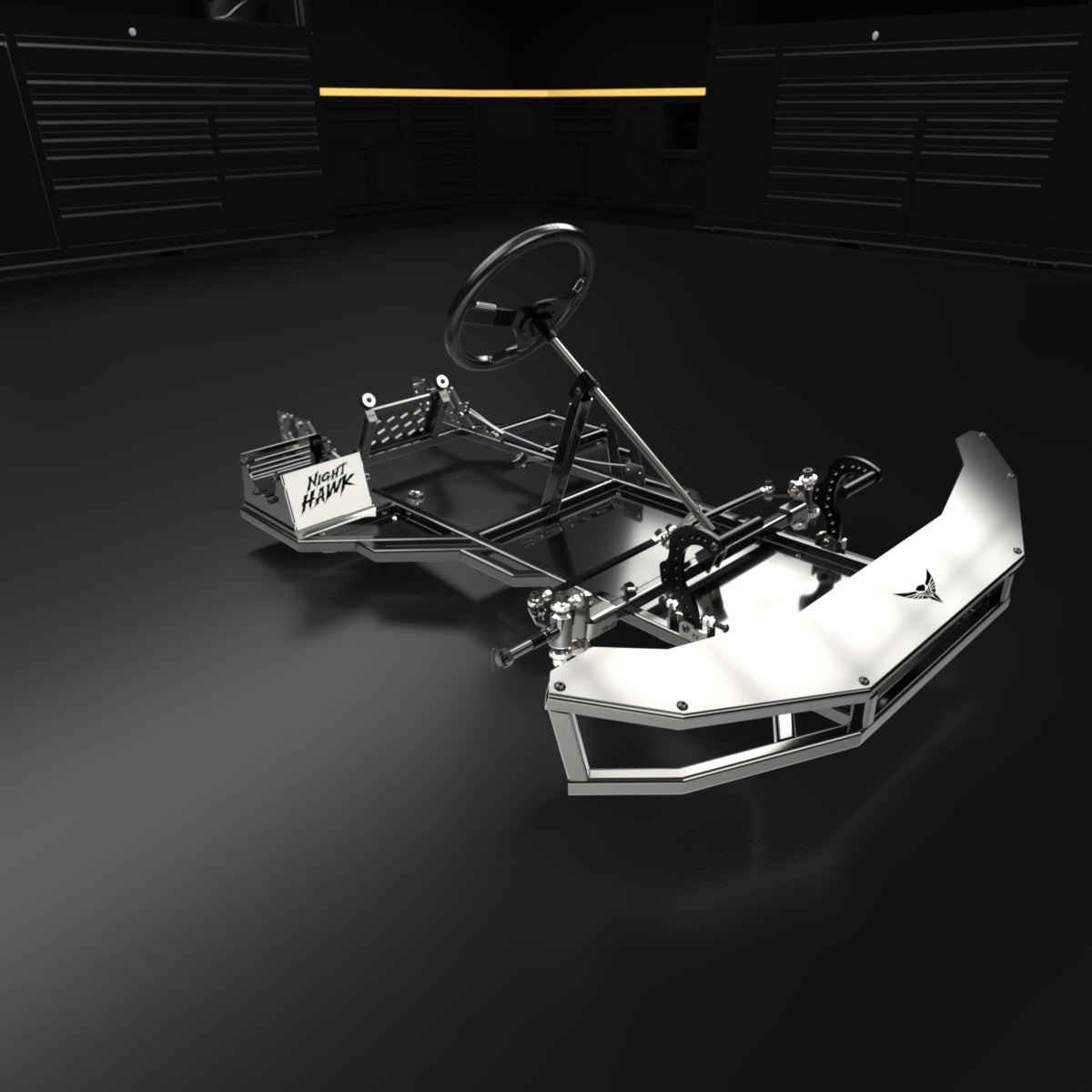

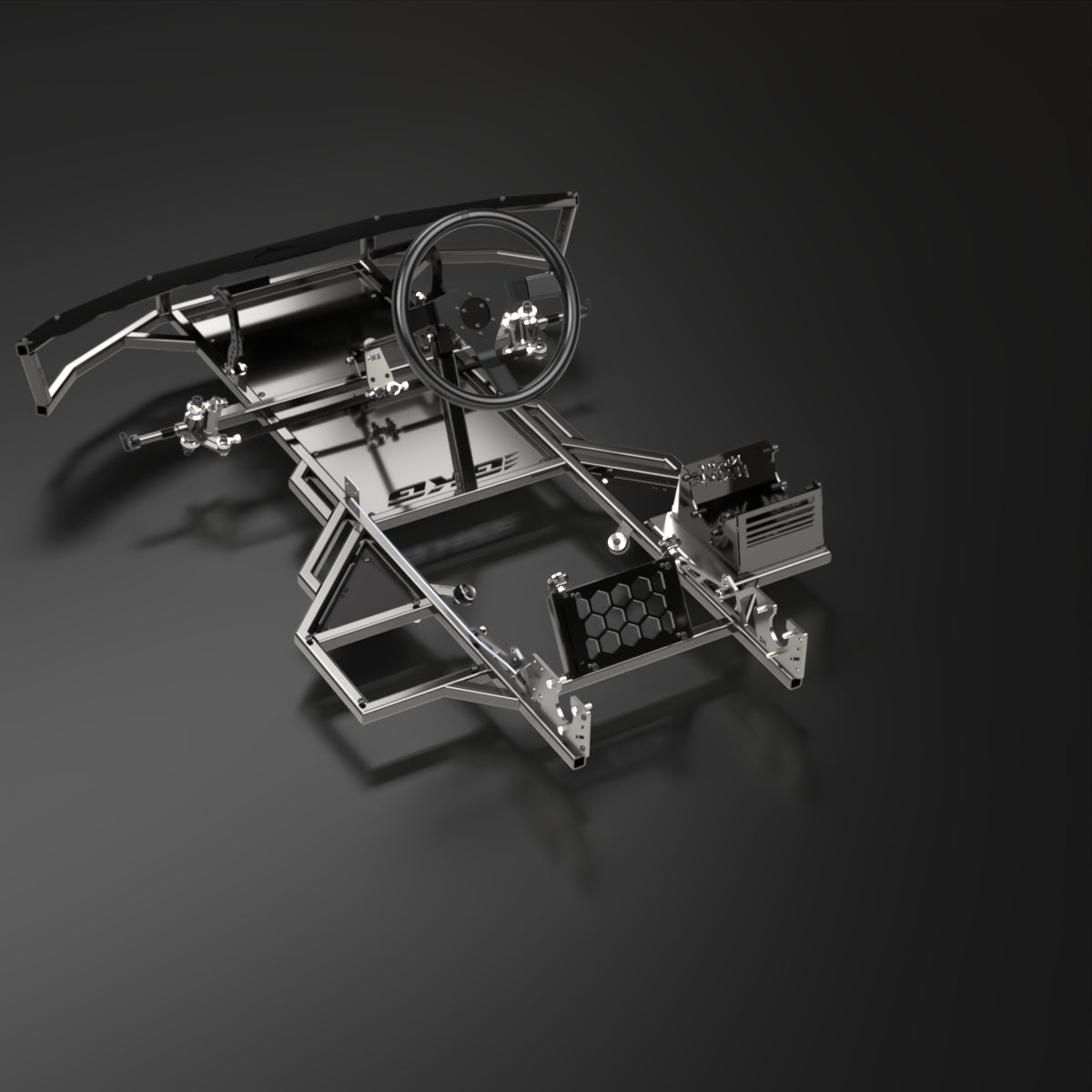

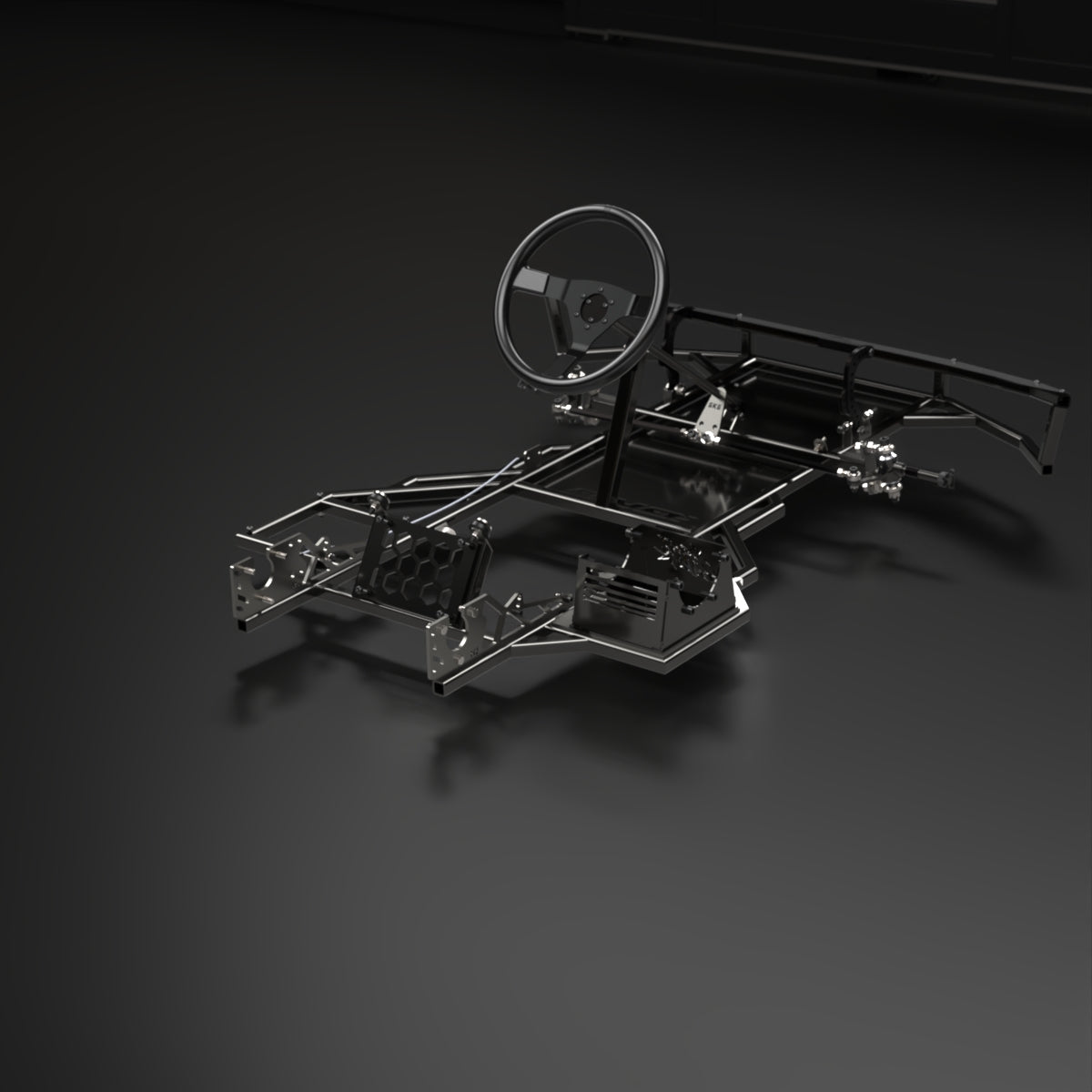

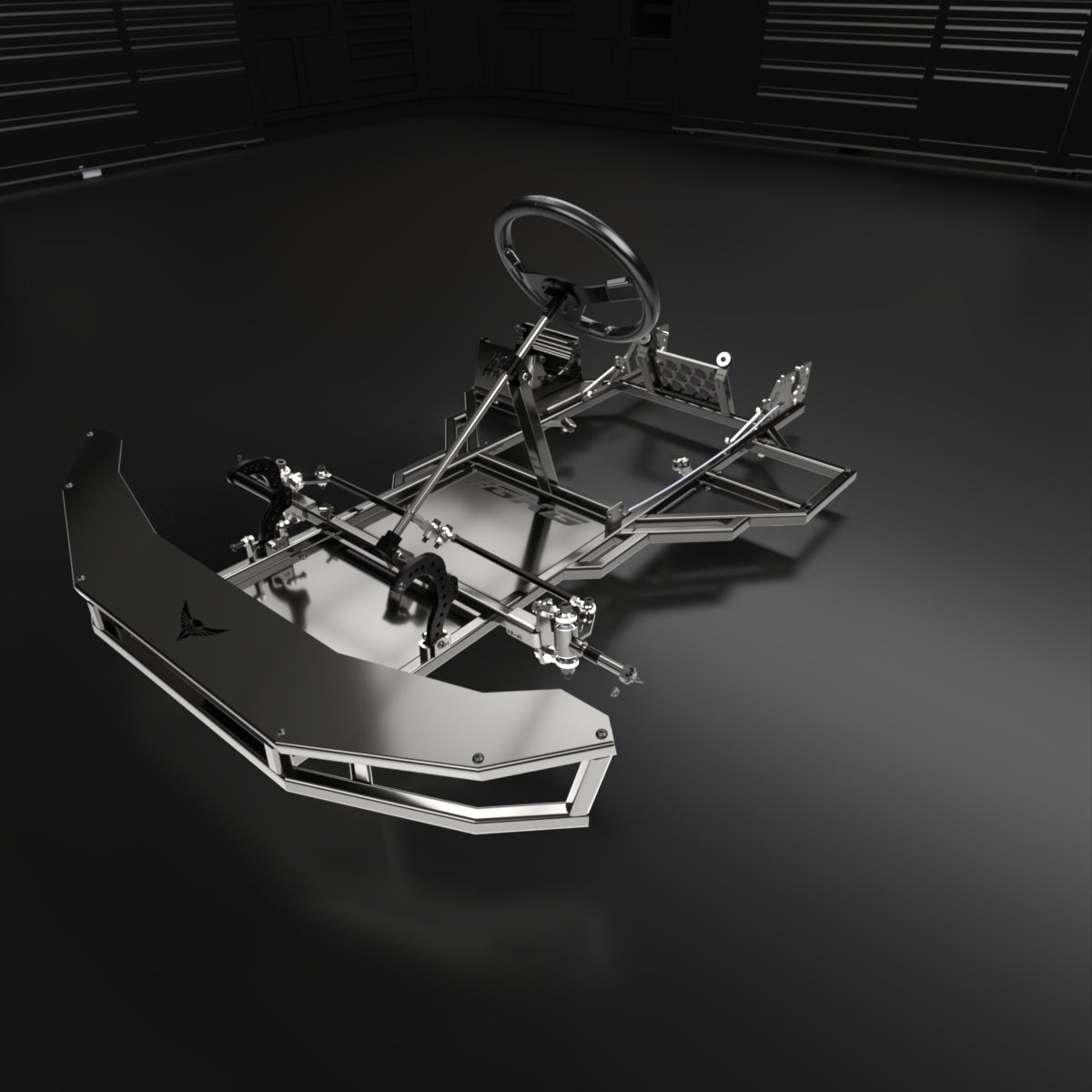

What's in the Frame kit

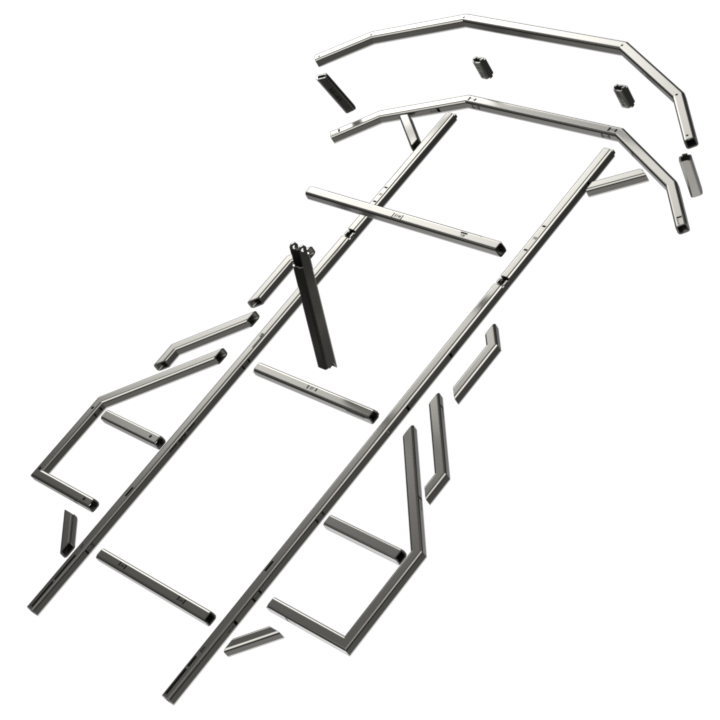

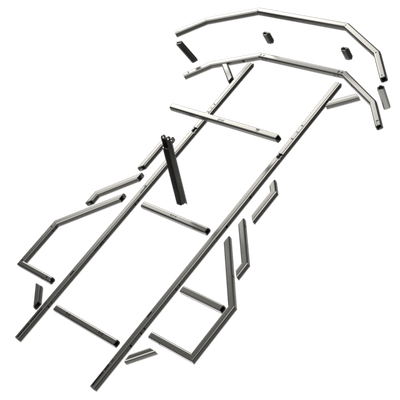

Click & Weld Frame Tubes

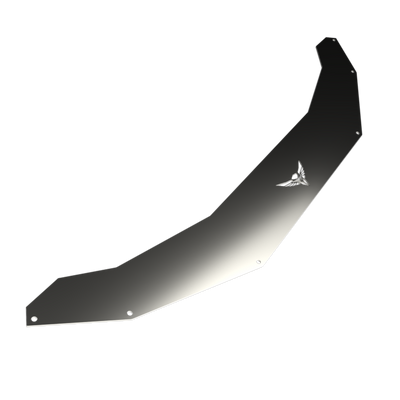

Laser Cut Bumper

Laser cut floorpans

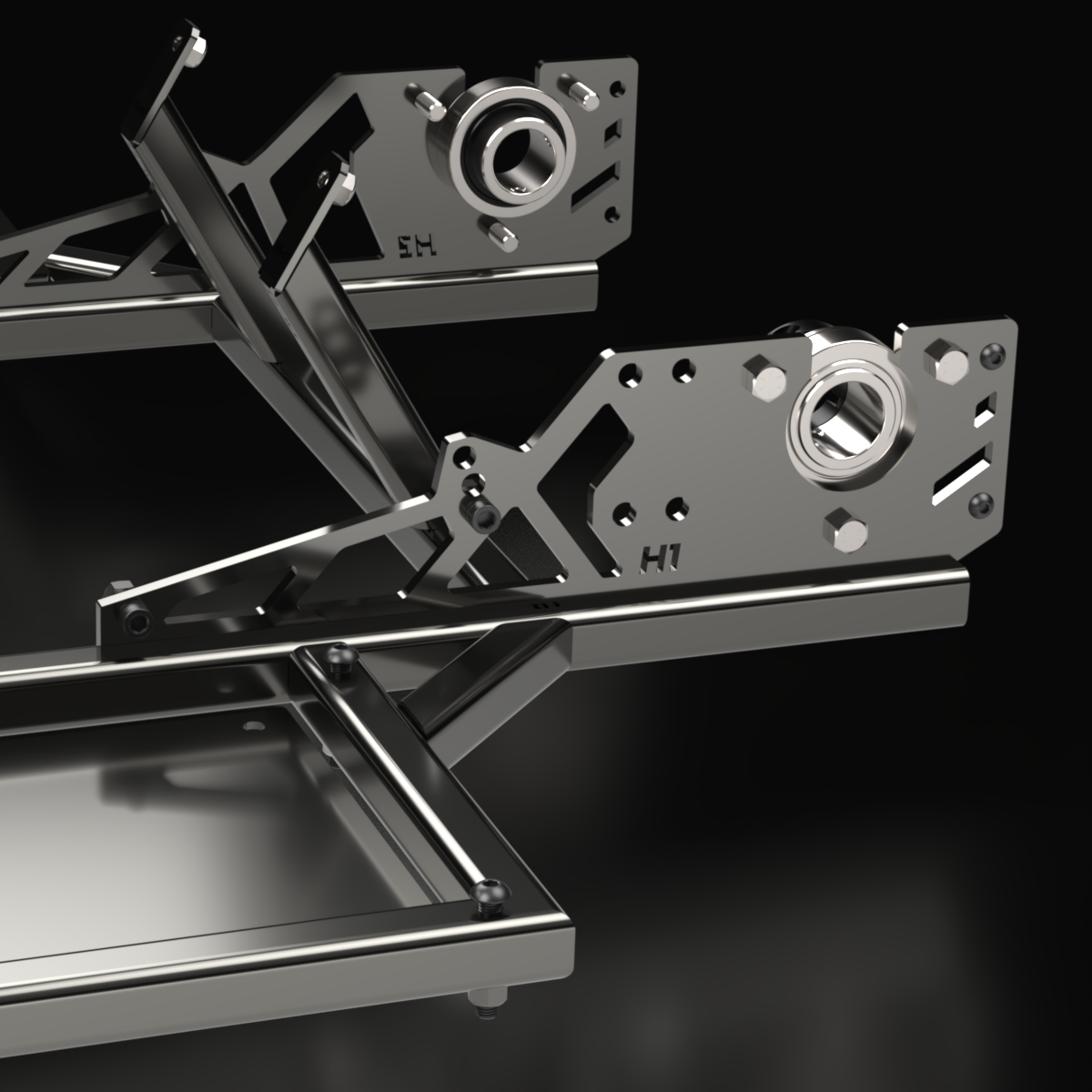

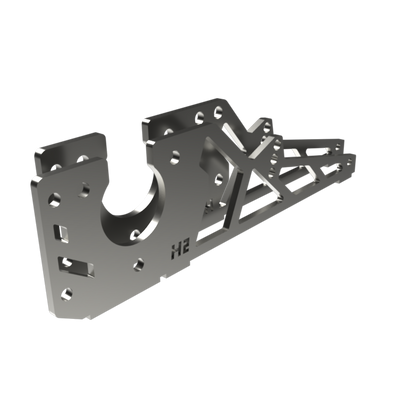

Axle hangers

motor mount plates

weldable mount/tab

welded steering shaft

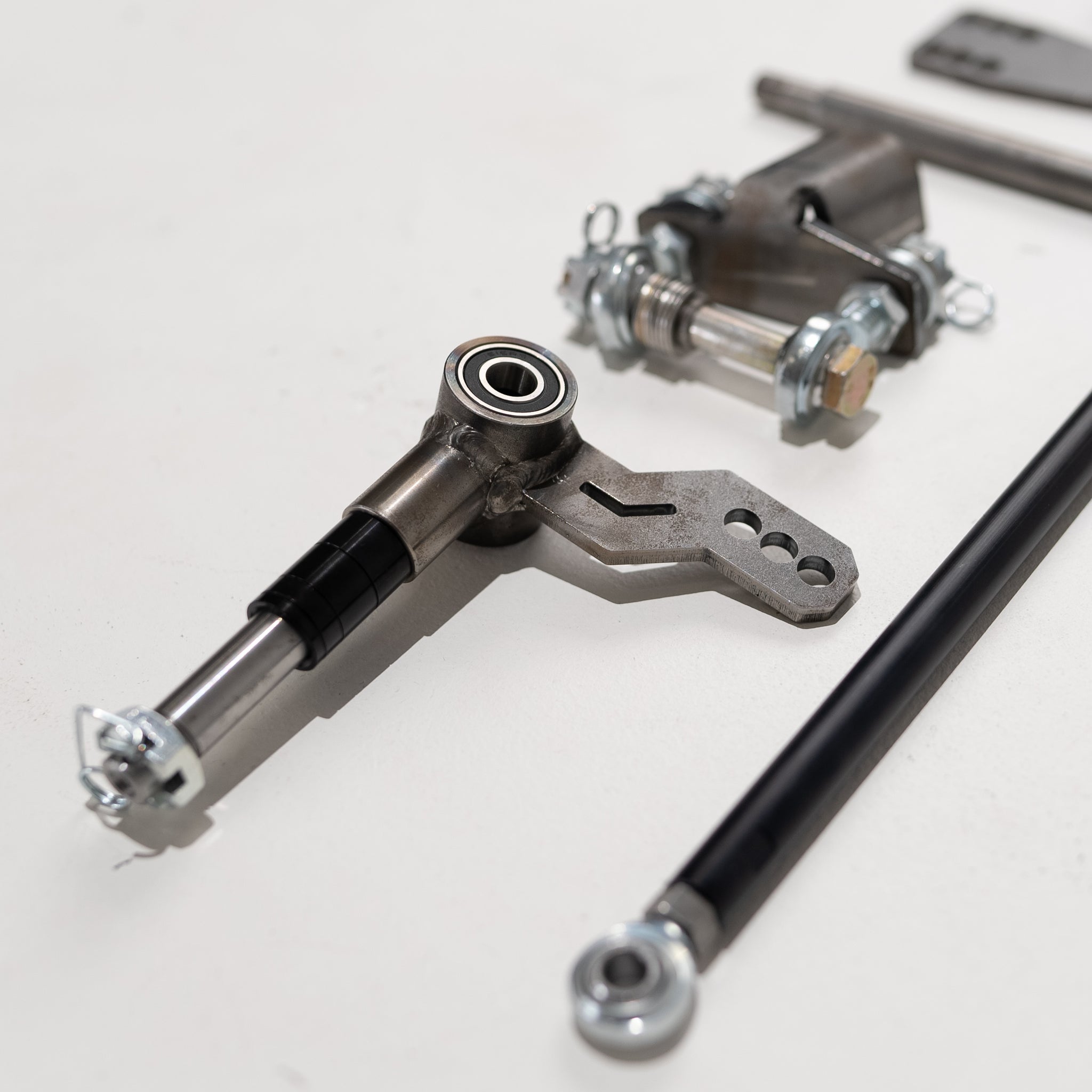

5/8" spindle

Tie Rod assembly

pedal assembly

locking steering block

steering hub + adapter

heavy-duty bauer toolbox

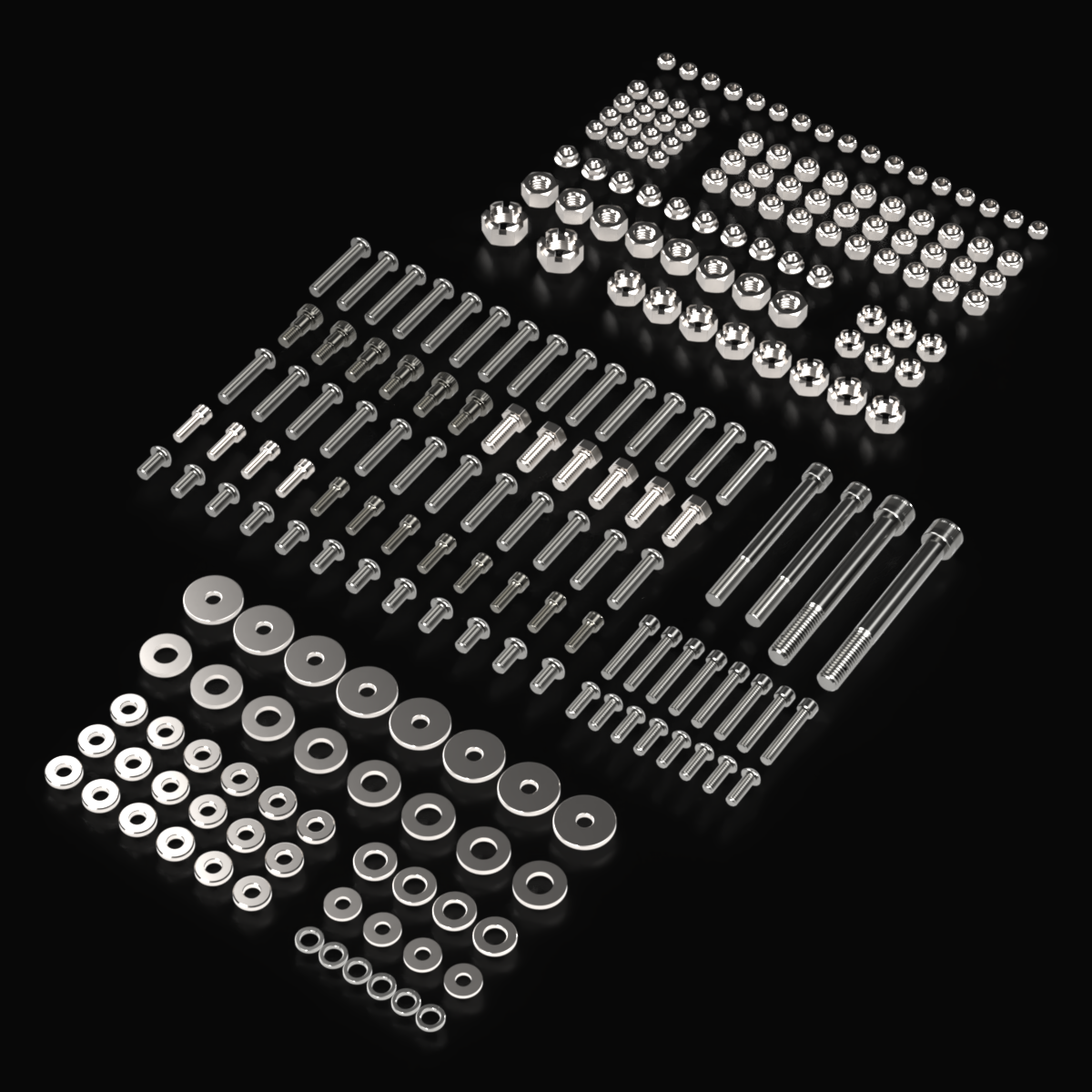

bolts (94+)

nuts (99+)

washers (34+)

Spindle joints + spacers

5/8" steering collar

wheel spacers

rubber seat washer

safety clip

throttle cable

5/16" drill tap

gkg 8pc sticker pack

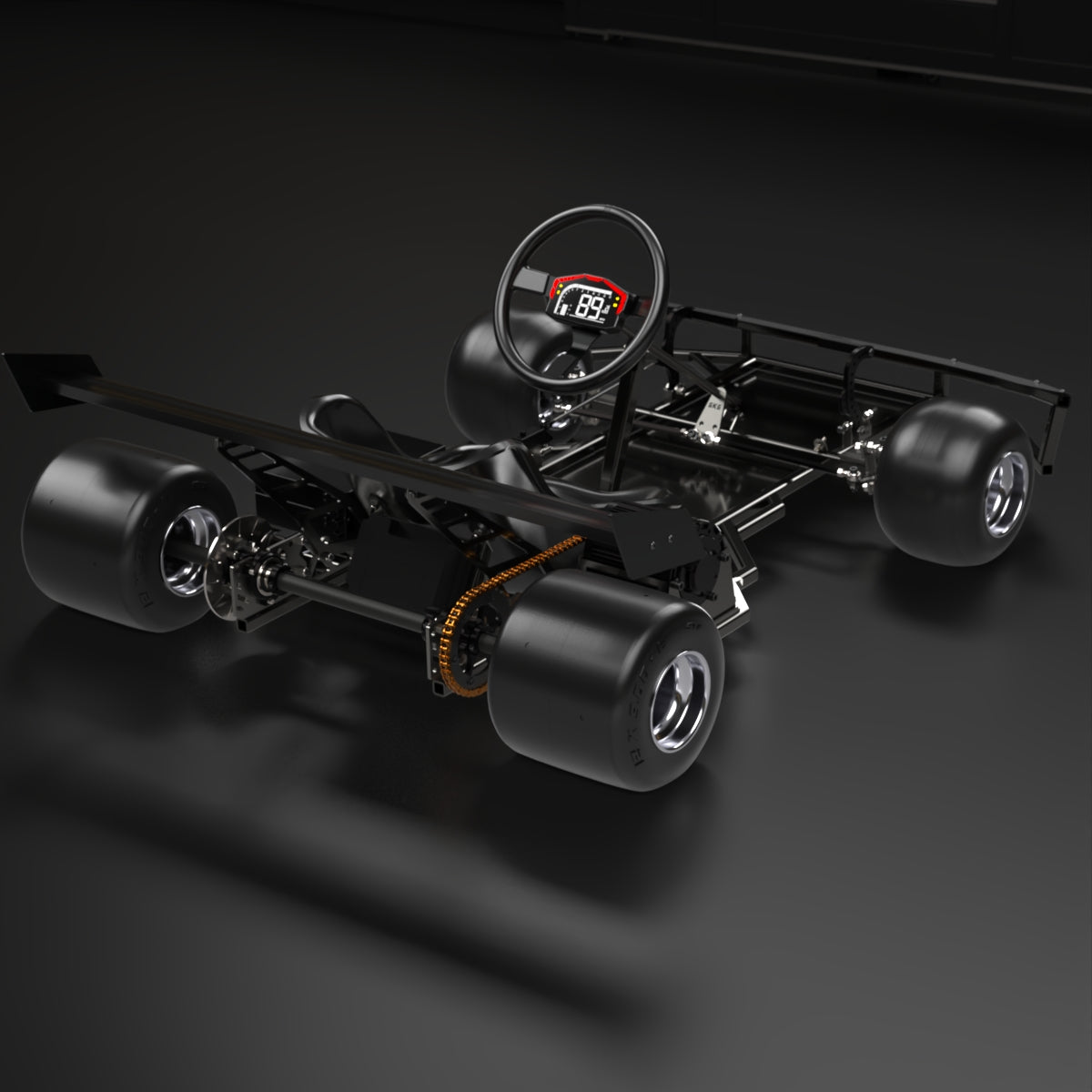

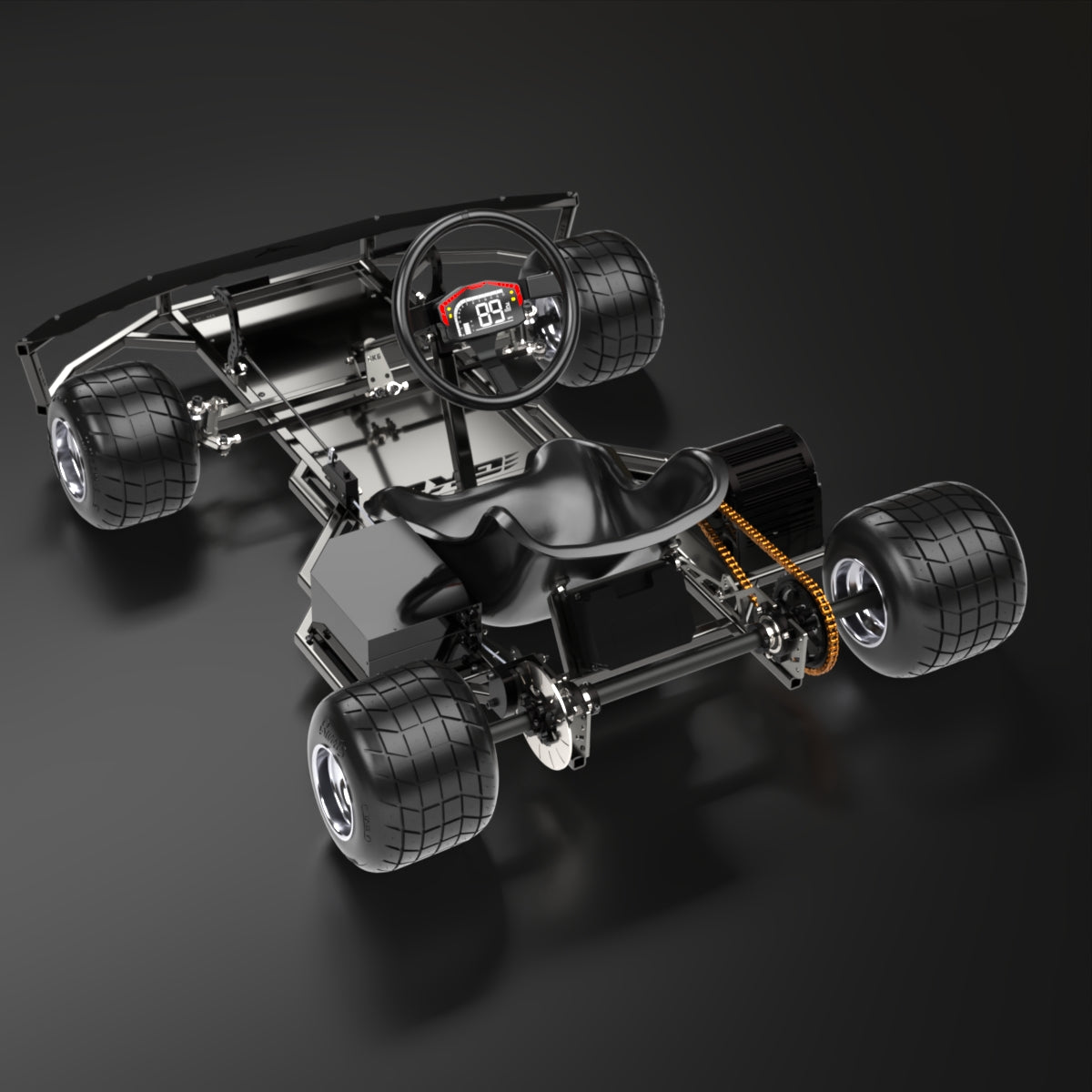

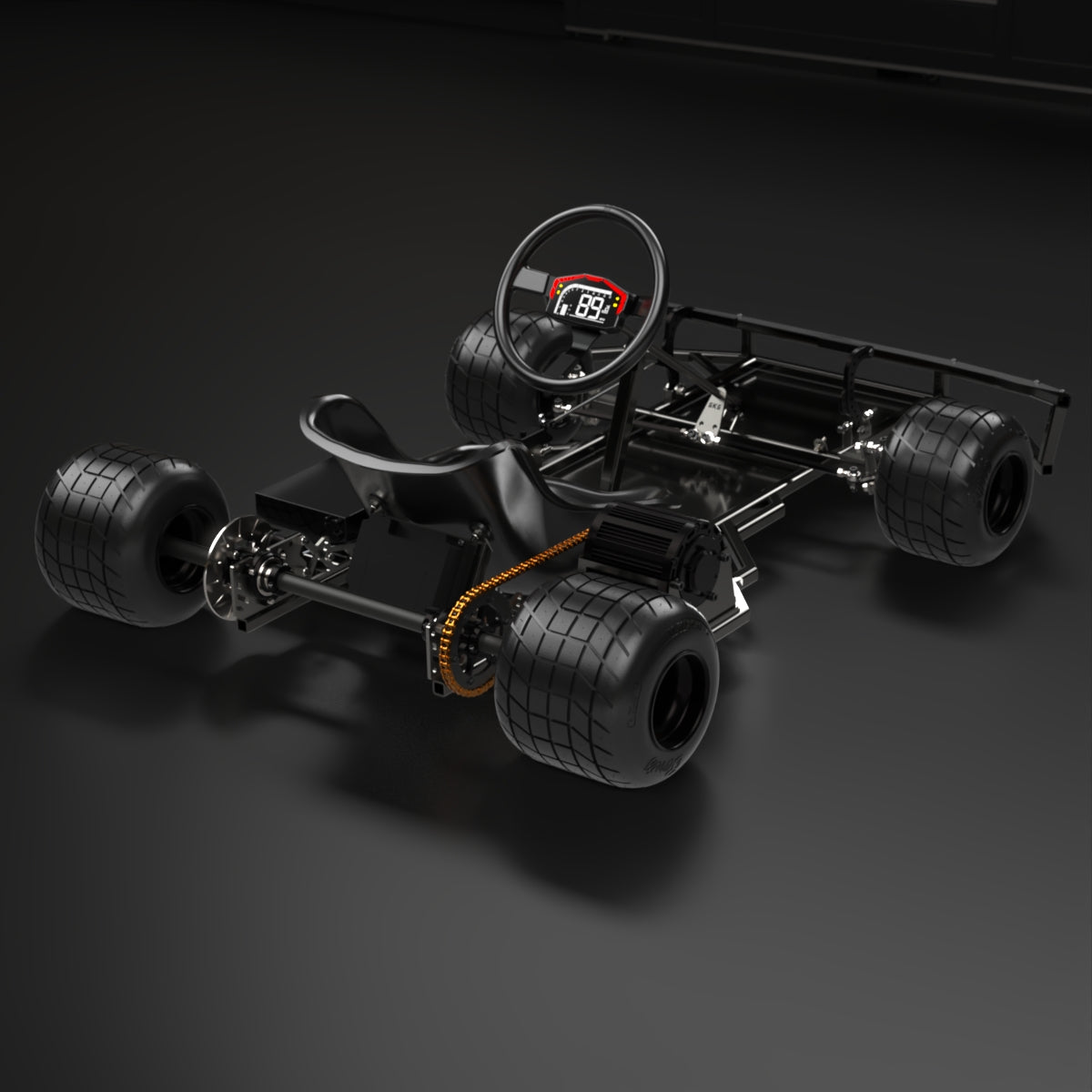

Motor

The QS138 90H brushless mid-drive motor delivers exceptional torque and reaches speeds of up to 7000 rpm, all while maintaining outstanding efficiency. It can easily sustain continuous high output without reaching thermal limits. The sealed housing keeps out dirt and moisture, ensuring optimal protection for internal components.

Battery

High-capacity 72V lithium packs available in 20Ah or 50Ah configurations. Both deliver industry leading discharge rates for aggressive acceleration. Sleek black design with integrated BMS that monitors cell health and keeps the pack balanced for long-term reliability. The 20Ah is a great budget-friendly pack that offers solid run time. The 50Ah model delivers 2.5 times the runtime and offers a maximum output of up to 34.6 horsepower.

Controller

With industry leading reliability, Fardriver controllers get your system powered up and controlled with precision. The ND72450 and ND74680 provide plenty of tire shredding power and have built-in protections for over-temp, over-current, and low voltage keep the system alive even when you're pushing it hard.

Display

Real-time data display mounted in your line of sight. Shows speed, battery voltage, motor temperature, current draw, and system diagnostics while you're driving. Backlit screen stays readable in direct sunlight.

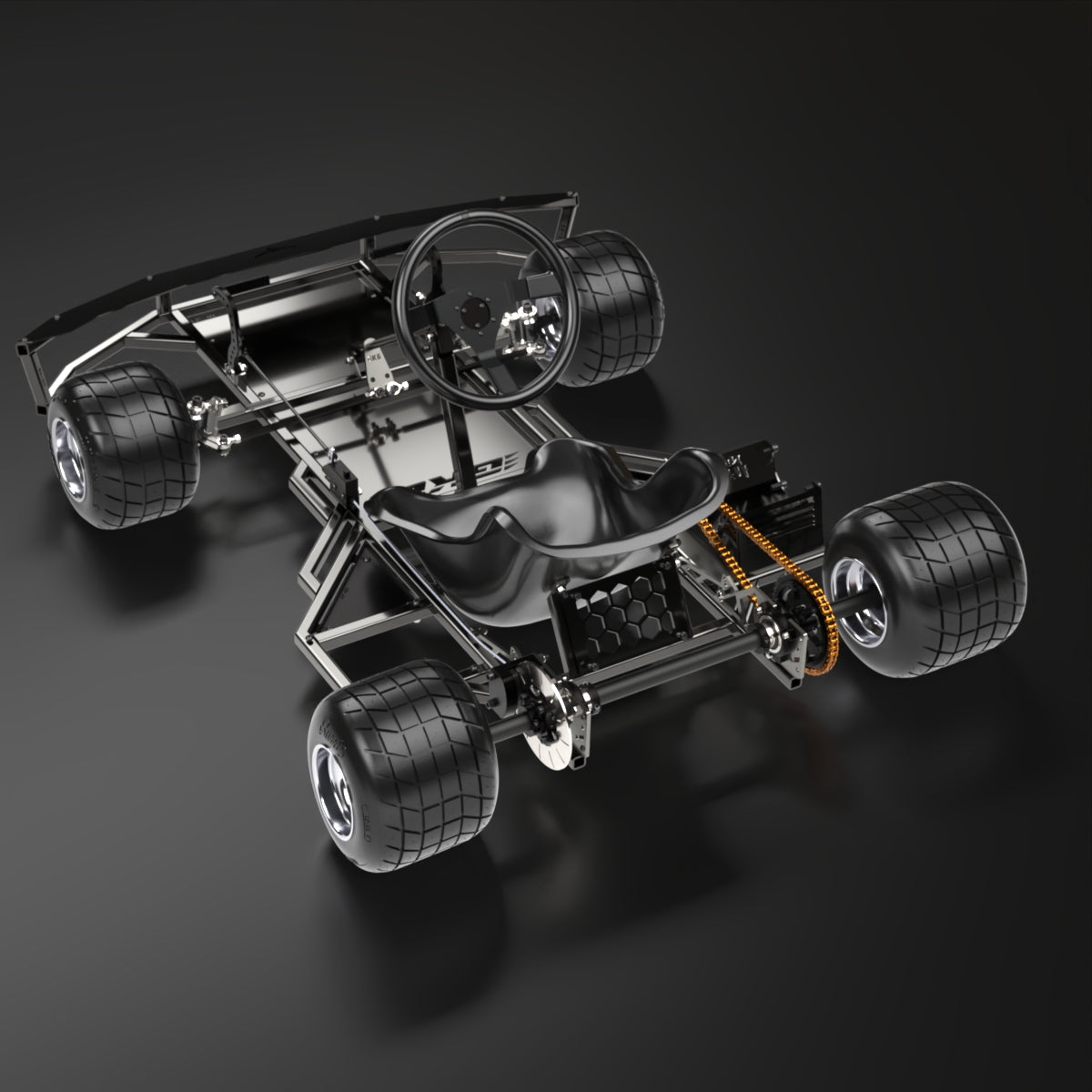

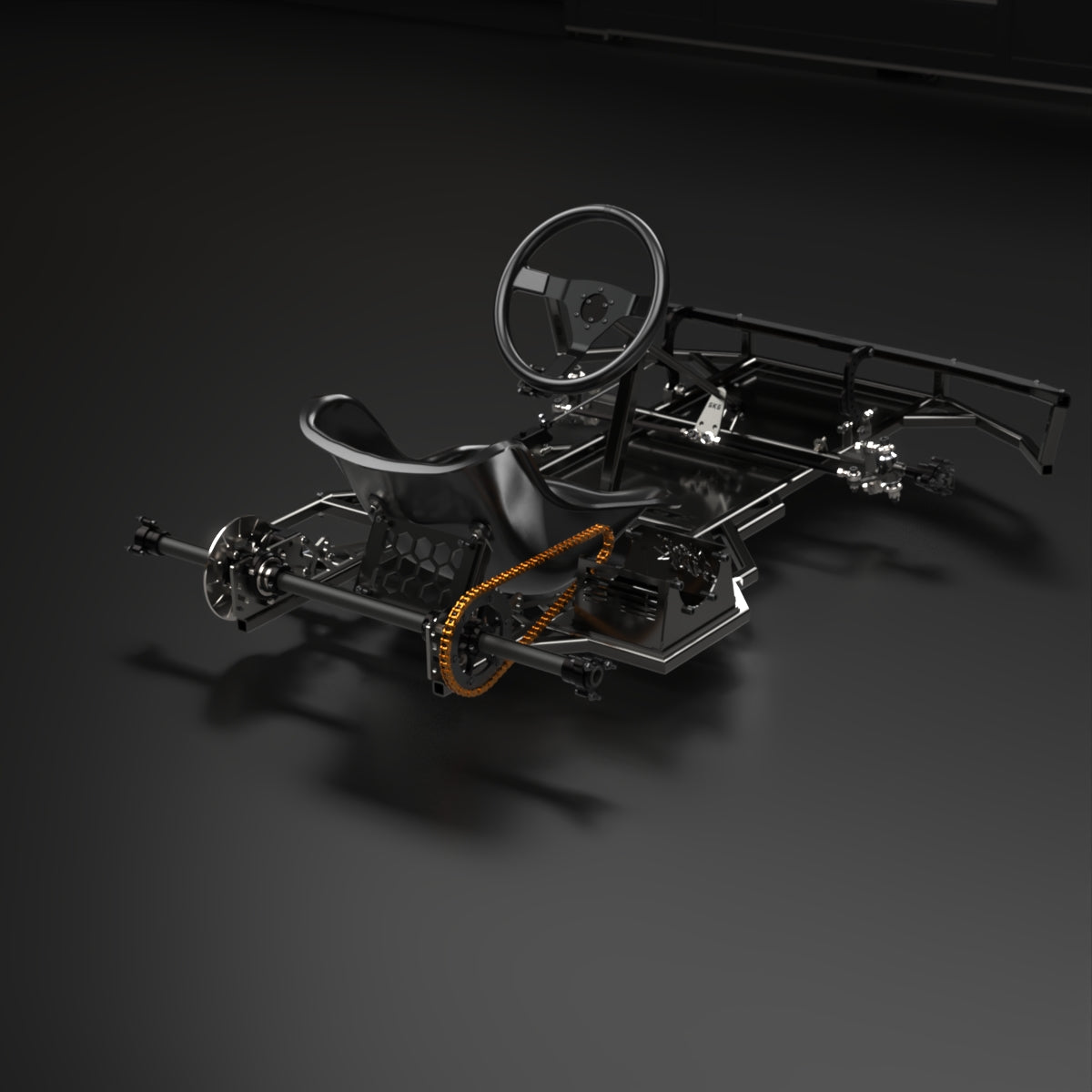

What's in the Parts Kit

mcp 7/8" master cylinder

mcp adjustable caliper

go kart seat

40" rear axle

5/8" front hubs

1-1/4" rear hubs

42 tooth #428 sprocket

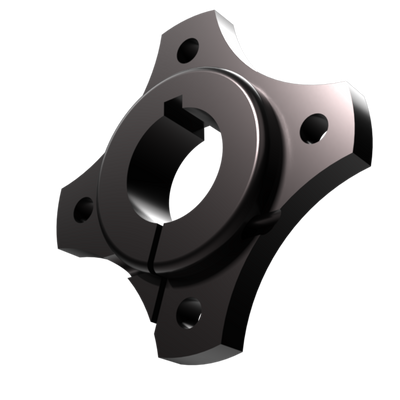

Sprocket hub

X" #428 Chain

chain master links

brake hub

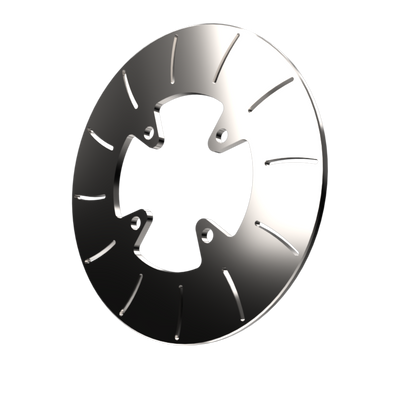

brake rotor

14" brake rod

clevis pins

axle bearings

axle carriers

axle collars

brake line

8oz brake fluid

brake bleeder system

Motor	QS90H
Battery Capacity	20AH or 50AH
Battery Voltage	72V
Horsepower	Up to 34.6 HP
Frame Material	1x1 .120" wall A513 Steel
Axle	40" Rear Axle
Spindle	Hawk V3 - 5/8" Shaft
Caster	6 Deg.
Camber	Adjustable
Toe	Adjustable
Tie Rod Length	14"
Brake System Compatibility	MCP Brakes
Weight (Frame)	65 lbs
Weight (Loaded)	185 lbs
Clearance	3"

Minimal maintenance compared to gas karts. Check chain tension regularly, inspect brake pads for wear, and keep the chain lubricated. The motor and controller are sealed units requiring no maintenance. Store the battery at 50-70% charge if not using the kart for extended periods.
Max seat size we supply is XXL, which typically fits drivers up to 250 lbs and around 6'4".
The Hawk V3 Electric comes standard with #428 chain and matching sprocket. This is a robust chain size providing excellent durability and power transfer.
A semi-experienced builder should expect to complete assembly in a weekend - from unboxing to riding. This assumes basic familiarity with hand tools and welding.
First-time builders or those new to fabrication should plan for additional time to work through the build carefully and ensure everything is assembled correctly.

The electric version offers instant torque, zero maintenance on the engine. The electric is more family friendly due to customizable speeds and parental controls.
No—designed for closed courses, private roads, and track environments.
Basic hand tools and fabrication equipment:
Hand Tools: Socket set, Allen keys, adjustable wrench
Power Tools: Drill
Fabrication: Welder (MIG or TIG) - required for frame assembly and motor mounts.
While the whole family can ride, minor modifications may be necessary for children under 5'4".
